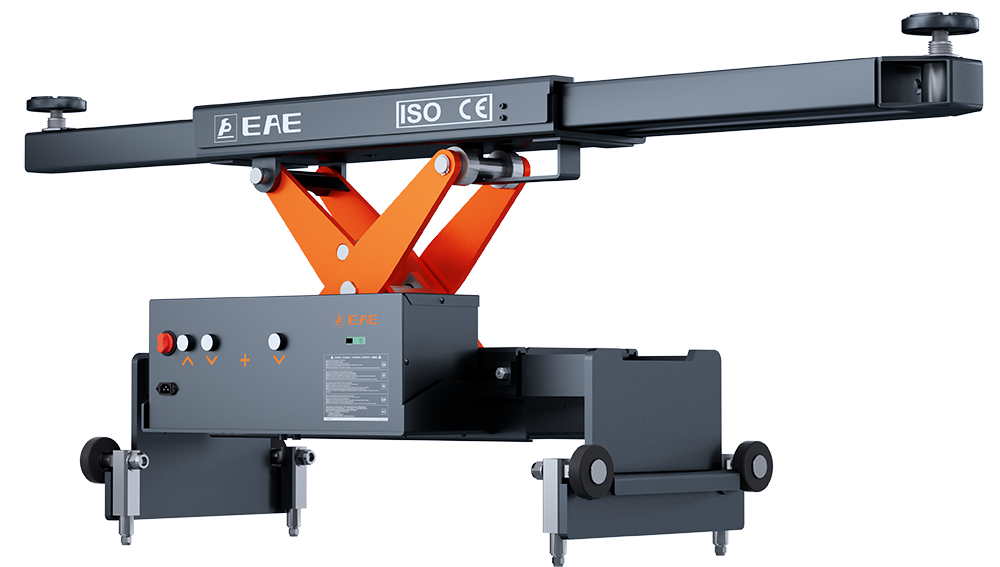

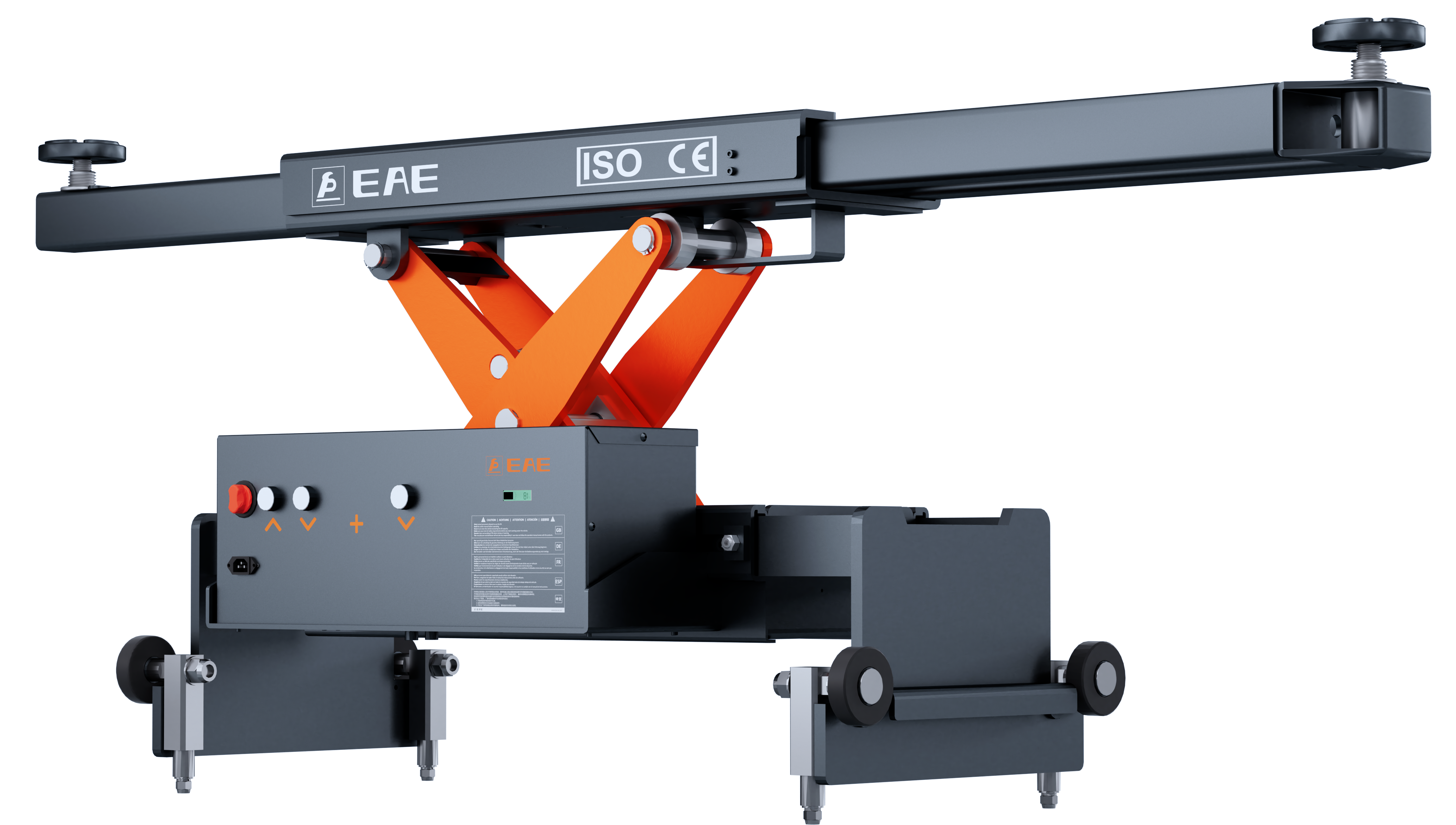

·4-Ton Lifting Capacity: Handle most sedans, large MPVs, heavy-duty SUVs, pickup trucks, and light trucks.
·Wide Wheelbase Compatibility: An adjustable support beam (880mm - 1920mm) accommodates vehicles with broader stances, including large MPVs, heavy-duty pickups, and even school buses.
·An effective height of 400mm over platform, sufficient to lift large tires to a free-rolling state. (R22, approx. 850mm diameter)
·Minimum Height over platform: 110mm, easy access for low-clearance vehicles
·Powered by Lead-acid battery. A full charge delivers approximately 60 lifting cycles at rated capacity (at 20°C ambient temperature).
·Electric Hydraulic Drive, low operating noise.
·Electric push-button control for easy and convenient operation.
·Mechanical Locks with electric release, no external air supply required.
·Standard Jack includes 4 height extensions for increased lifting height. (2 pieces with an effective height of 100mm and 2 pieces with an effective height of 50mm)
·Mechanical Safety Locks: Prevent uncontrolled descent.
·Two-button Descent Operation: Prevent accidental crushing due to accidental lowering.
·Spring-Loaded Cradle Structure: Prevent unintended movement.

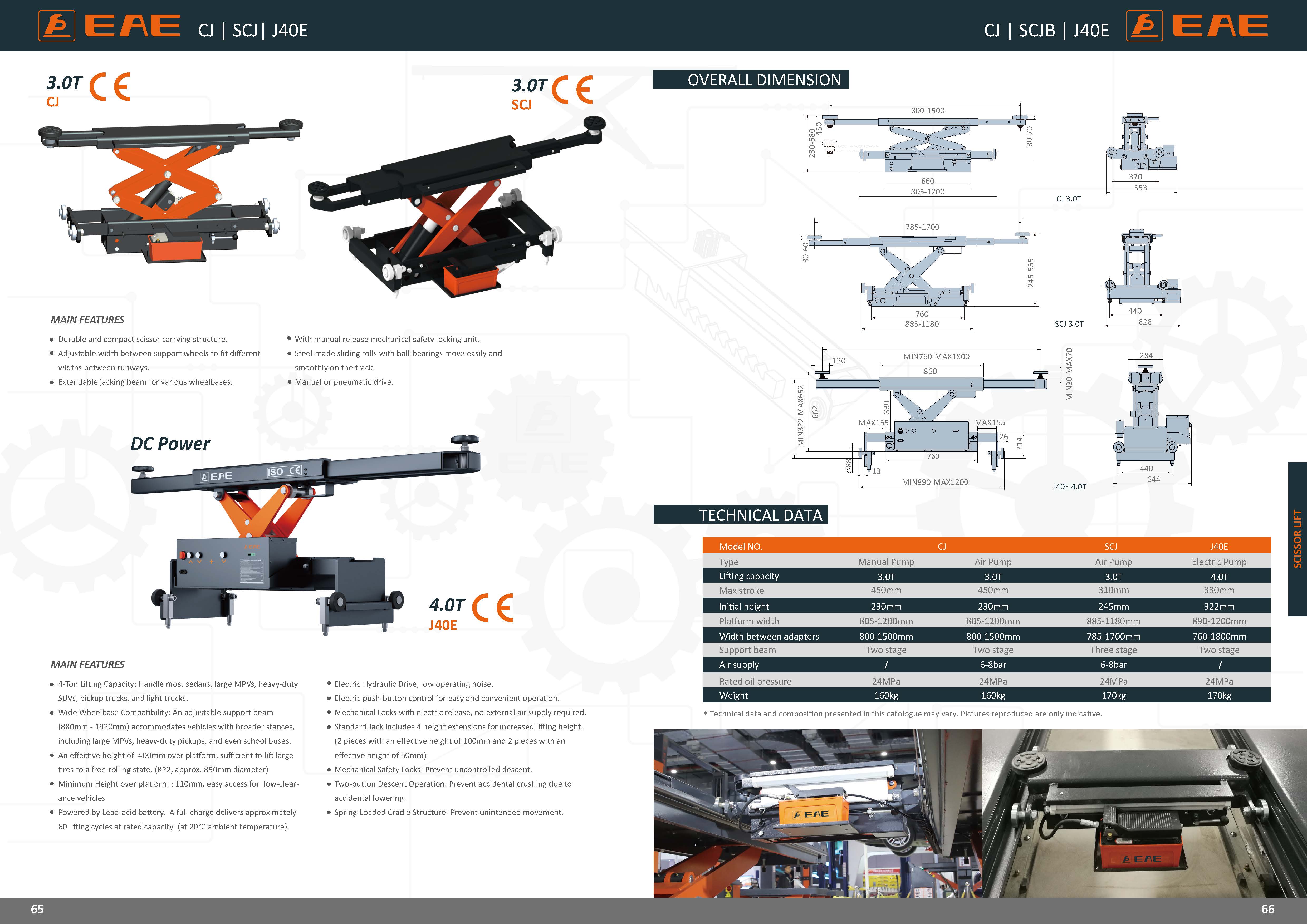

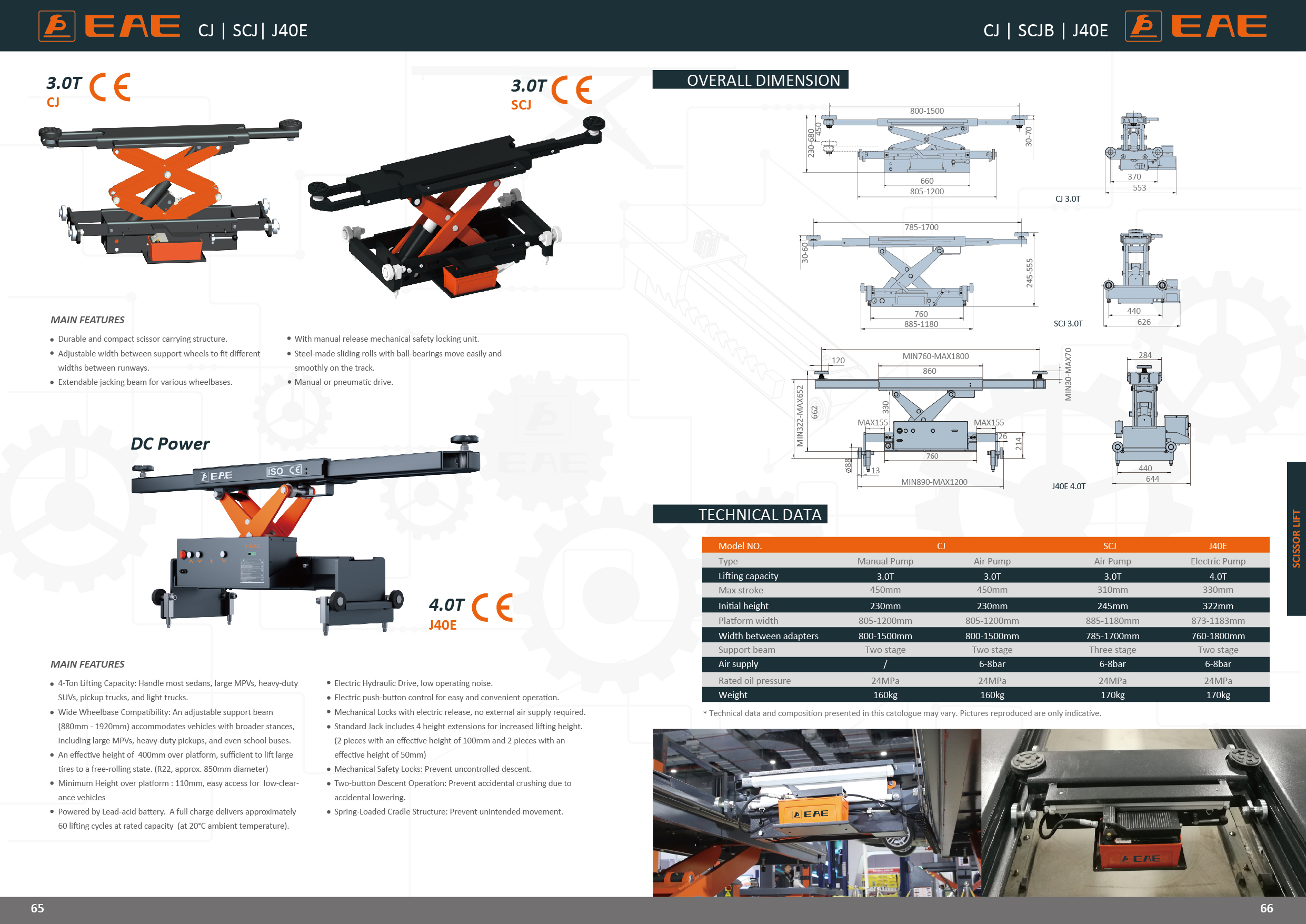

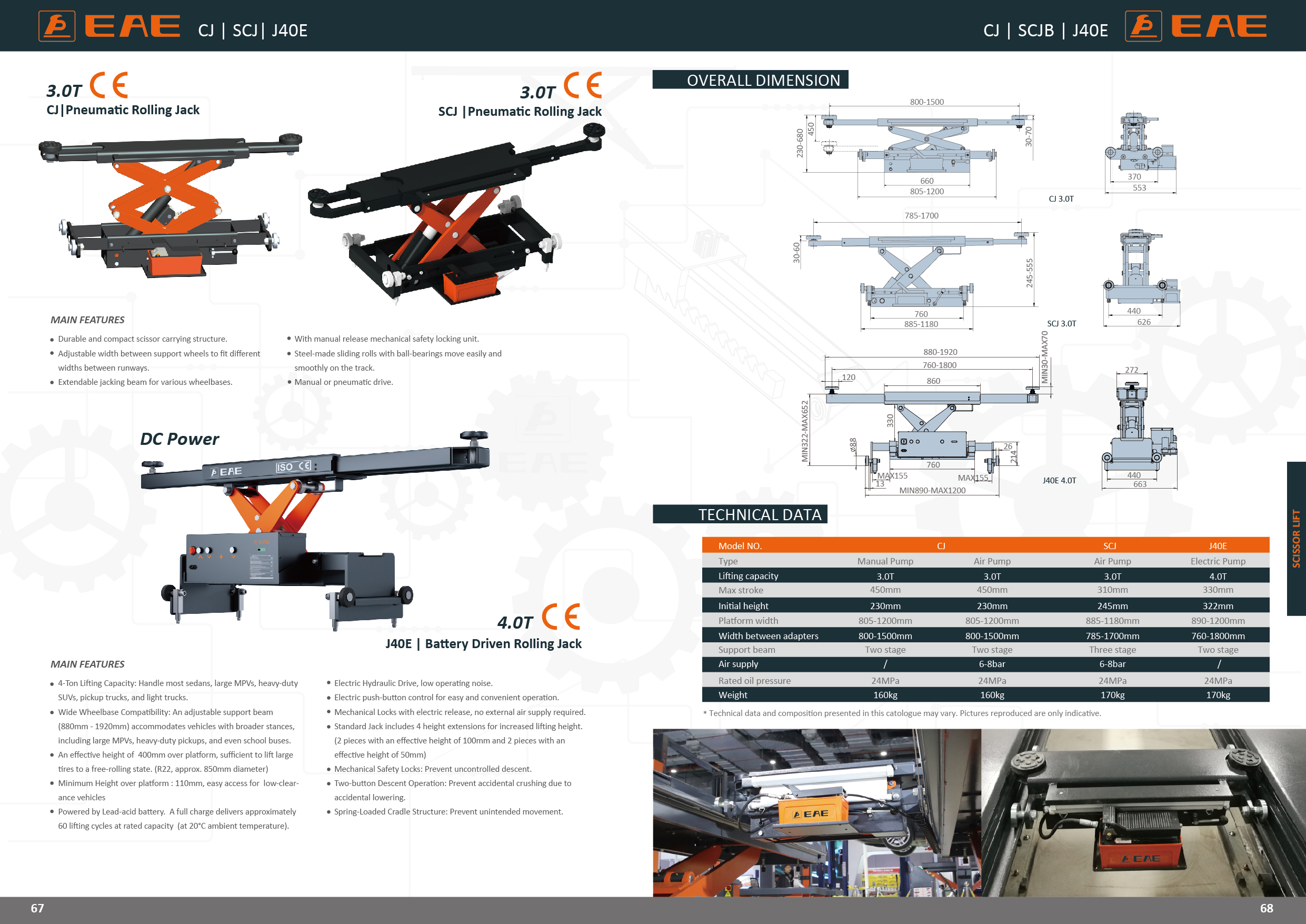

| Model NO. | CJ | SCJ | J40E | |
| Type | Manual Pump | Air Pump | Air Pump | Electric Pump |
| Lifting capacity | 3.0T | 3.0T | 3.0T | 4.0T |
| Max stroke | 450mm | 450mm | 310mm | 330mm |
| Initial height | 230mm | 230mm | 245mm | 322mm |
| Platform width | 805-1200mm | 805-1200mm | 885-1180mm | 873-1183mm |
| Width between adapters | 800-1500mm | 800-1500mm | 785-1700mm | 760-1800mm |
| Support beam | Two stage | Two stage | Three stage | Two stage |
| Air supply | / | 6-8bar | 6-8bar | 6-8bar |
| Rated oil pressure | 24MPa | 24MPa | 24MPa | 24MPa |
| Weight | 160kg | 160kg | 170kg | 170kg |
