LS45 | 4.5T FULL RISE SCISSOR LIFT

Share:

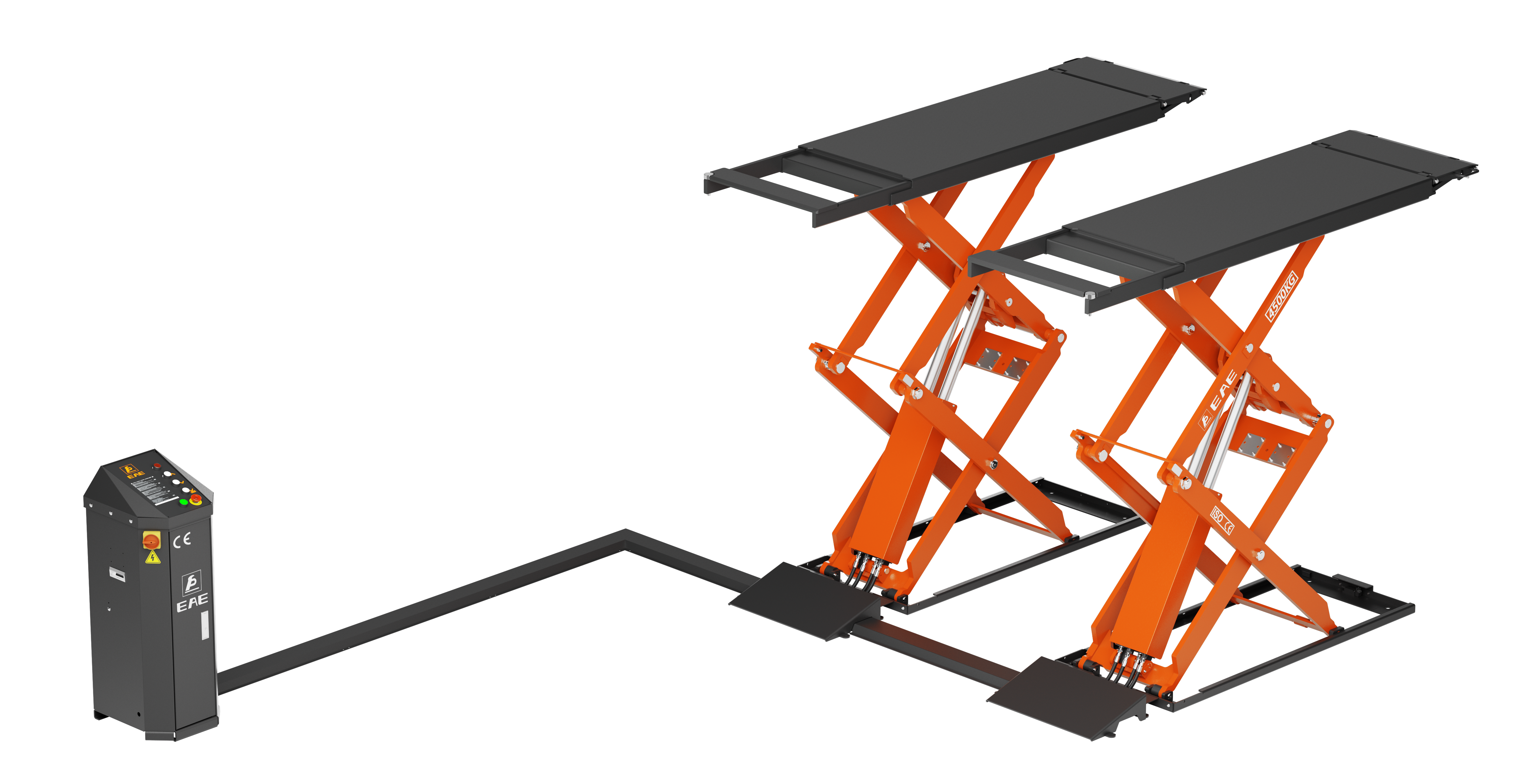

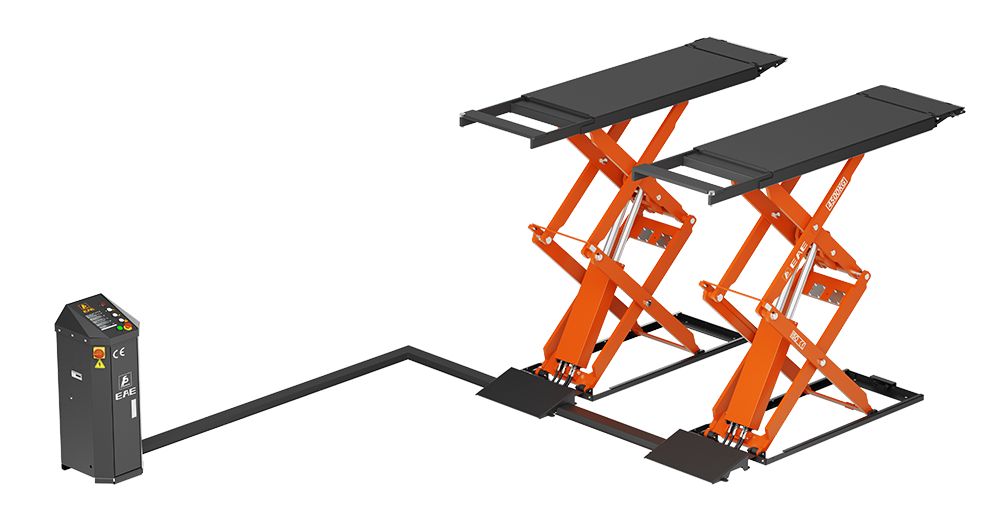

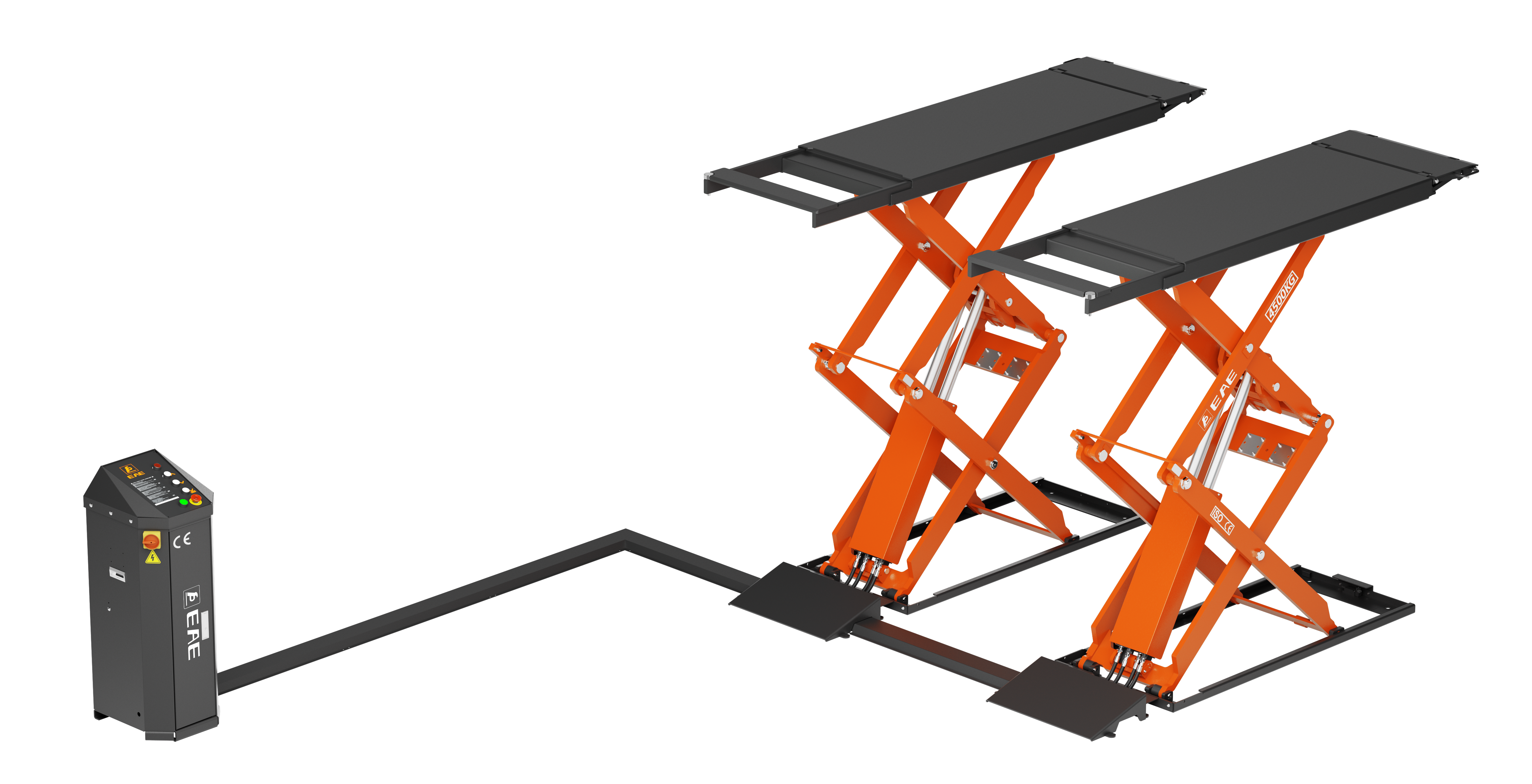

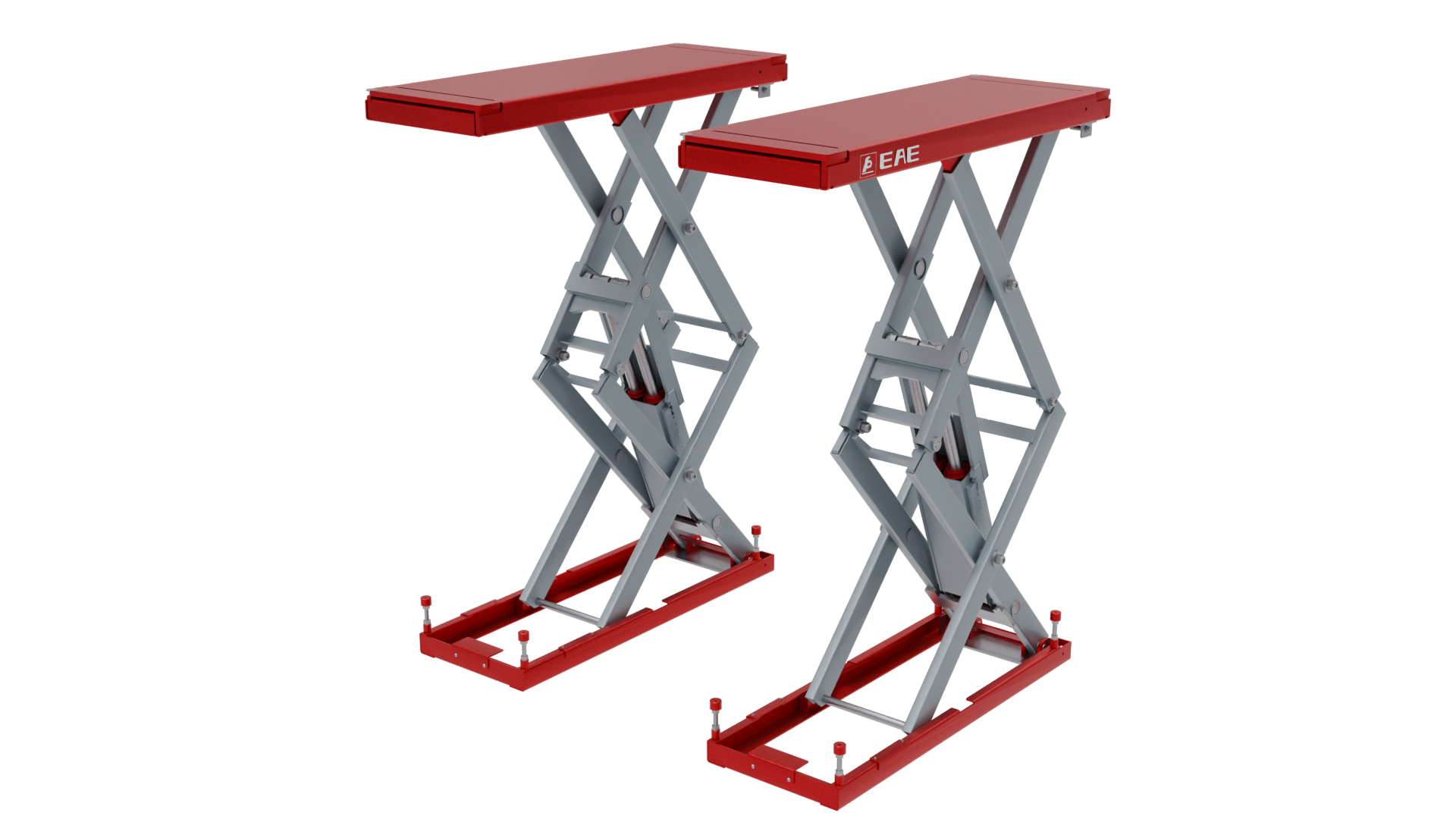

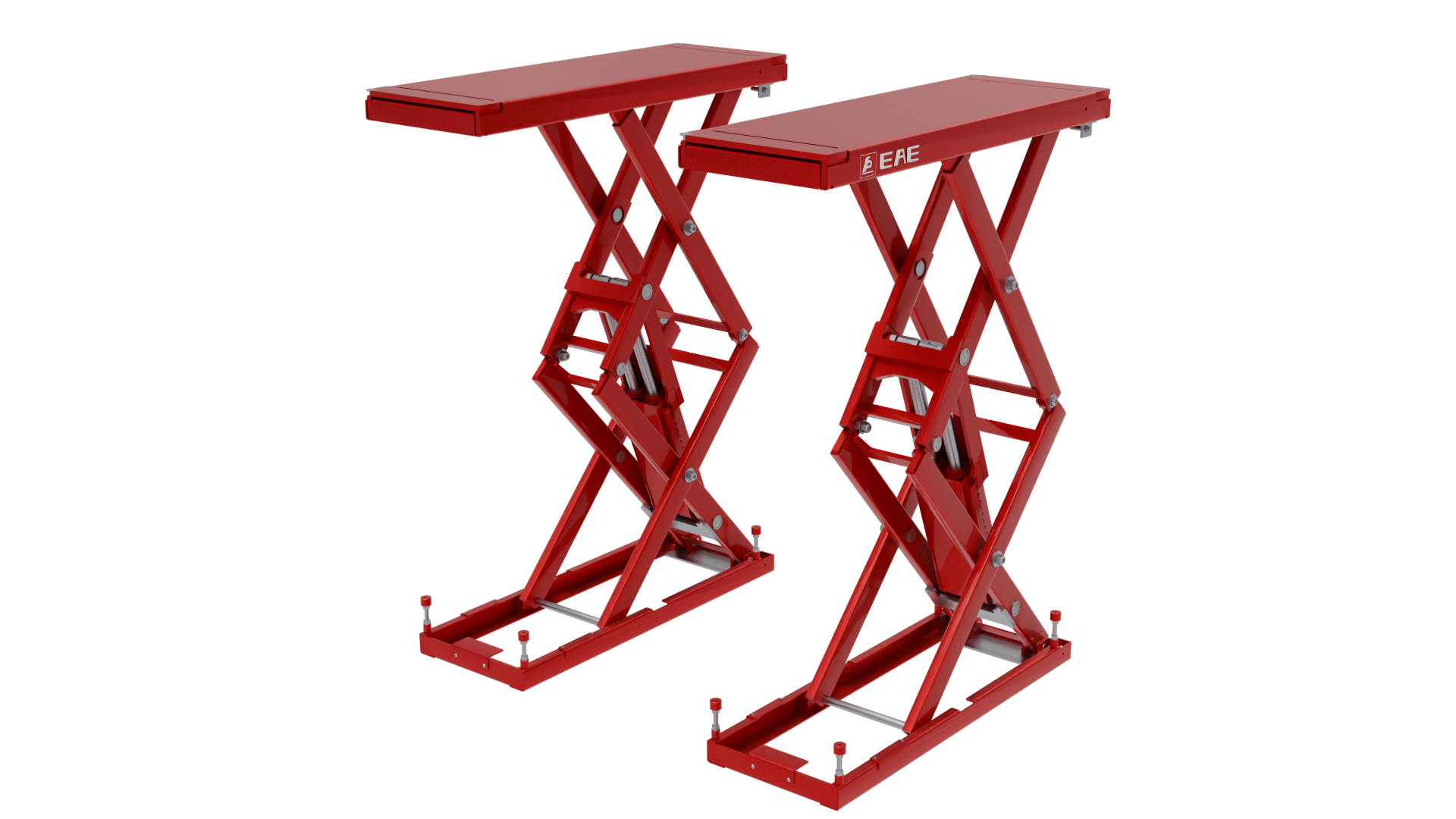

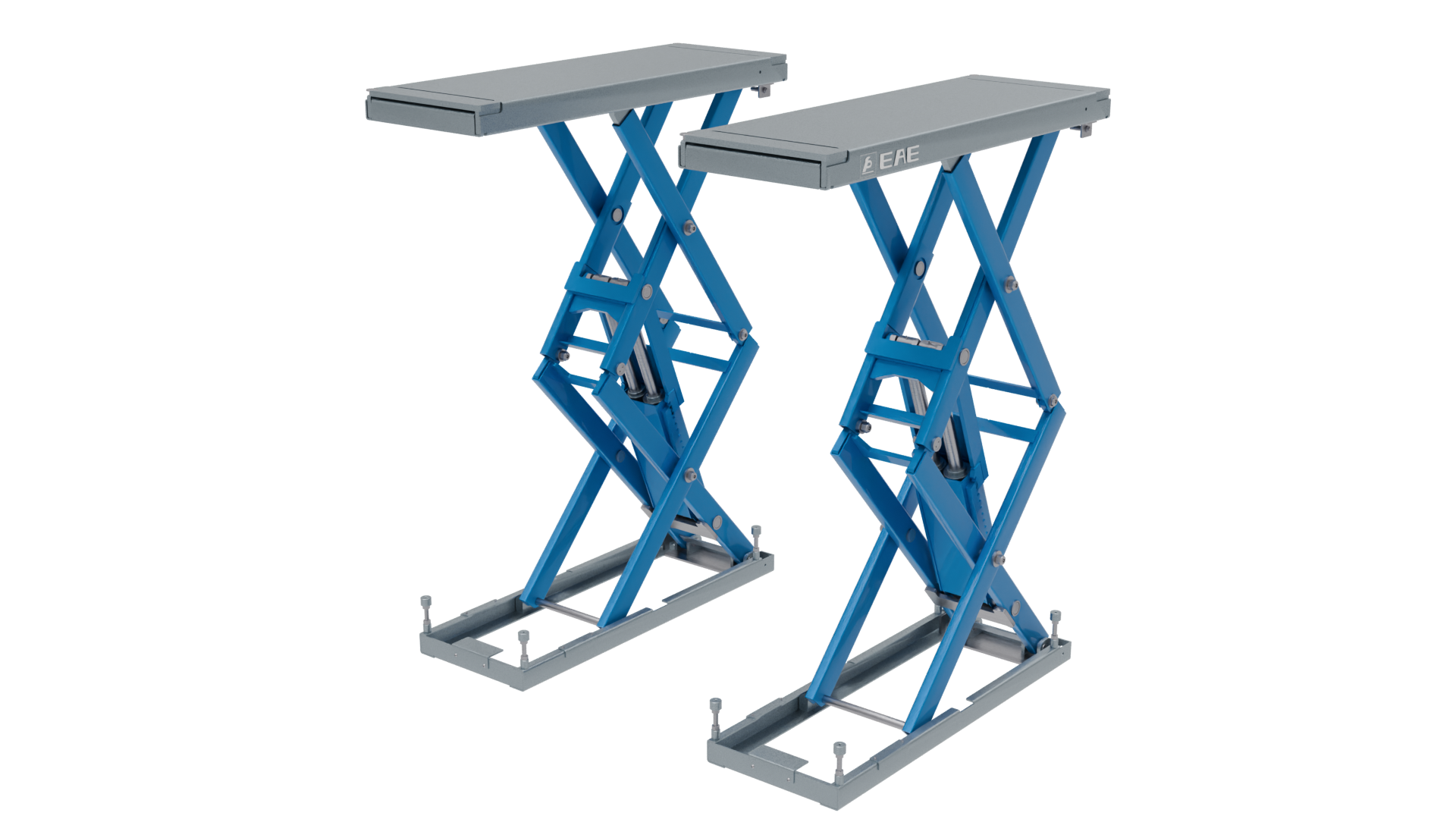

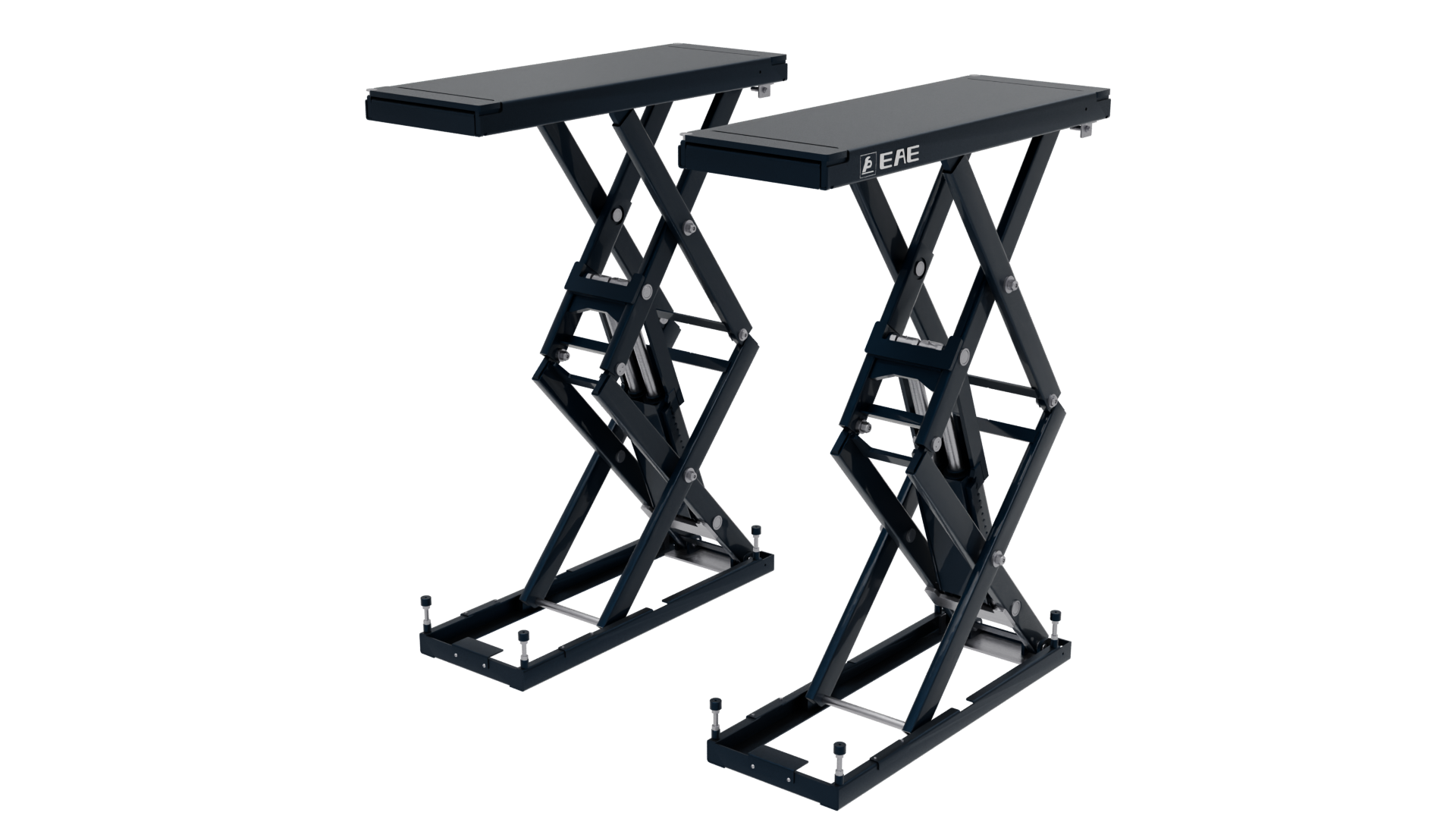

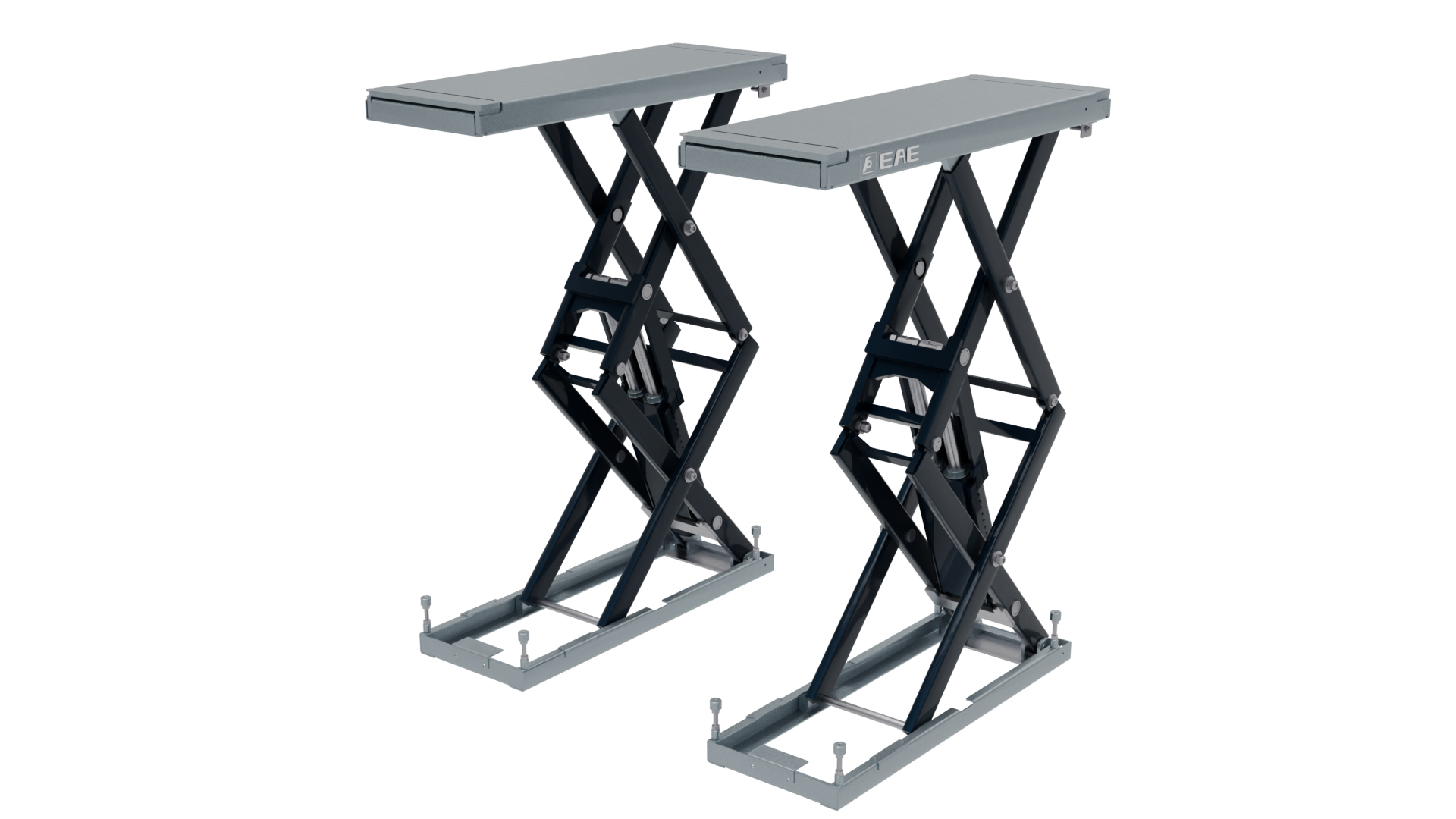

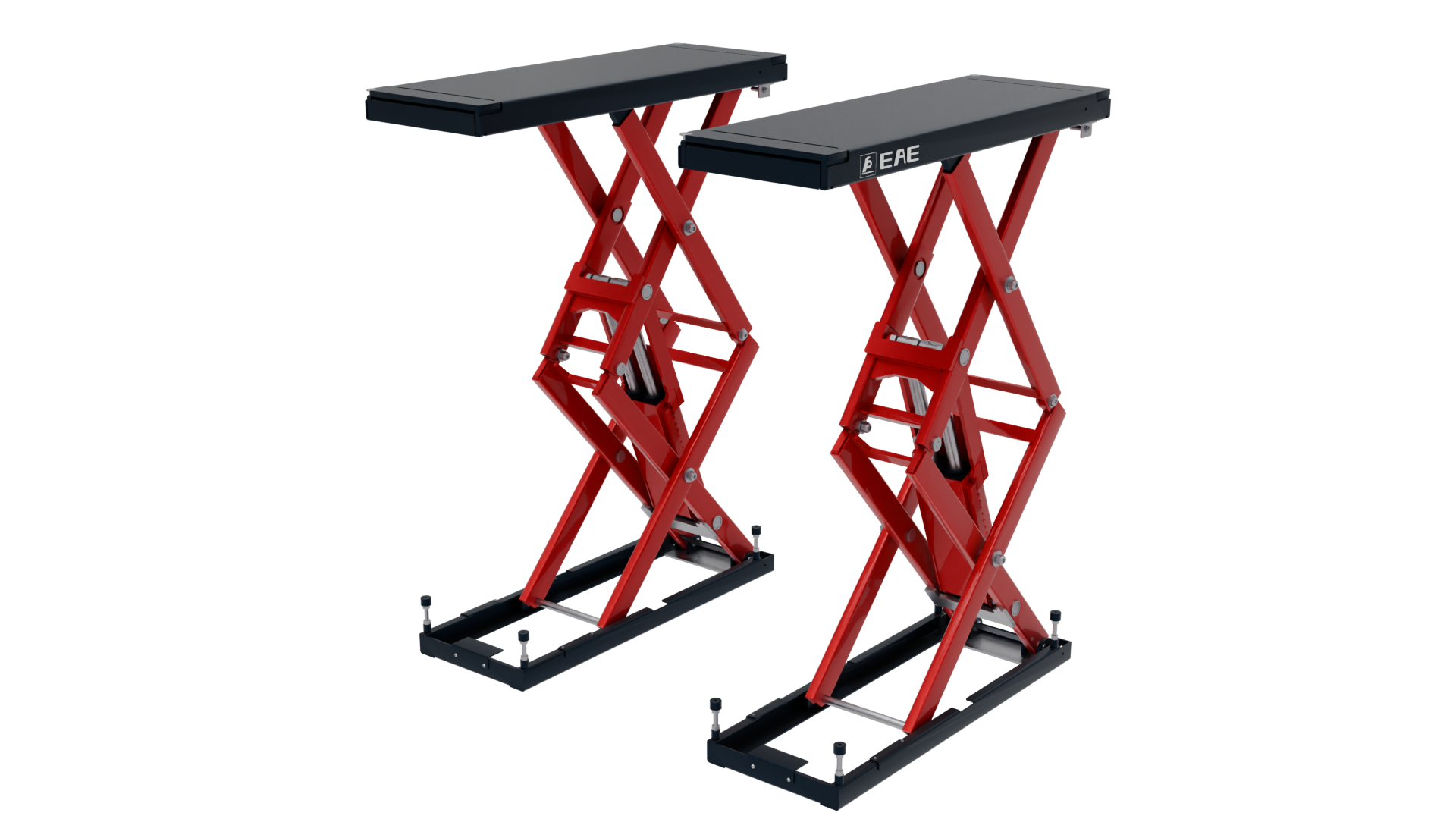

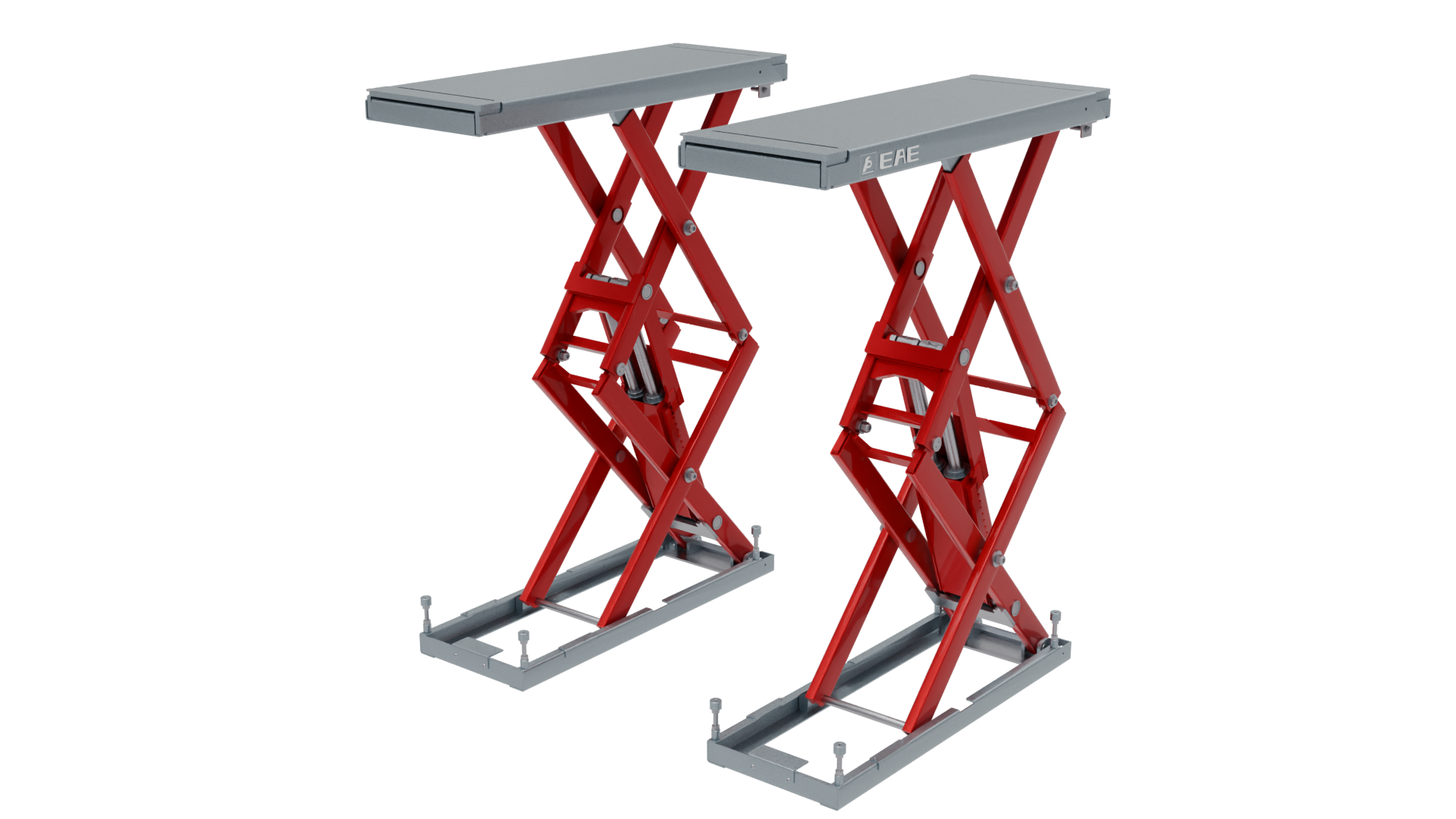

Product Image

EAE

  • 2000mm

    Max Lifting Height

  • 130mm

    Min Height

  • 1595-2300mm

    Platform Length

  • 642mm

    Platform Width

  • 55s

    Lifting Time

Details
Accessories
Technical Data
Description

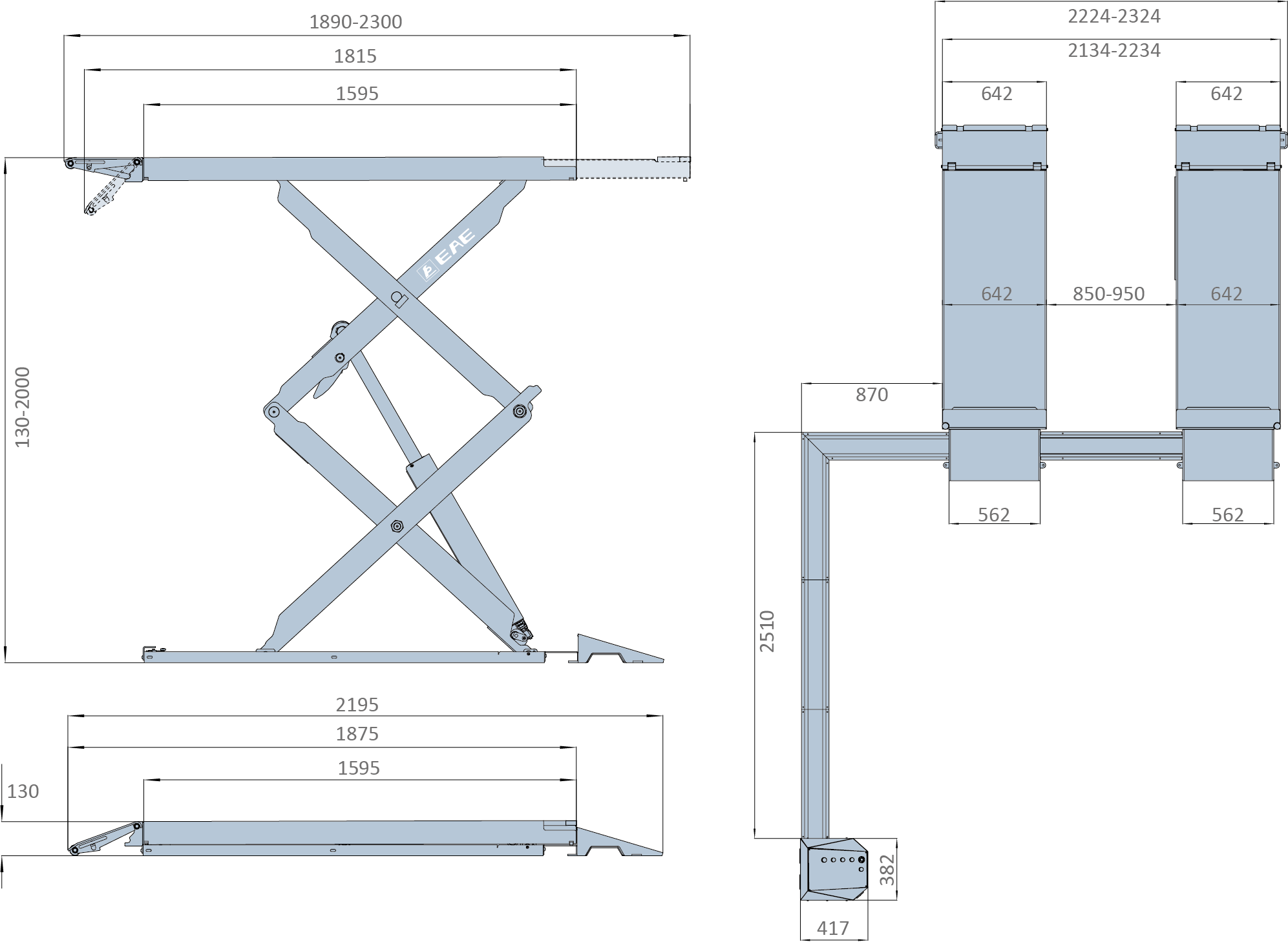

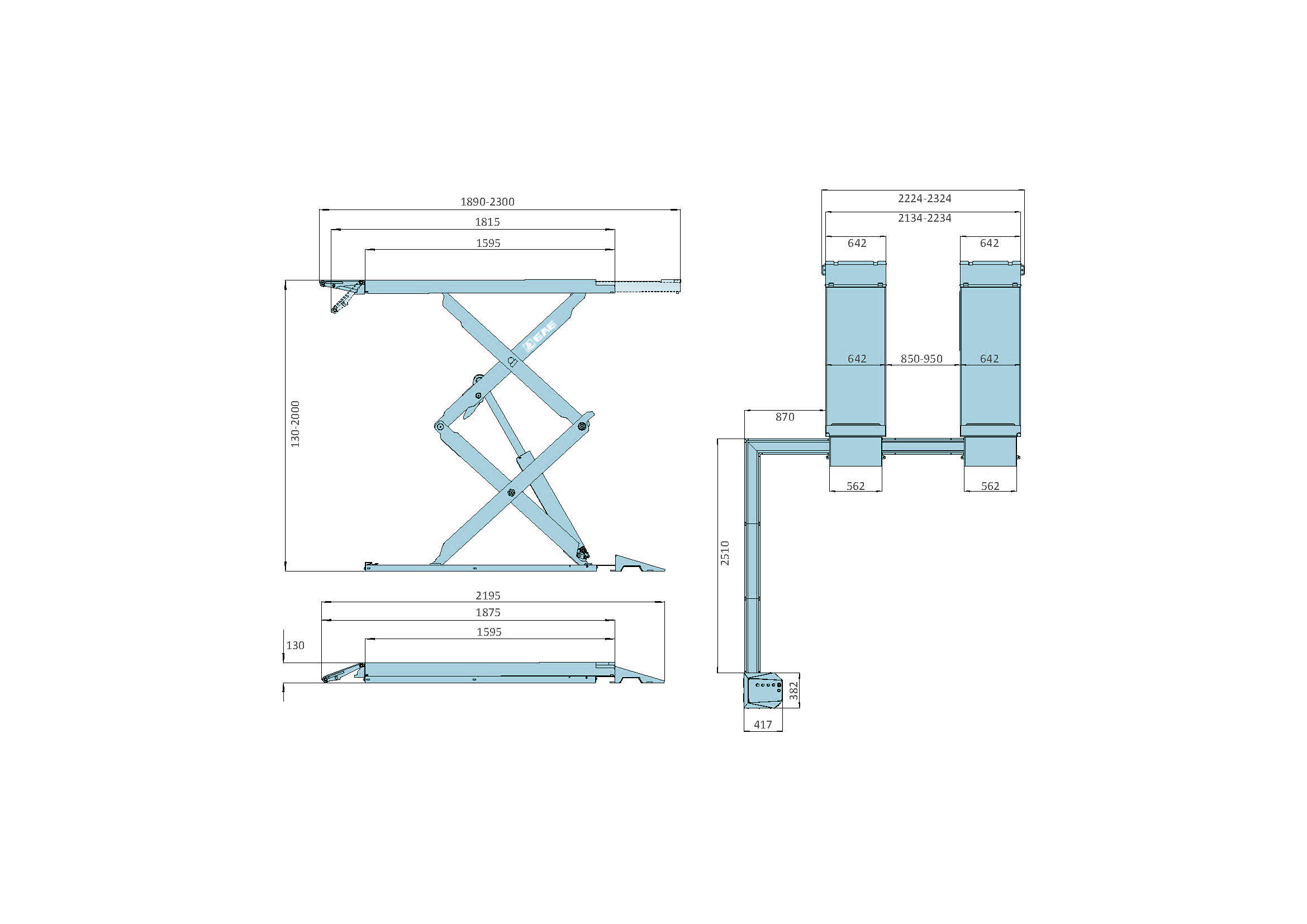

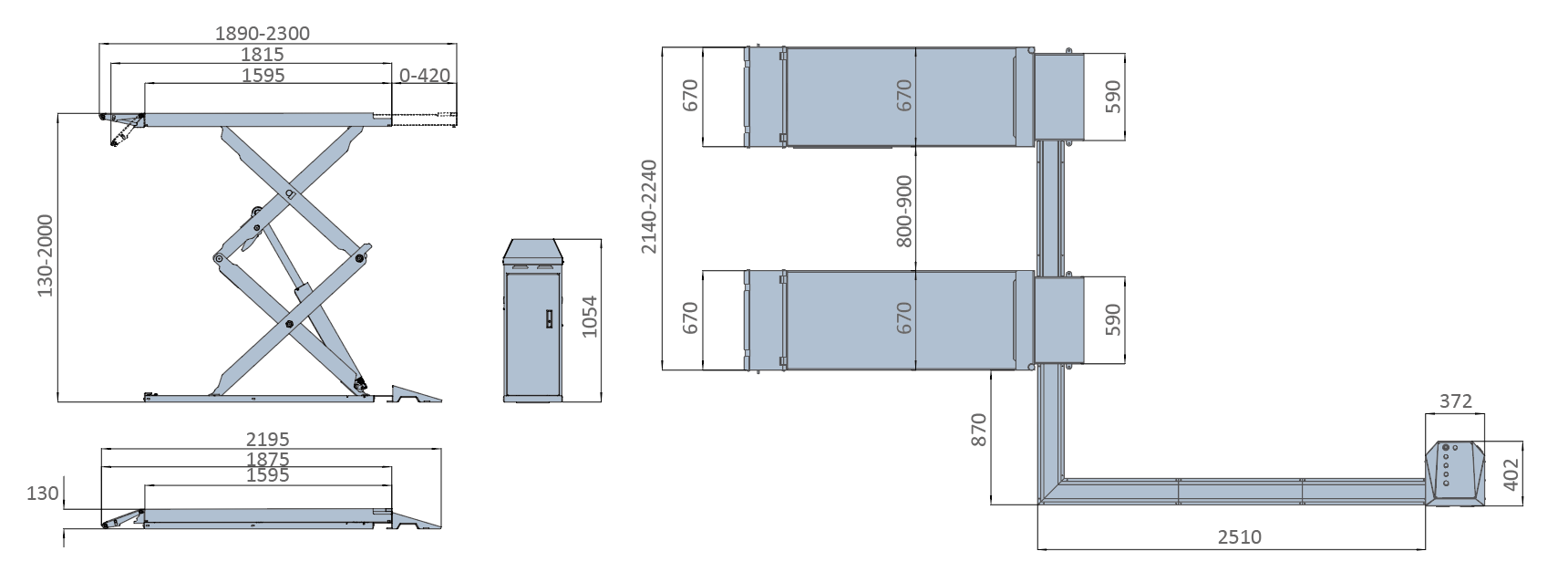

Overall Dimension

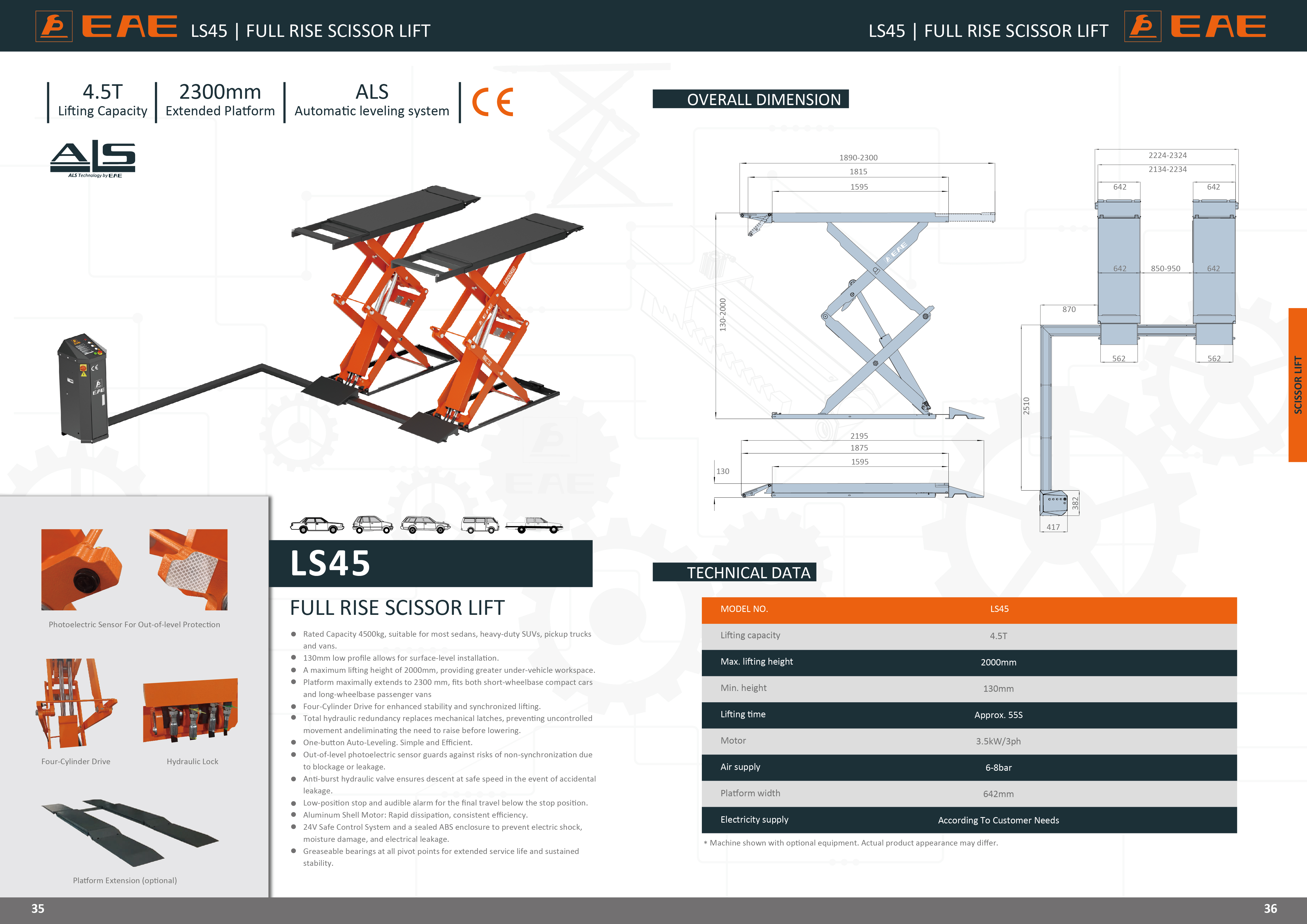

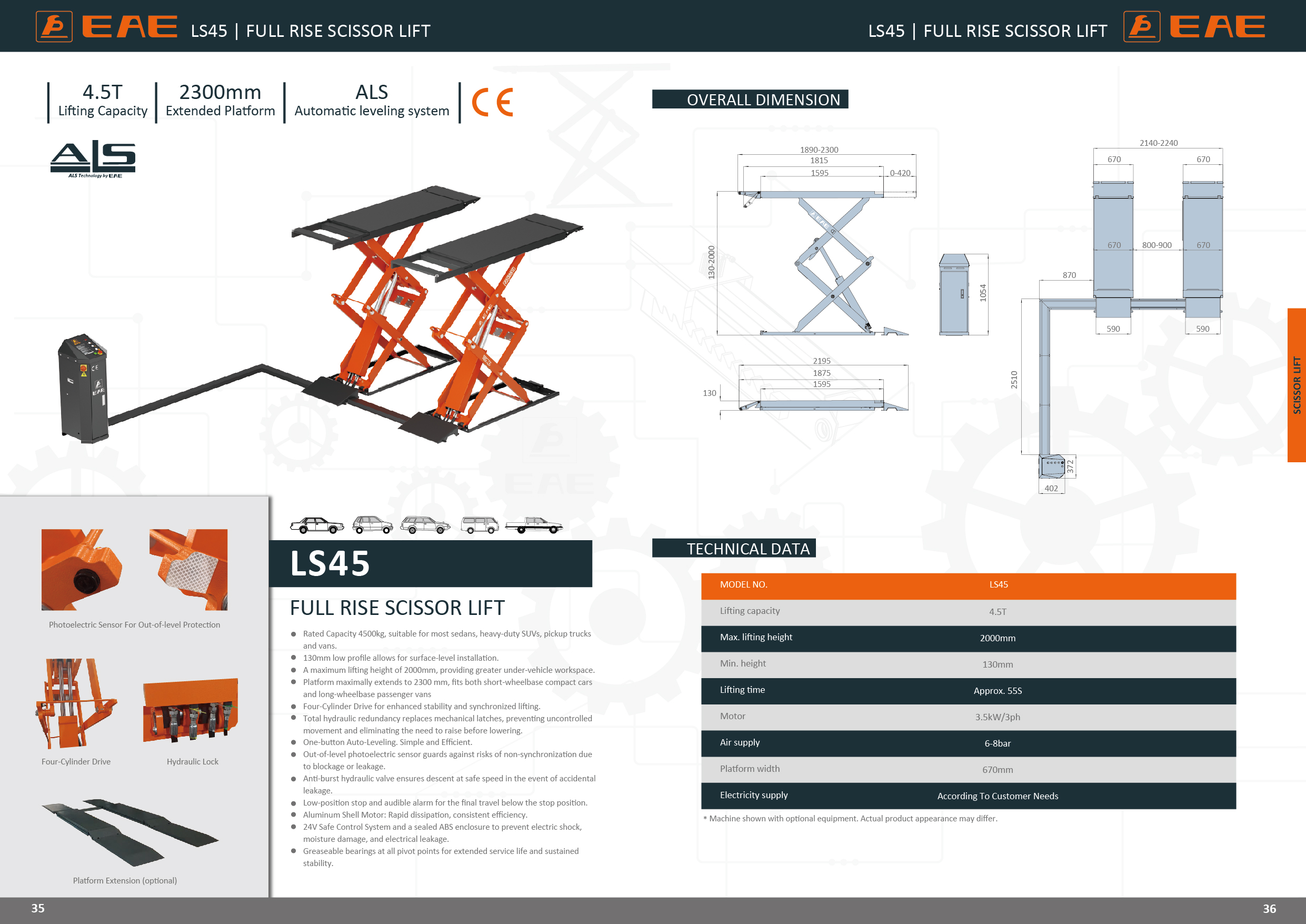

Brochure

MODEL NO. LS45
Lifting capacity 4.5T
Max. lifting height 2000mm
Min. height 130mm
Lifting time Approx. 55S
Motor 3.5kw/3ph
Air supply 6-8bar
Platform width 642mm
Electricity supply According To Customer Needs
* Machine shown with optional equipment, Actual product appearance may differ.

·Rated Capacity 4500kg, suitable for most sedans, heavy-duty SUVs, pickup trucksand vans.
·130mm low profile allows for surface-level installation.

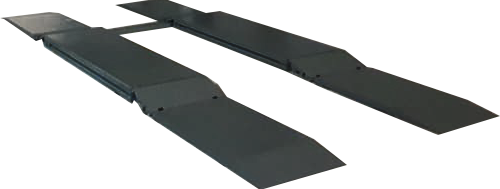

·A maximum lifting height of 2000mm, providing greater under-vehicle workspace.Platform maximally extends to 2300 mm, fits both short-wheelbase compact carsand long-wheelbase passenger vans

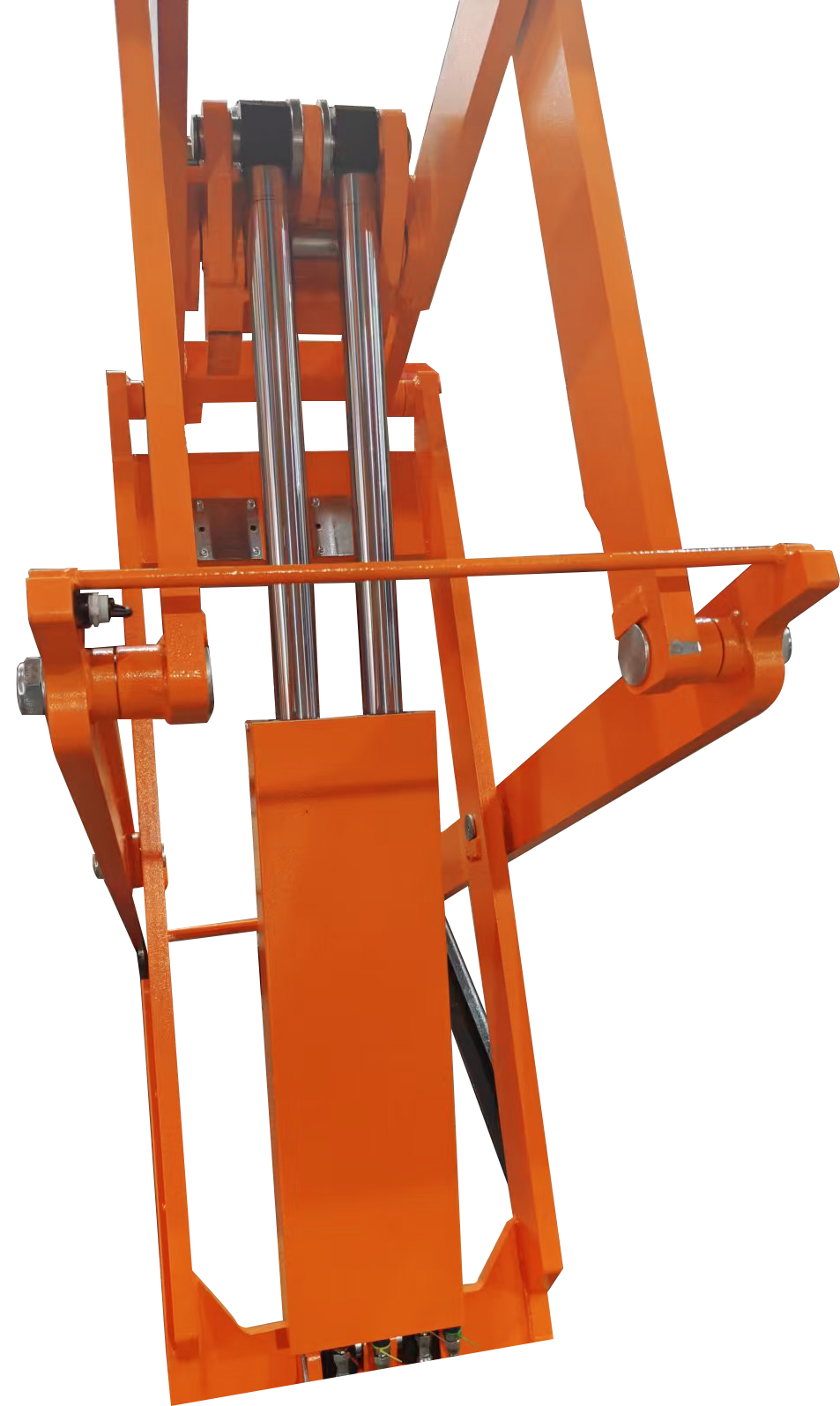

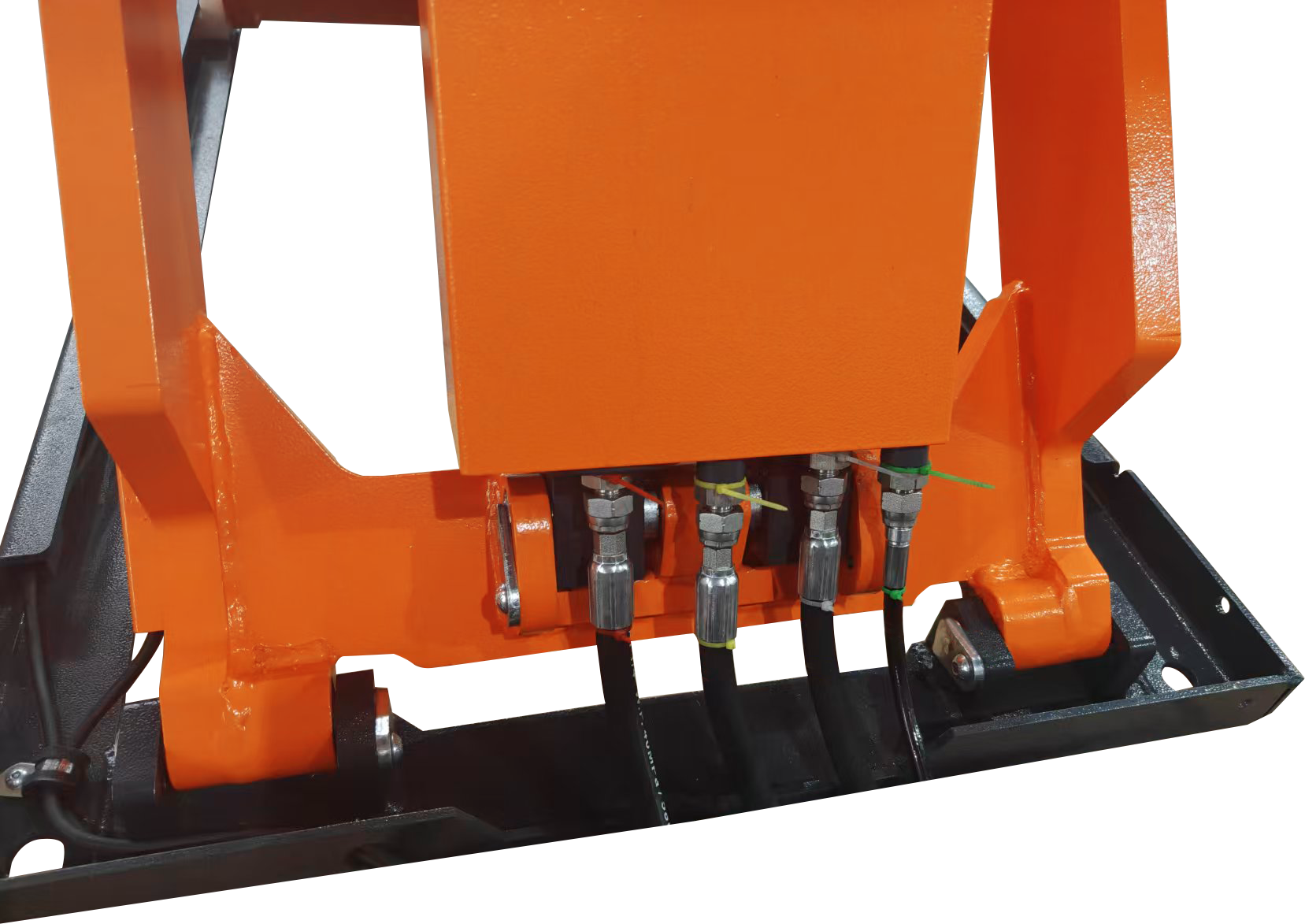

·Four-Cylinder Drive for enhanced stability and synchronized lifting.Total hydraulic redundancy replaces mechanical latches, preventing uncontrolledmovement andeliminating the need to raise before lowering.One-button Auto-Leveling. ·Simple and Efficient.Out-of-level photoelectric sensor guards against risks of non-synchronization dueto blockage or leakage.
·Anti-burst hydraulic valve ensures descent at safe speed in the event of accidentalleakage.
·Low-position stop and audible alarm for the final travel below the stop position.Aluminum Shell Motor: Rapid dissipation, consistent efficiency.24V Safe Control System and a sealed ABS enclosure to prevent electric shockmoisture damage, and electrical leakage.Greaseable bearings at all pivot points for extended service life and sustained stability.
