Home>Short platform>HS40 | 4.0T

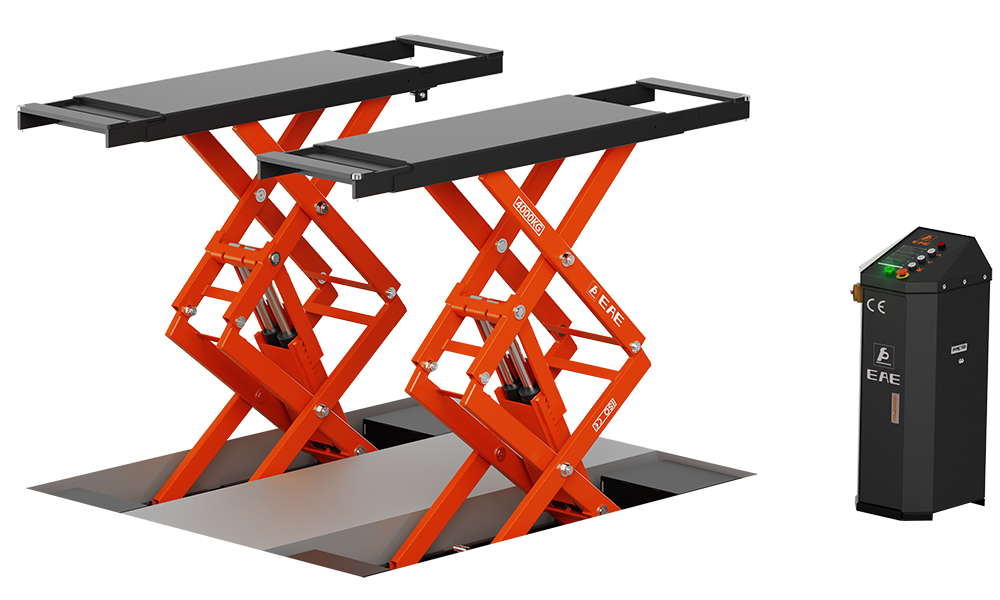

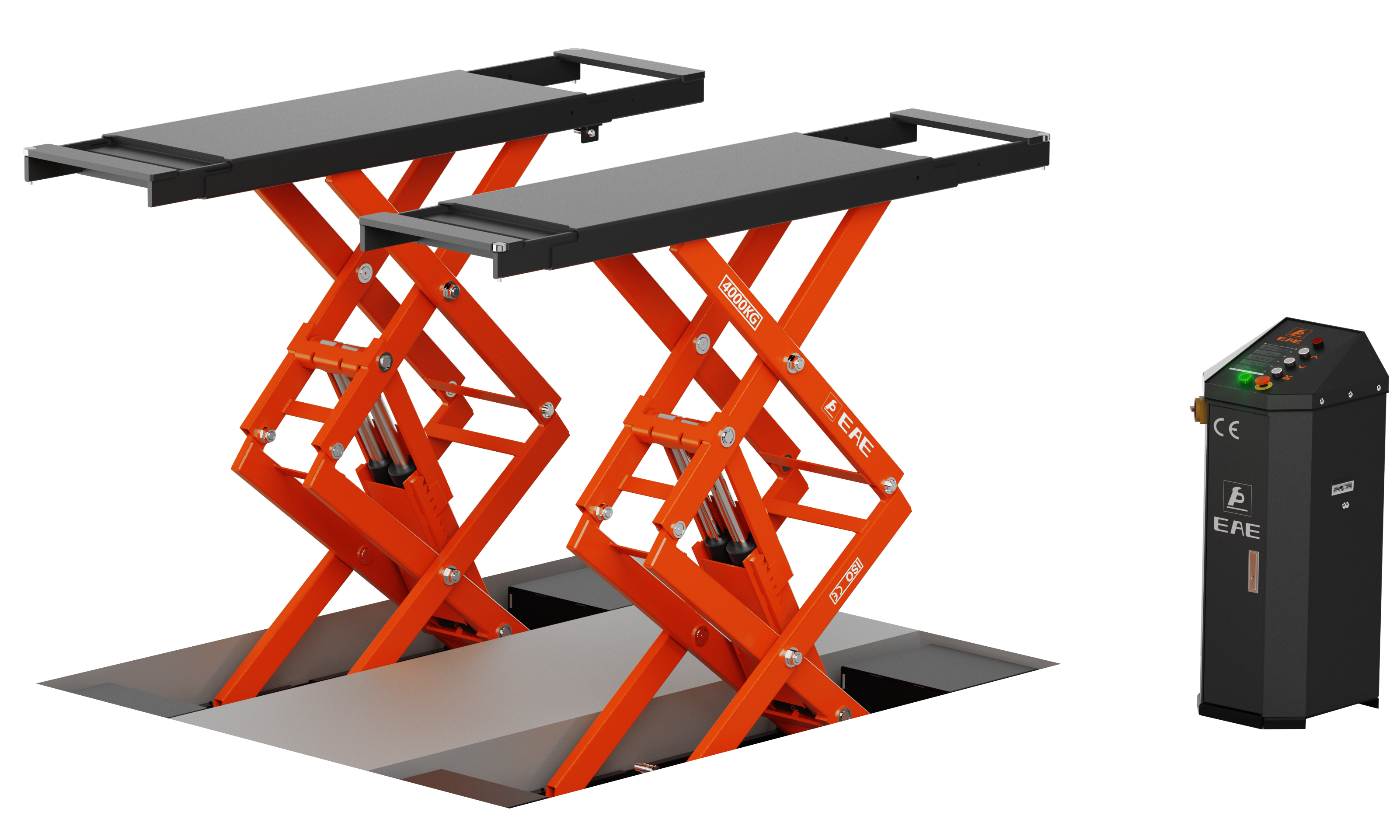

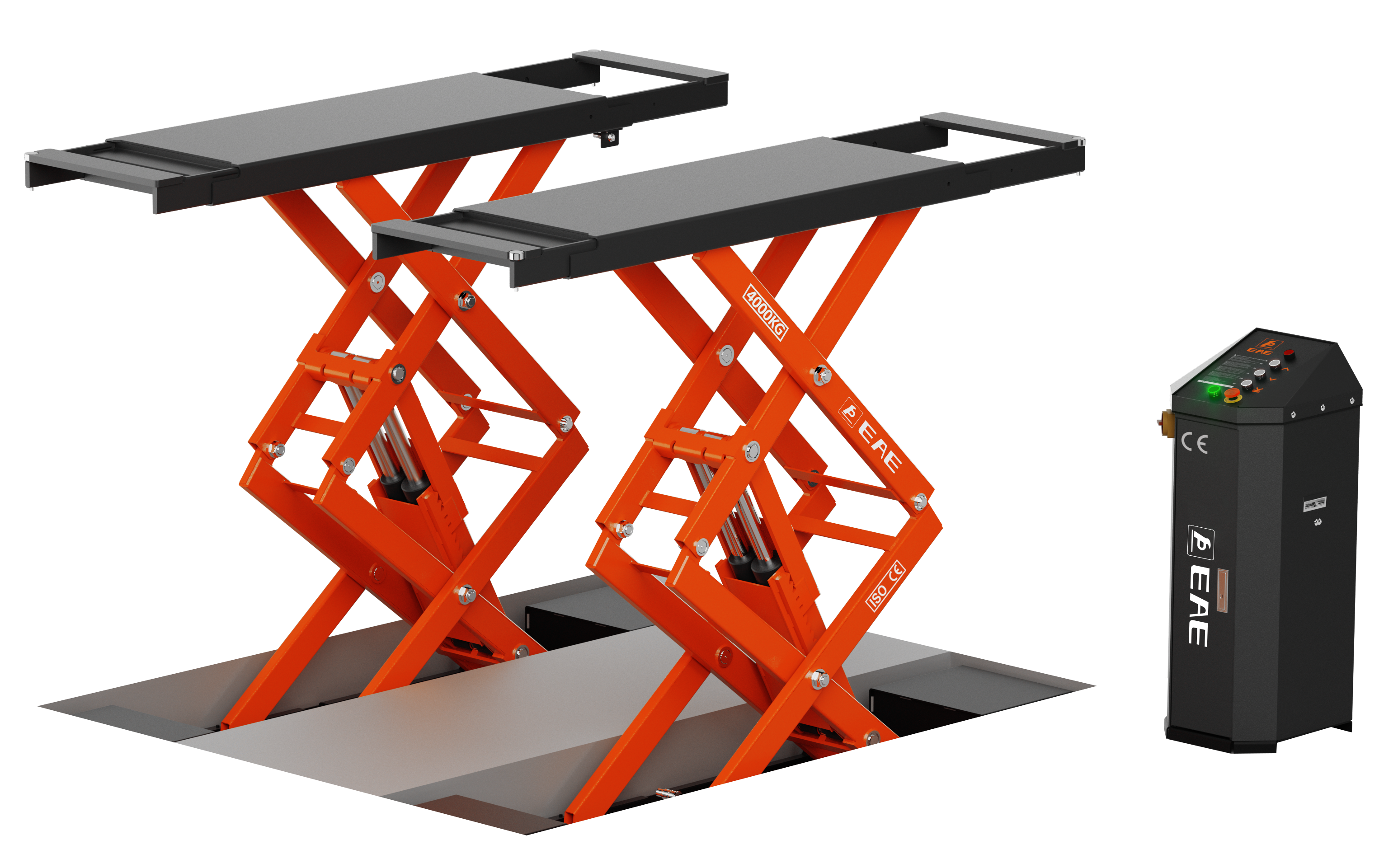

HS40 | 4.0T FULL RISE SCISSOR LIFT

Share:

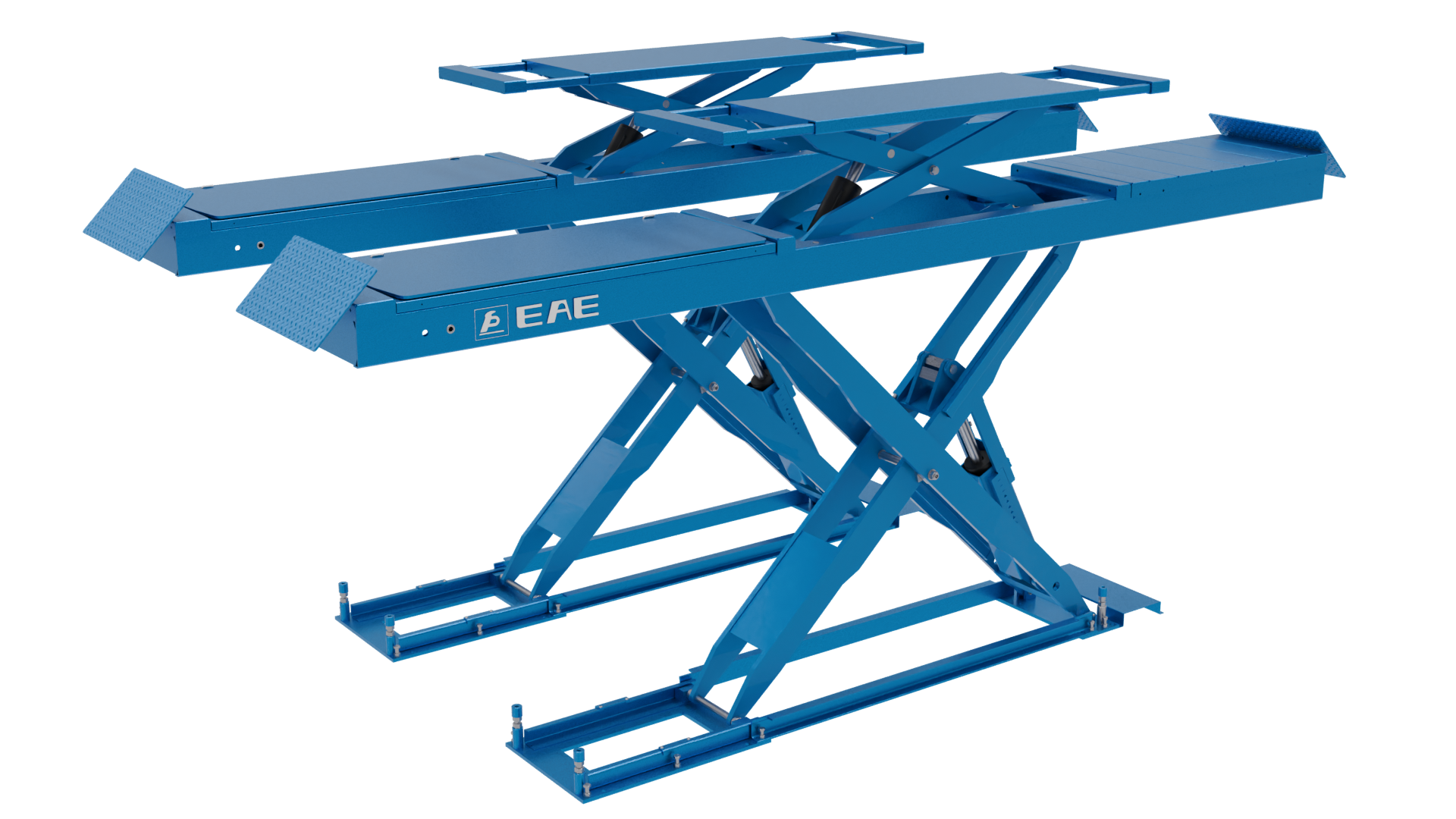

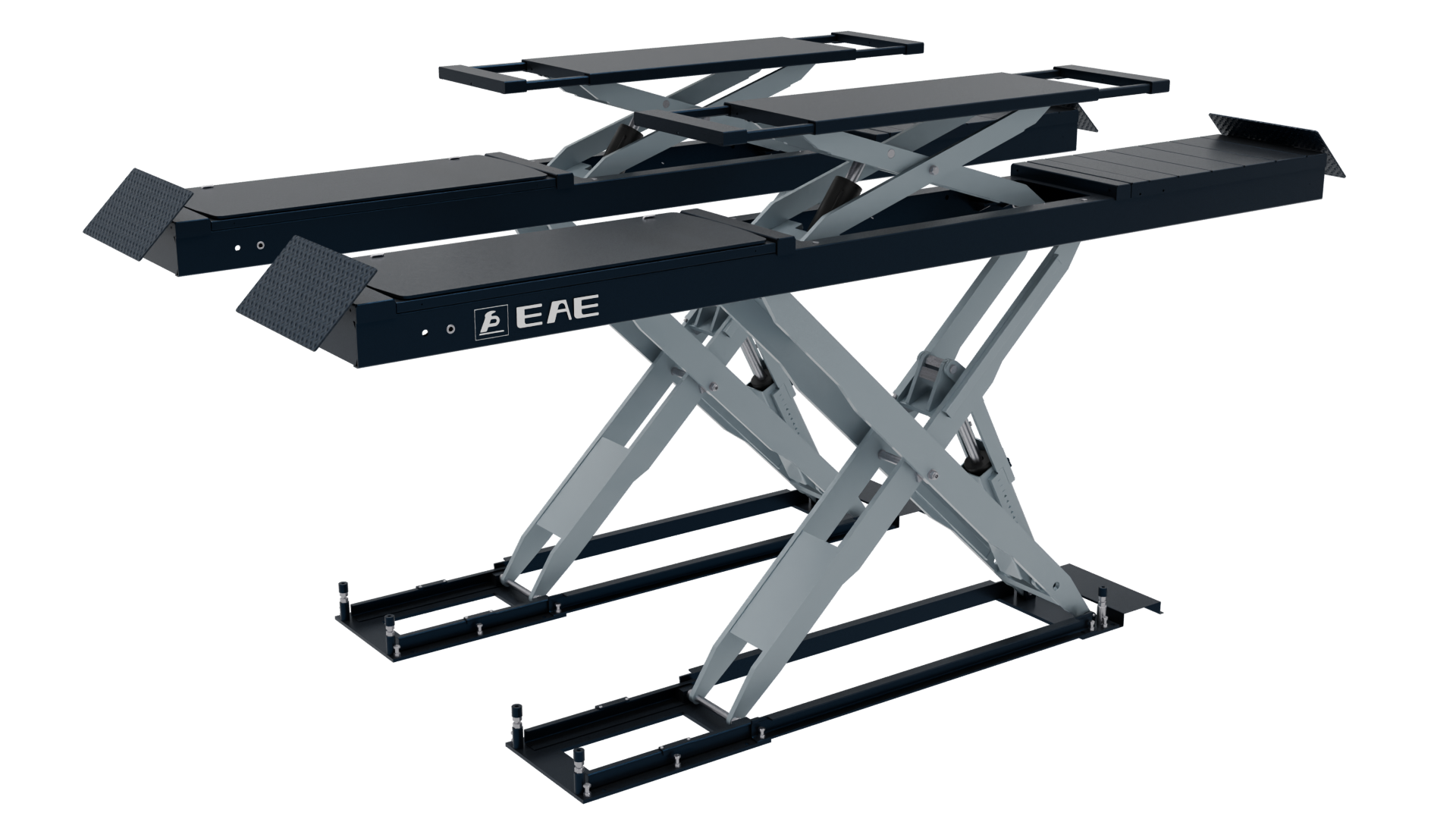

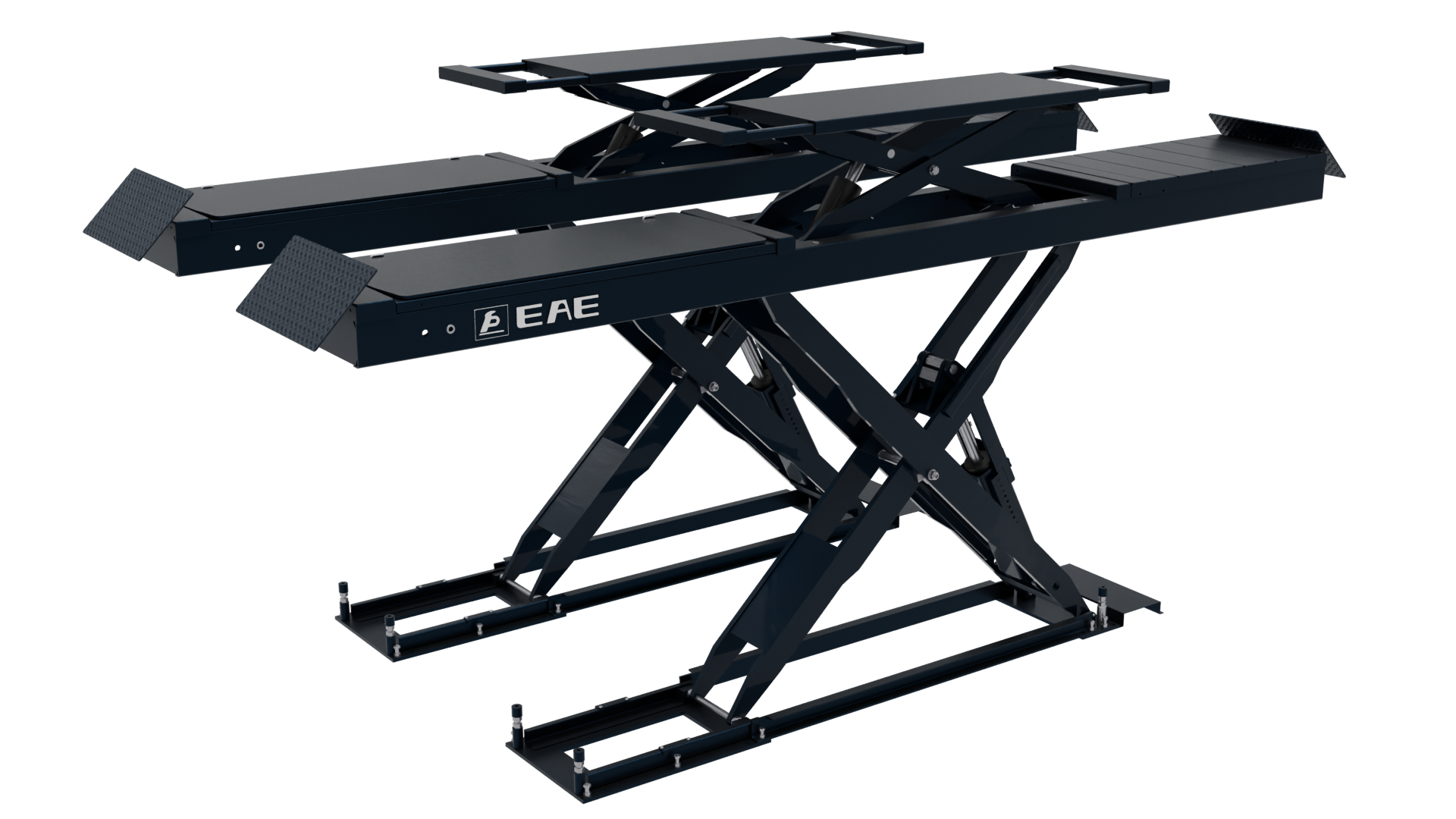

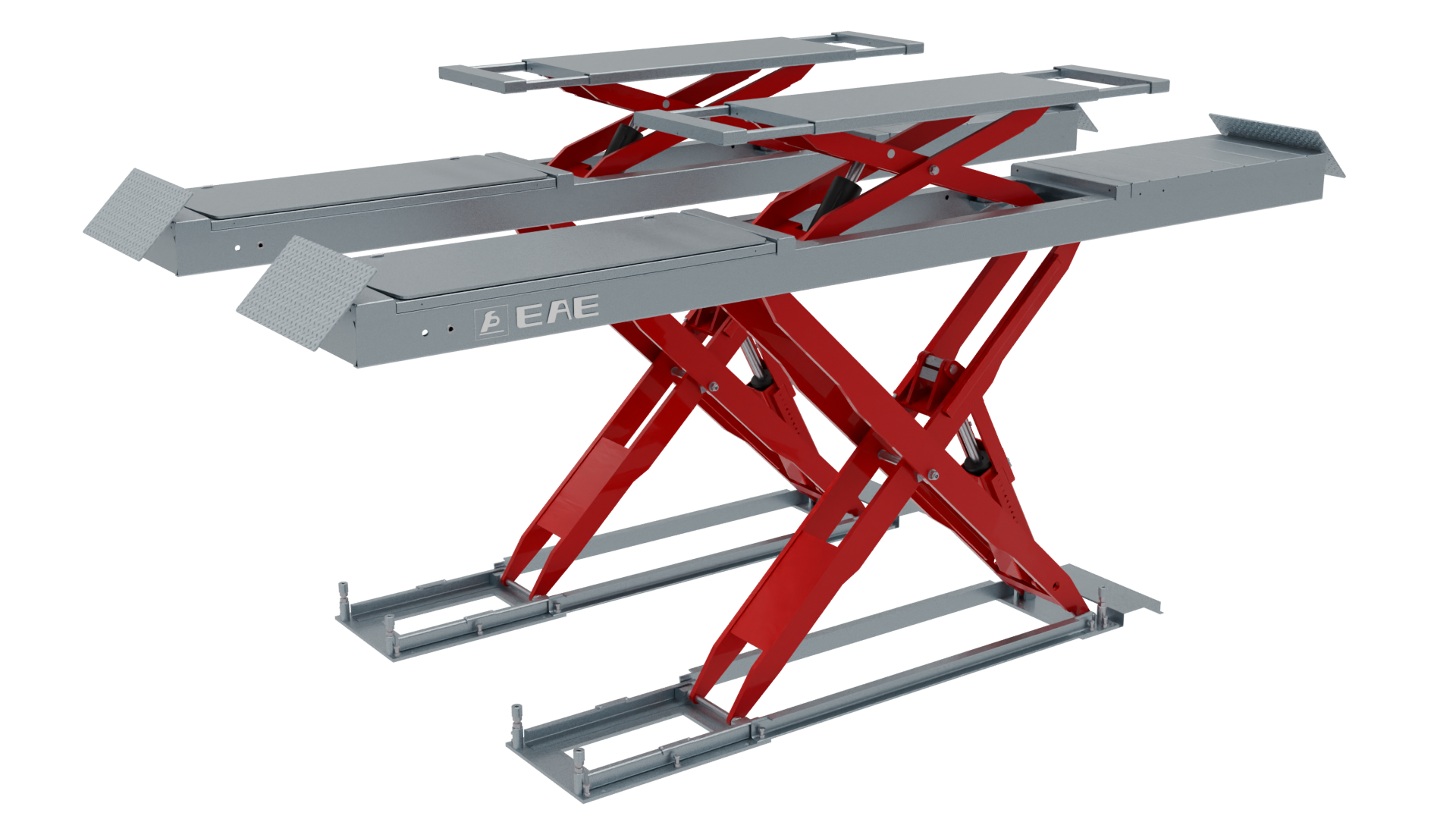

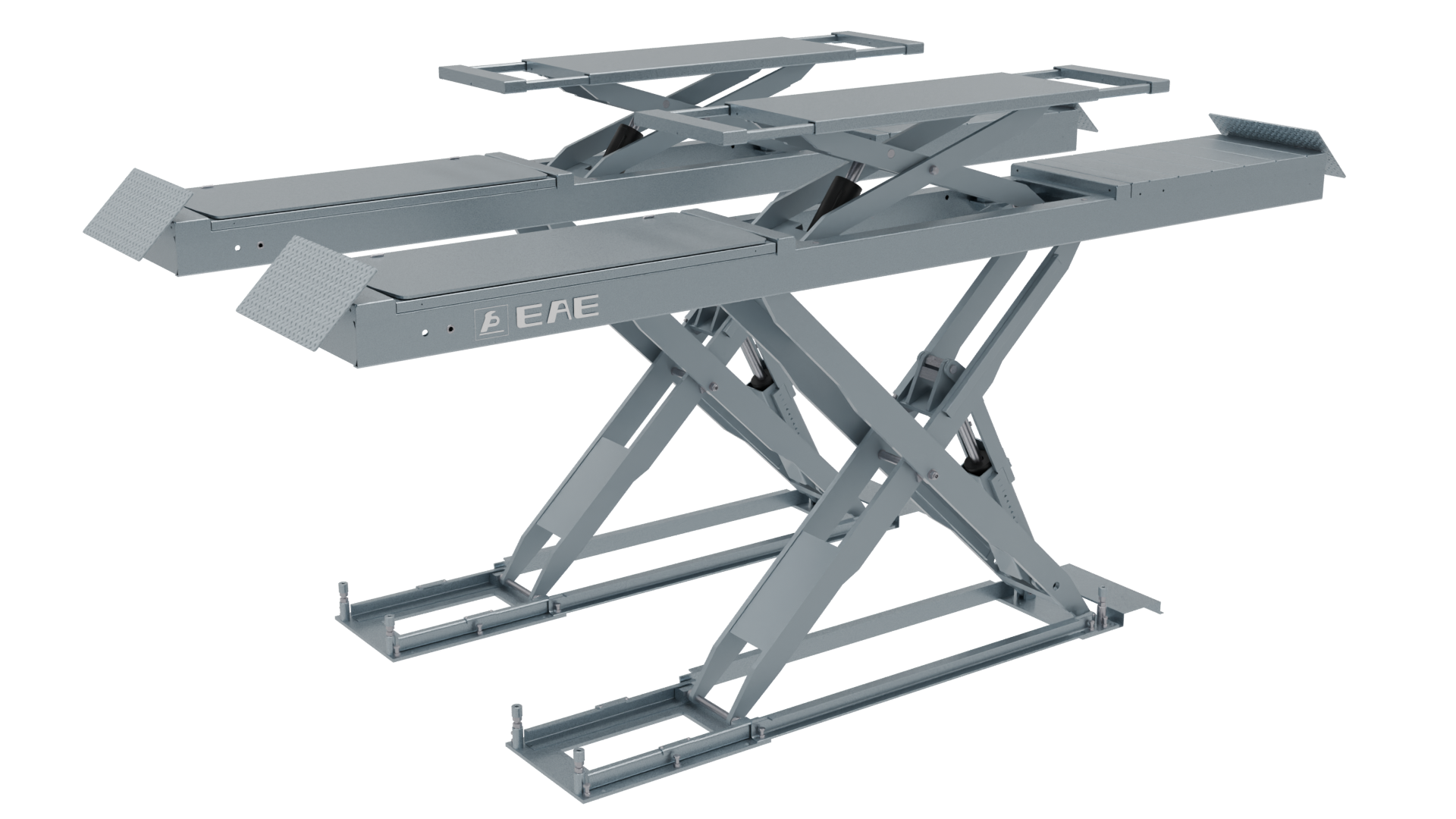

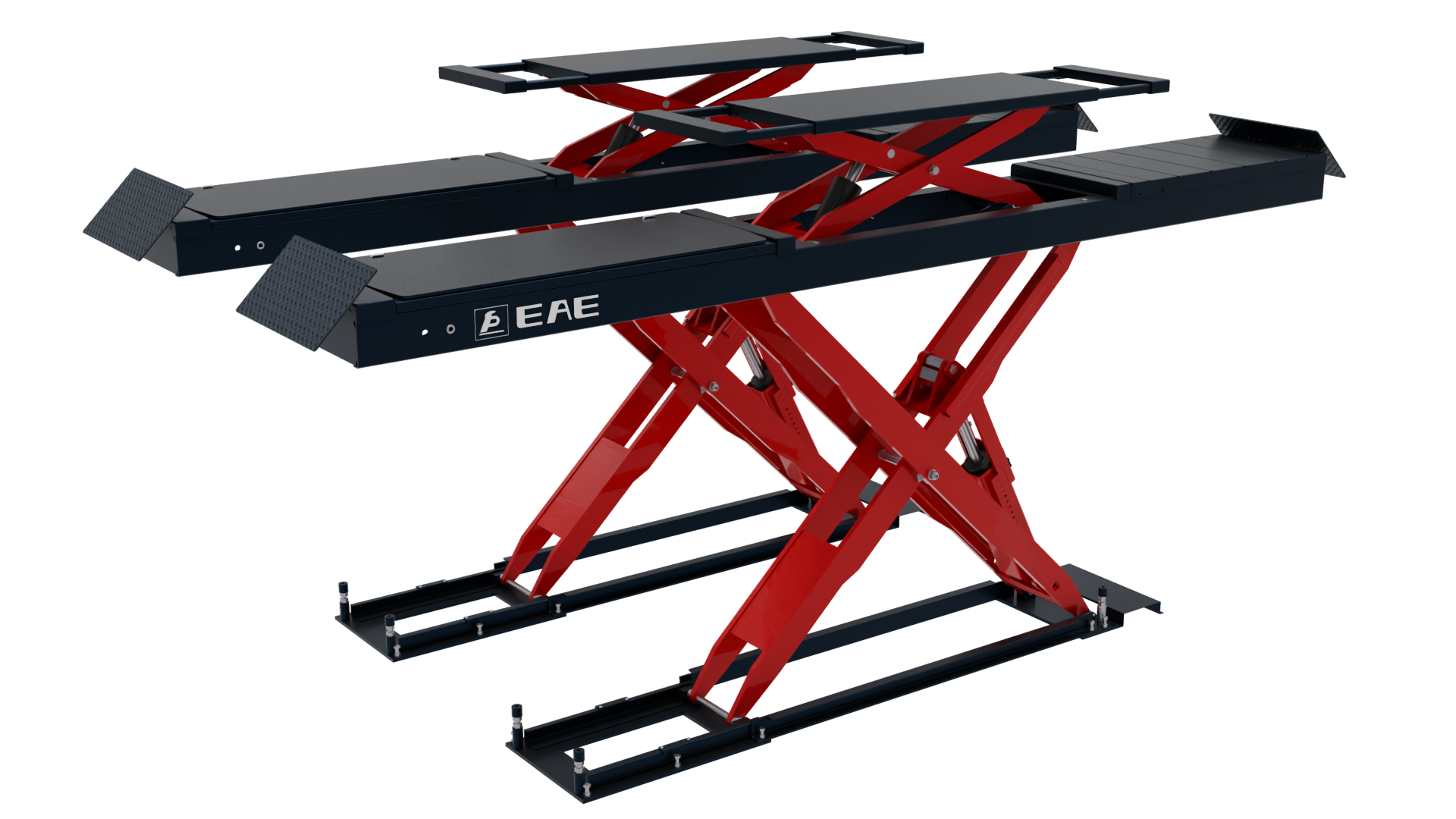

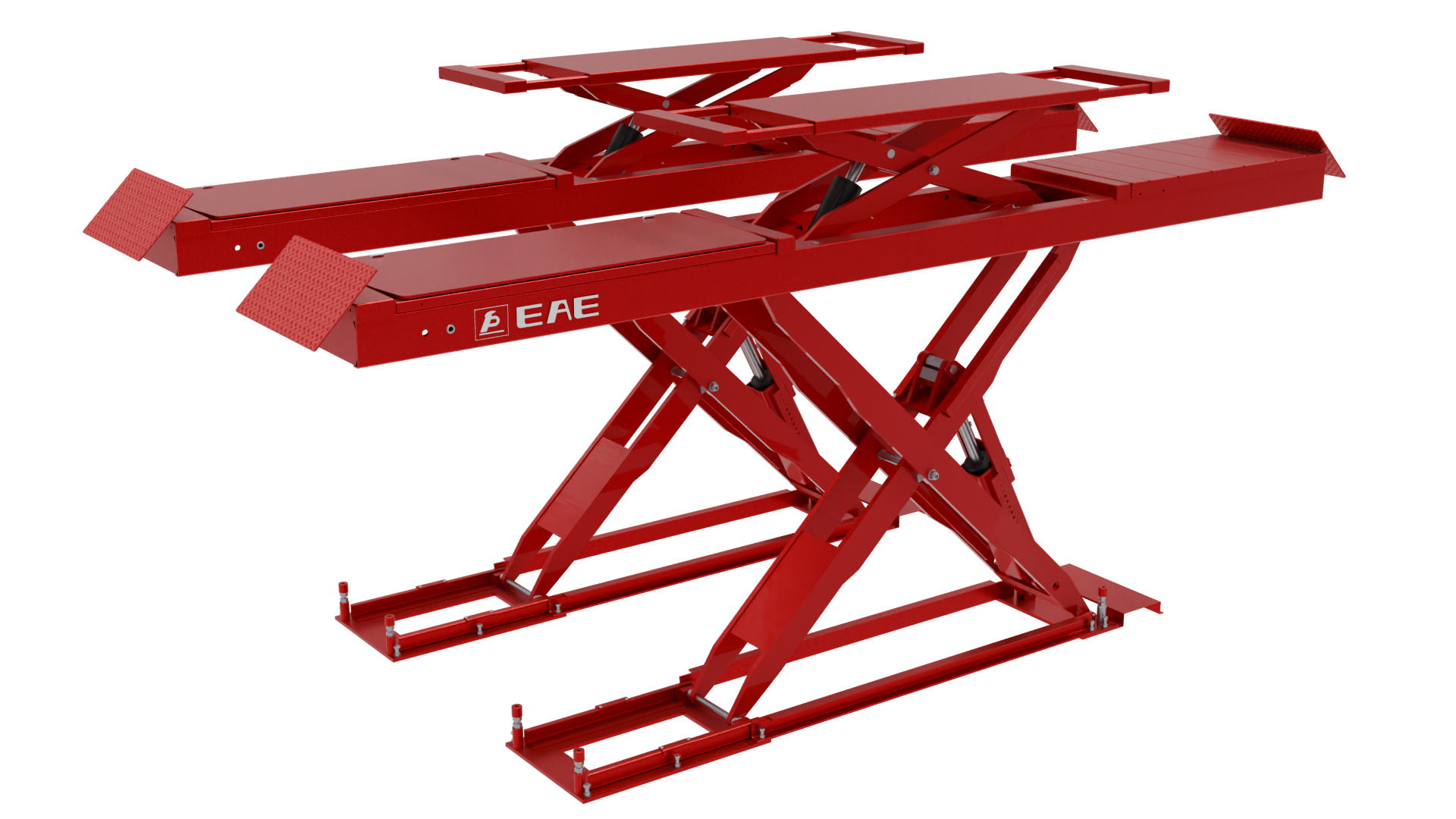

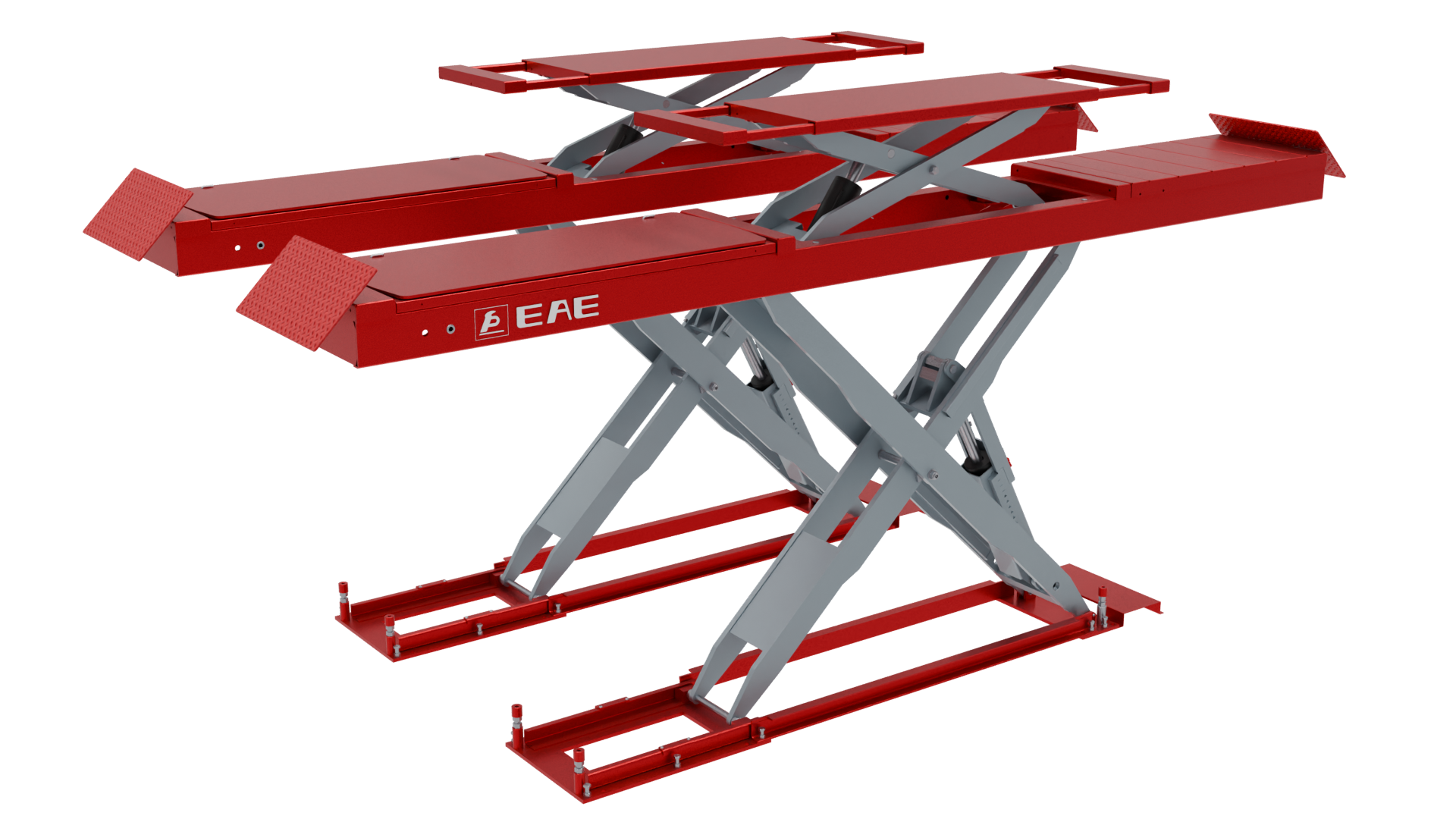

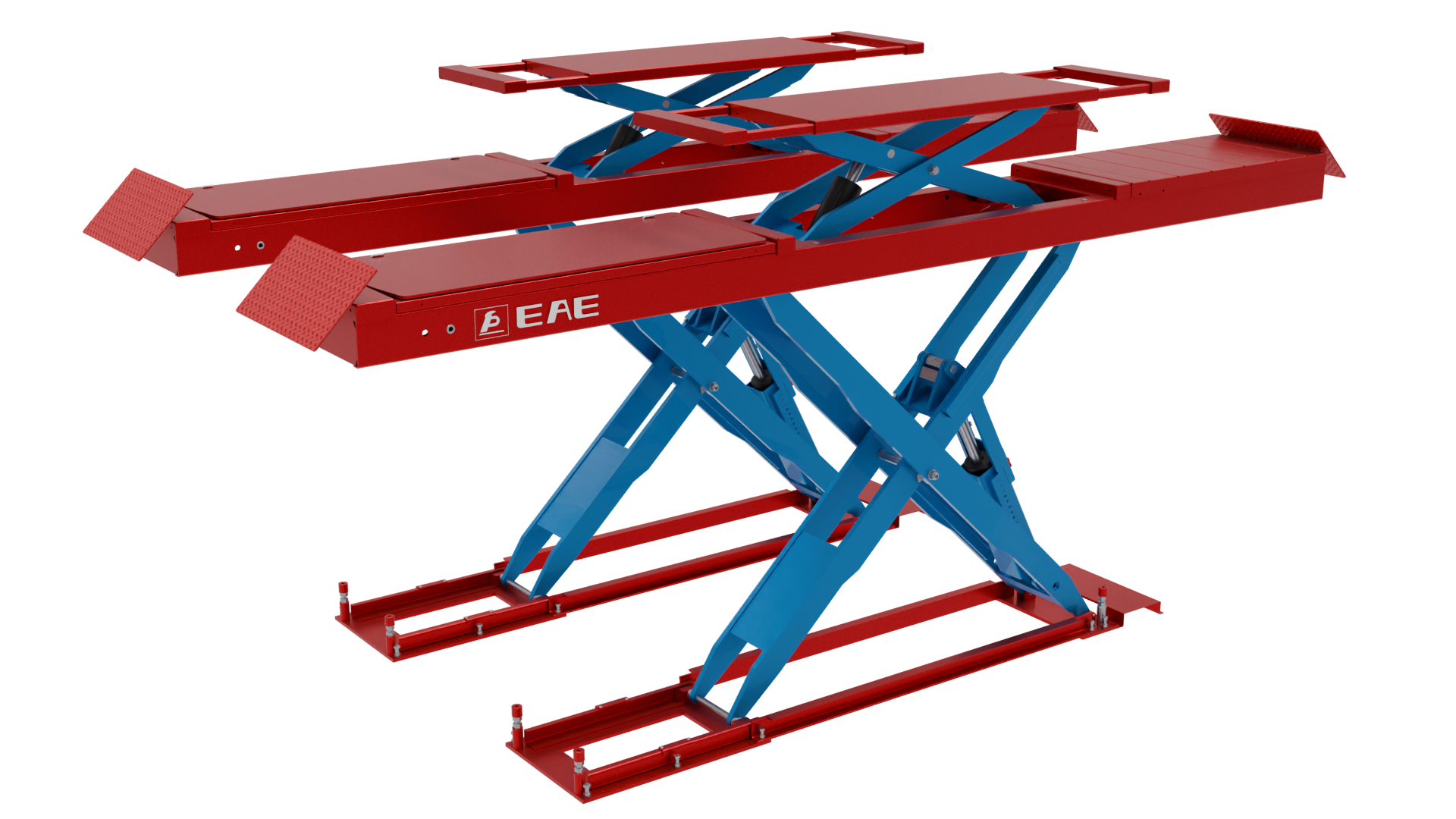

Product Image

EAE

  • 2140mm

    Max. lifting height

  • 270mm

    Min Height

  • 1675-2300mm

    Platform Length

  • 565mm

    Platform Width

  • 45s

    Lifting time

Details
Technical Data
Description

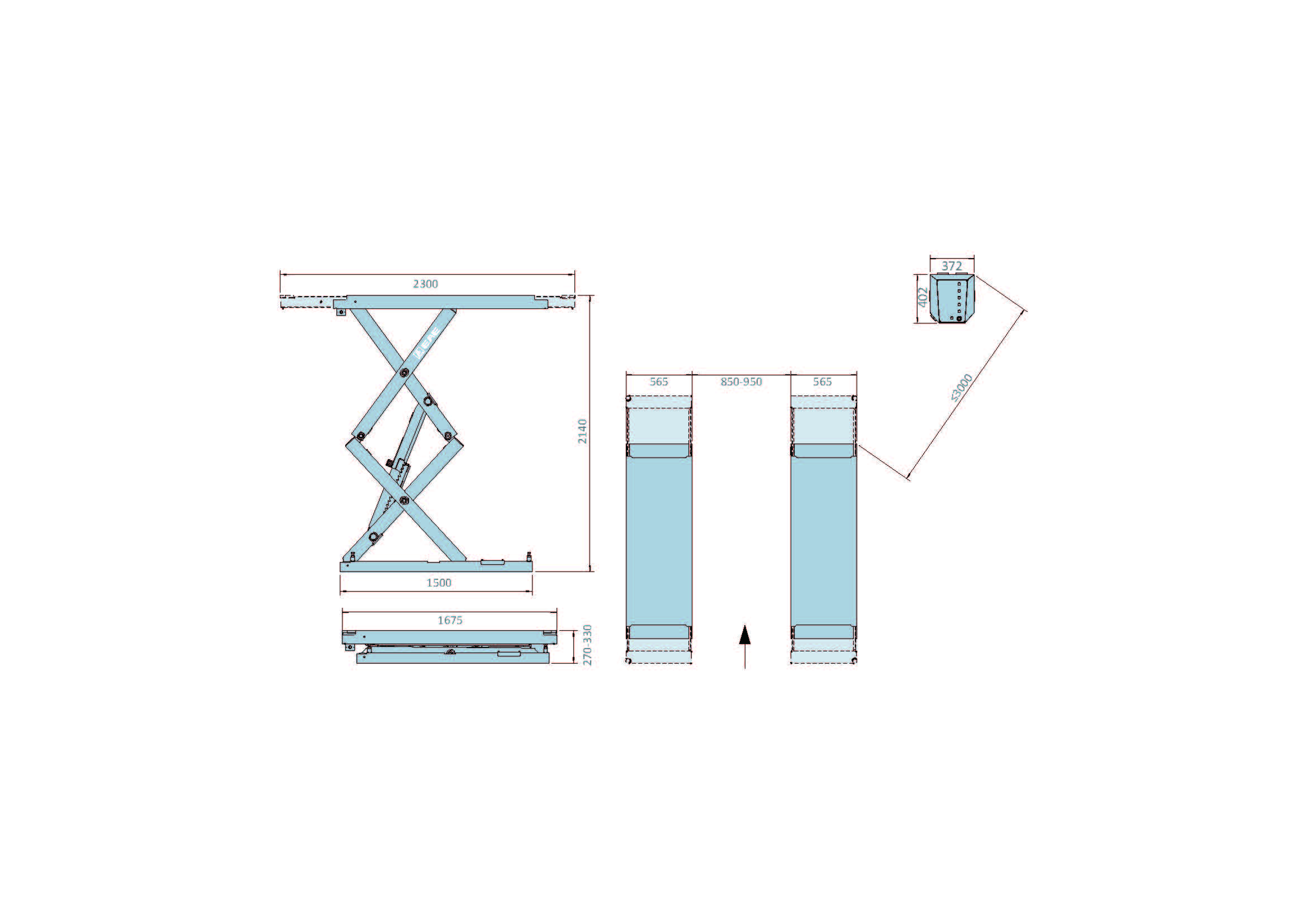

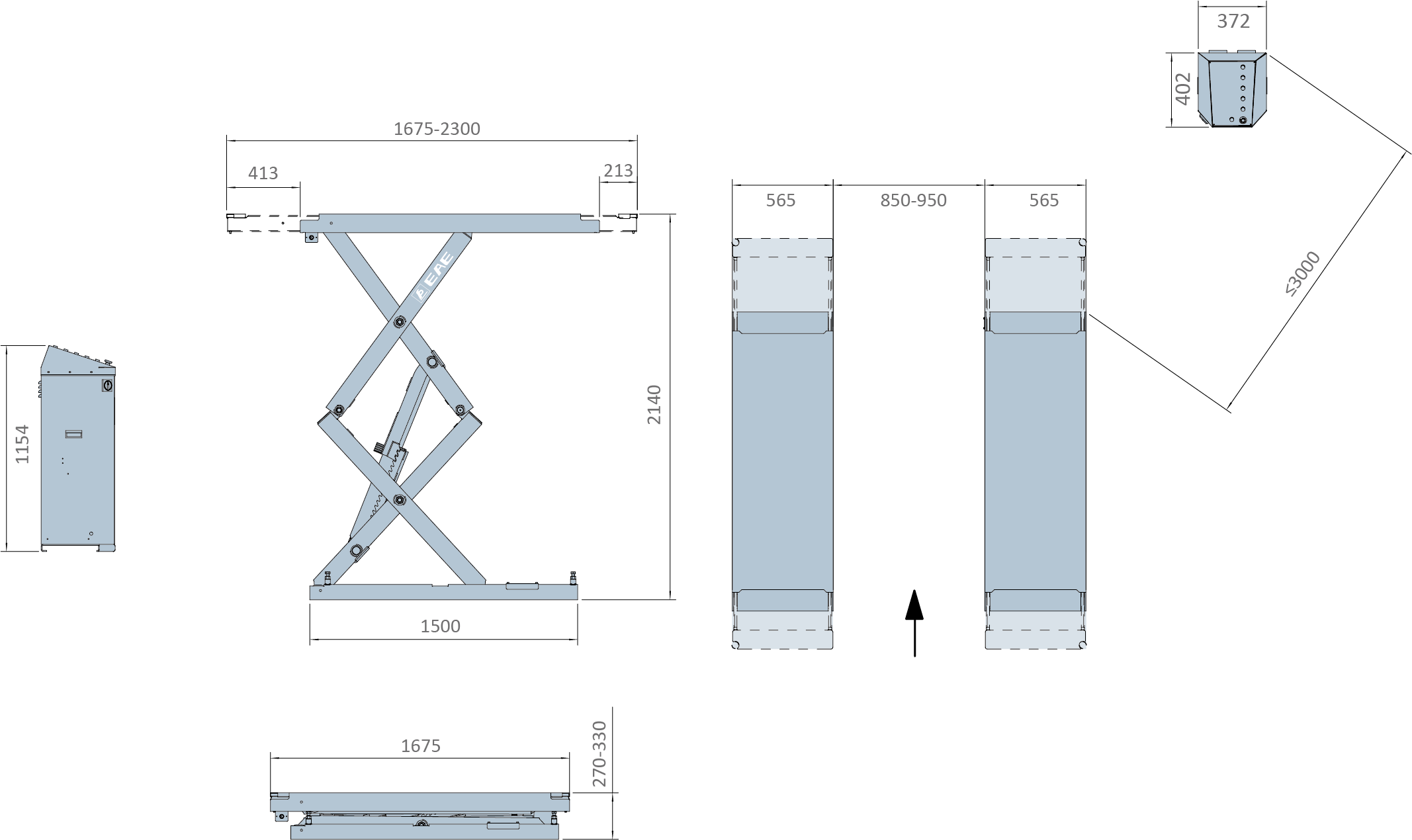

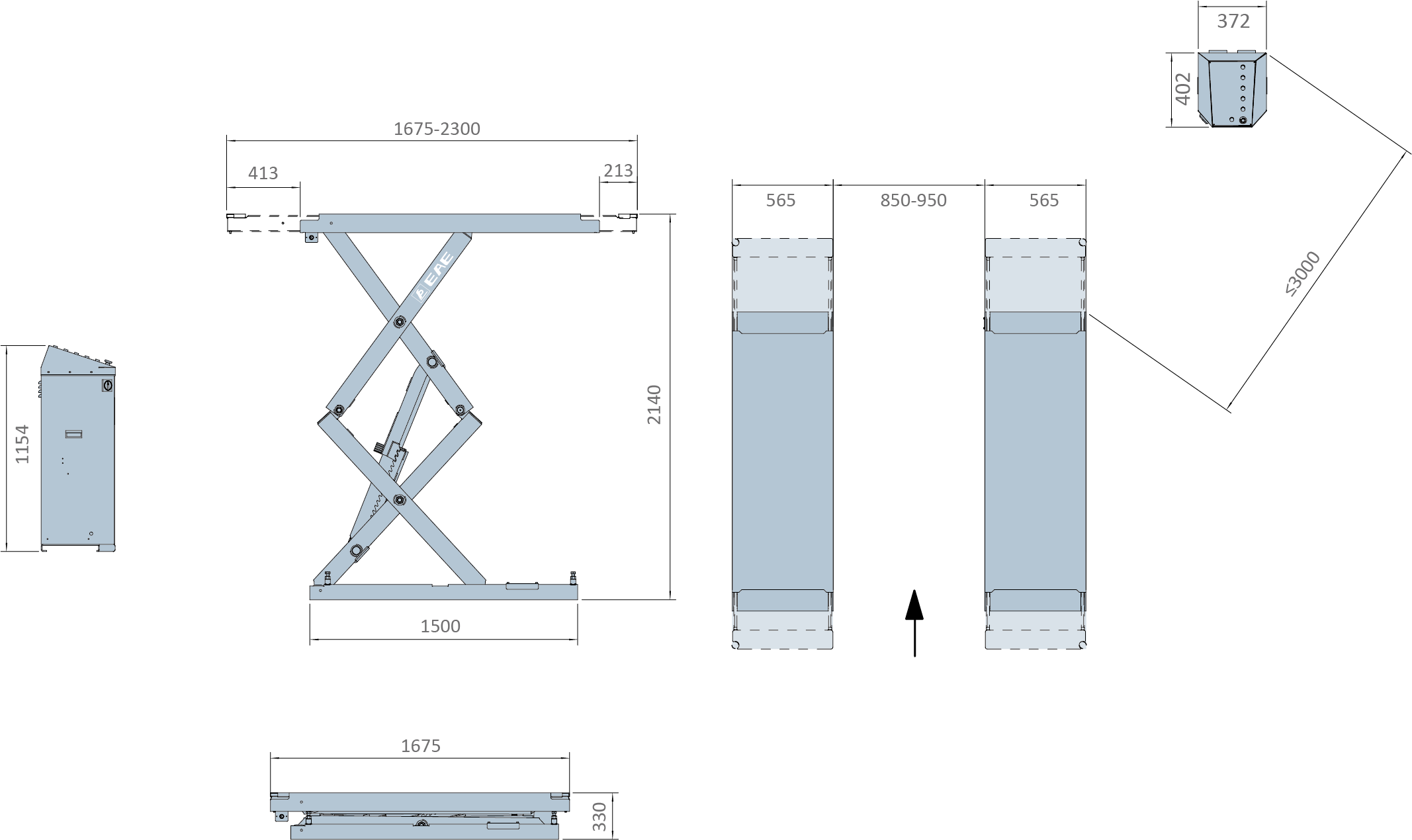

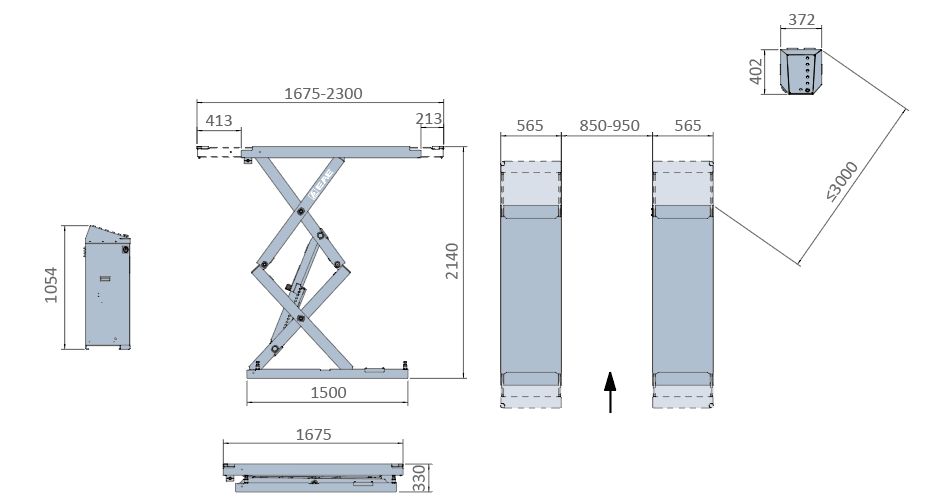

Overall Dimension

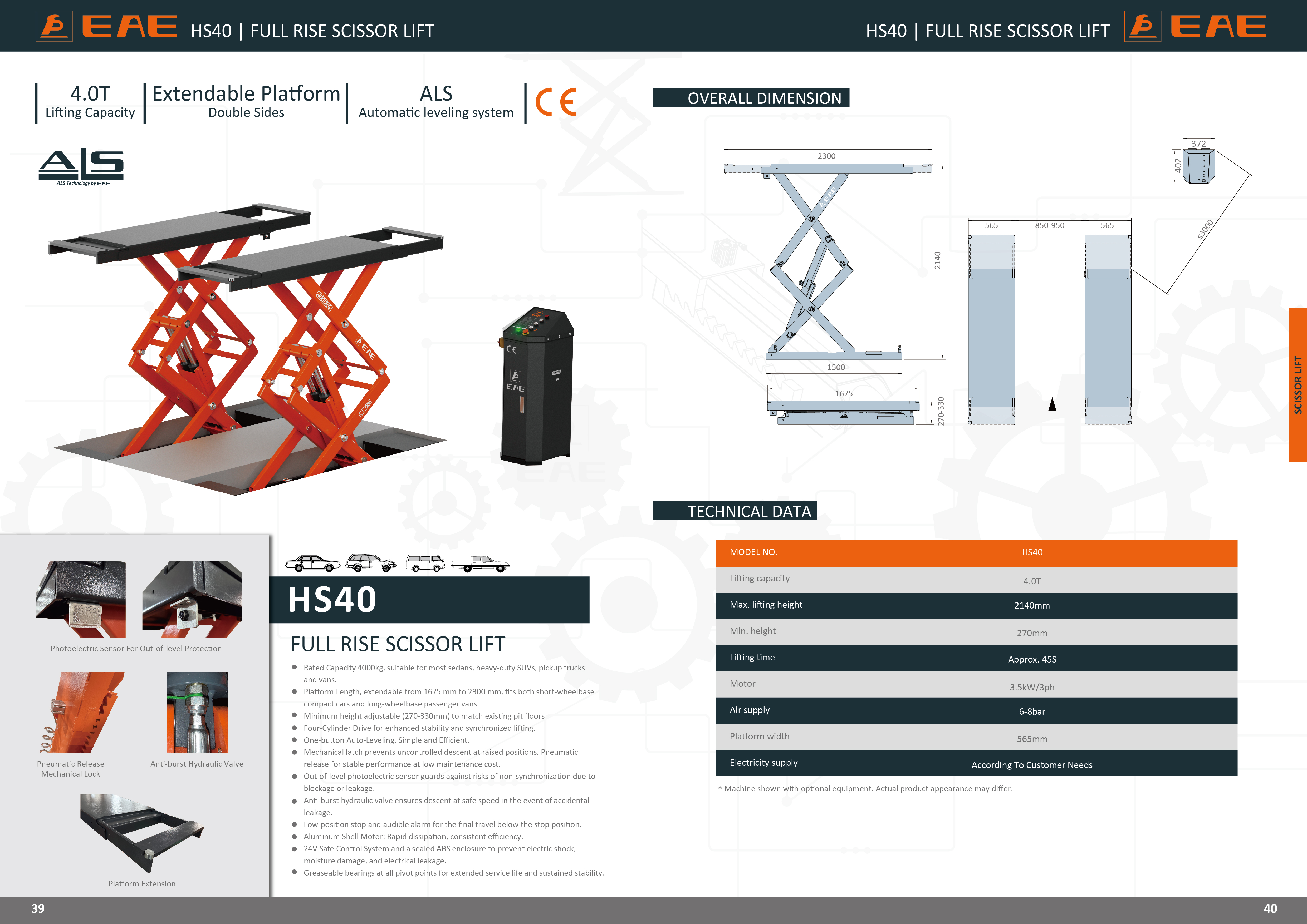

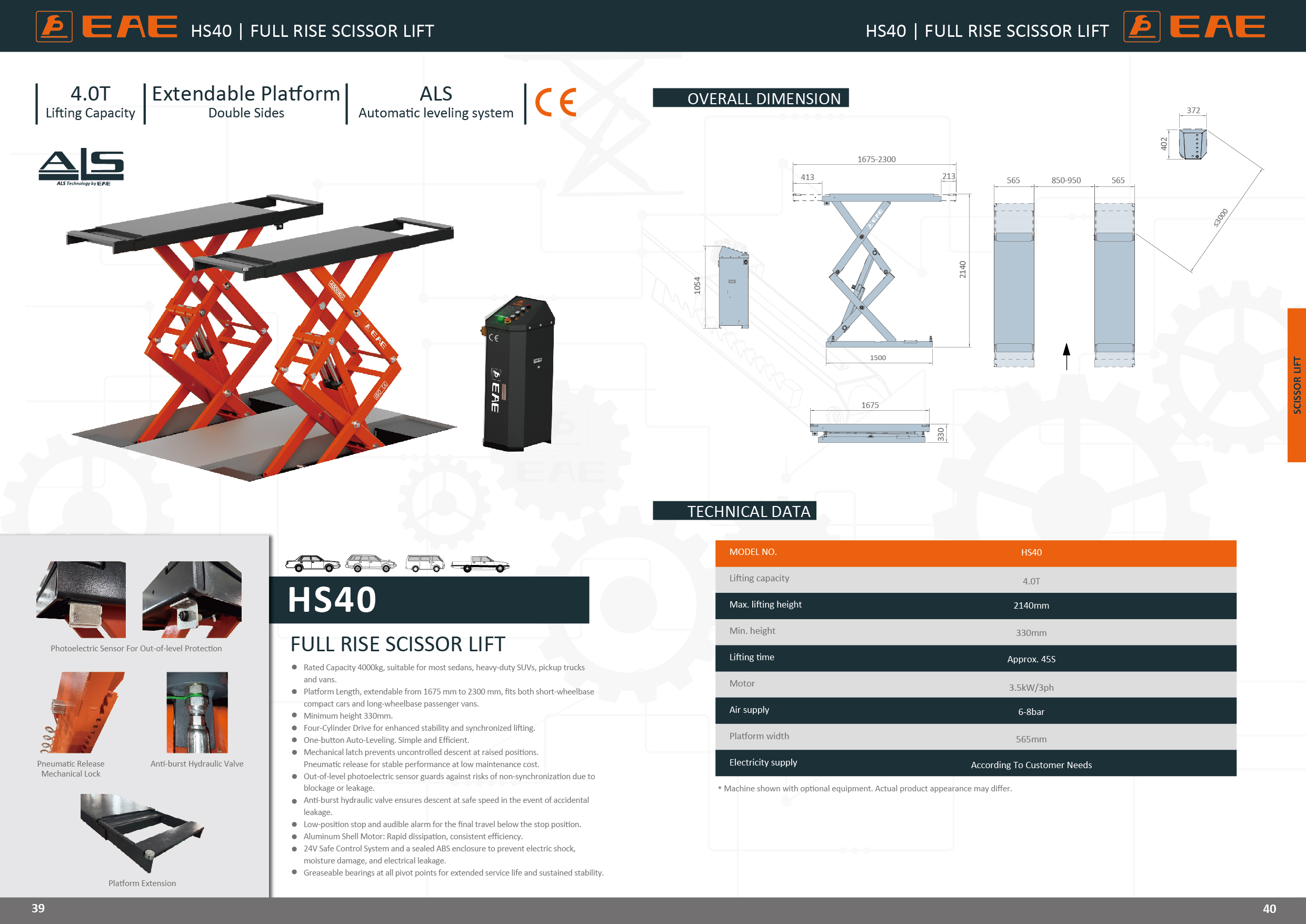

Brochure

MODEL NO.

HS40

Lifting capacity

4.0T

Max. lifting height

2140mm

Min. height

270mm

Lifting time

Approx. 45S

Motor

3.5kW/3ph

Air supply

6-8bar

Platform width

565mm

Electricity supply

According To Customer Needs

* Machine shown with optional equipment. Actual product appearance may differ.


·Rated Capacity 4000kg, suitable for most sedans, heavy-duty SUVs, pickup trucksand vans.

·Platform Length, extendable from 1675 mm to 2300 mm, fits both short-wheelbasecompact cars and long-wheelbase passenger vans

·Minimum height adjustable (270-330mm) to match existing pit floors

·Four-Cylinder Drive for enhanced stability and synchronized lifting.

·One-button Auto-Leveling. Simple and Efficient.

·Mechanical latch prevents uncontrolled descent at raised positions. Pneumaticrelease for stable performance at low maintenance cost.

·Out-of-level photoelectric sensor guards against risks of non-synchronization due toblockage or leakage.

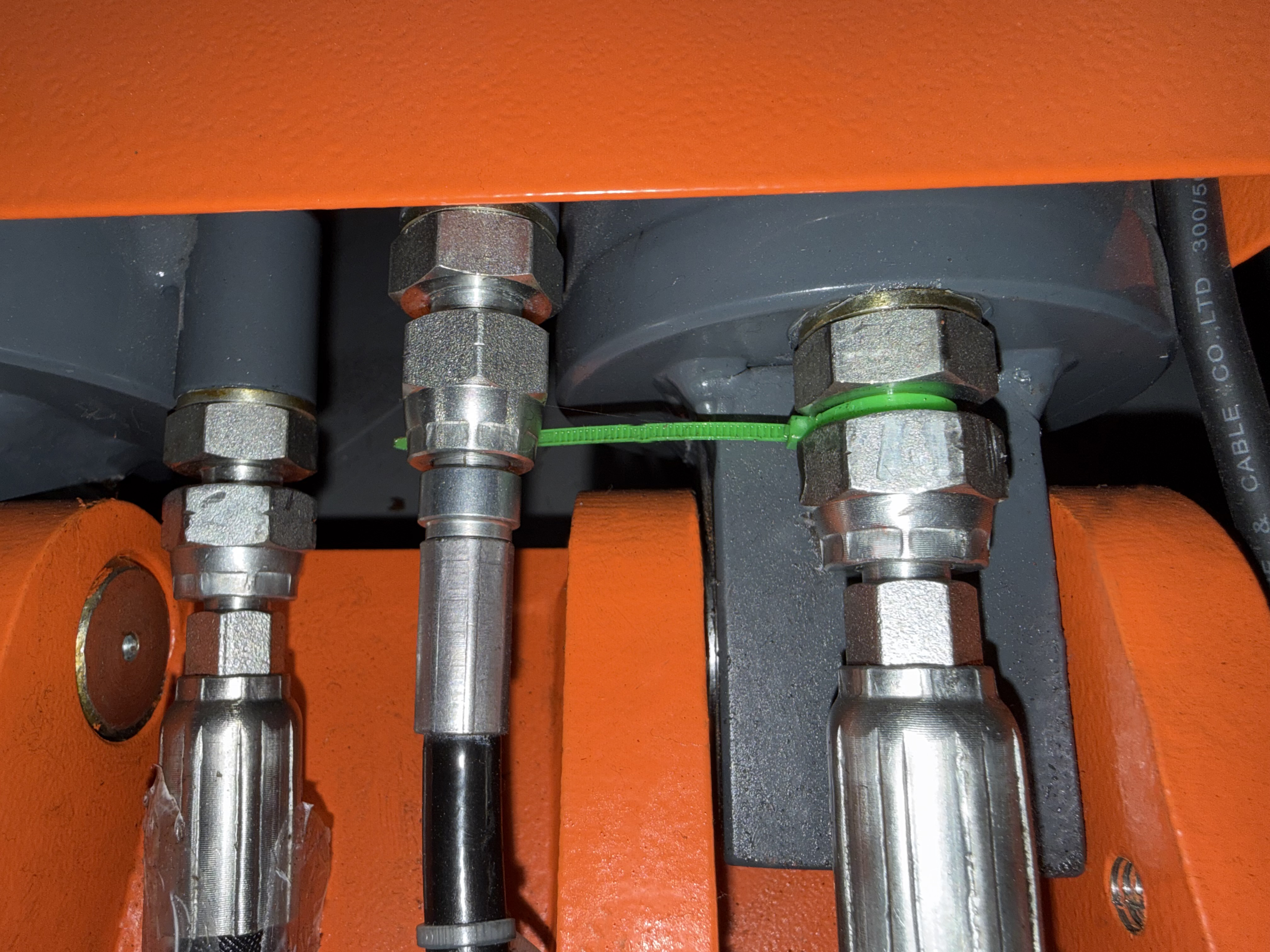

·Anti-burst hydraulic valve ensures descent at safe speed in the event of accidentalleakage.

·Low-position stop and audible alarm for the final travel below the stop position.

·Aluminum Shell Motor: Rapid dissipation, consistent efficiency.

·24V Safe Control System and a sealed ABS enclosure to prevent electric shock,moisture damage,and electrical leakage.

·Greaseable bearings at all pivot points for extended service life and sustained stability.
