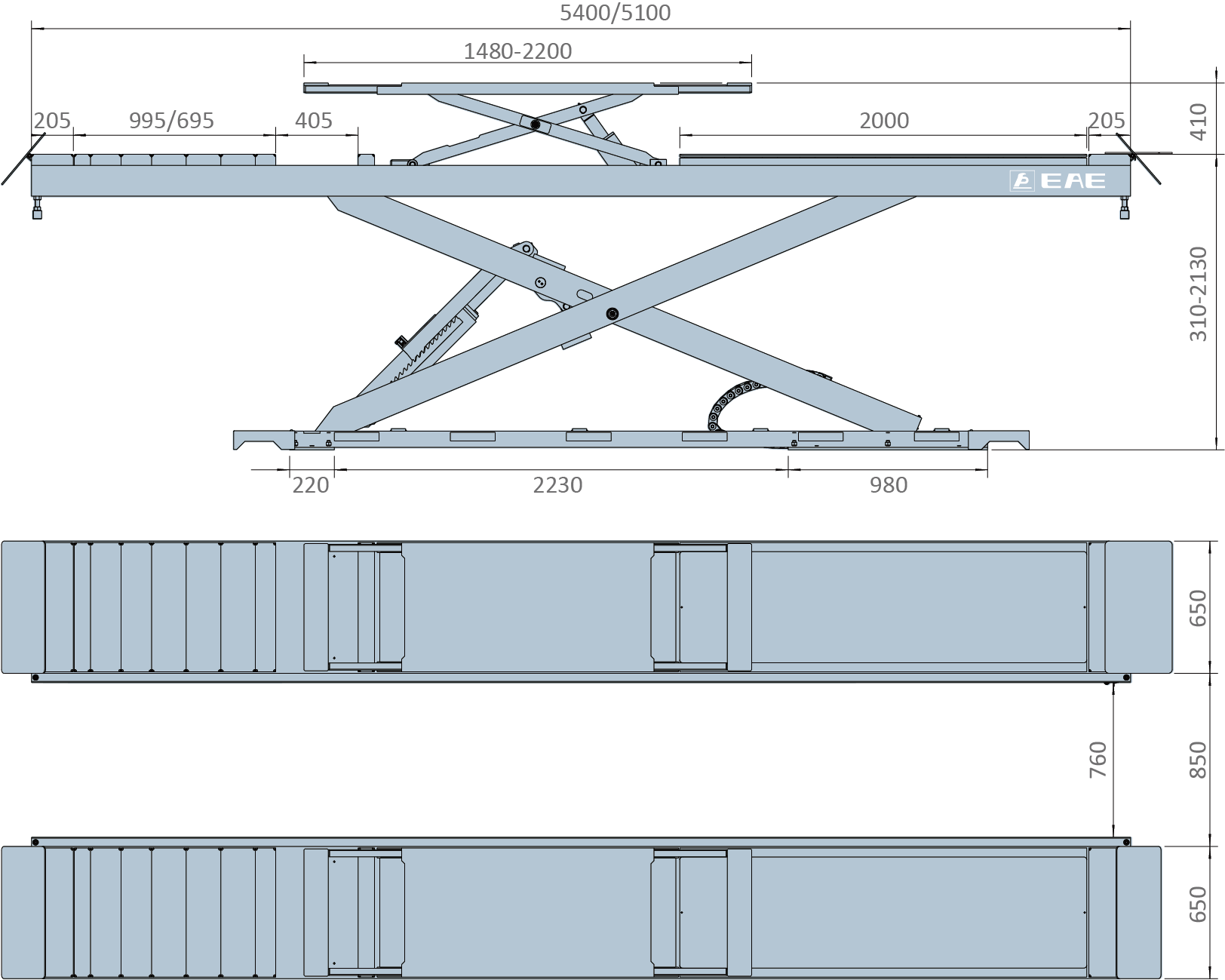

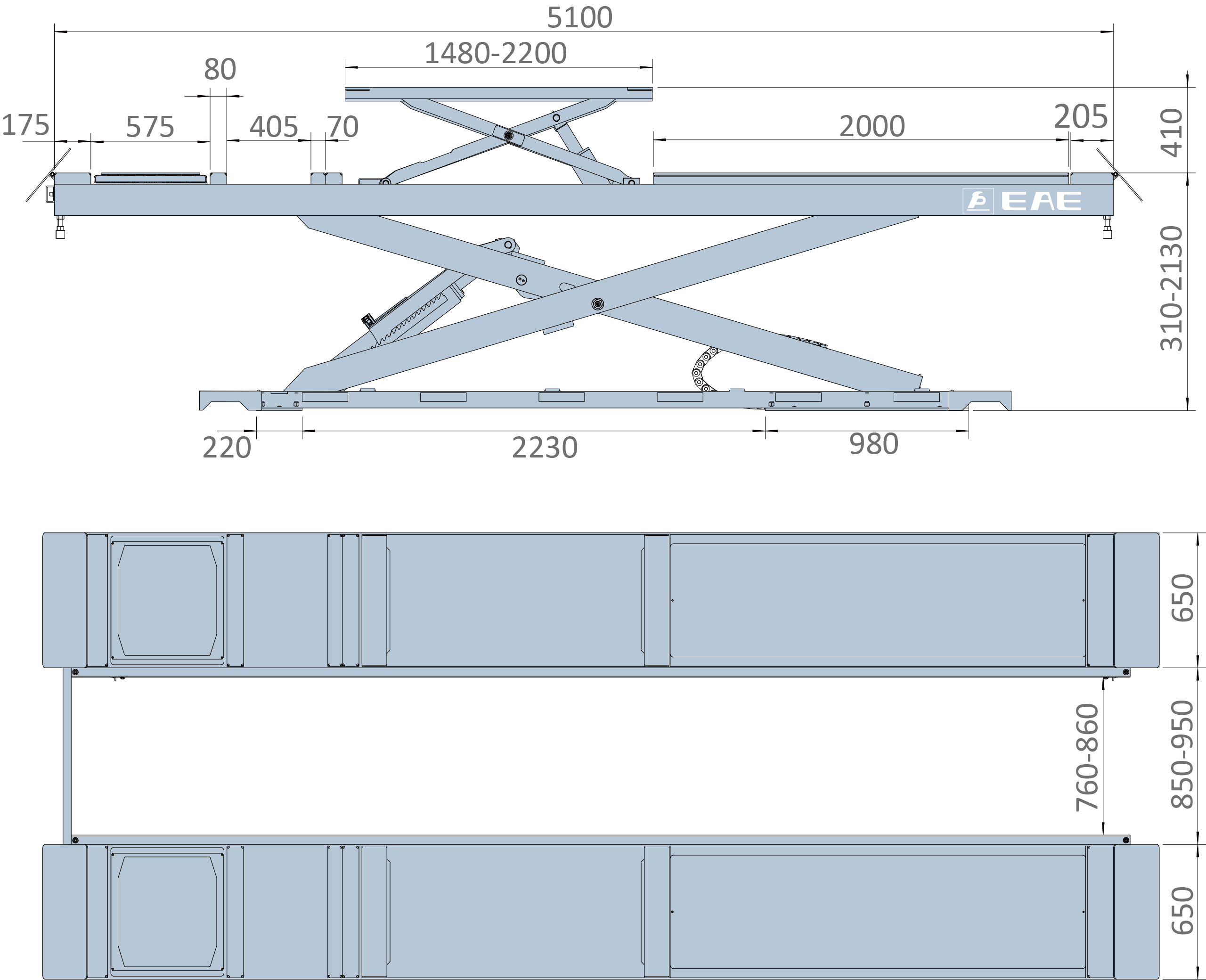

MODEL NO. | HX50 |
Lifting Capacity | 5.0T |
Max Lifting Height | 2130mm(1820mm above floor) |
Min Height | 310mm |
Platform Width | 650mm |
Lifting Time | ≈25s |
Air Supply | 6-8bar |
Capacity of Motor | 3.5kW×2/3ph |
Electricity Supply | According To Customer Needs |
* Machine shown with optional equipment. Actual product appearance may differ.
·Maximum lifting height 1800mm above floor
·5100mm long flat runways for general service use
·Infrared synchronization protection system
·The most of vehicles can be lifted by the Wheel-free Lifting. Platform, which loads as much as 4000kg and extends as long as 2200mm
·Only 25 seconds raising time to shorten your service time
·Flexible positions are reserved for turning plates on the wheel-support platforms. Accurate wheel-aligning is efficiently done using its pneumatic-controlled slip plates together with the radius turning plates
·Four portable LED lamps attached magnetically by the platform ensure the space under vehicles always have sufficient light
·Optional Play Detector, with its longitudinal and transversal movement being as much as 100 mm, is made as per the DIRECTIVE 2014/45/EU
