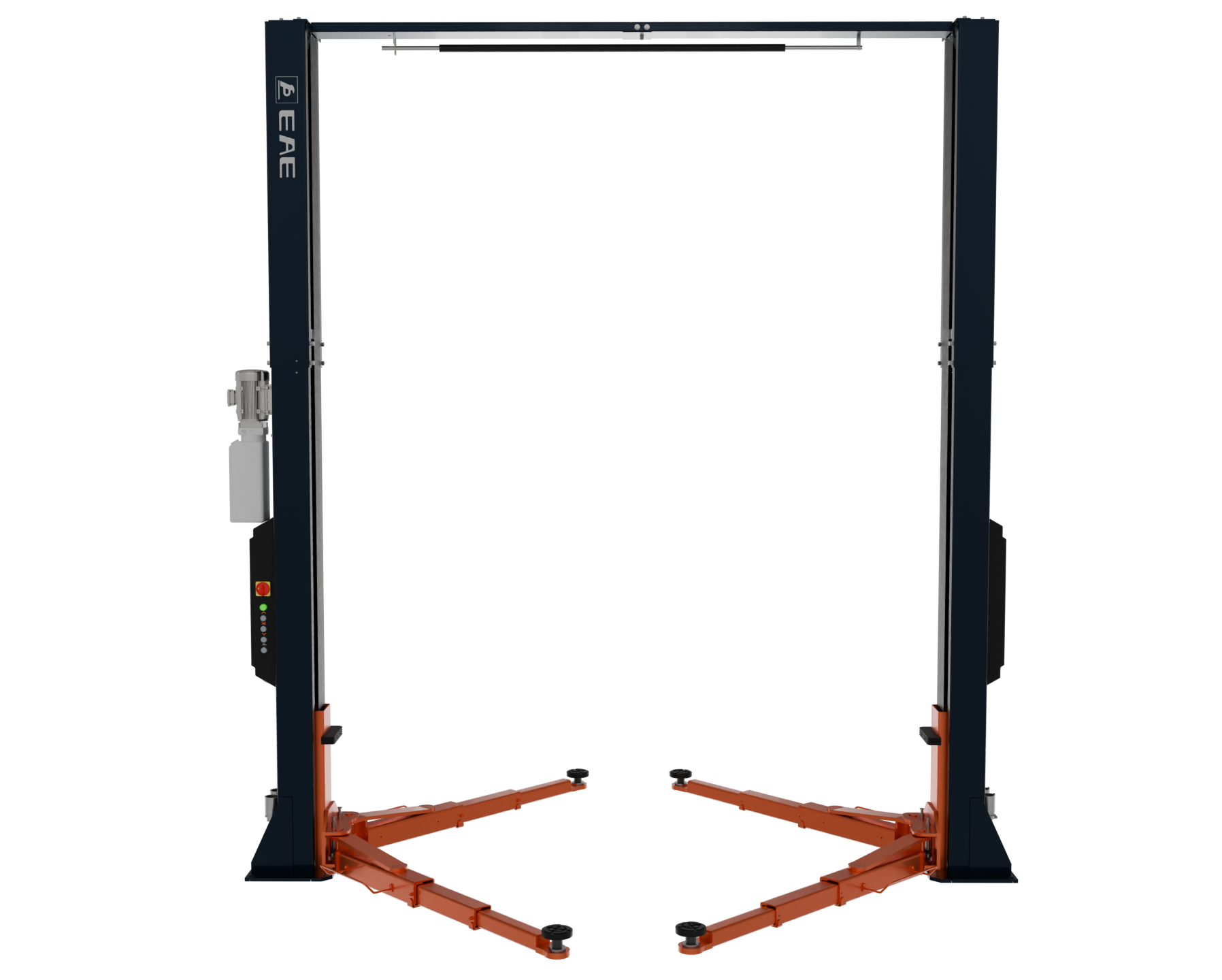

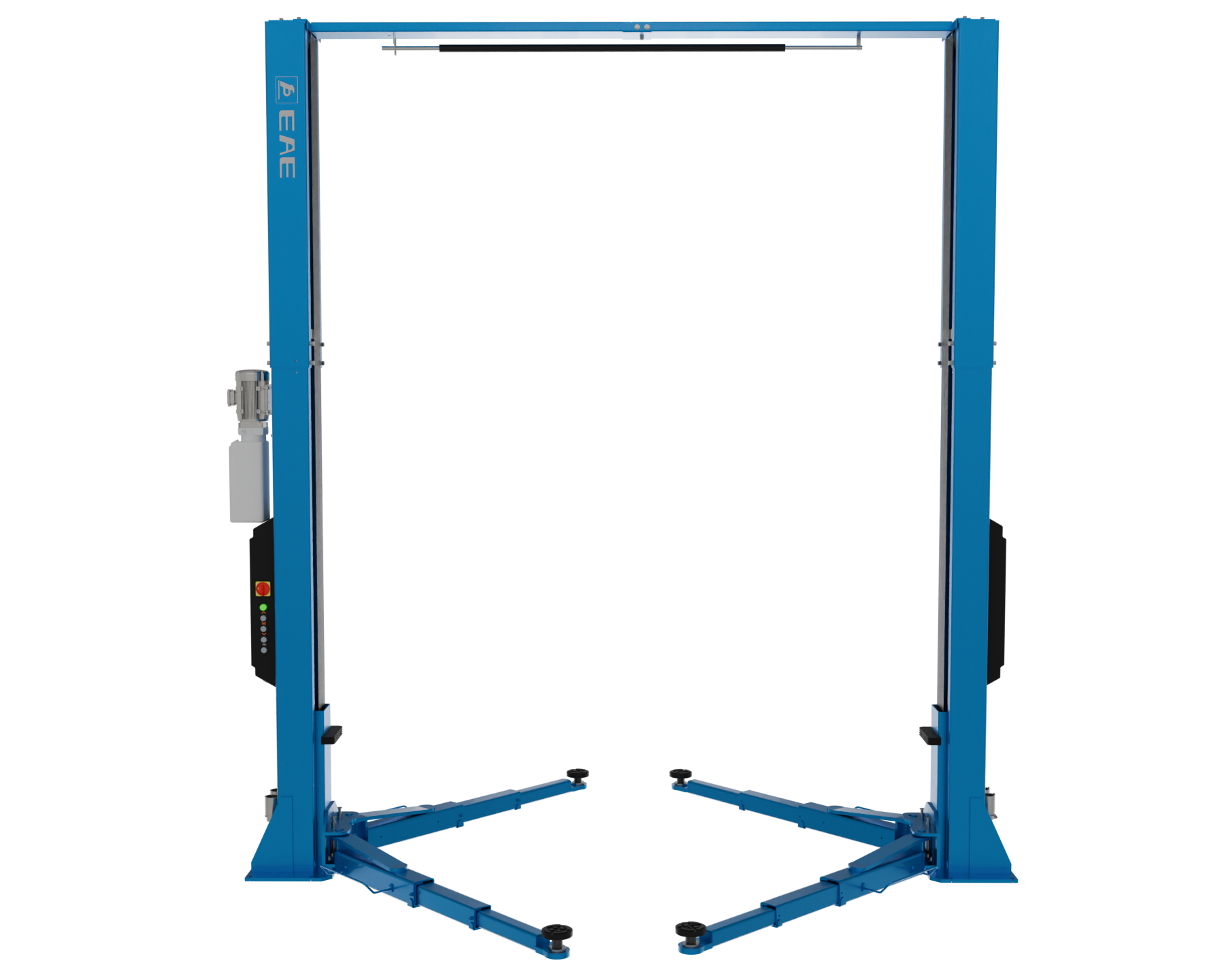

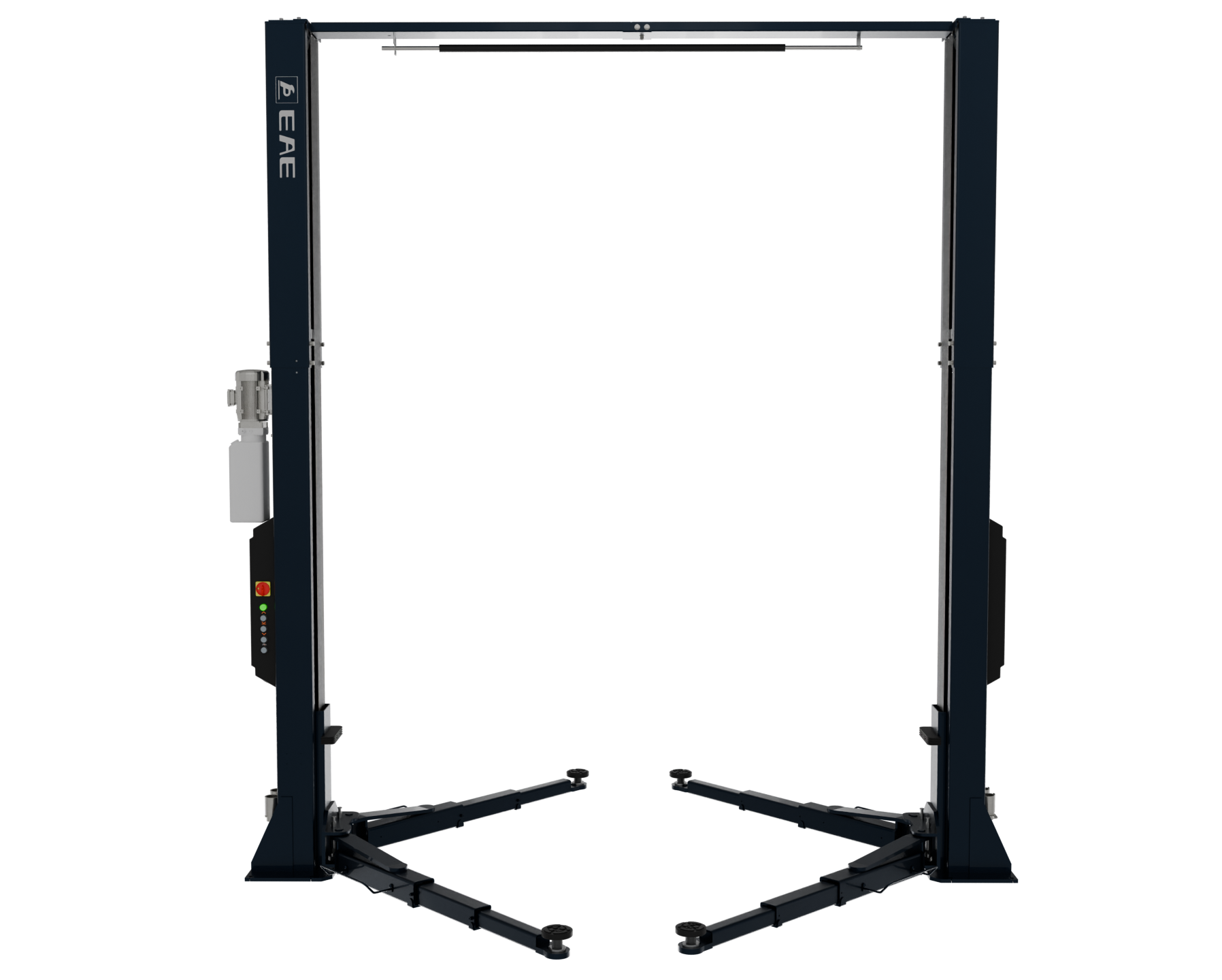

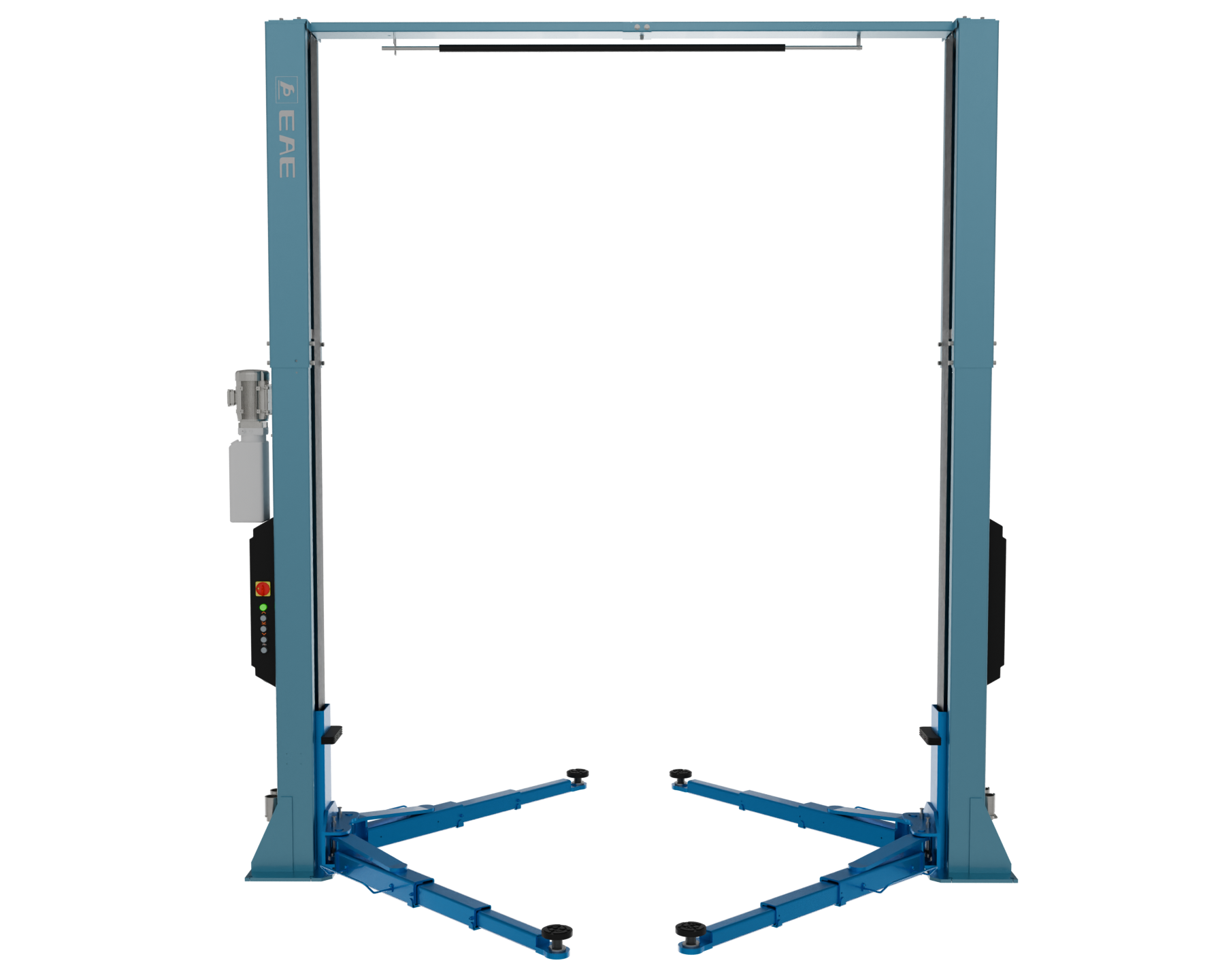

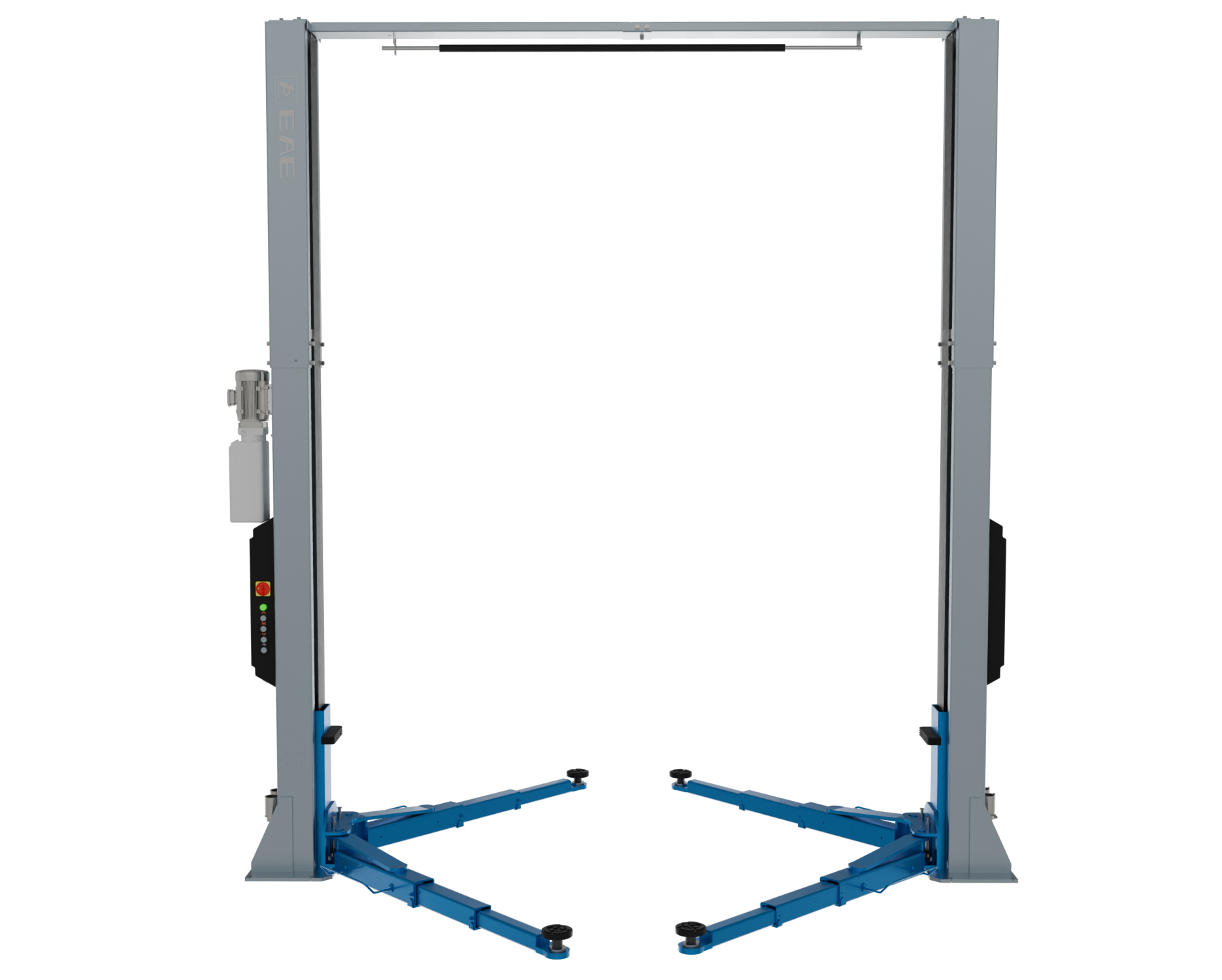

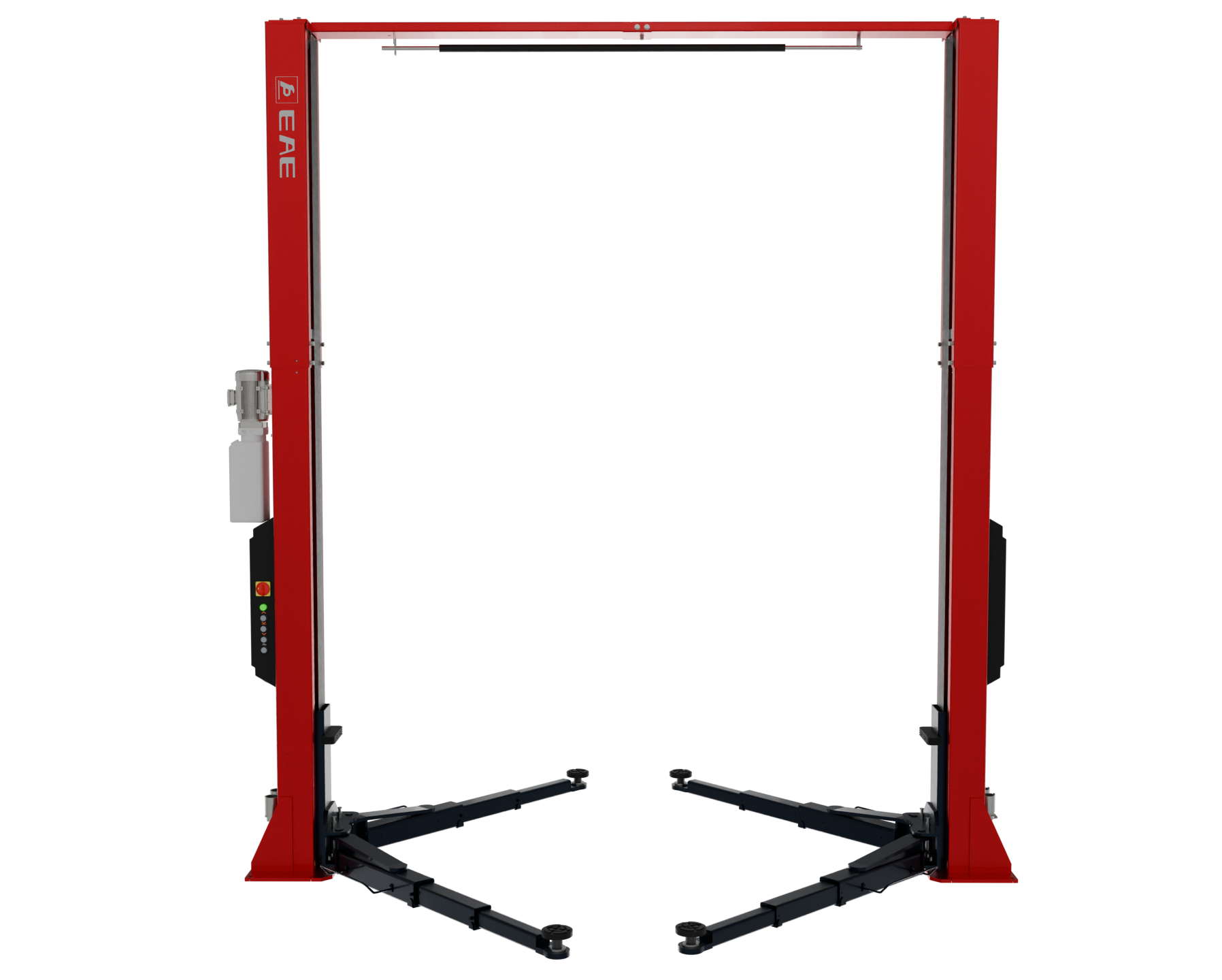

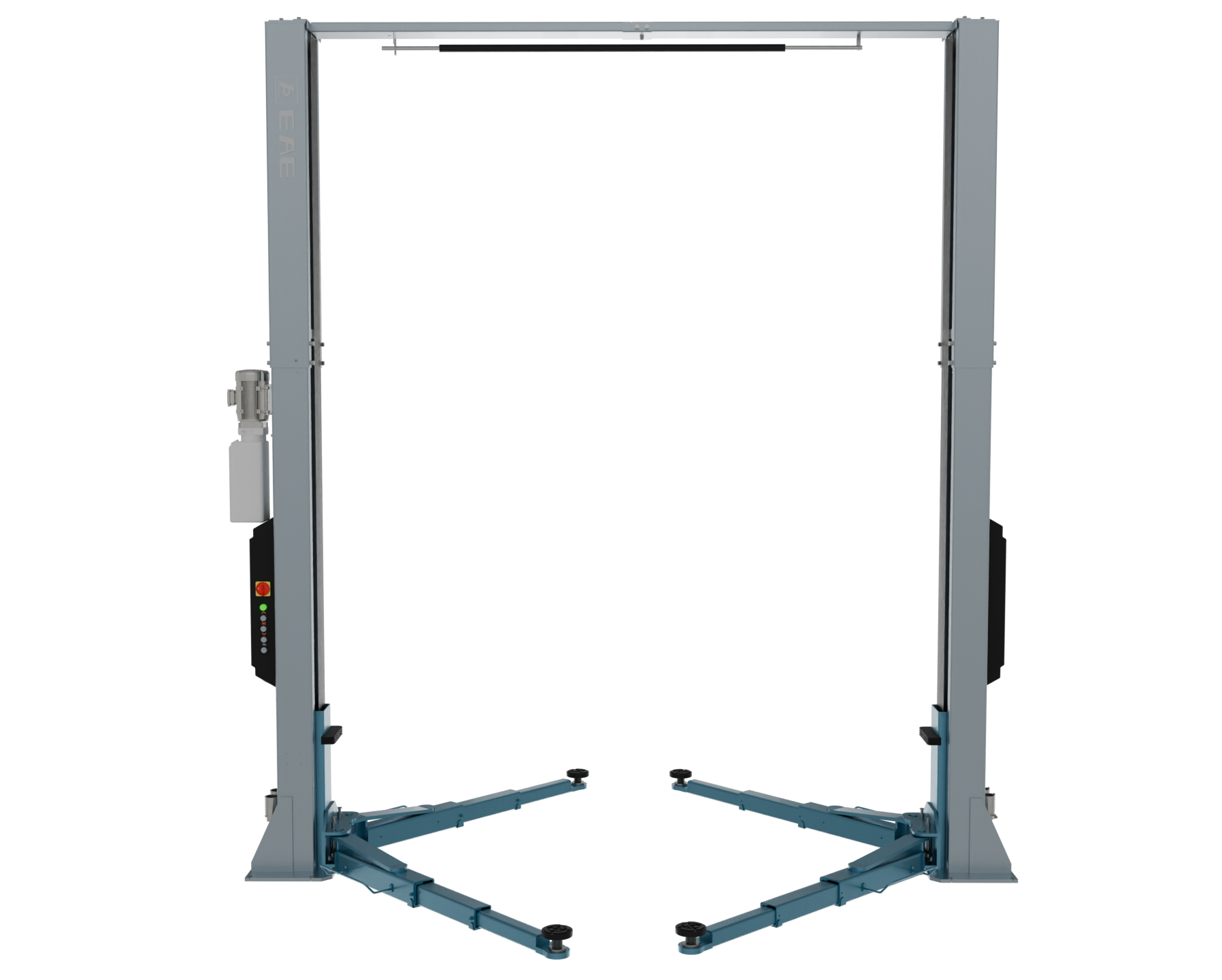

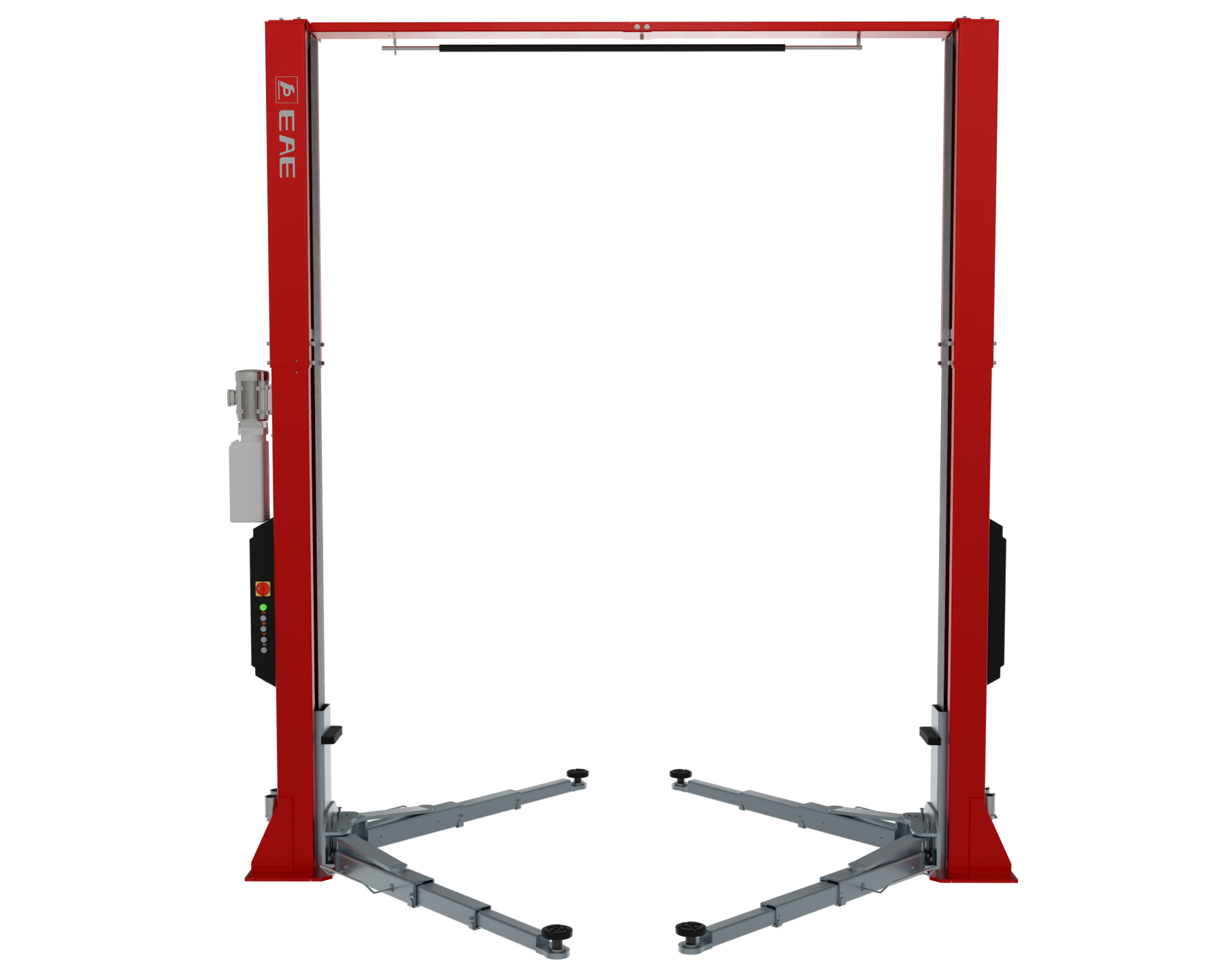

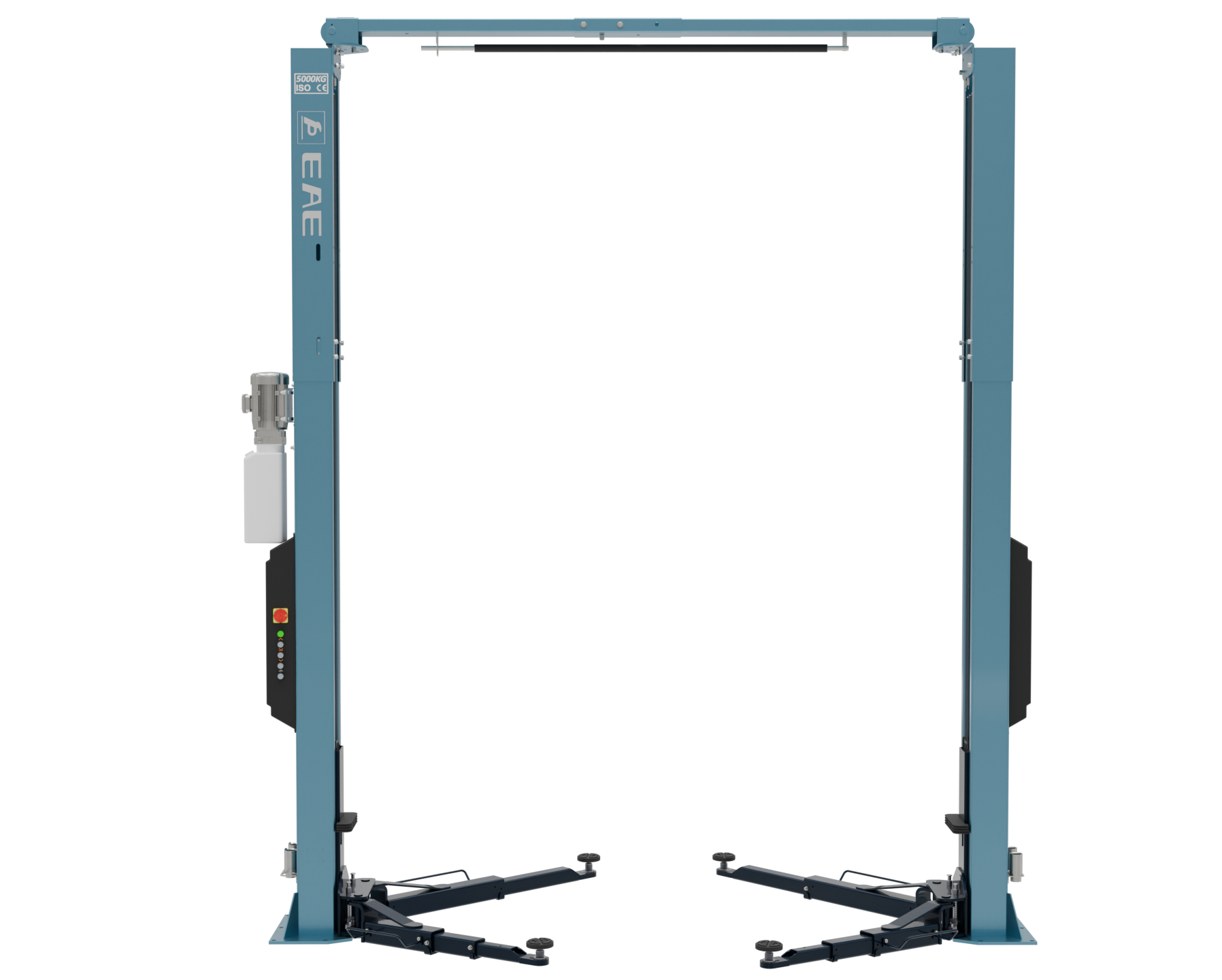

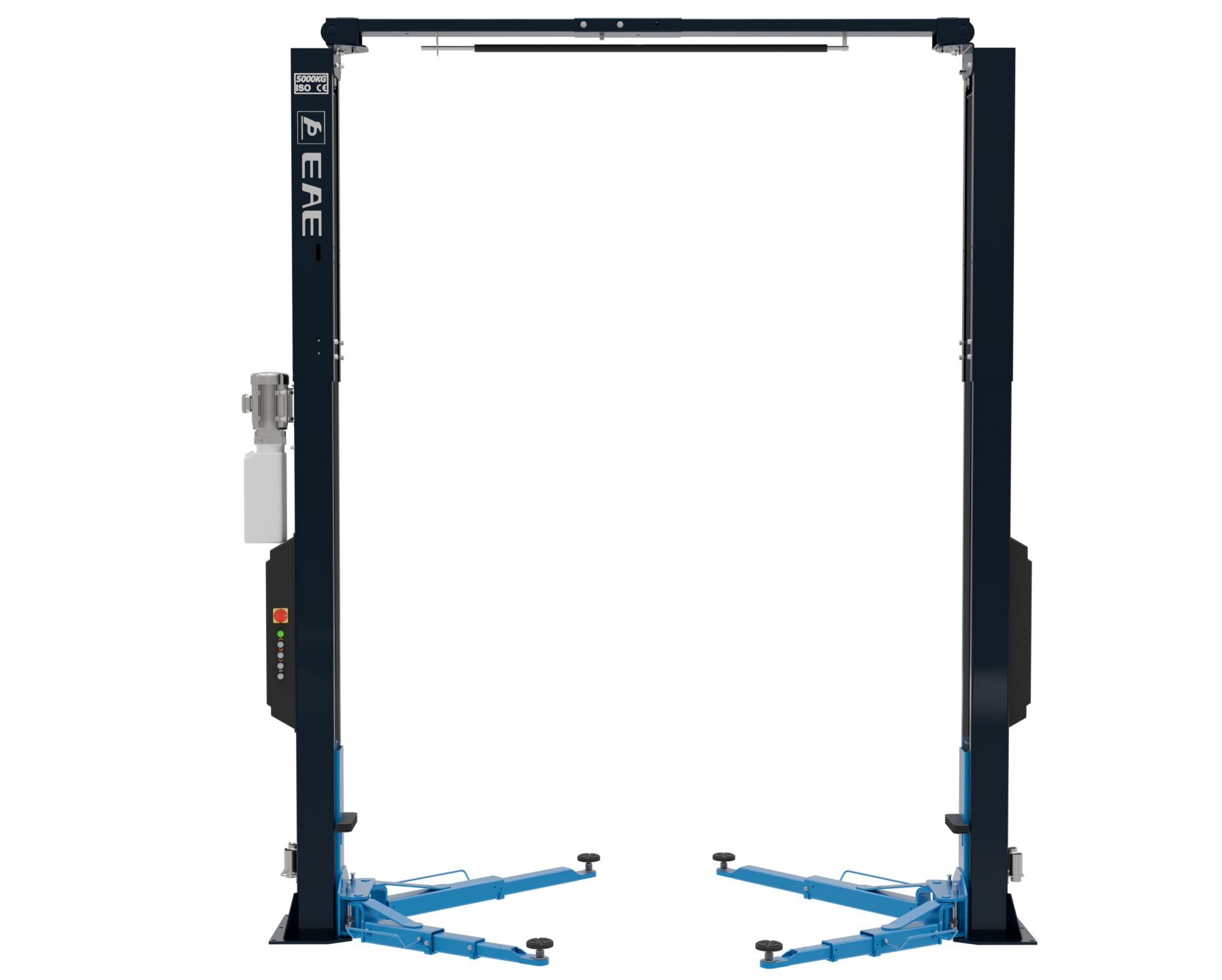

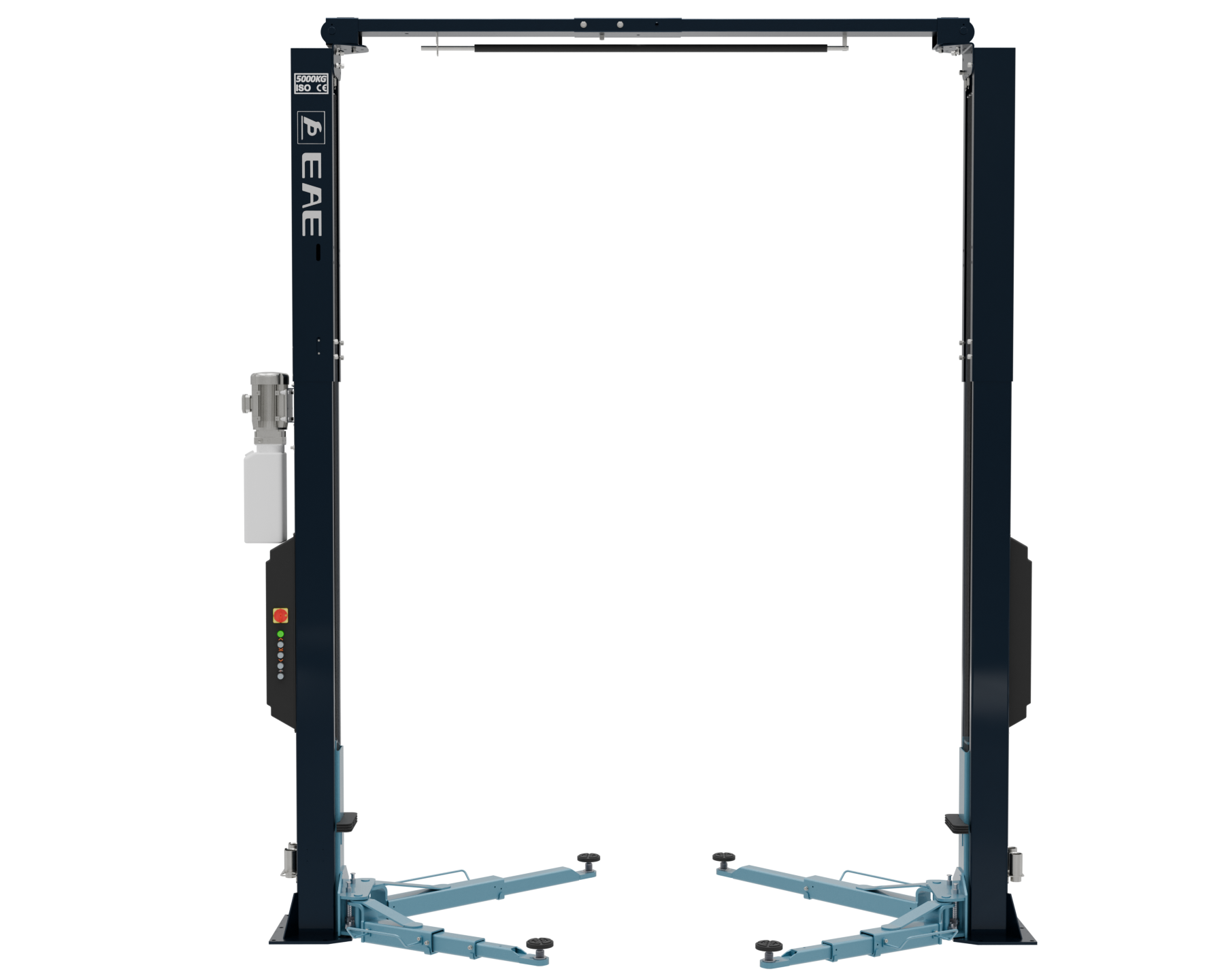

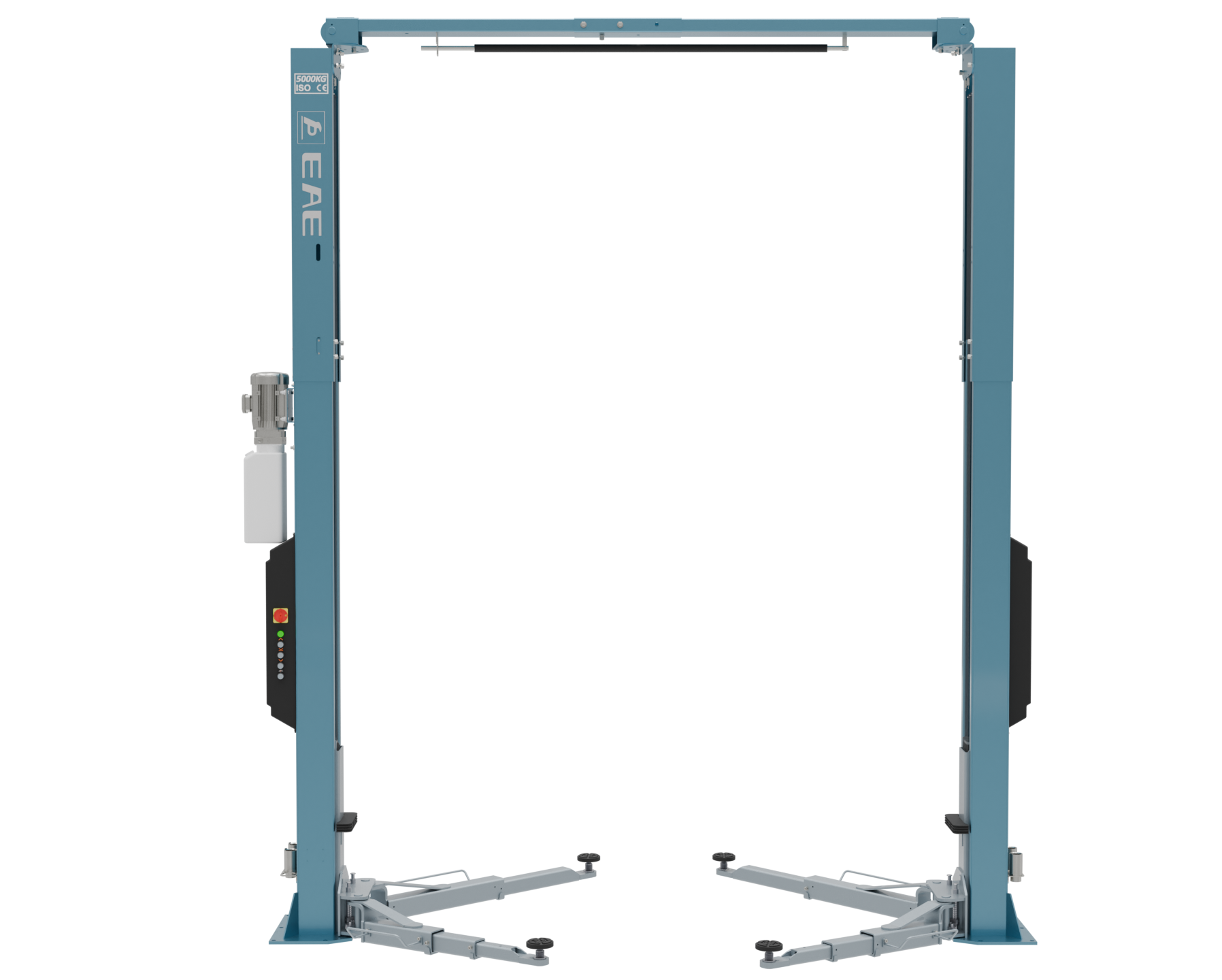

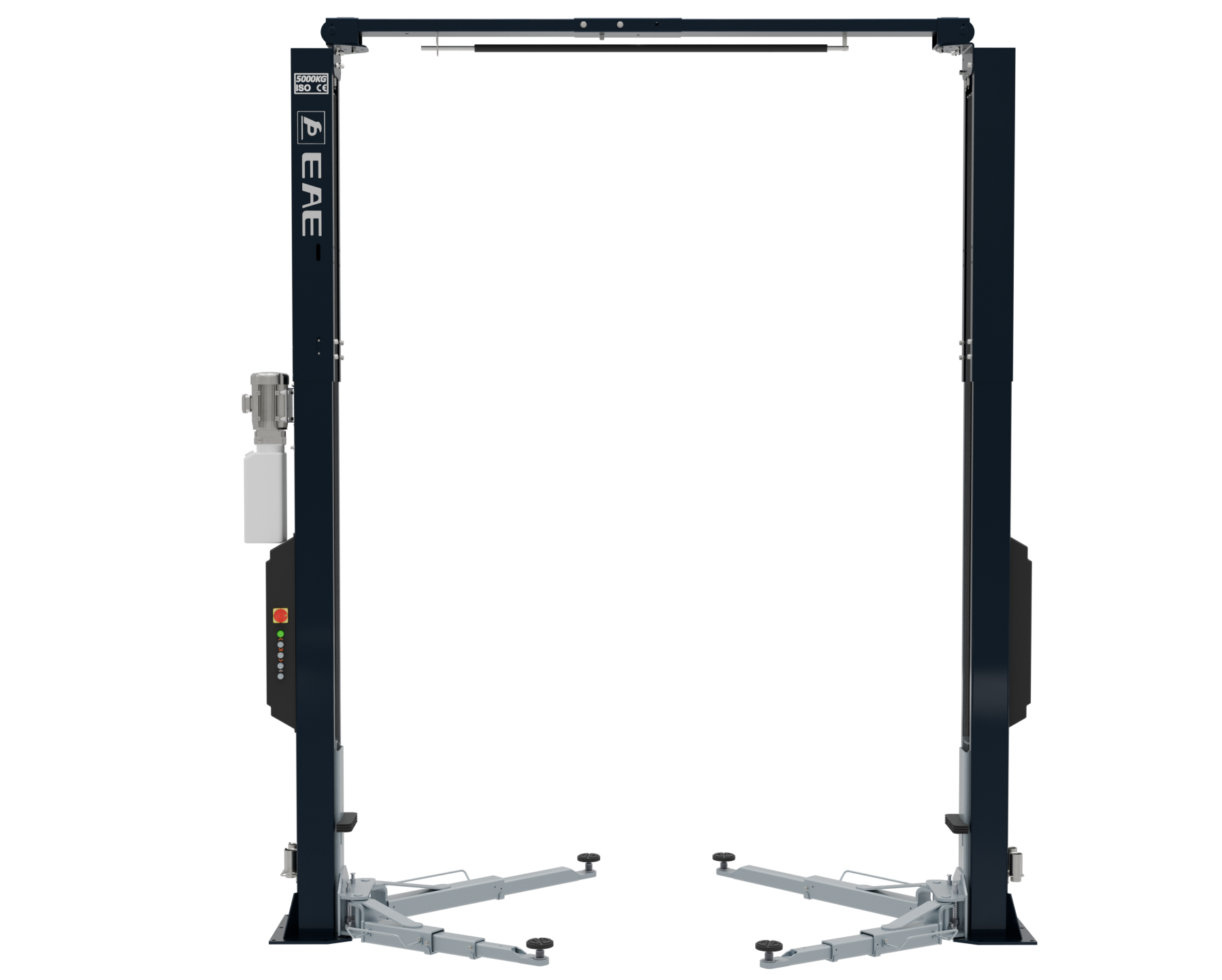

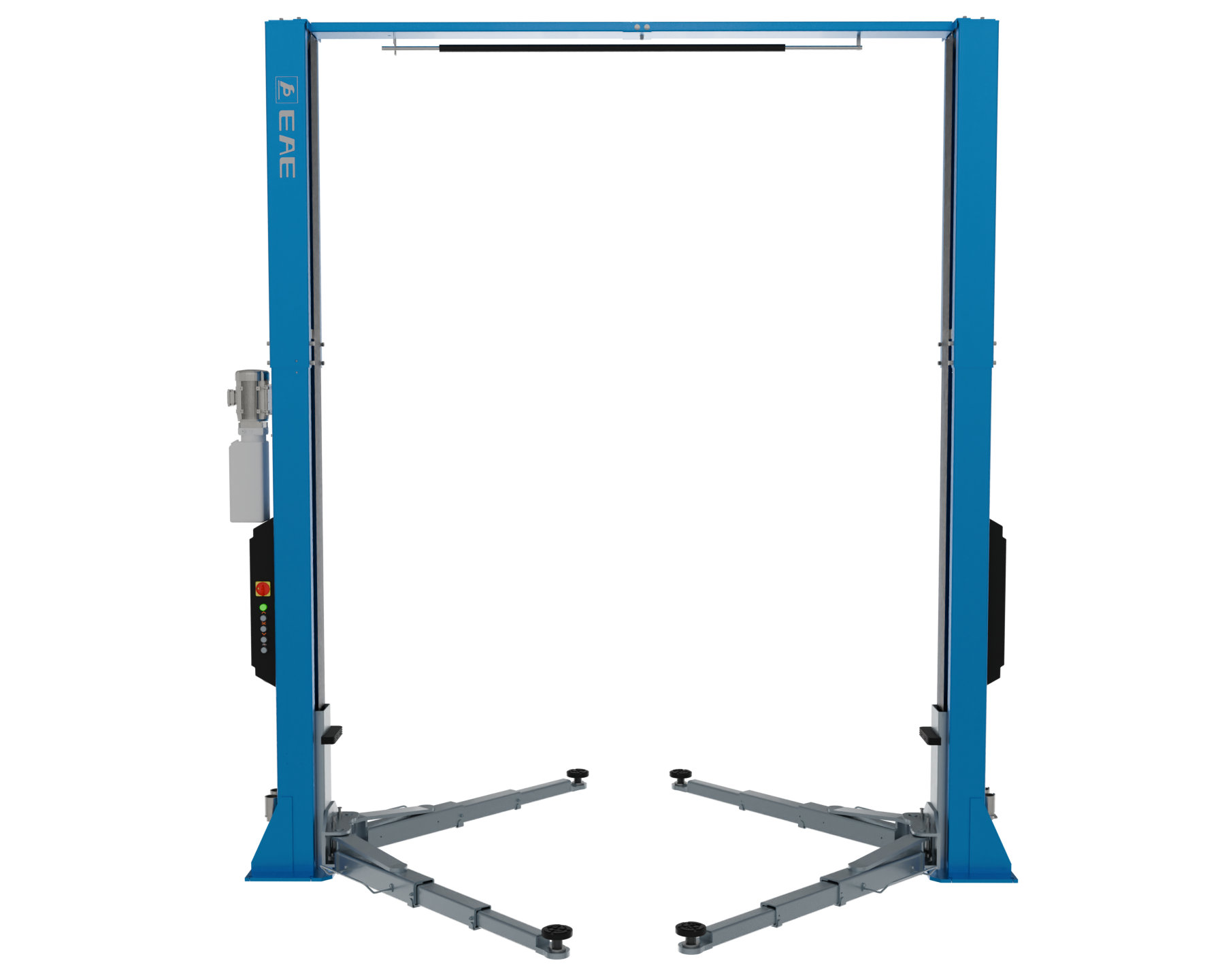

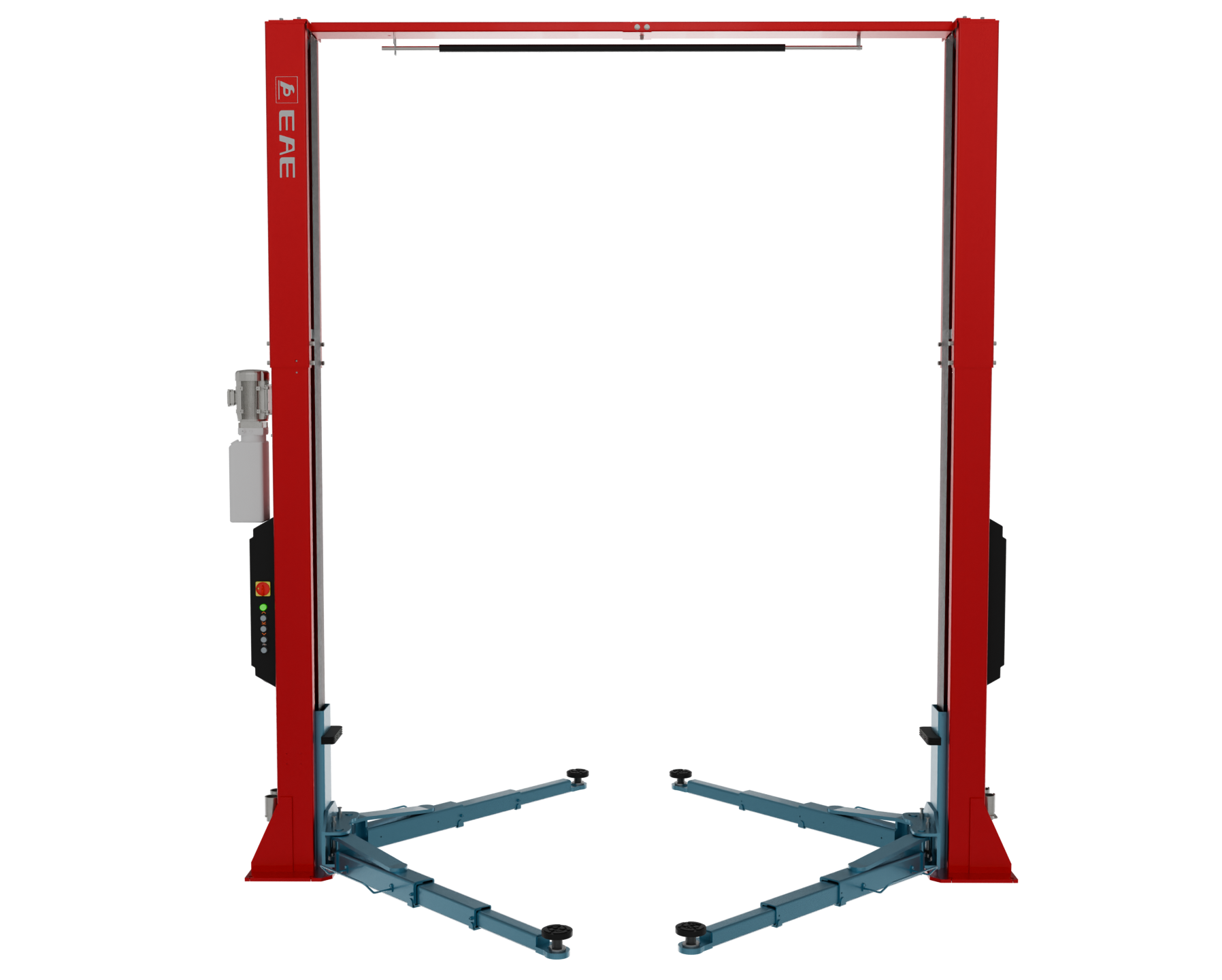

62C | 5.0T/6.0T Two post lift with APS technology

Share:
Product Image VR View

EAE

  • 1900mm

    Max Lifting Height

  • 110mm

    Min Height

  • 3342mm

    Inside Column

  • 35s

    Lifting Time

Accessories Details

Tool Tray

M Arm

Strong Carriage and Arm Structure

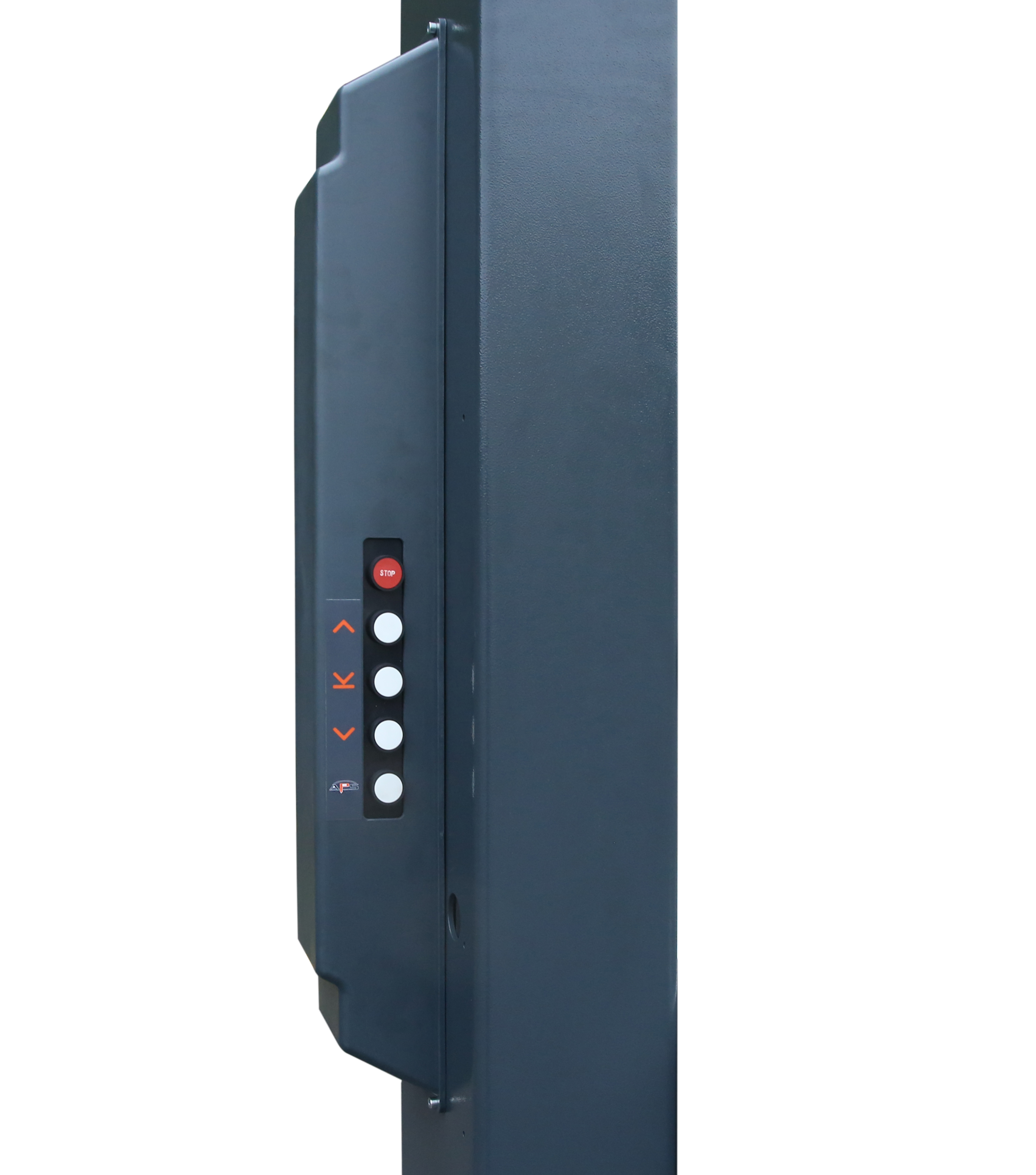

24V Control Box

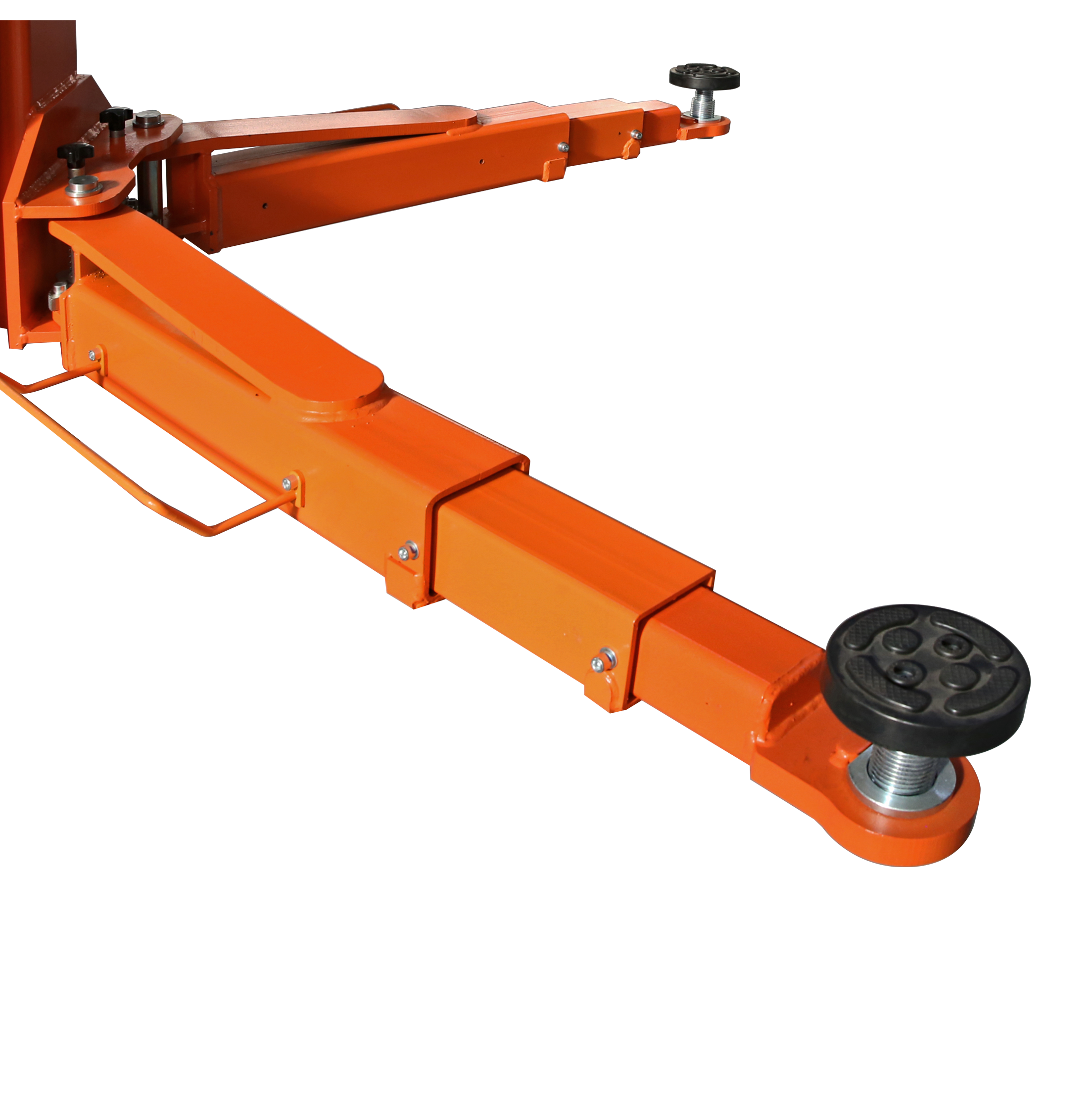

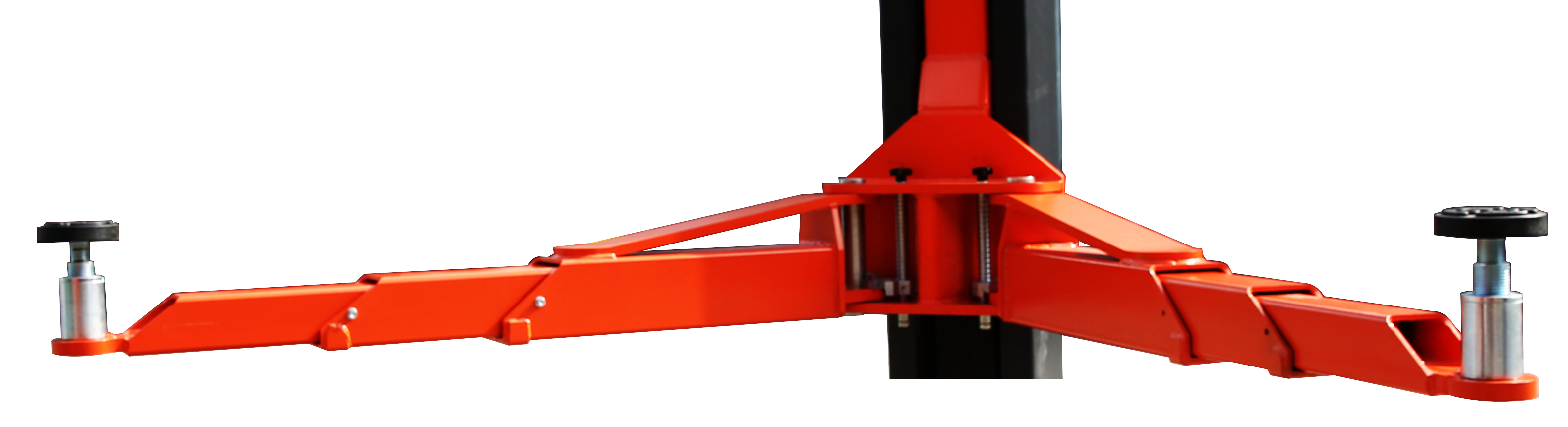

3-Stage Short Arm And 2-Stage Long Arm

Height Bracket

Technical Data
Description
Brochure
Cases
MODEL NO. 62C-50T 62C-60T
Lifting Capacity 5.0T 6.0T
Max Lifting Height 1900mm 1900mm
Min Height 110mm 110mm
Overall height 4451mm 4451mm/5051mm
Drive-through width 3006mm 3025mm
Lifting Time ≈35s ≈55s
Capacity of Motor 3.5kW/3ph 3.5kW/3ph
Electricity Supply According To Customer Needs


* Max. Lifting height is measured with adjustable screw pads in highest position.

* Machine shown with optional equipment. Actual product appearance may differ.


·Clear floor design for easy movement of maintenance equipment under the raised vehicle
·With APS technology
·1900mm lifting height
·5.0T/6.0T lifting capacity
·Durable cylinders in each column carry with anti-surge valves
·Screw-up lifting pads with clearance height less than 100mm
·The arm locks engage and disengage automatically
·More flexible three stage arms
·Vehicle roof protective device
·Standard aluminum motor avoids overheating and ensures long service life
·Durable powder coating
·Standard door protection pads to prevent possible damage when open the door without caution
·Standard column curtain
·Pre-fixed hydraulic pressure prevents overloading operation
·ABS control box with rubber gasket sealing
·CE certificated

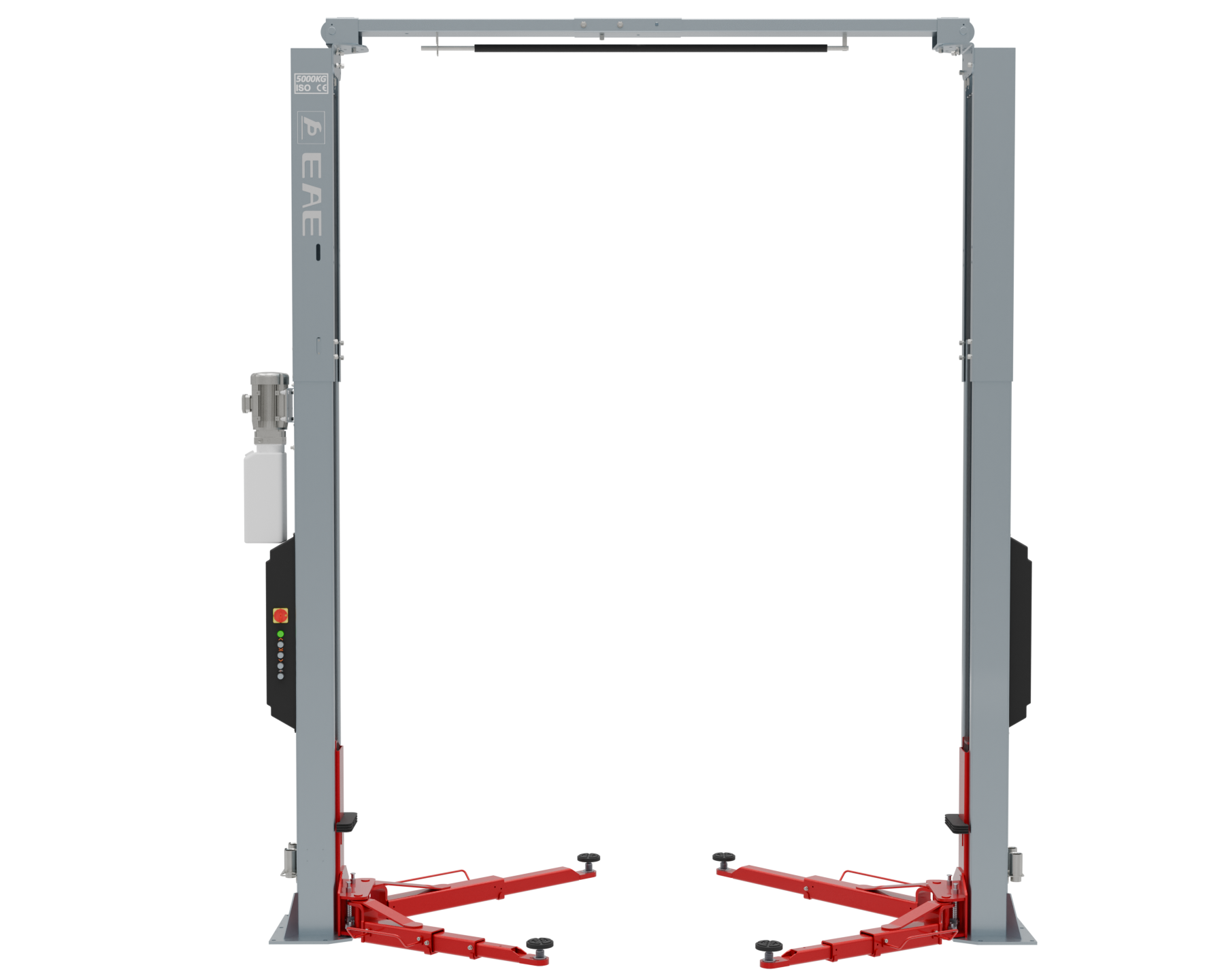

Other Models in the Same Series
