F9M/F10M | 3.5T/4.2T One hand operation two post lift

Share:
Product Image VR View

EAE

  • 1900mm

    Max Lifting Height

  • 95mm

    Min Height

  • 2830mm

    Inside Column

  • 55s

    Lifting Time

Accessories Details

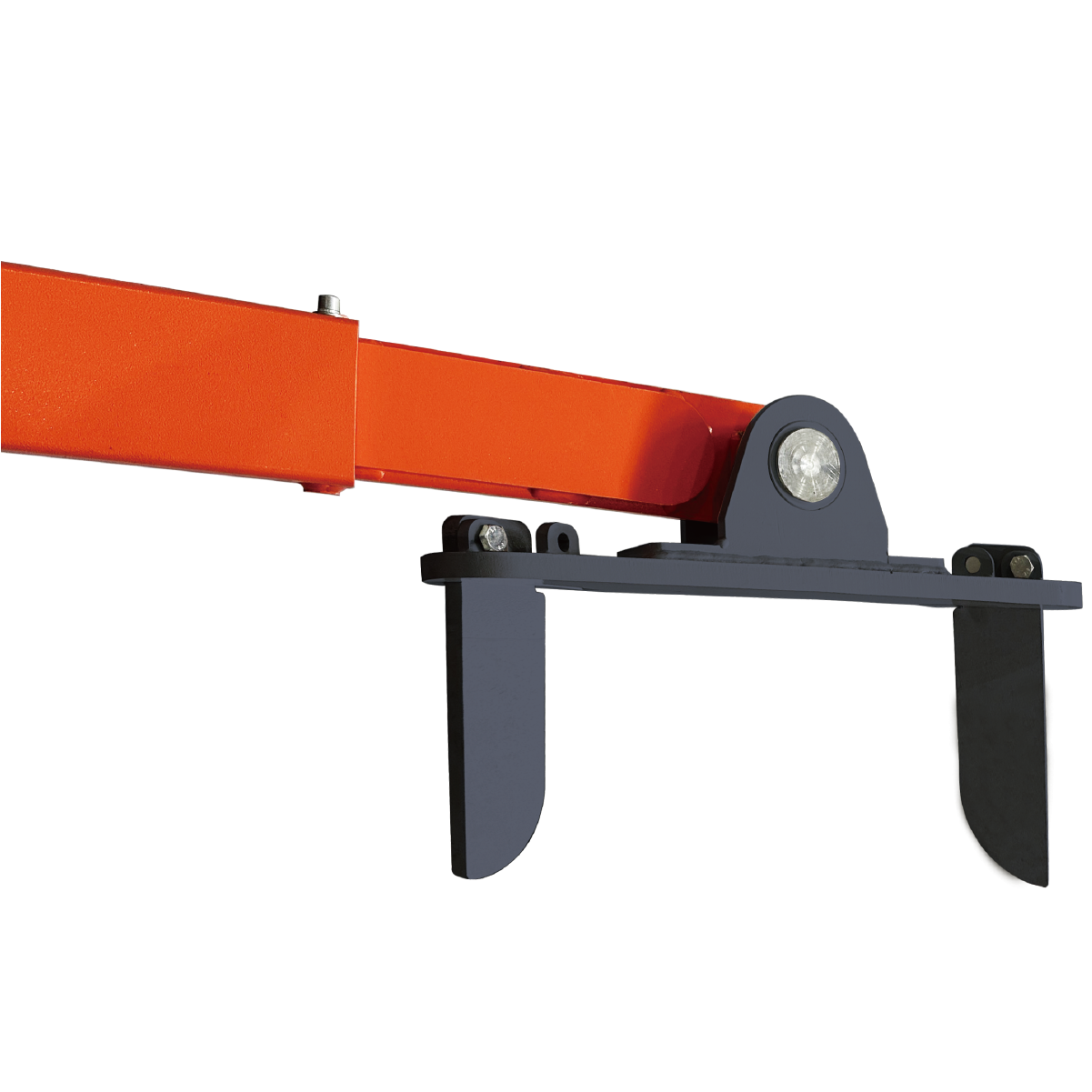

Wheel Support Adapter(≤3.5T)

Tool Tray

Elbow Arm (≤4.2T)

Three Stage Thin Arm (≤4.2T)

Handle for Release & Descent

Strong Carriage and Arm Structure

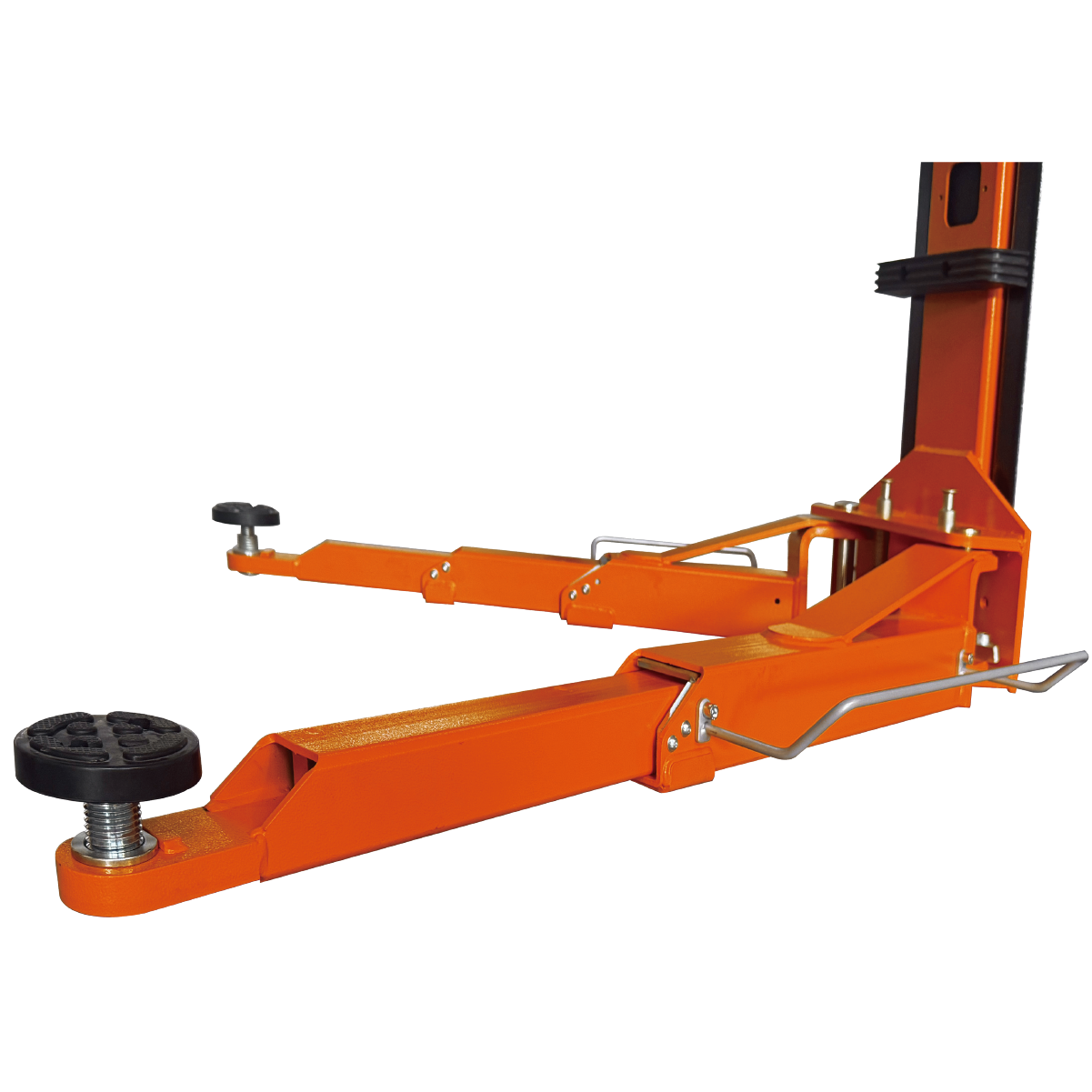

3-Stage Short Arm And 2-Stage Long Arm

Round Screw-up Lifting Pad

Technical Data
Description

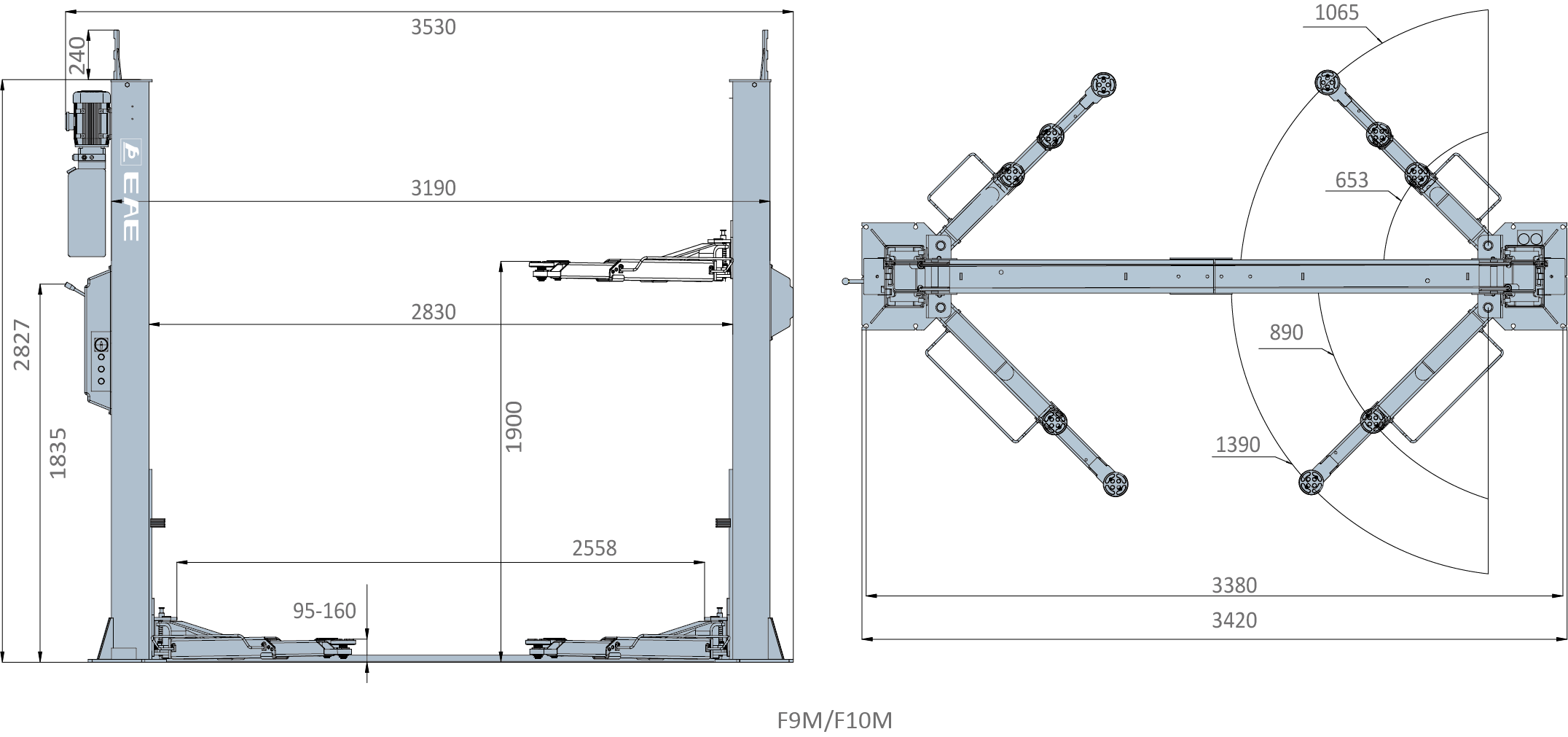

Overall Dimension
Brochure
Cases

MODEL NO.

F9M F10M
Lifting Capacity 3.5T
4.2T
Max Lifting Height
1900mm
1900mm
Min Height
95-160mm
95-160mm
Overall  Height
2827+240mm
2827+240mm
Drive-through width
2558mm
2558mm
Lifting Time ≈55s
≈55s
Capacity of Motor
2.2kW
2.2kW
CE certification


Electricity Supply
According To Customer Needs


* Max. Lifting height is measured with adjustable screw pads in highest position.

* Machine shown with optional equipment. Actual product appearance may differ.


·Simply push one button to engage the mechanical safety locking unit
·Durable cylinders in each column with anti-surge valves
·Standard door protection pads to prevent possible damage to the door opened without caution
·Pre-fixed hydraulic pressure prevents overloading operation
·Standard column curtain
·24V safe control system
·3-stage short arm and 2-stage long arm
