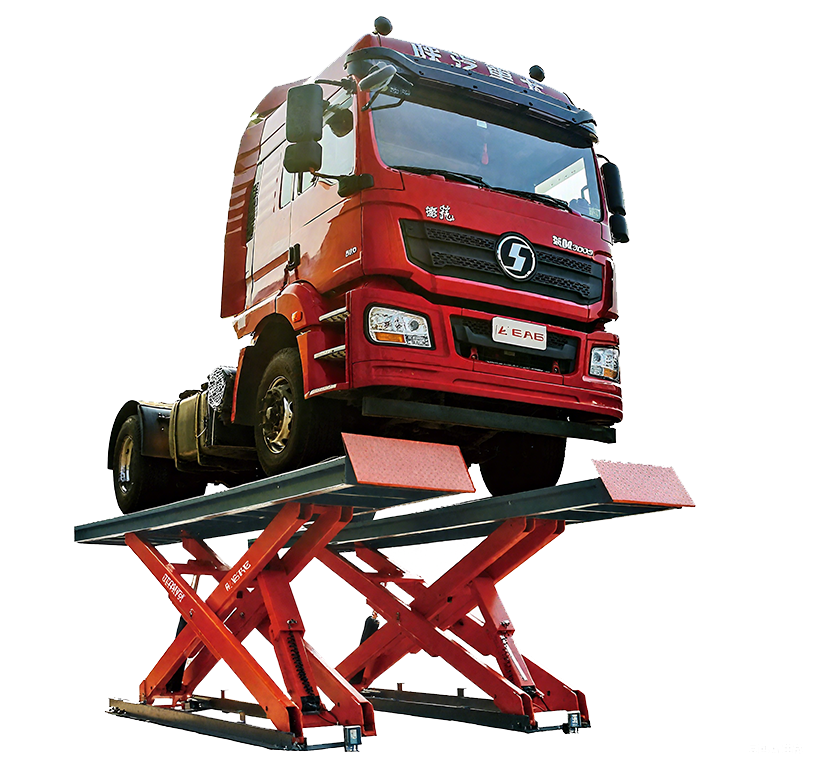

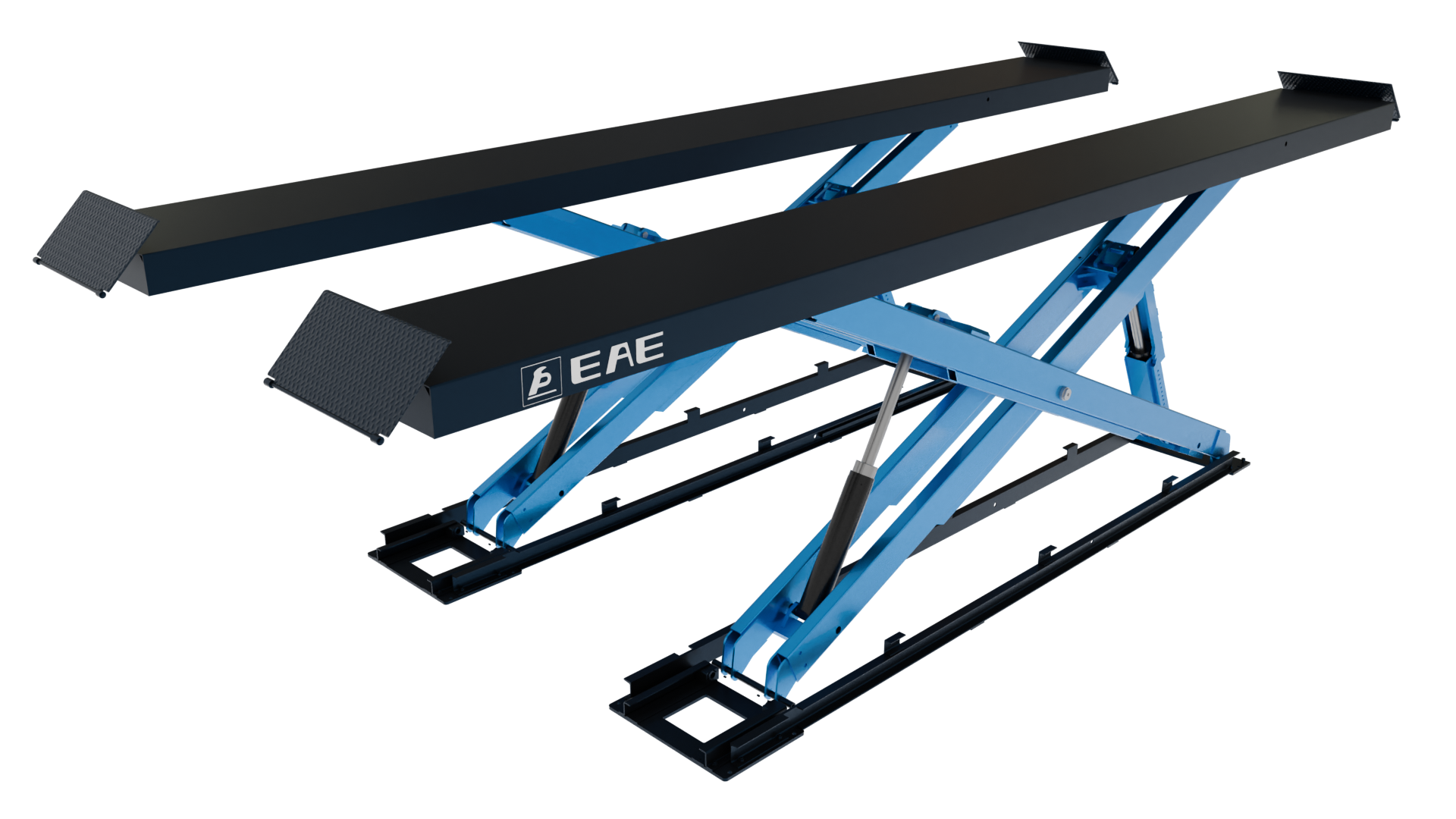

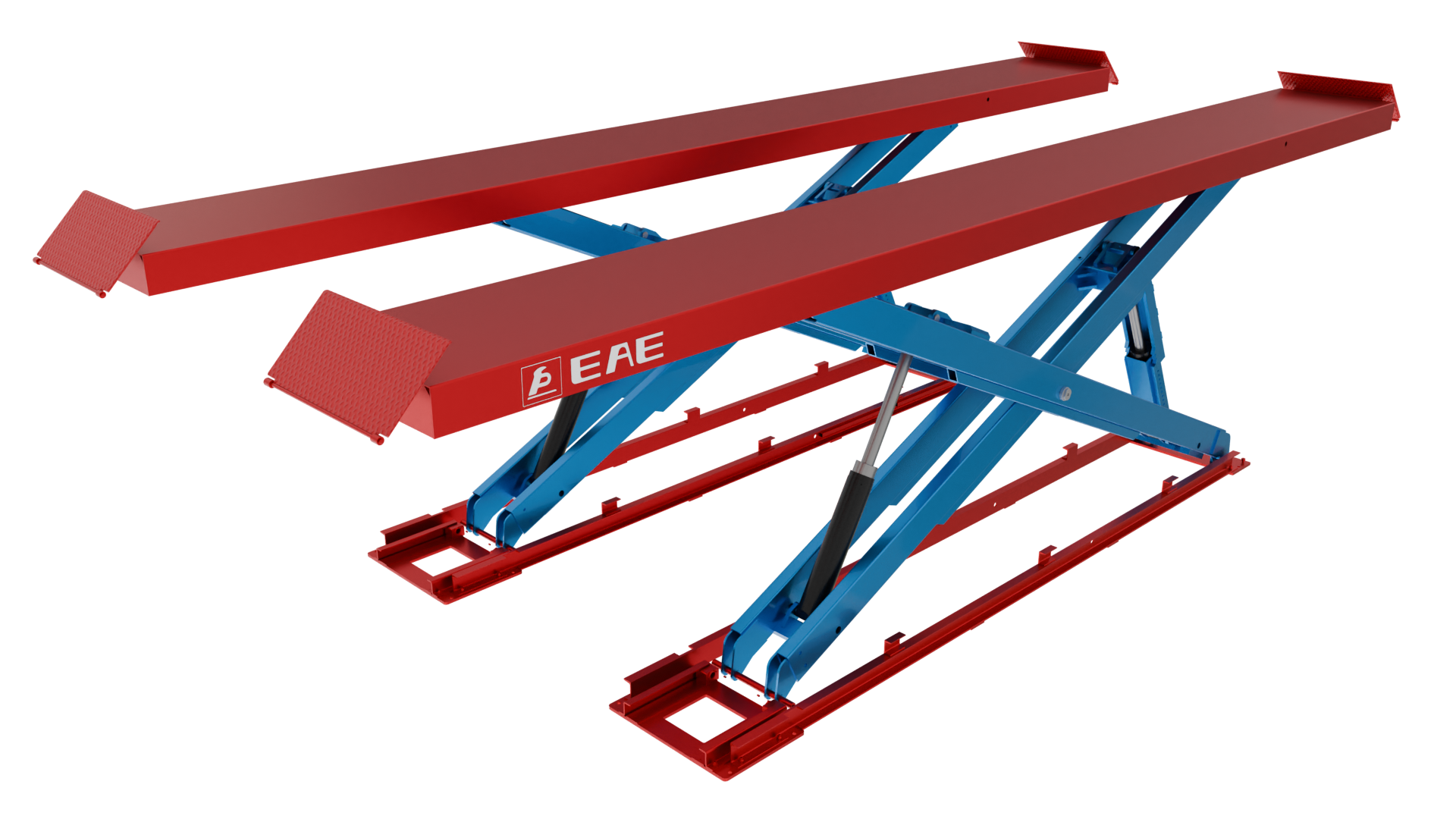

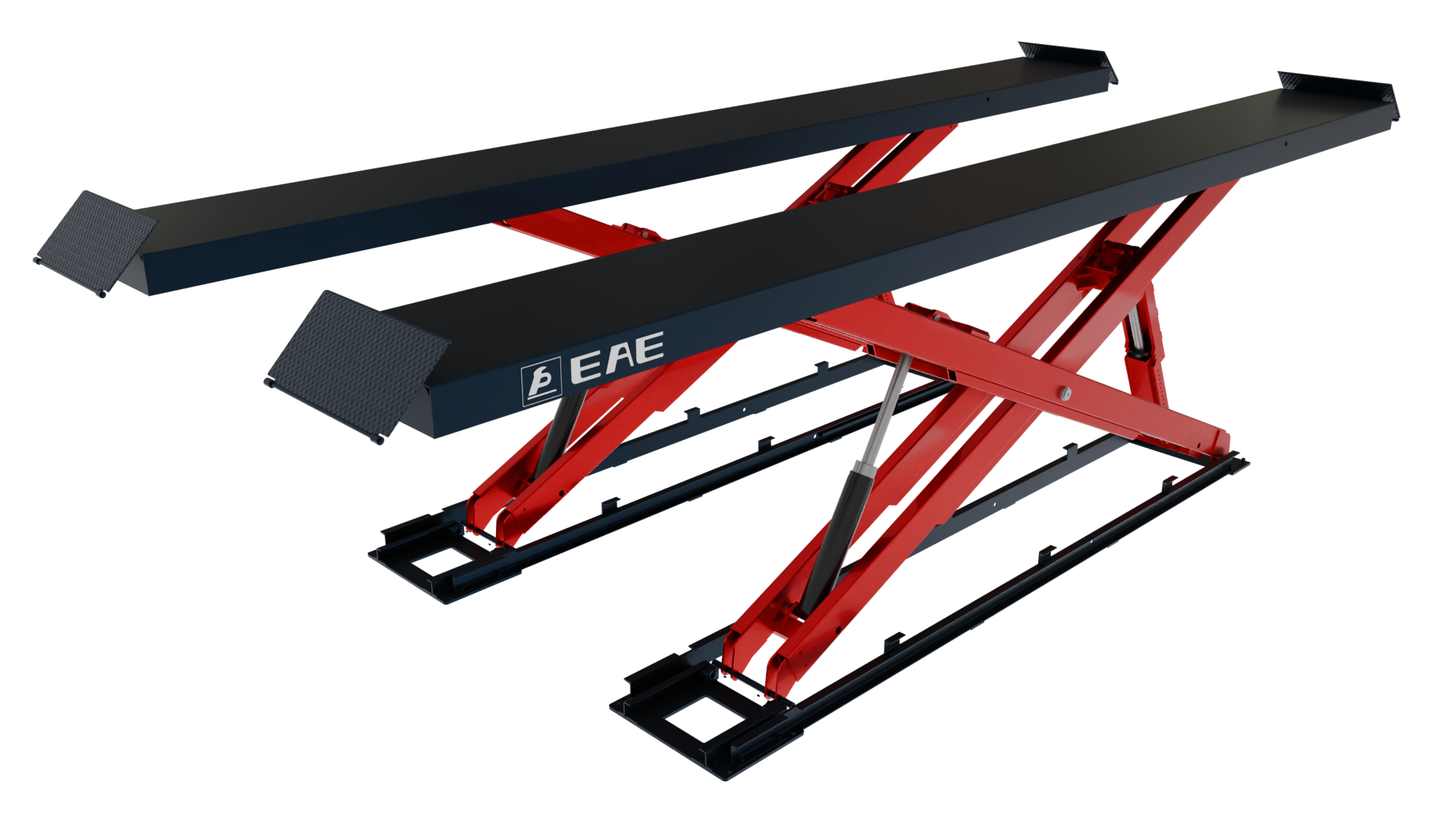

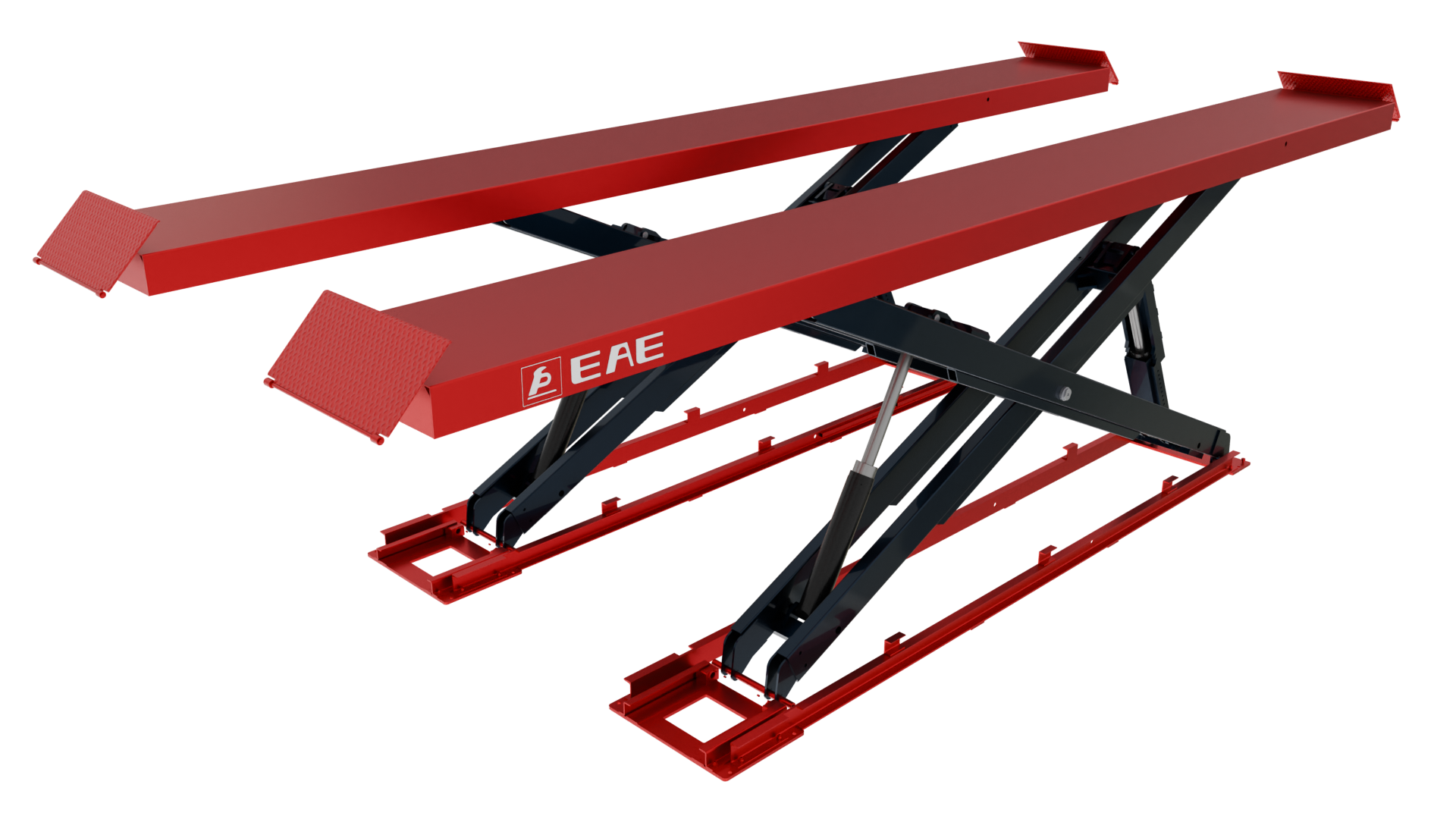

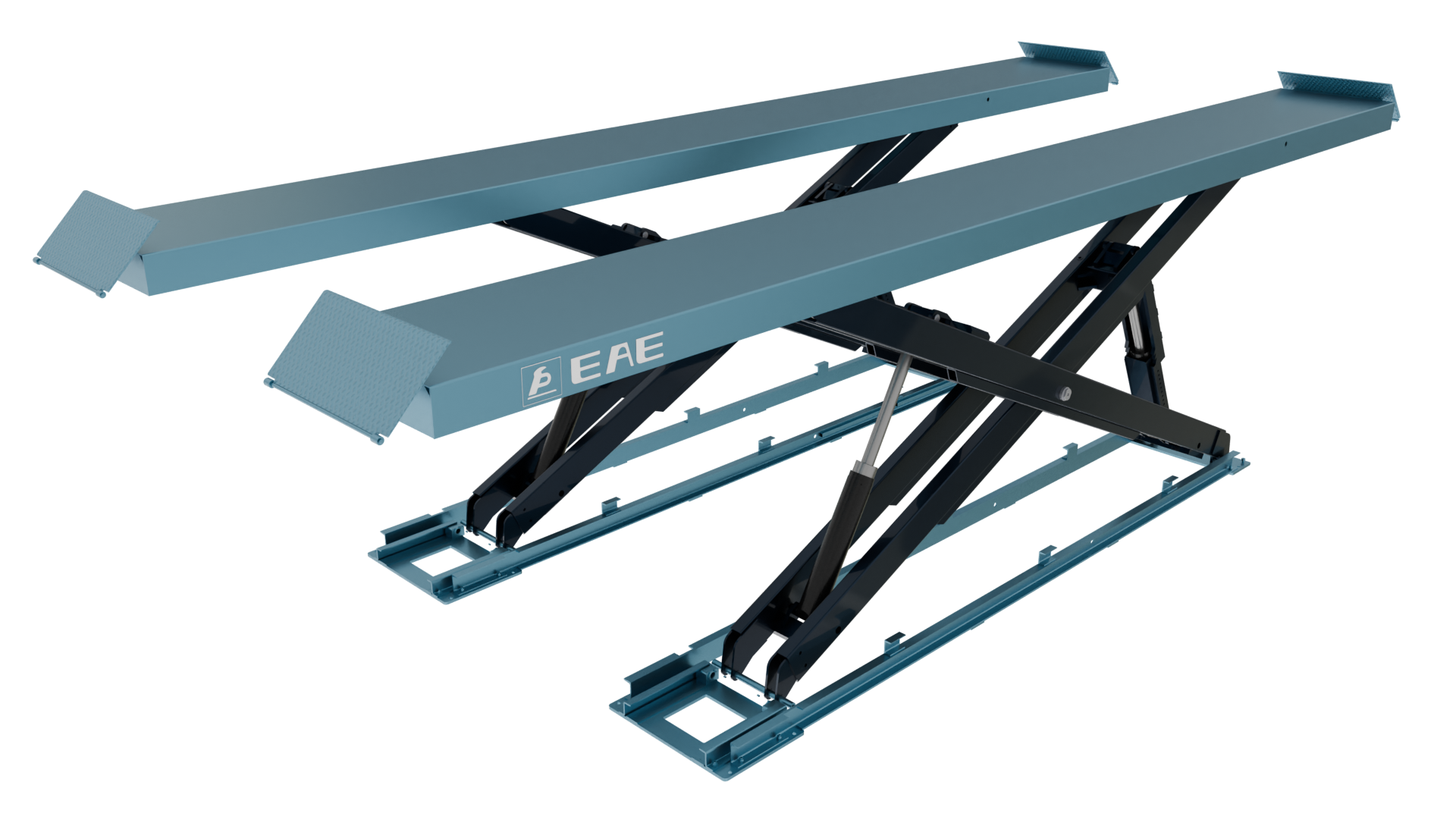

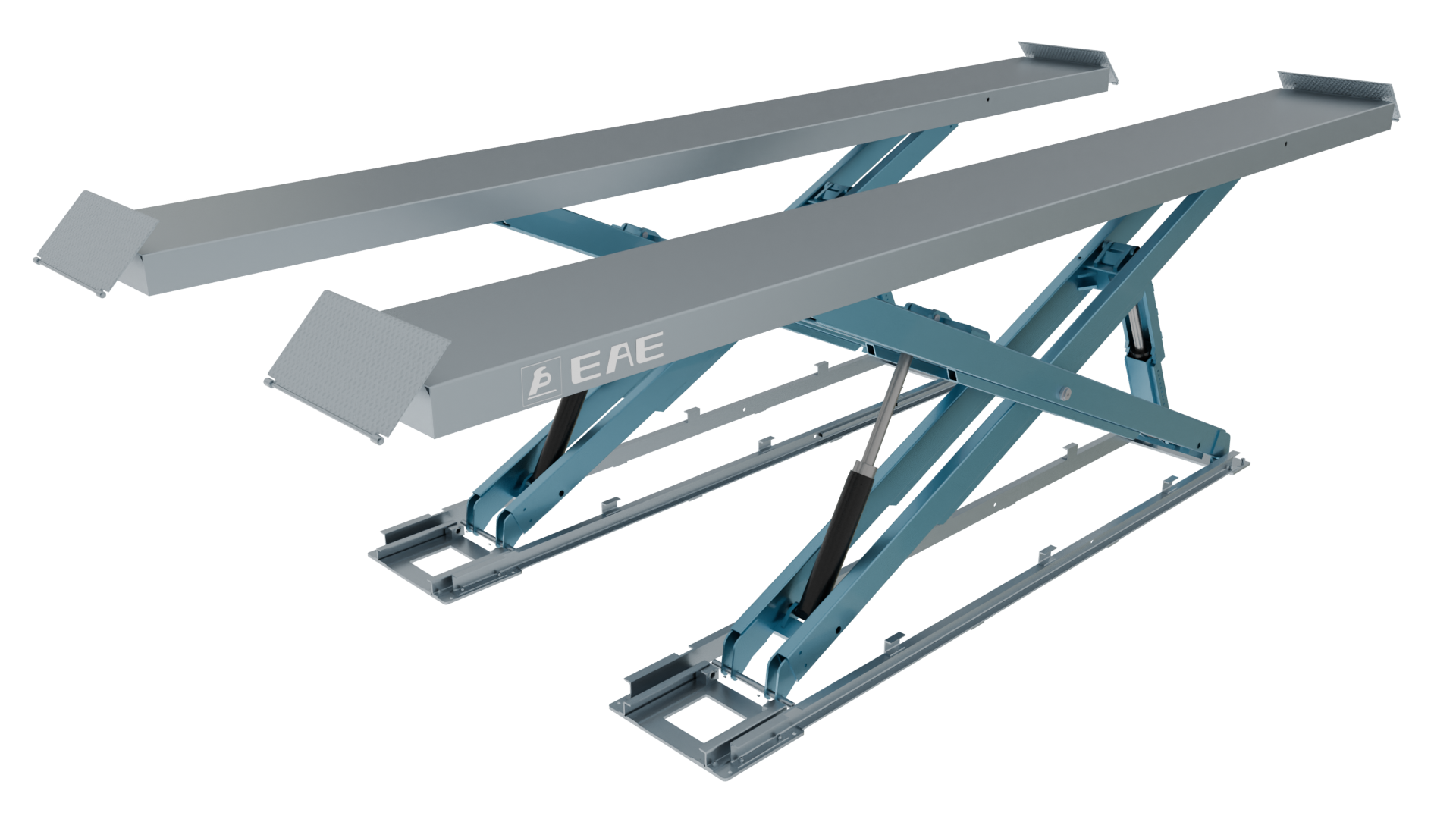

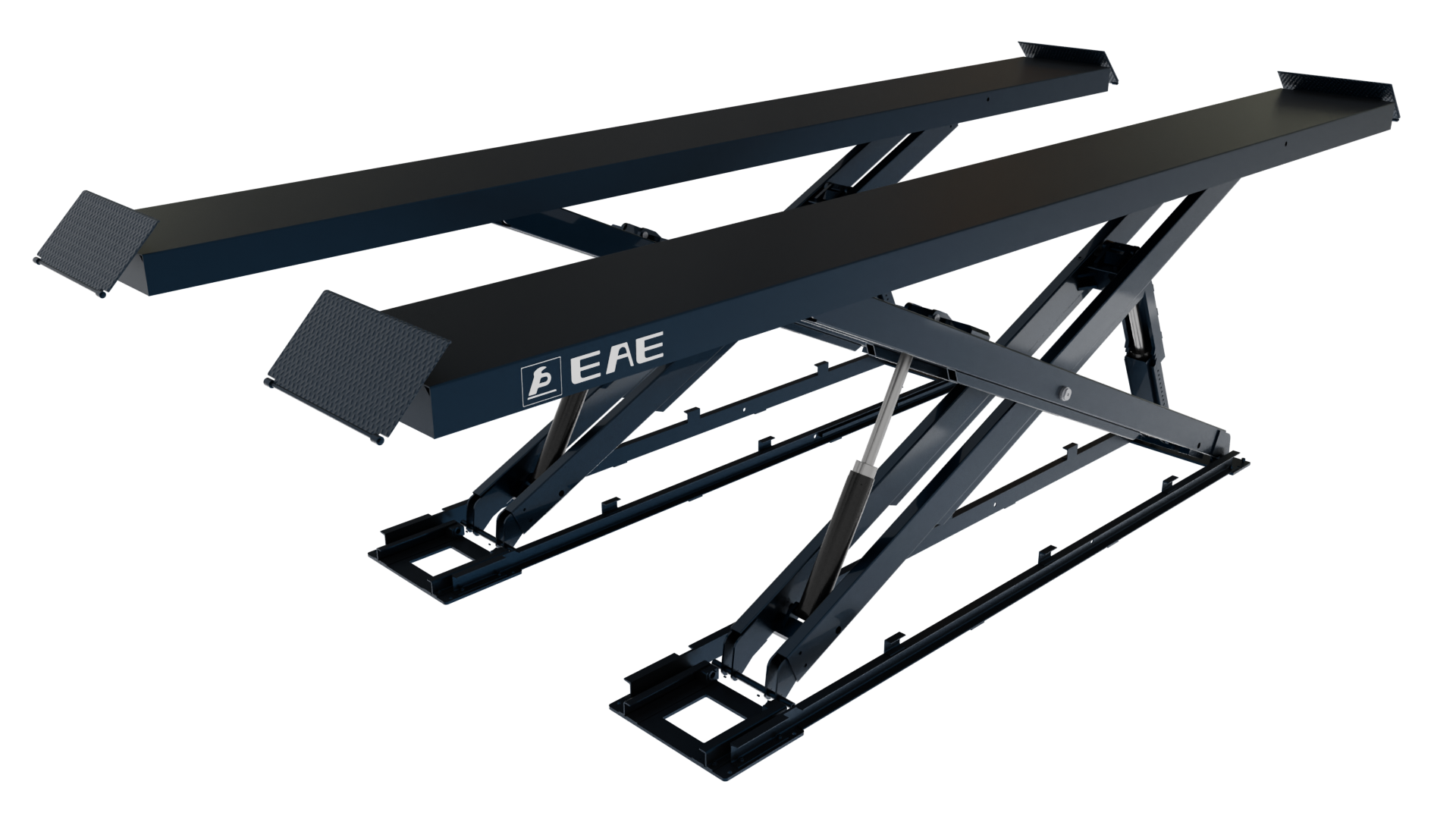

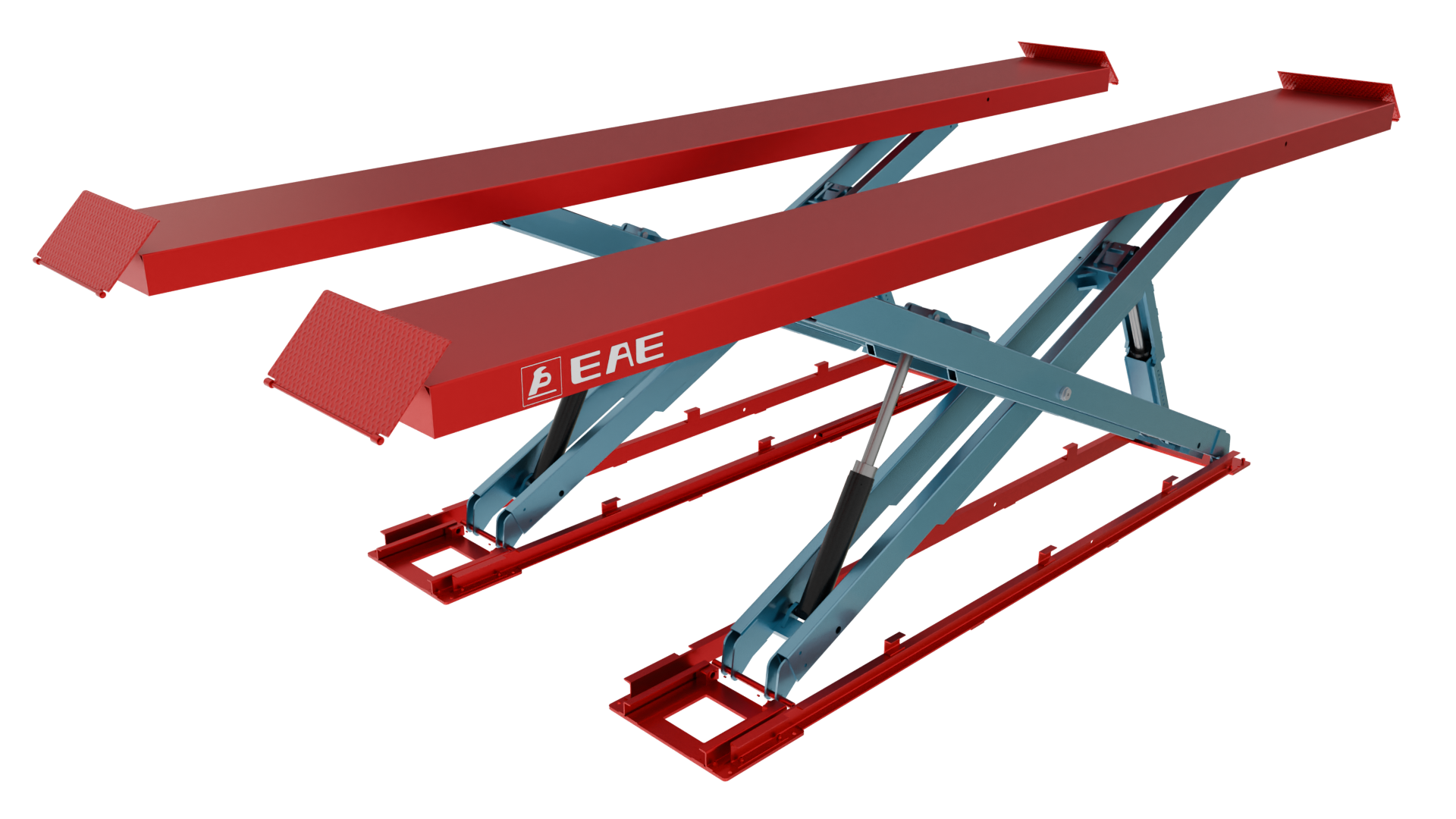

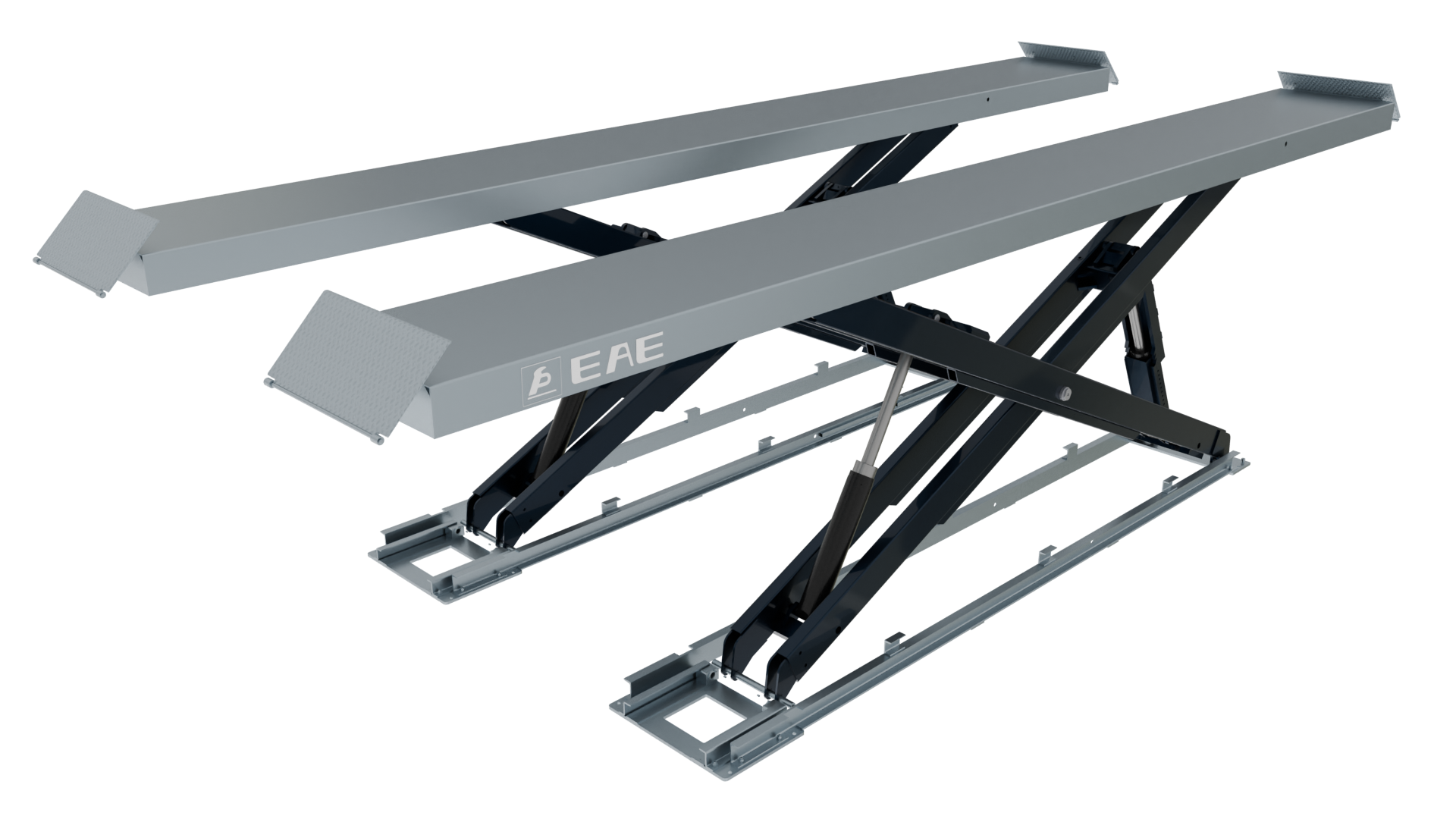

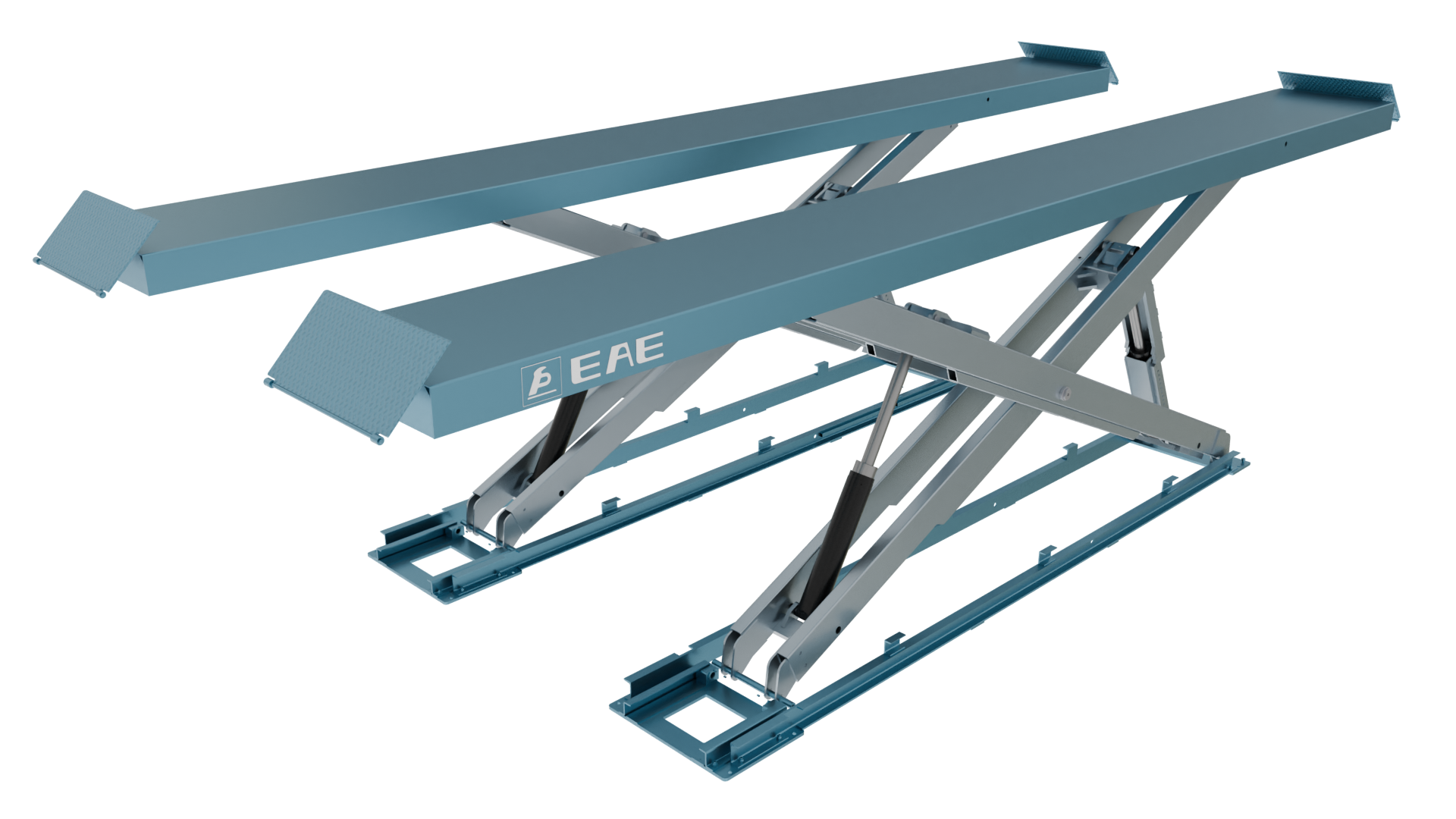

HX150 | 15T HEAVY DUTY SCISSOR LIFT

Share:
Product Image

EAE

  • 1900mm

    Max Lifting Height

  • 400mm

    Min Height

  • 8000mm

    Platform Length

  • 850mm

    Platform width

  • 85s

    Lifting Time

Details
Technical Data
Description
Overall Dimension

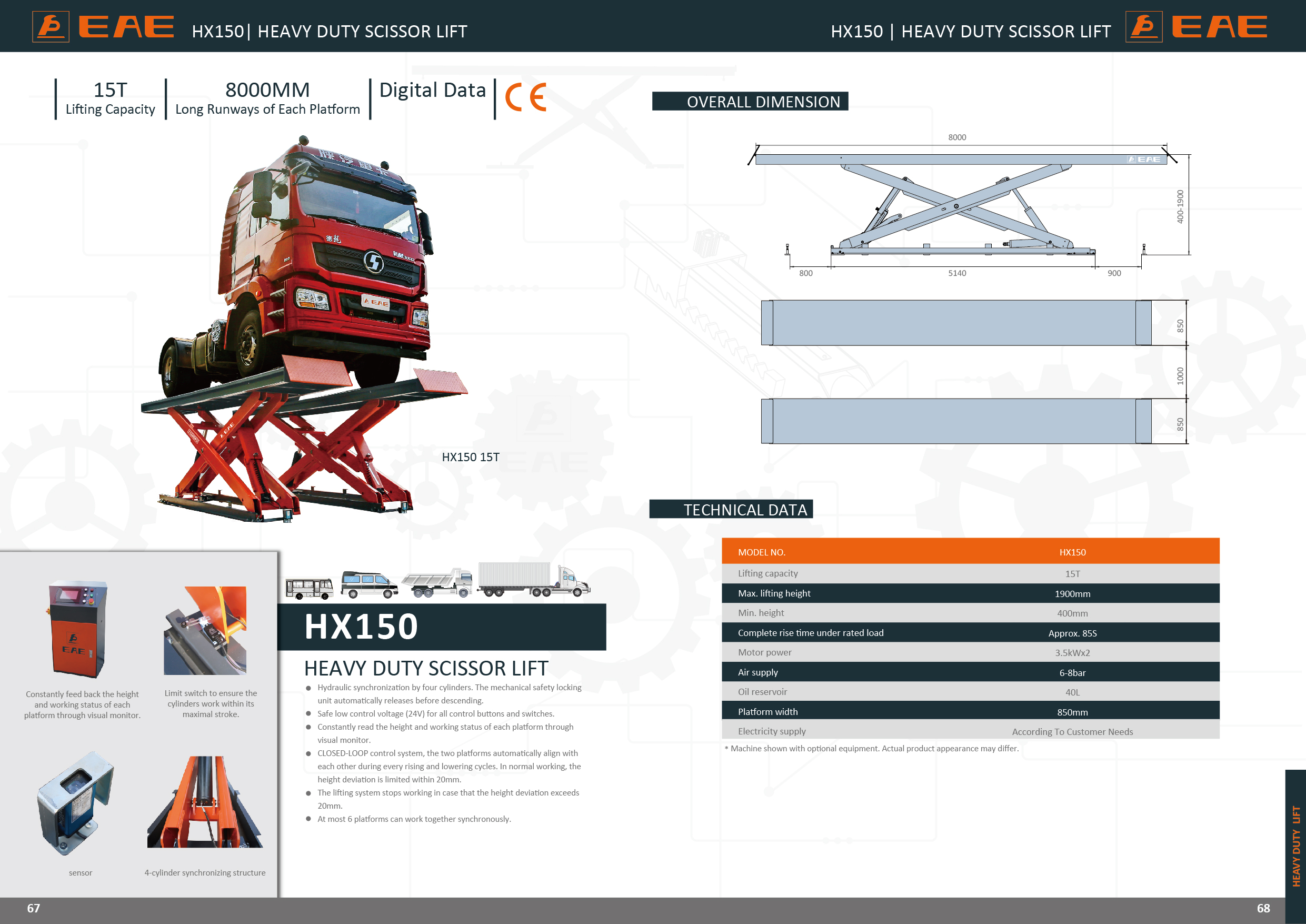

Brochure
MODEL NO. HX150
Lifting Capacity 15T
Max Lifting Height 1900mm
Min Height 400mm
Lifting Time ≈85s
Capacity of Motor 3.5kw x 2
Air supply 6-8bar
Oil reservoir 40L
Platform width 850mm
Oil reservoir 40L
Electricity supply According To Customer Needs

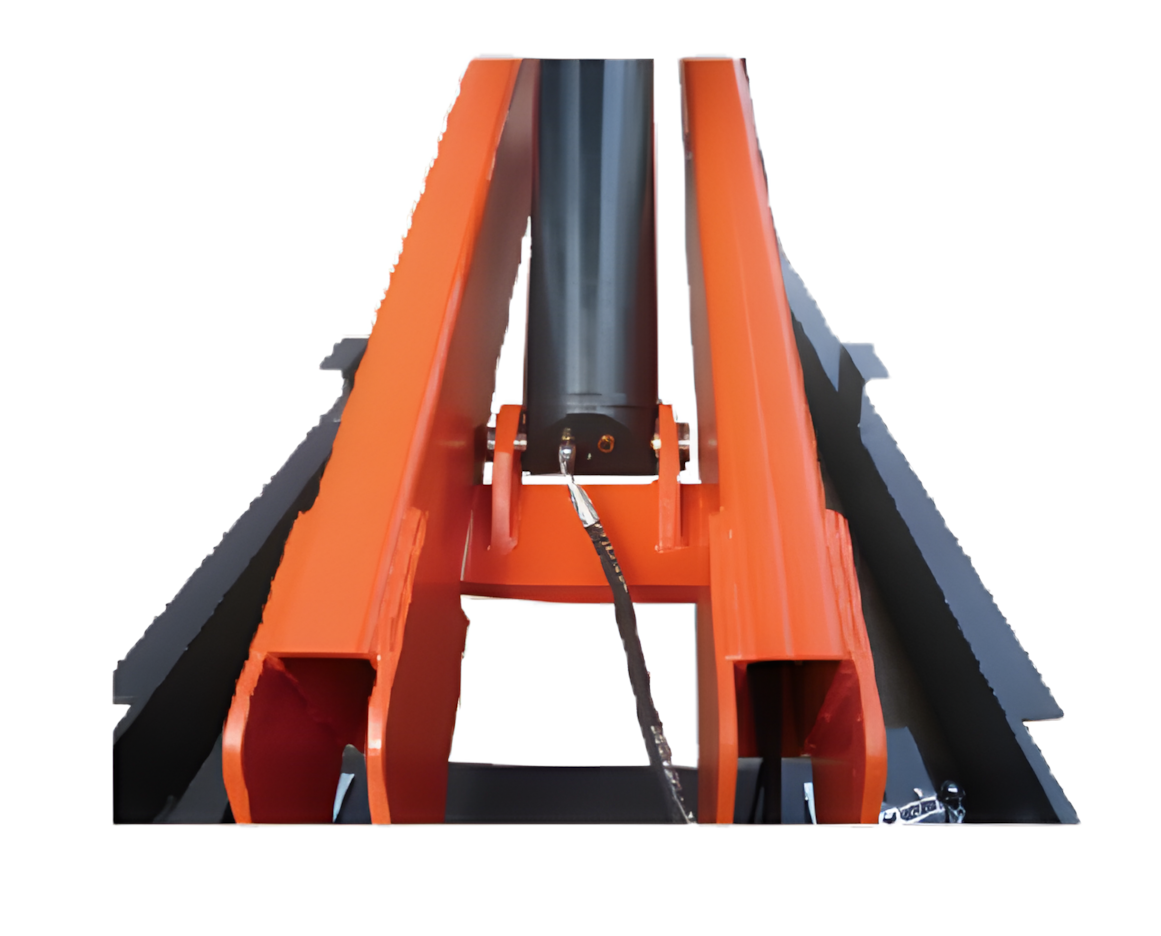

·Hydraulic synchronization by four cylinders. The mechanical safety locking unit automatically releases before descending.

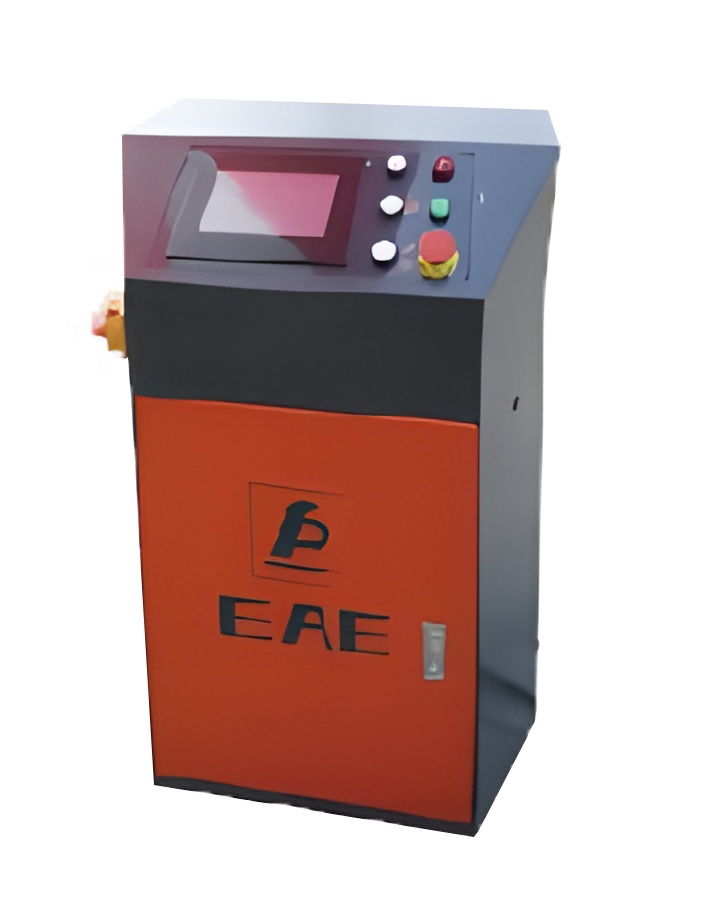

·Safe low control voltage (24V) for all control buttons and switches.Constantly read the height and working status of each platform throughvisual monitor.

·CLOSED-LOOP control system, the two platforms automatically align witheach other during every rising and lowering cycles. in normal working, theheight deviation is limited within 20mm.
·The lifting system stops working in case that the height deviation exceeds 20mm.
·At most 6 platforms can work together synchronously.

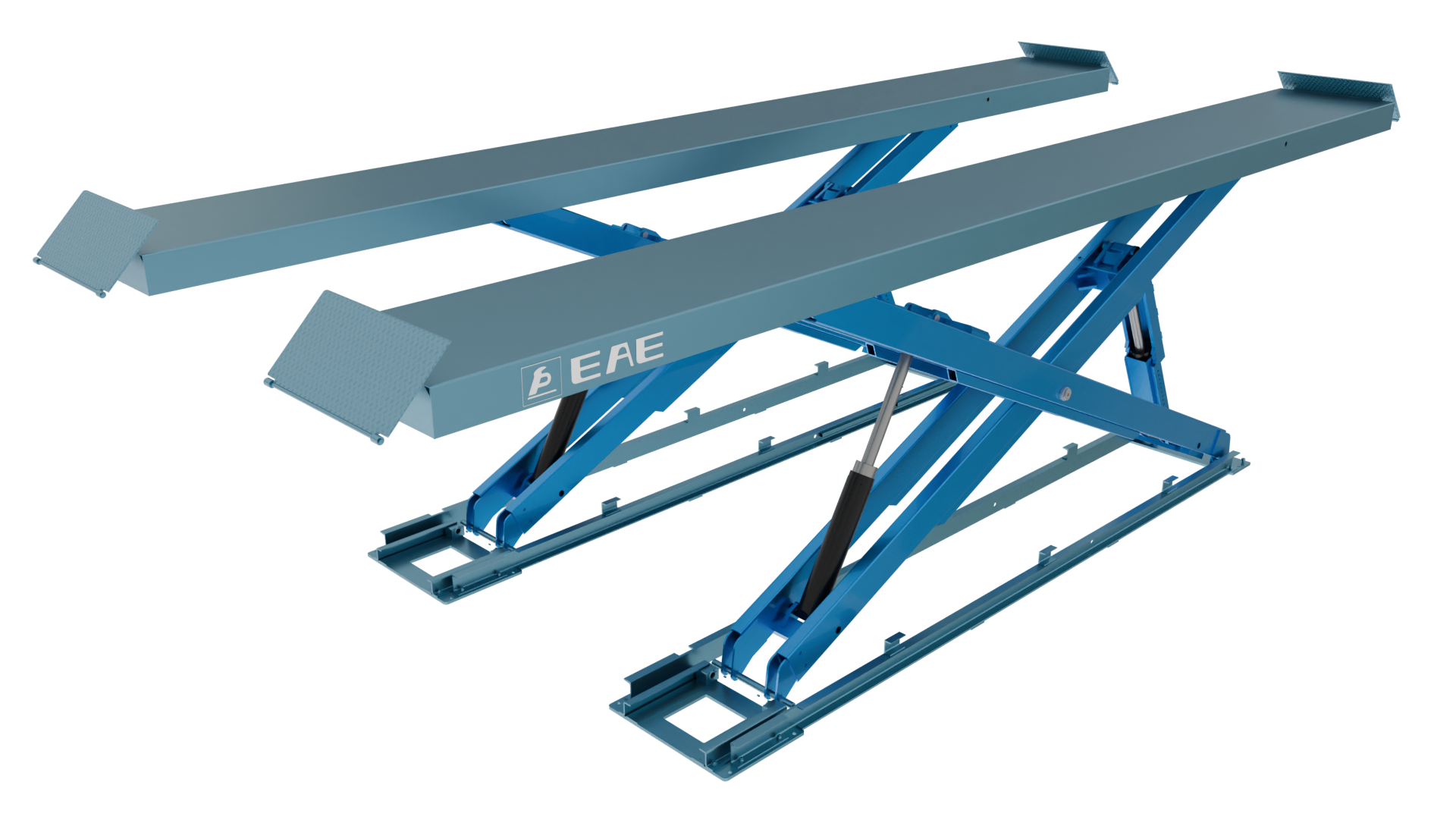

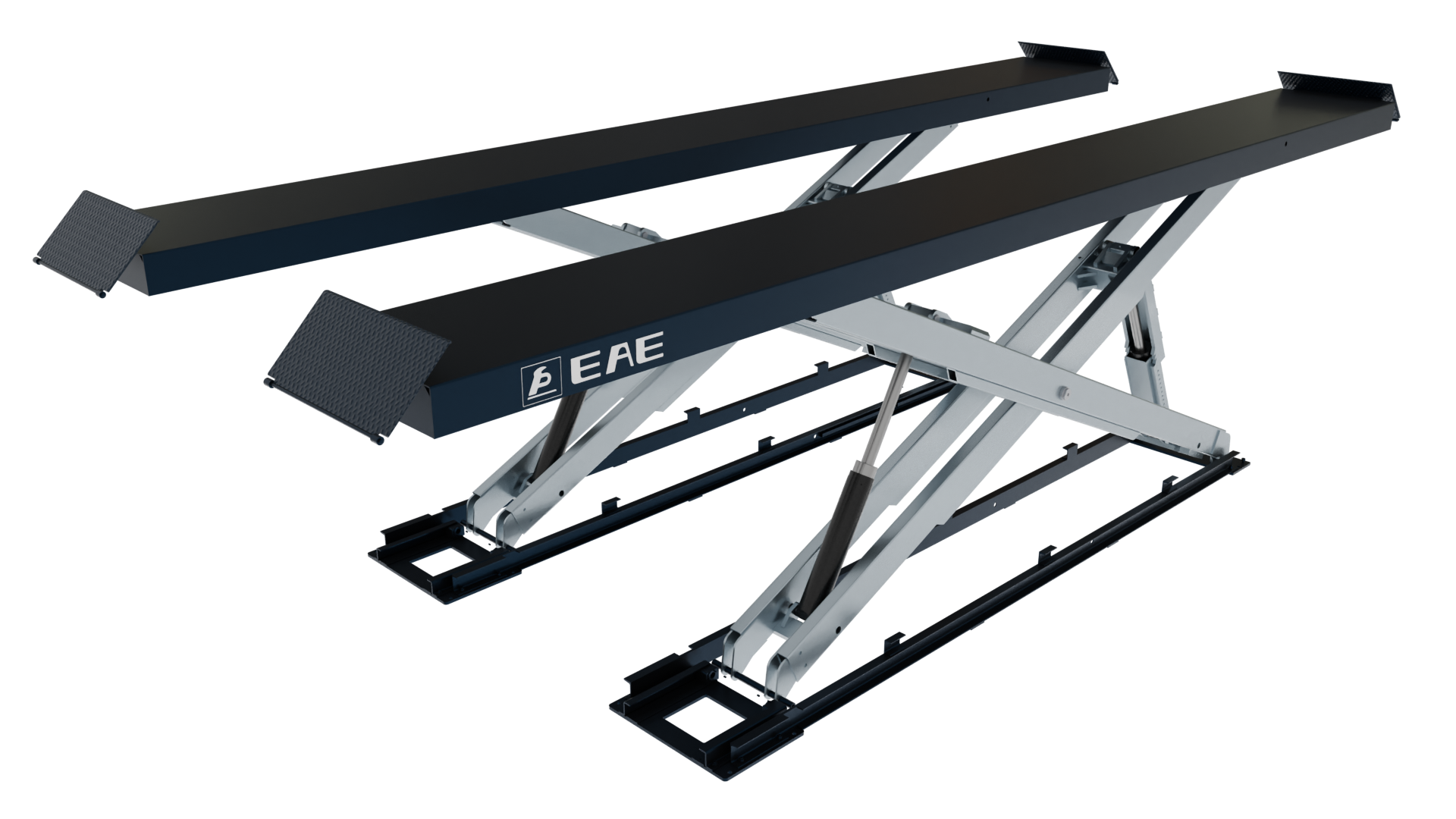

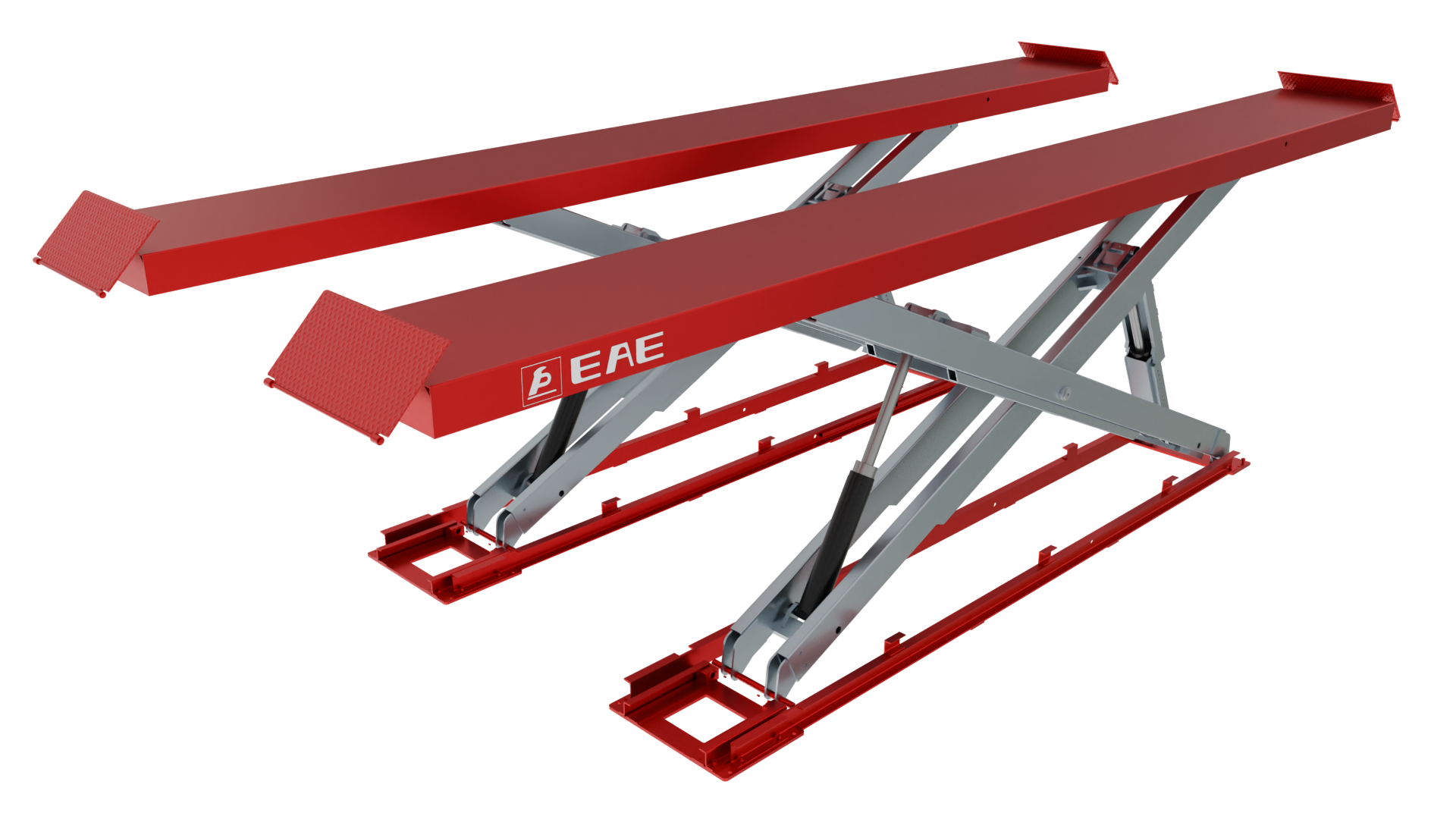

Other Models in the Same Series
