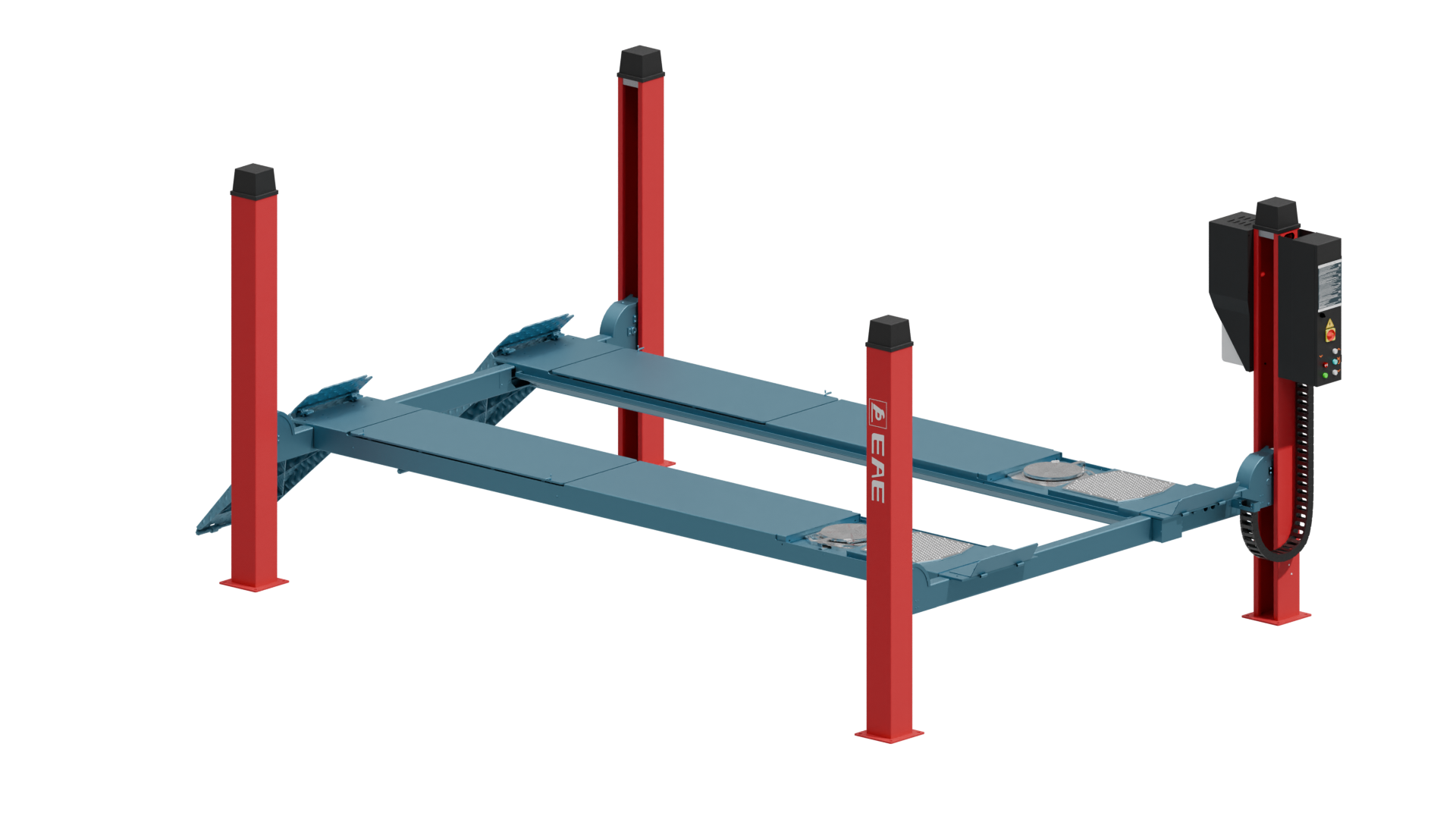

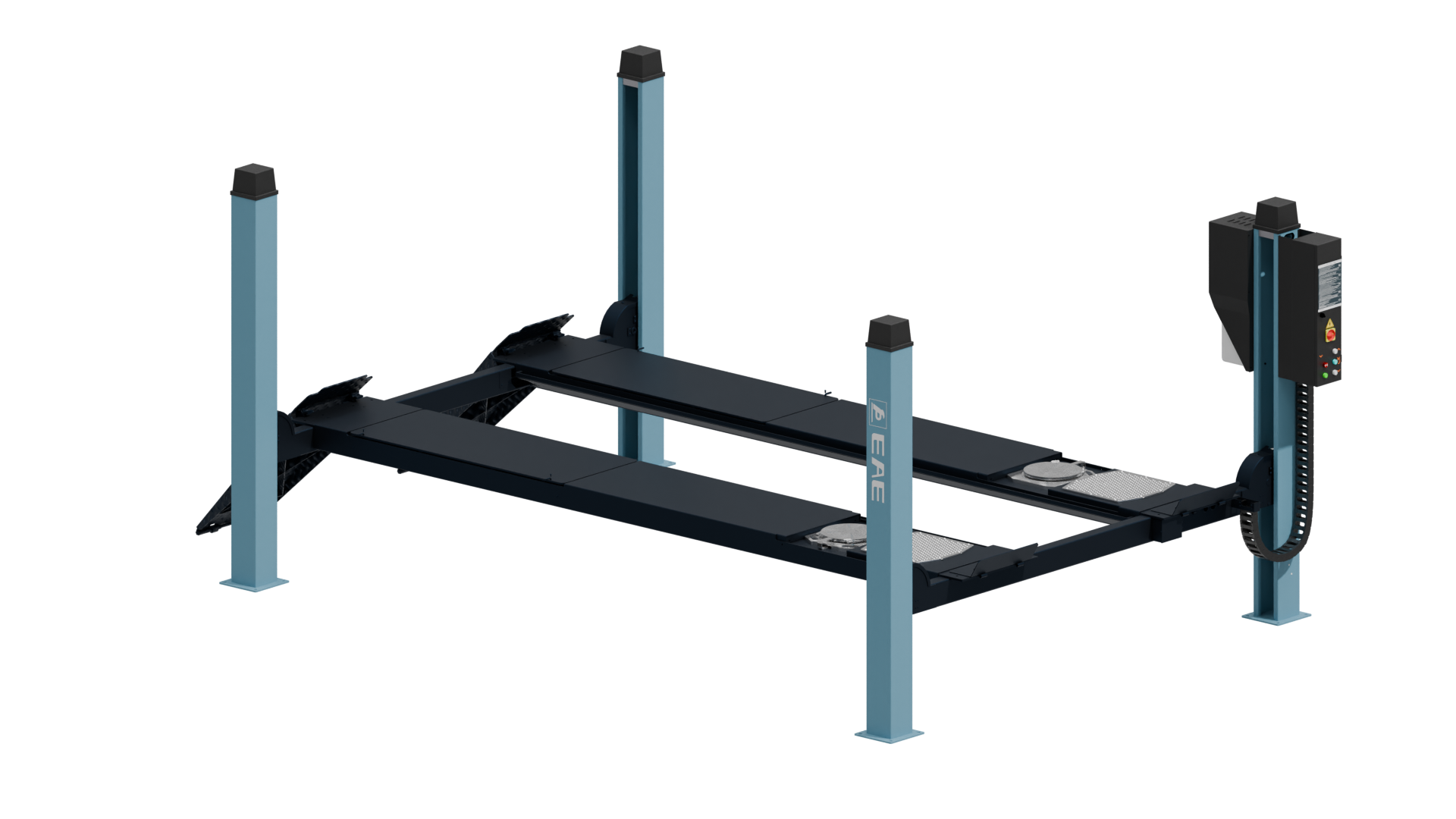

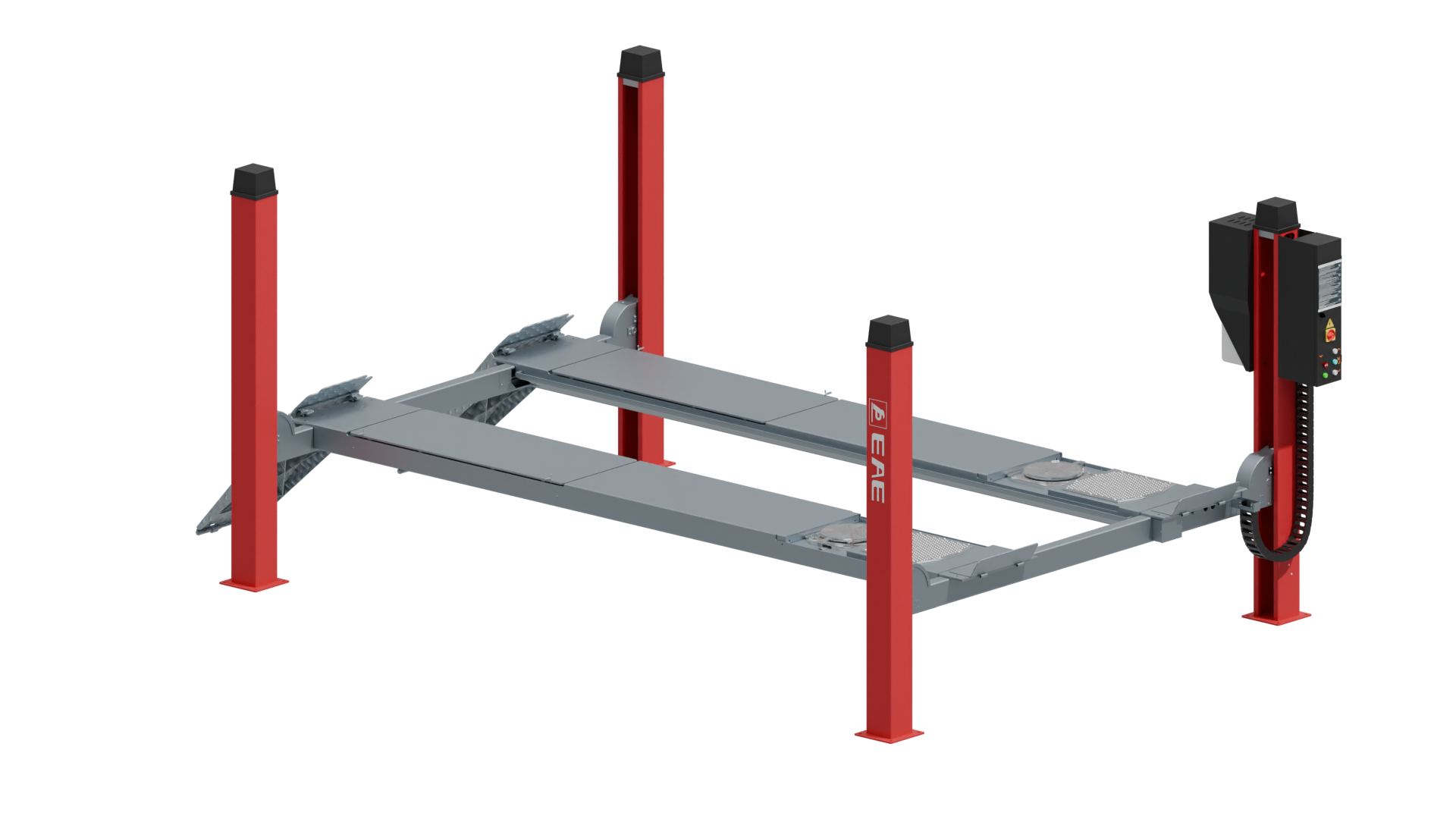

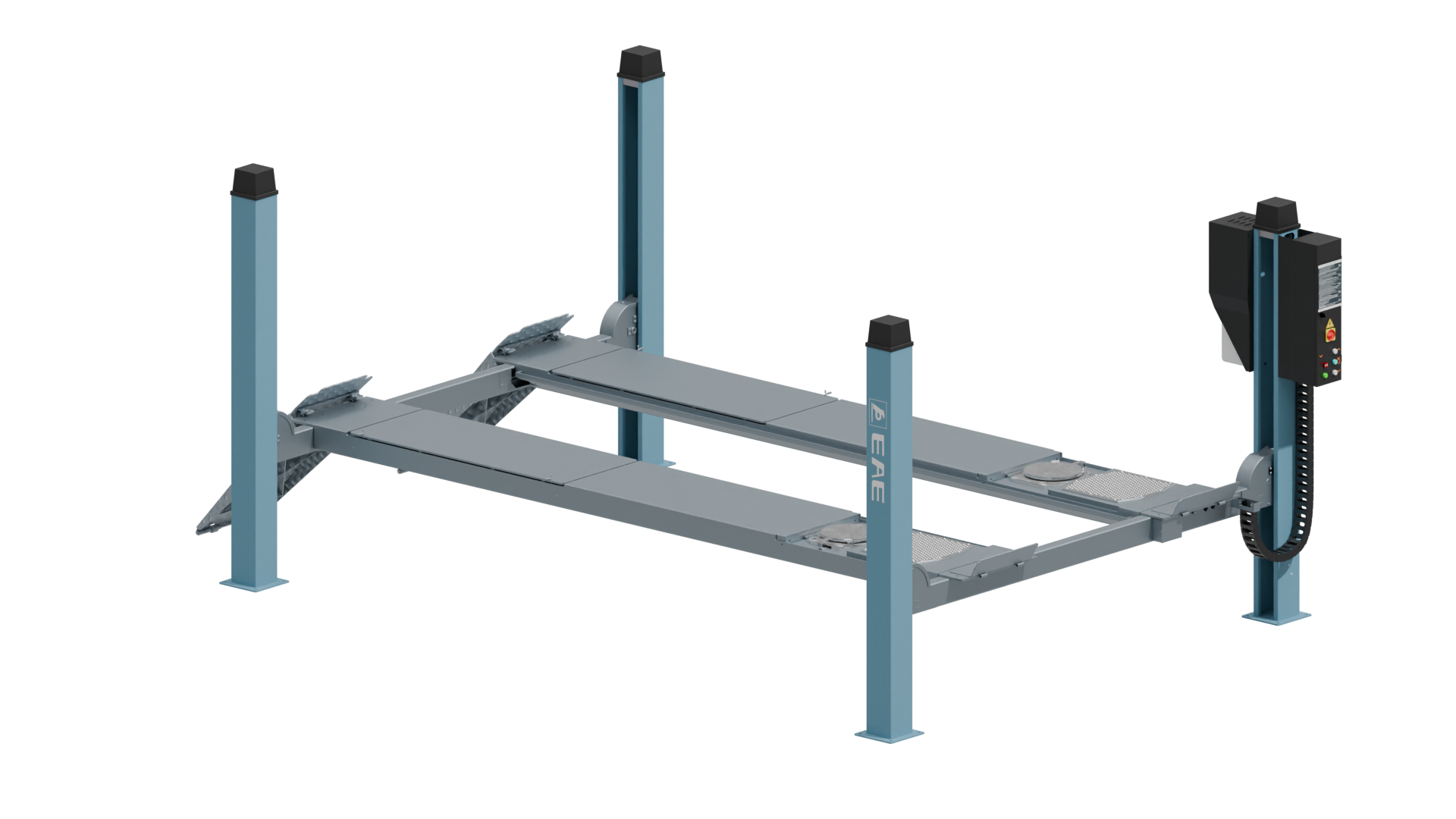

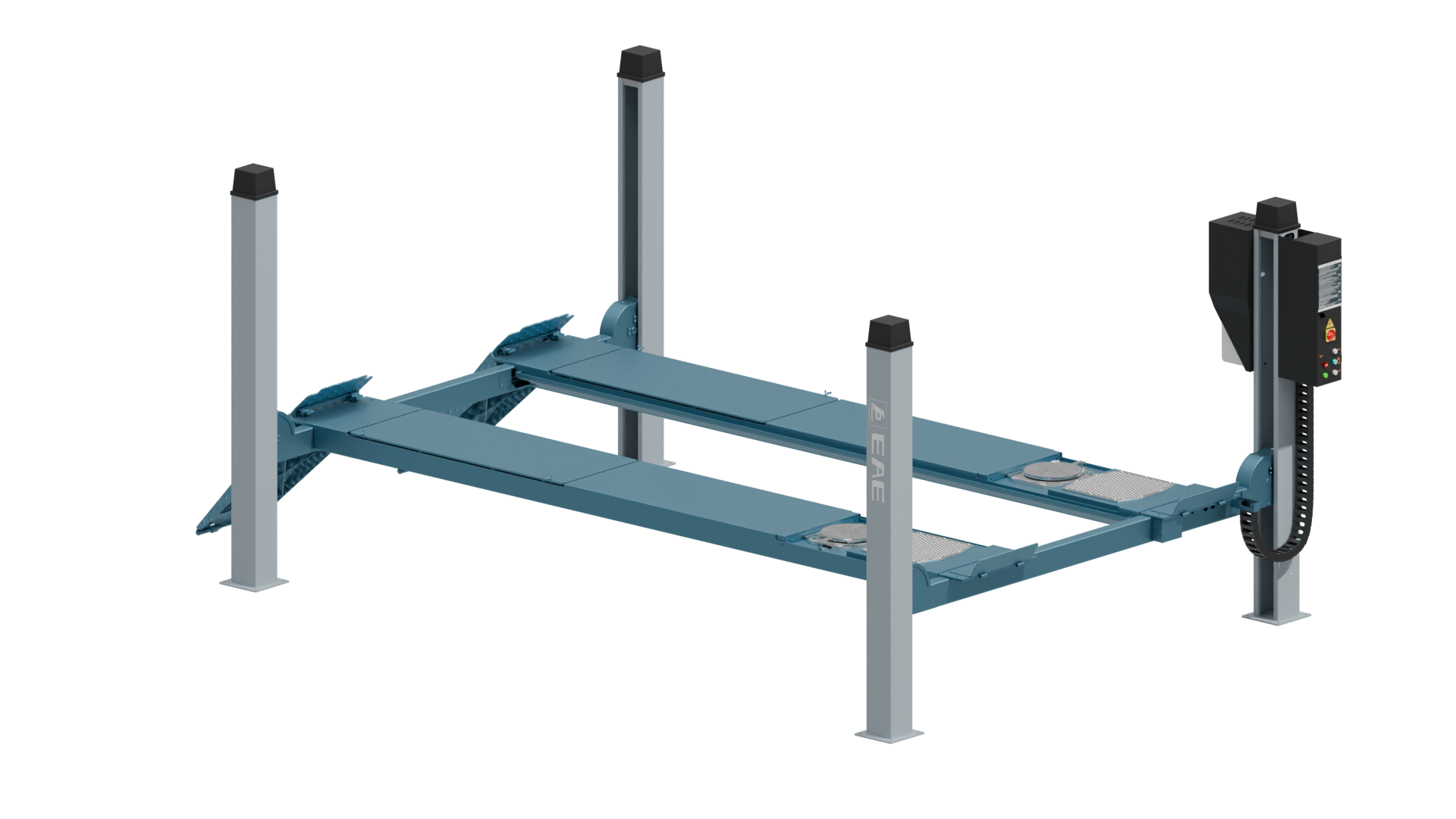

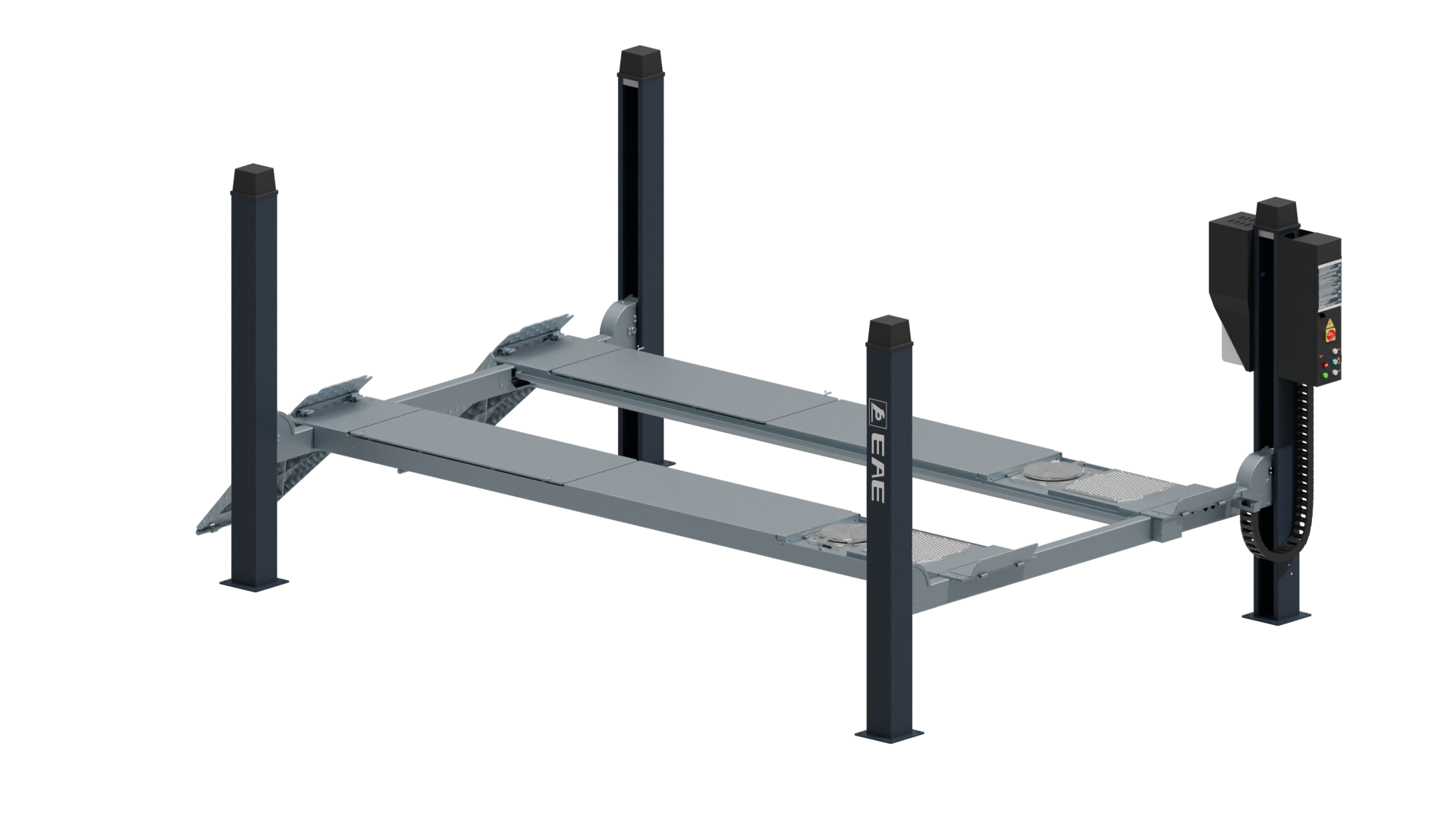

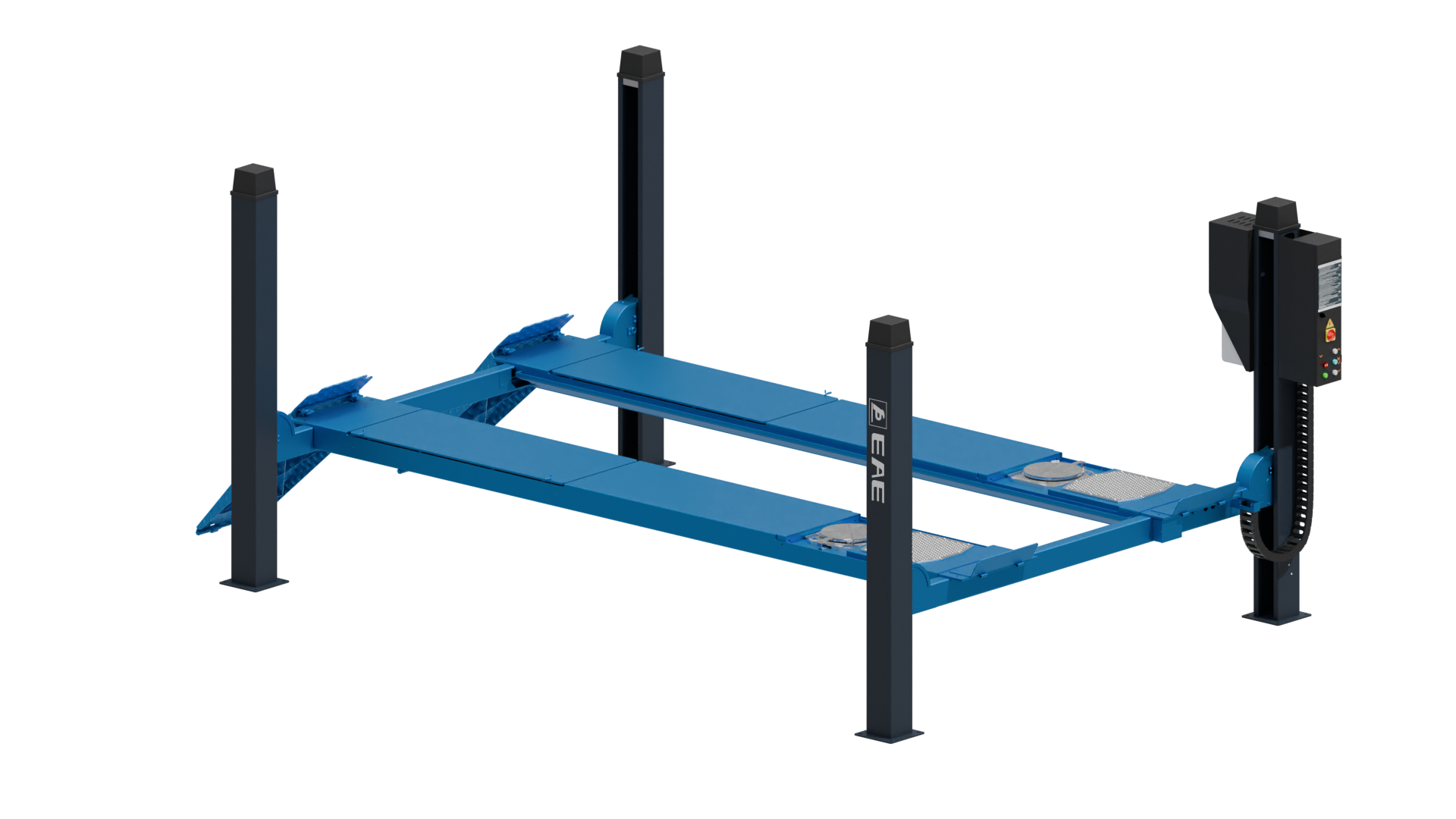

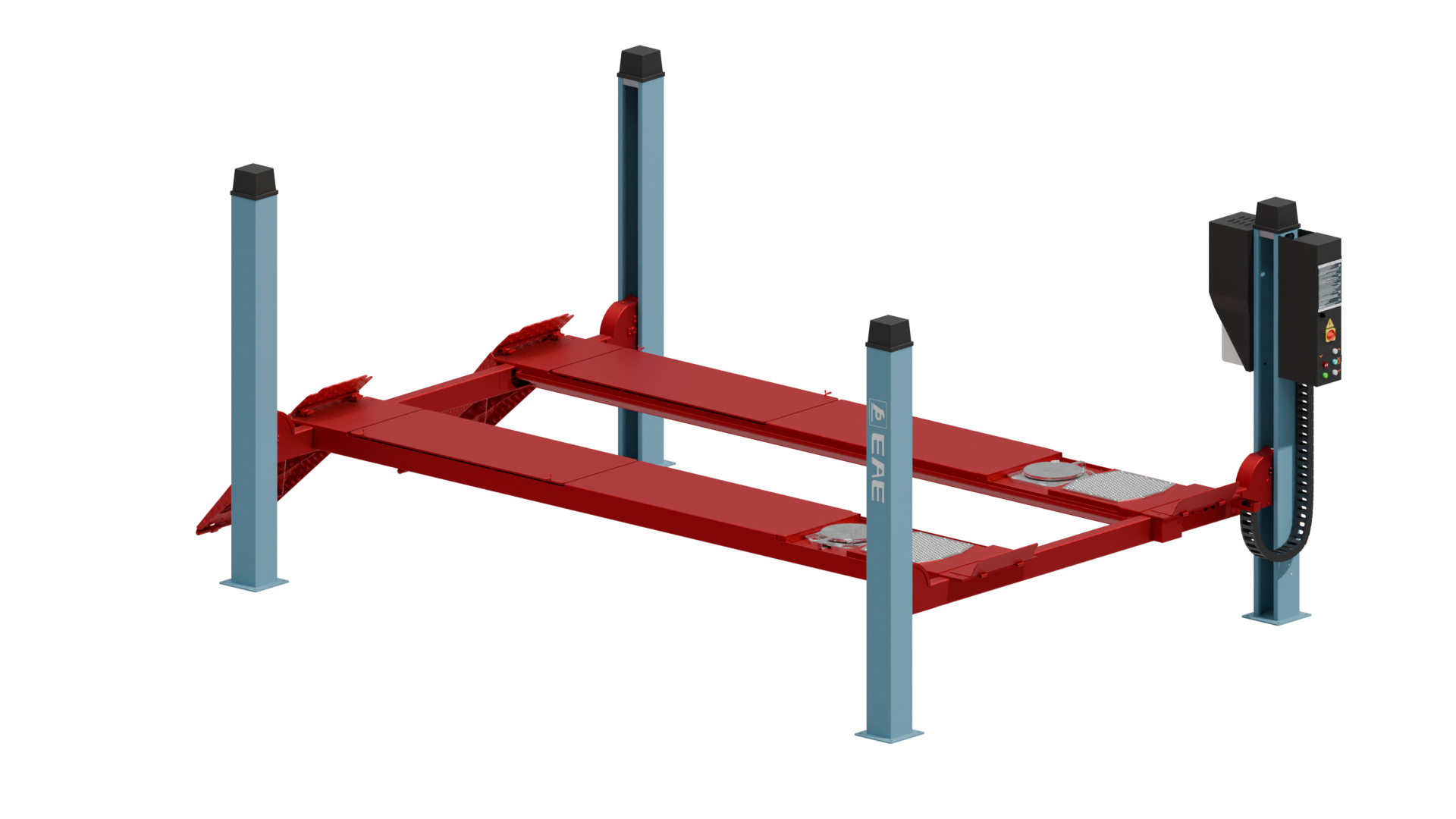

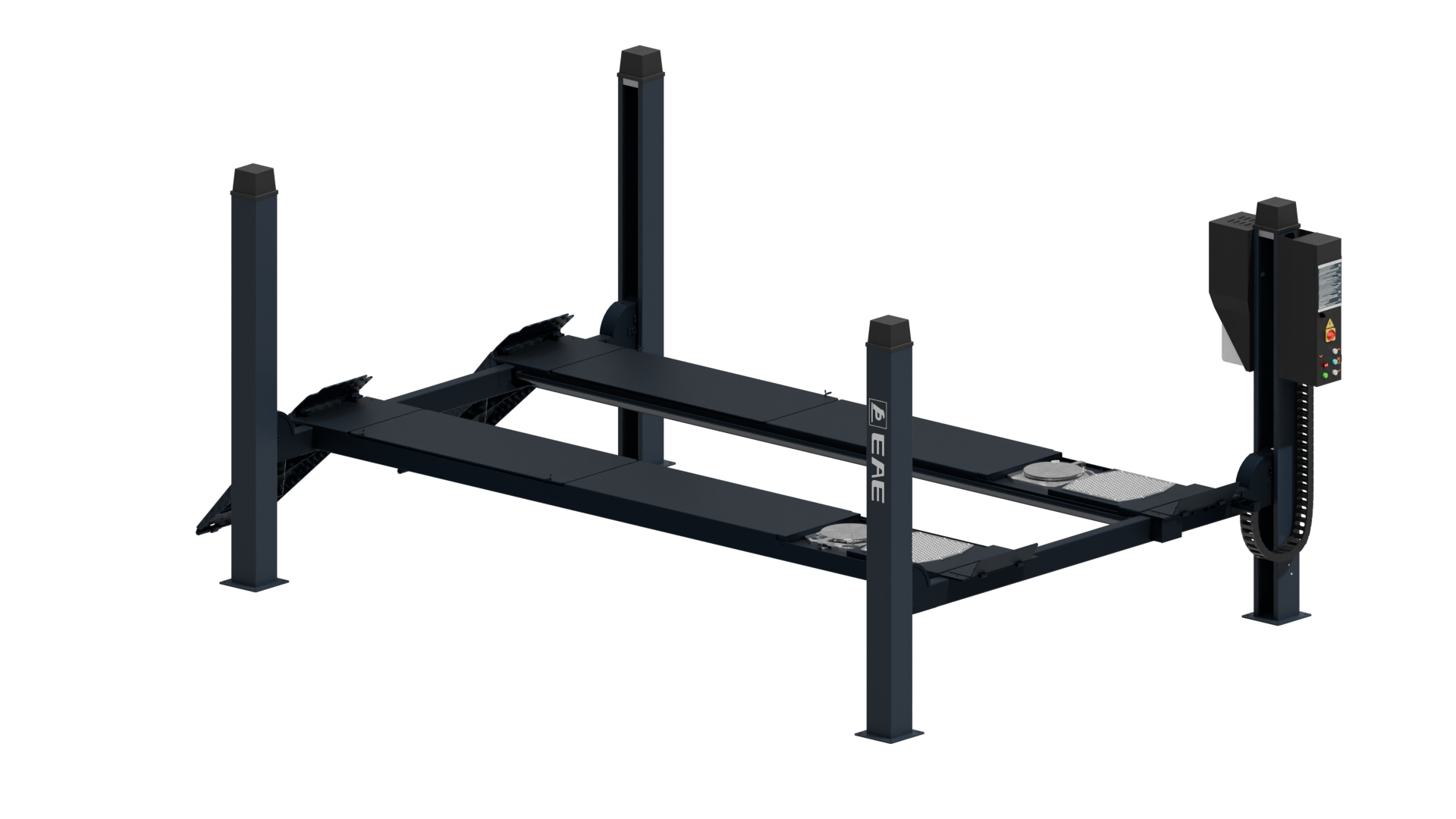

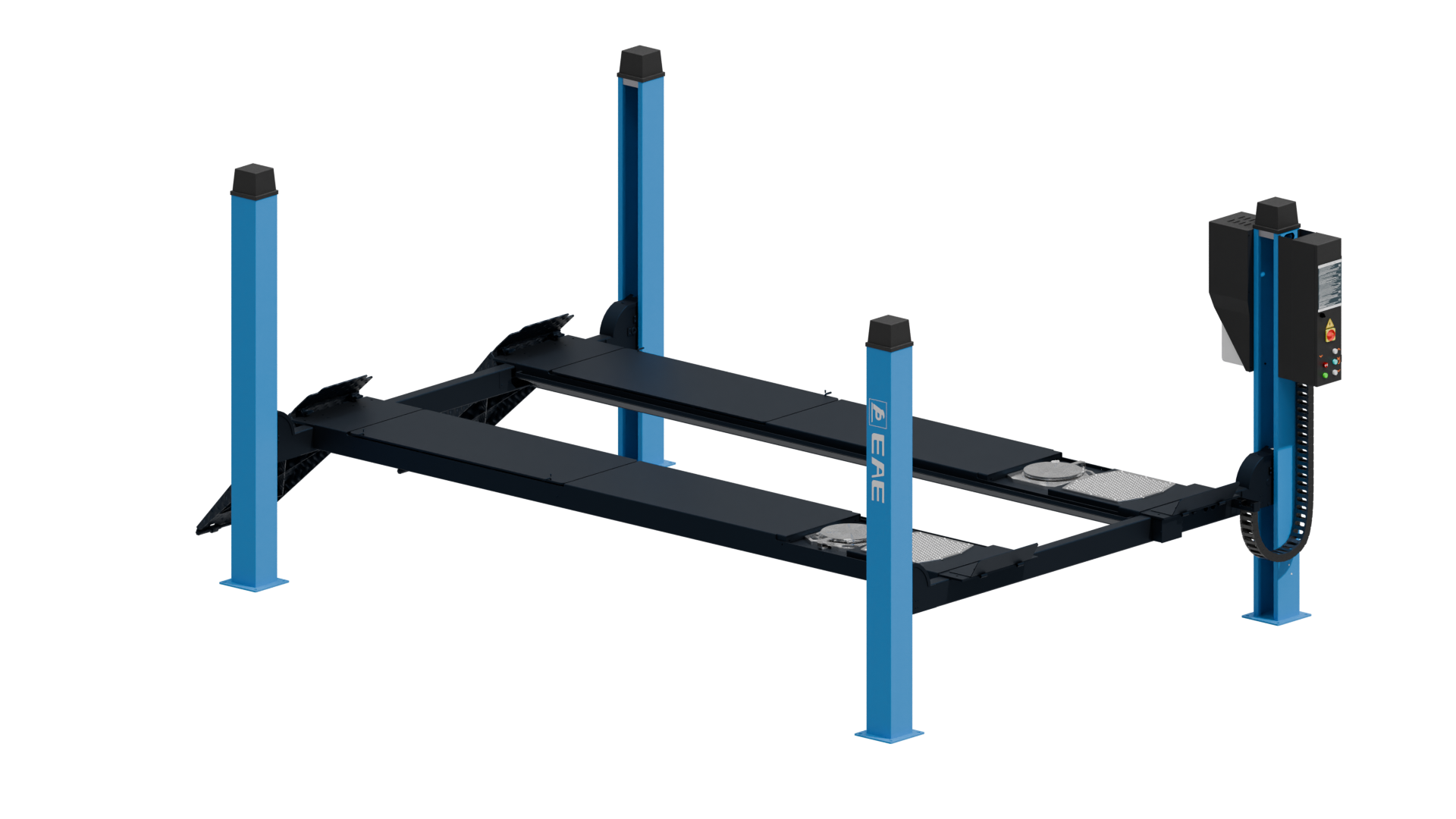

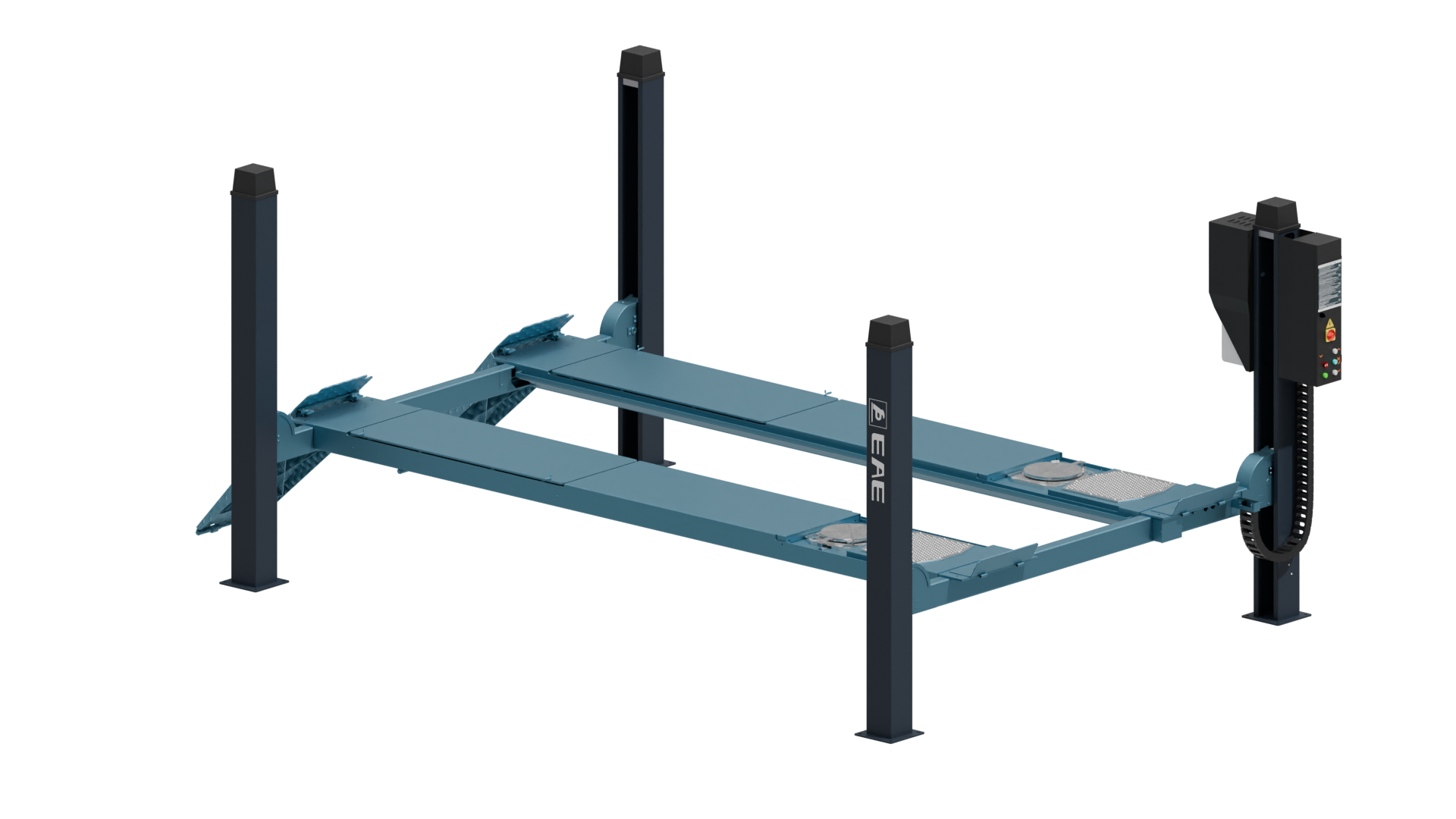

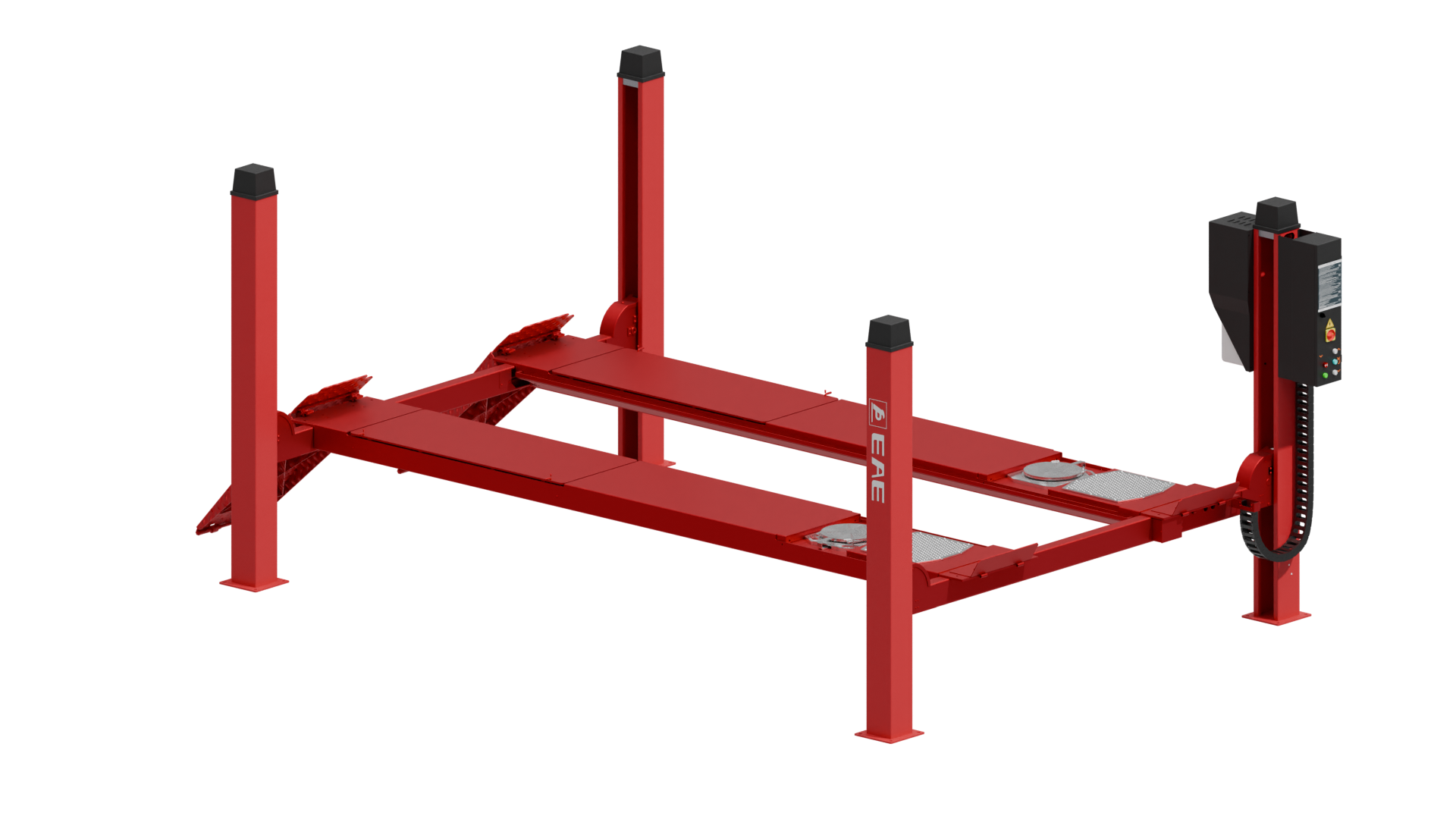

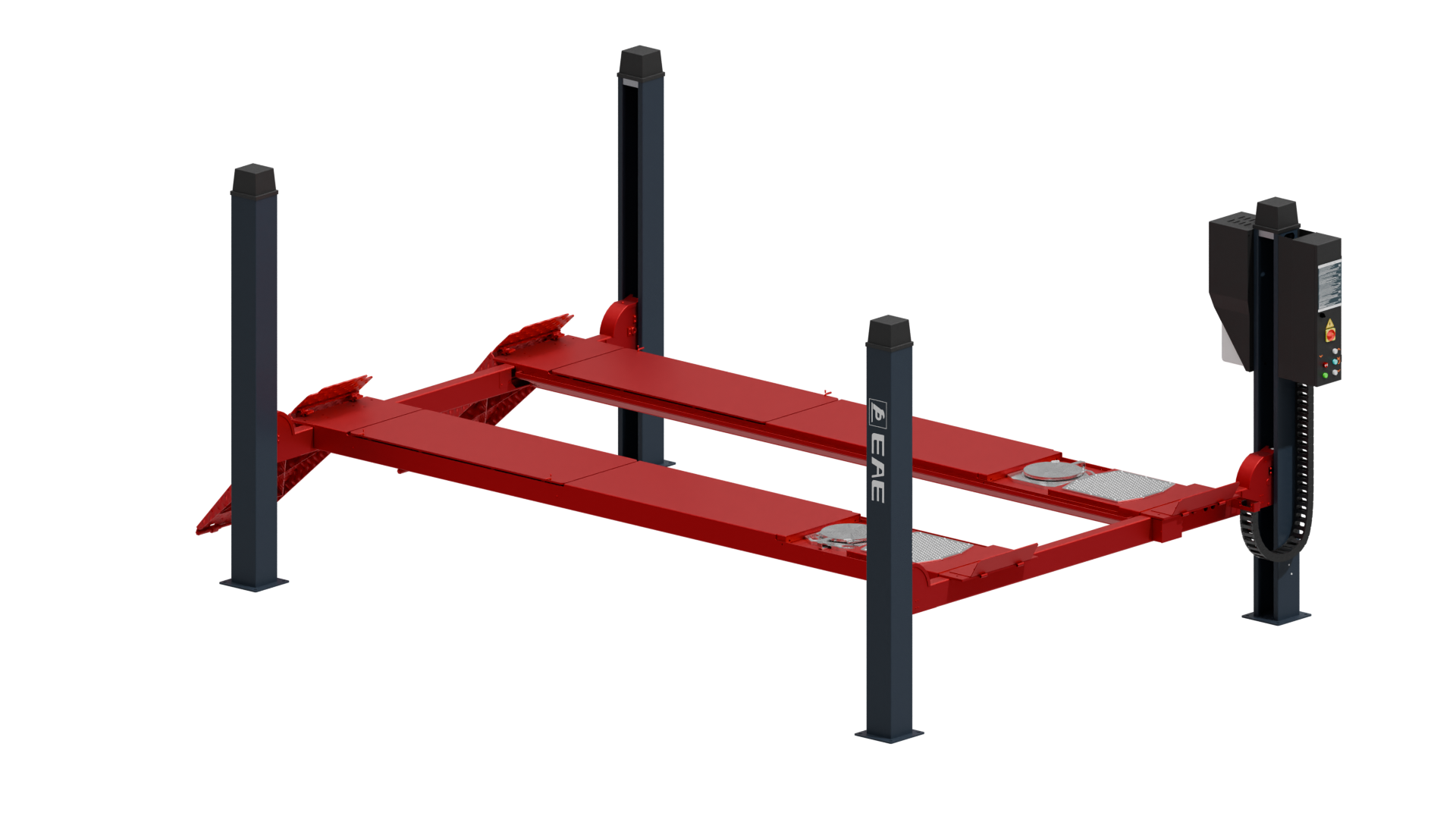

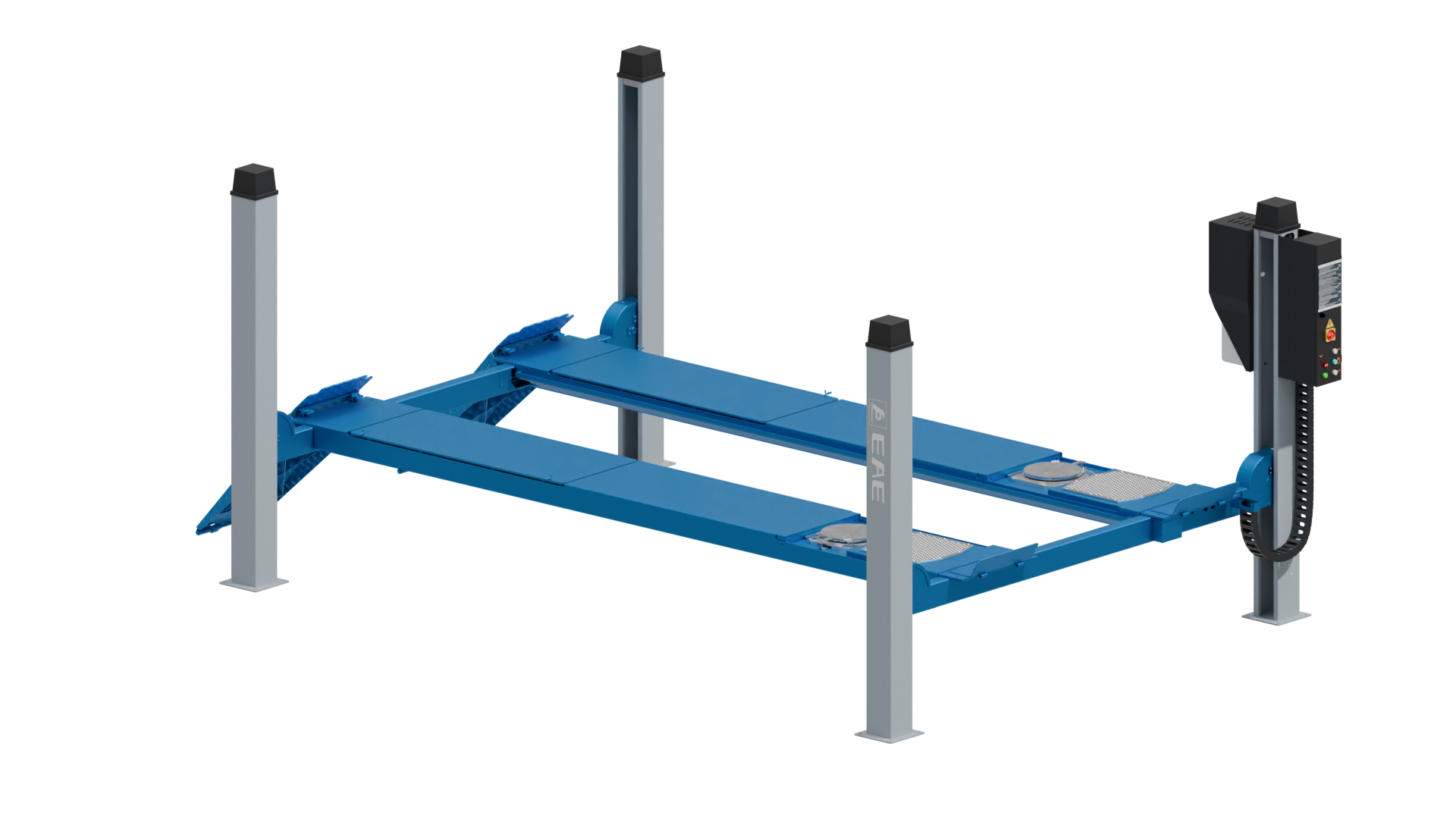

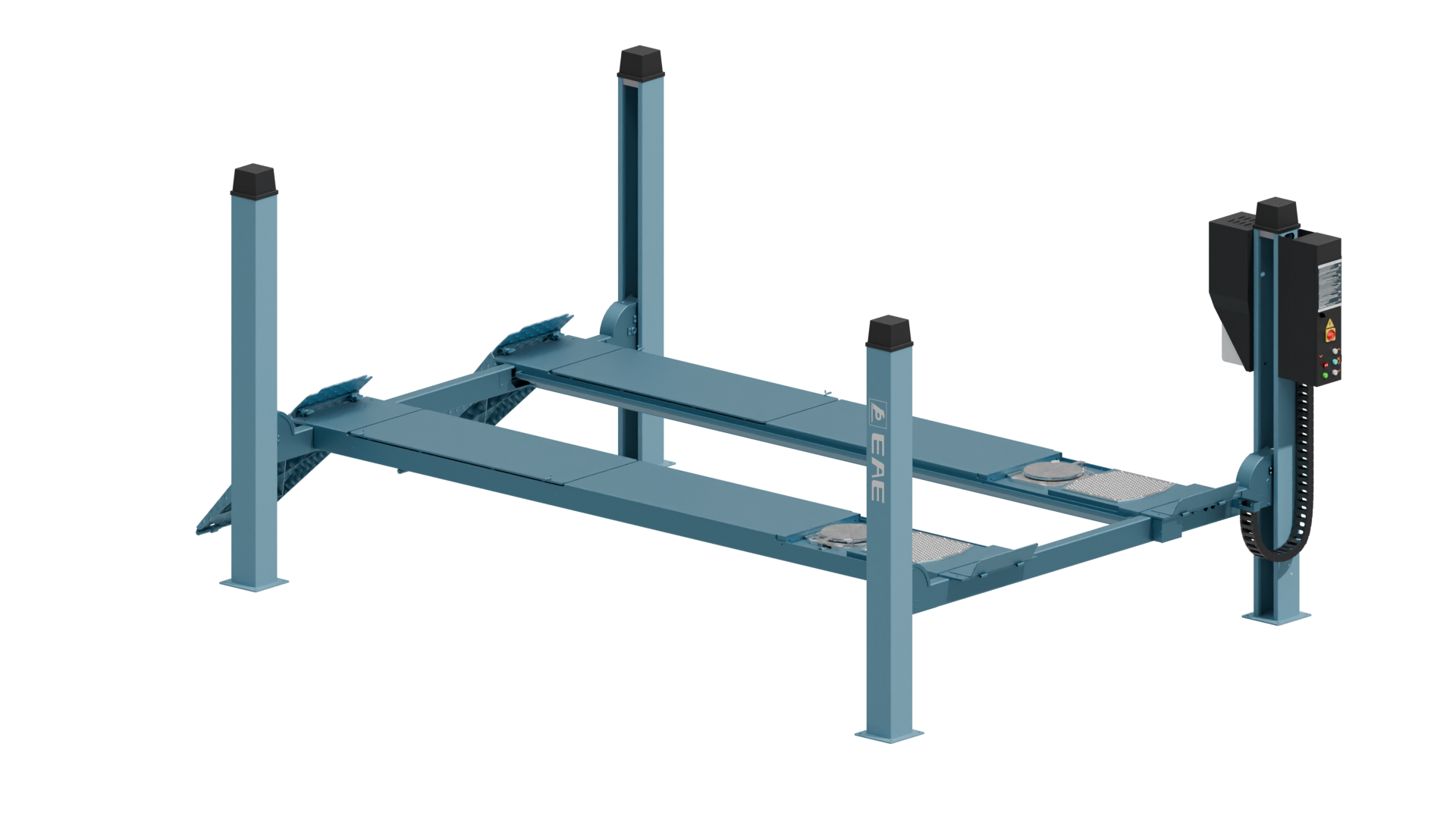

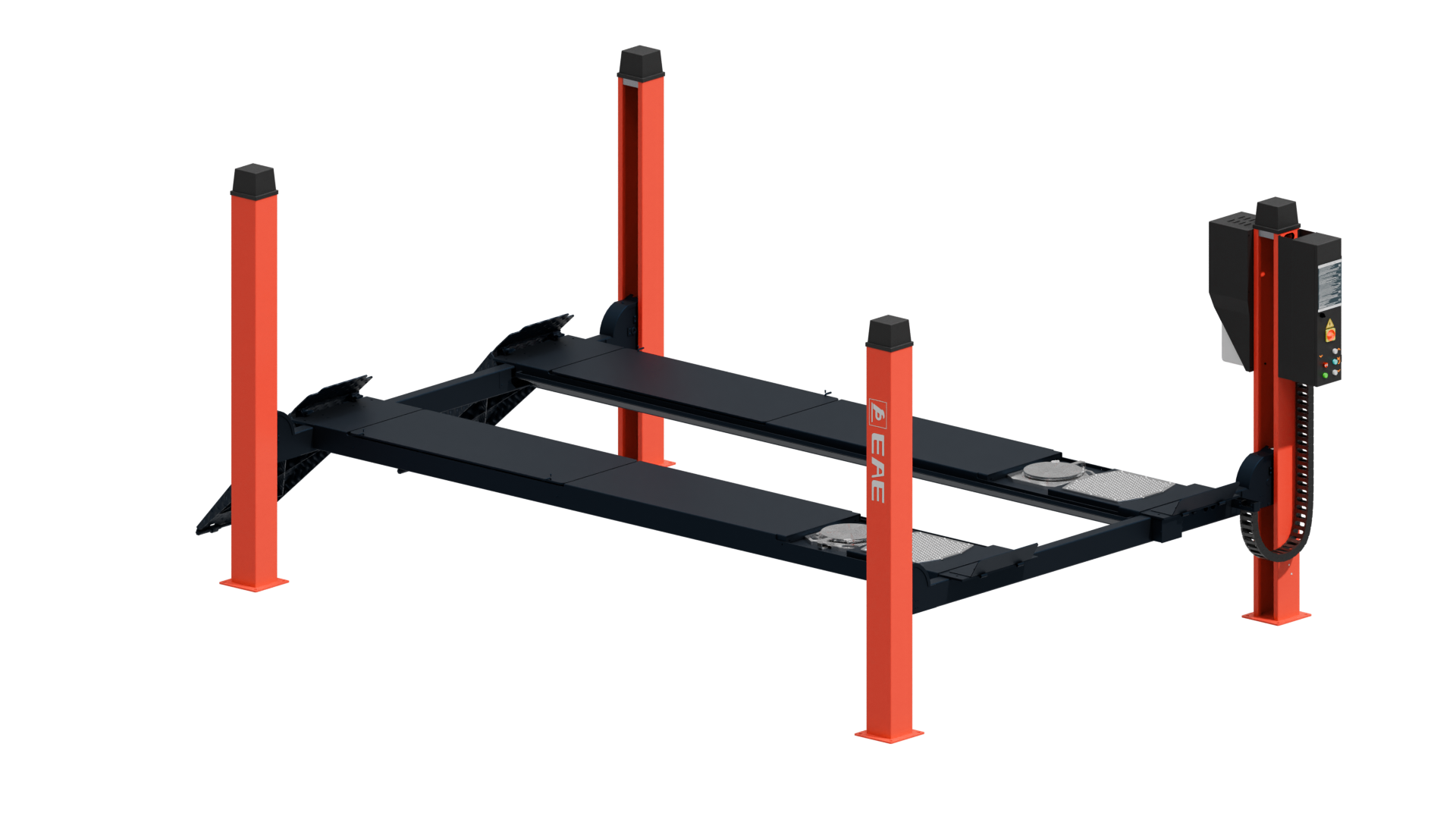

6435BPD Four Post Lift

Share:
Product Image VR View

EAE

  • 1830mm

    Max Lifting Height

  • 180mm

    Min Height

  • 5780mm

    Max Platform Length

  • 630mm

    Platform Width

  • 65s

    Lifting Time

Accessories Details

Rolling Jacks with power switch

Turntable

Wireless LED Torch Controling PD System

Solid and Robust Cable Pulleys

Motor Housing

Oil Hose Protection

Movable Position of Turntable

Technical Data
Description
Brochure
Cases
MODEL NO. 6435BPD
Lifting Capacity 4.0T/5.0T
Max Lifting Height 1830mm
Min Height 180mm
Lifting Time ≈ 65s
Air Supply 6-8bar
Capacity of Motor 2.2kW
Electricity Supply According To Customer Needs


* Machine shown with optional equipment. Actual product appearance may differ.

·4.0T/5.0T lifting capacity
·MOT four post lifts for Class IV&VII vehicles
·Reliable mechanical safety locking system
·Avoid rapid descending cause by leakage of hydraulic system by applying FLOW-CONTROL technique to hydraulic system
·Max height switch limits the travel of runways and ensures cylinders work within the stroke
·Protect against pinching and shearing using alarming buzzer in descending process
·24V safety control voltage
·Reliable electrical release for easy and efficient use
·Adjustable PD positions can accommodate different types of vehicle
·Compact quick plug electrical connection releases installers from too many wires and terminals and make initial installation much more efficient. Save more than 70% time on wire connection
·Low profile runway is convenient for driving on and off and less demanding on space
