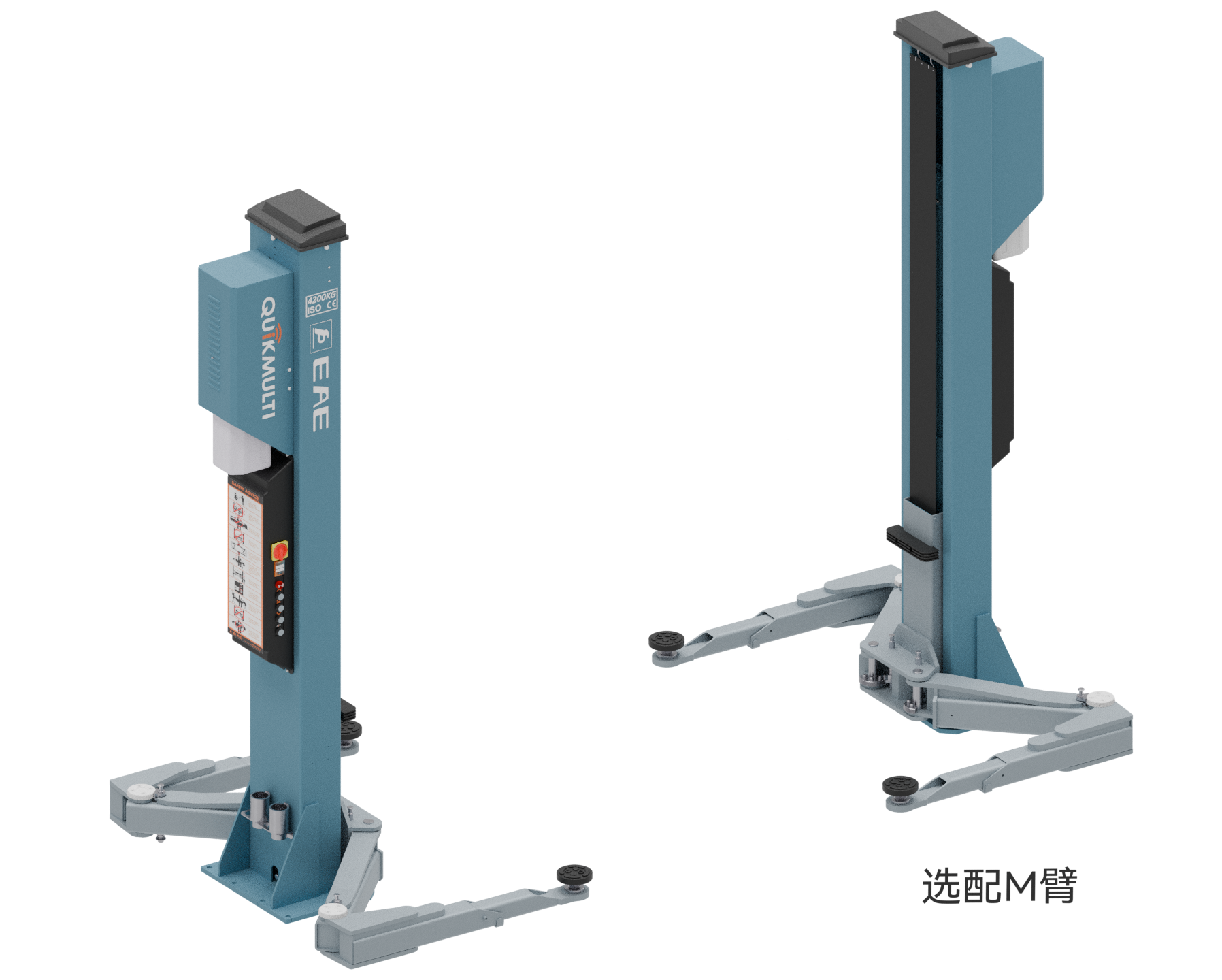

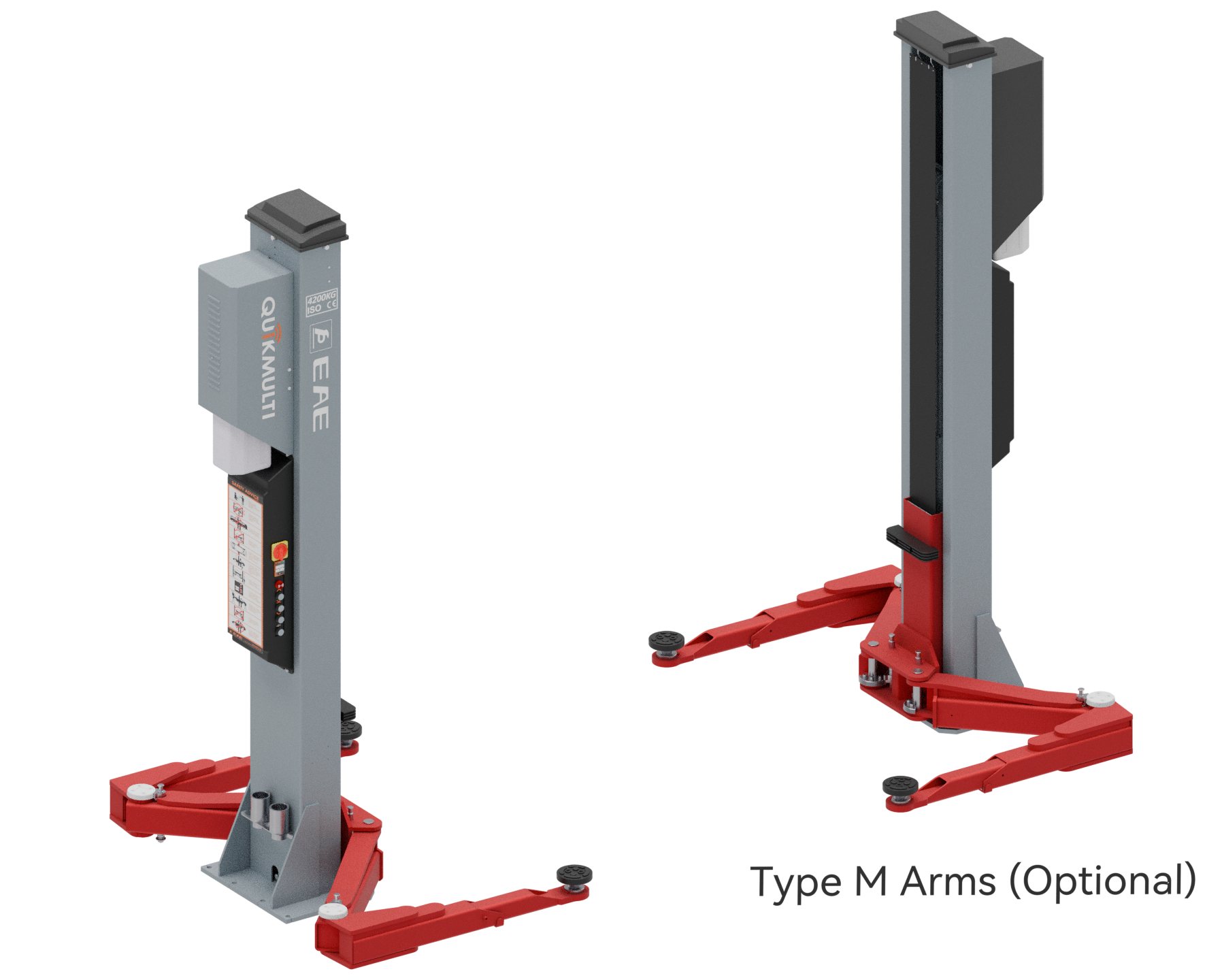

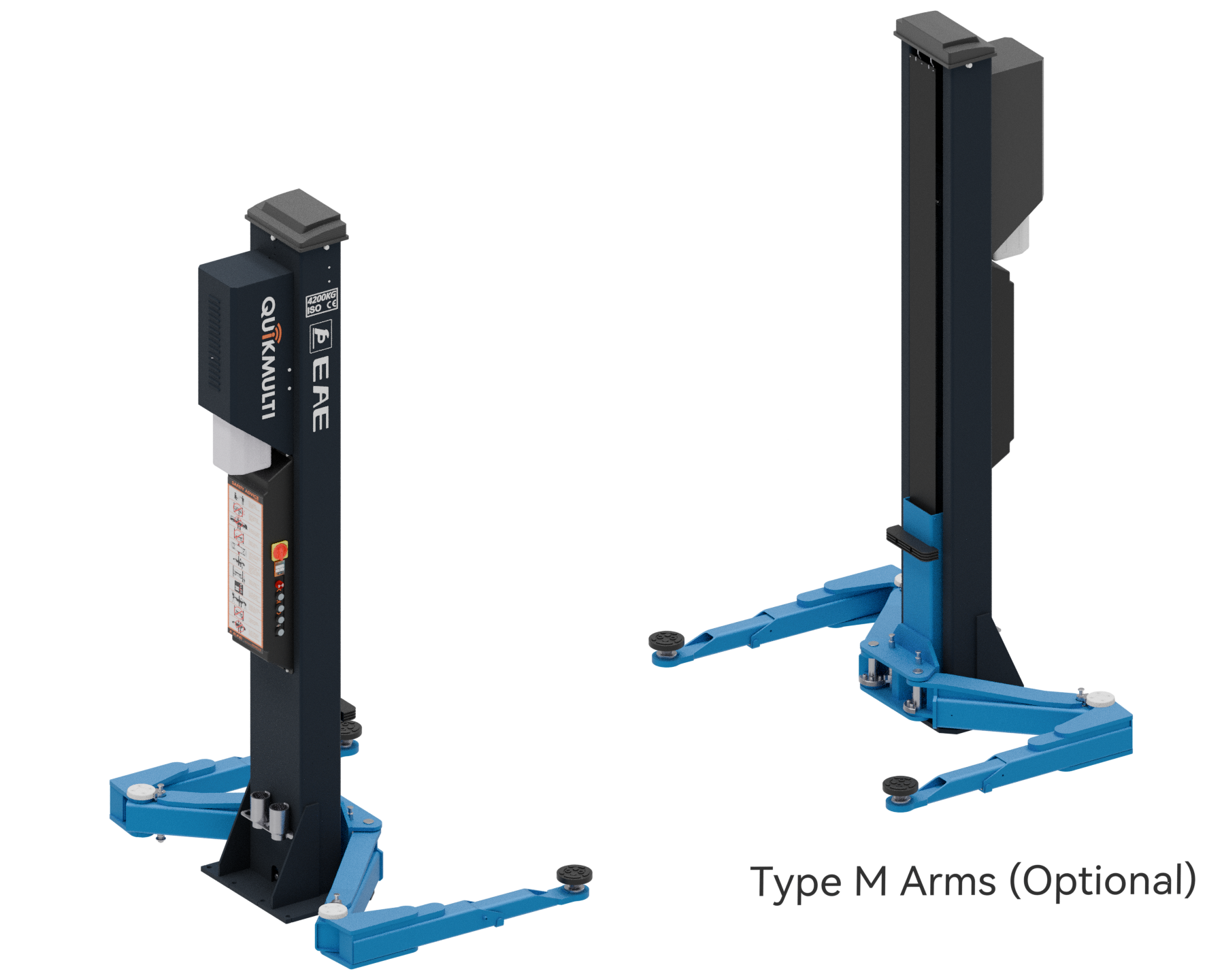

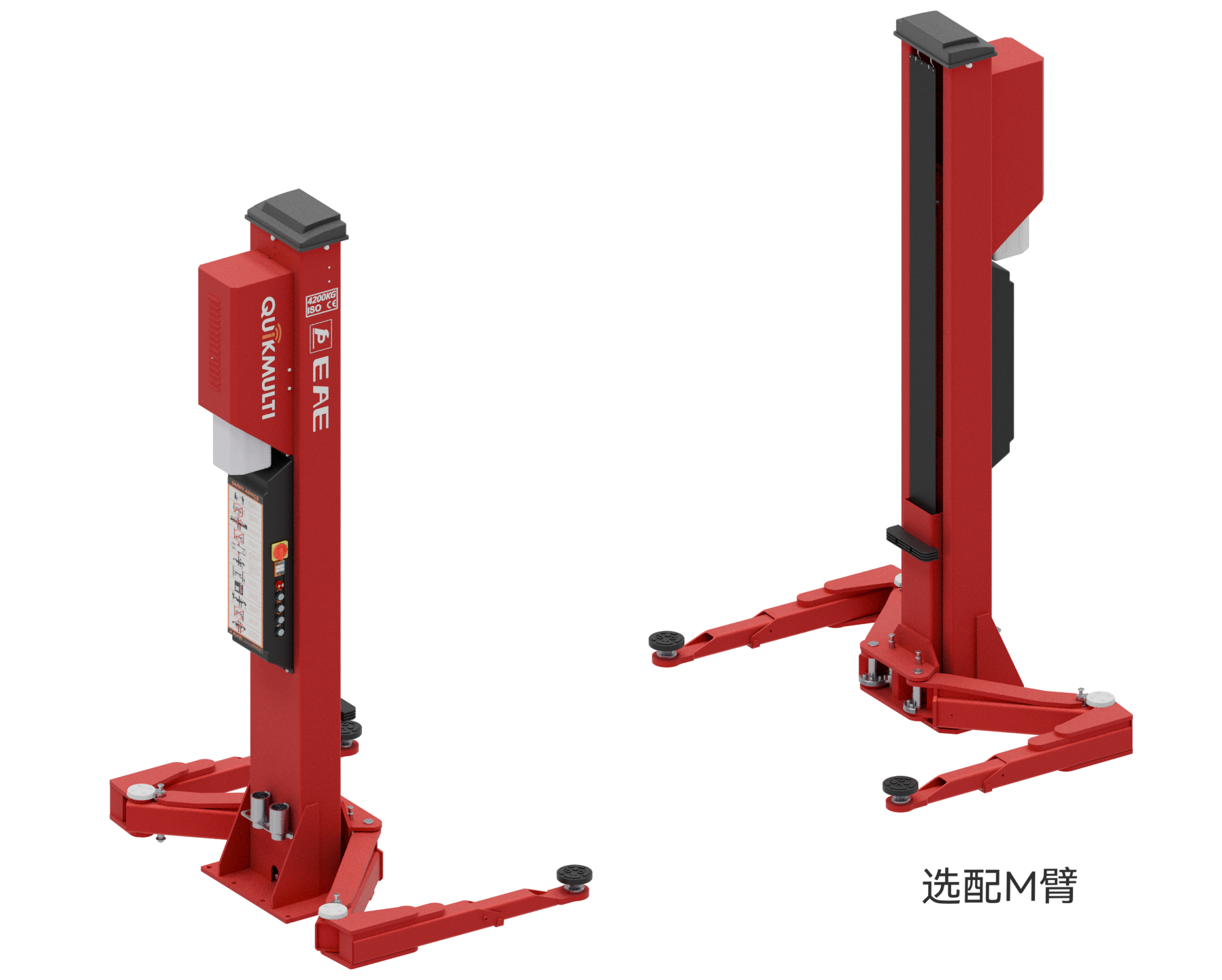

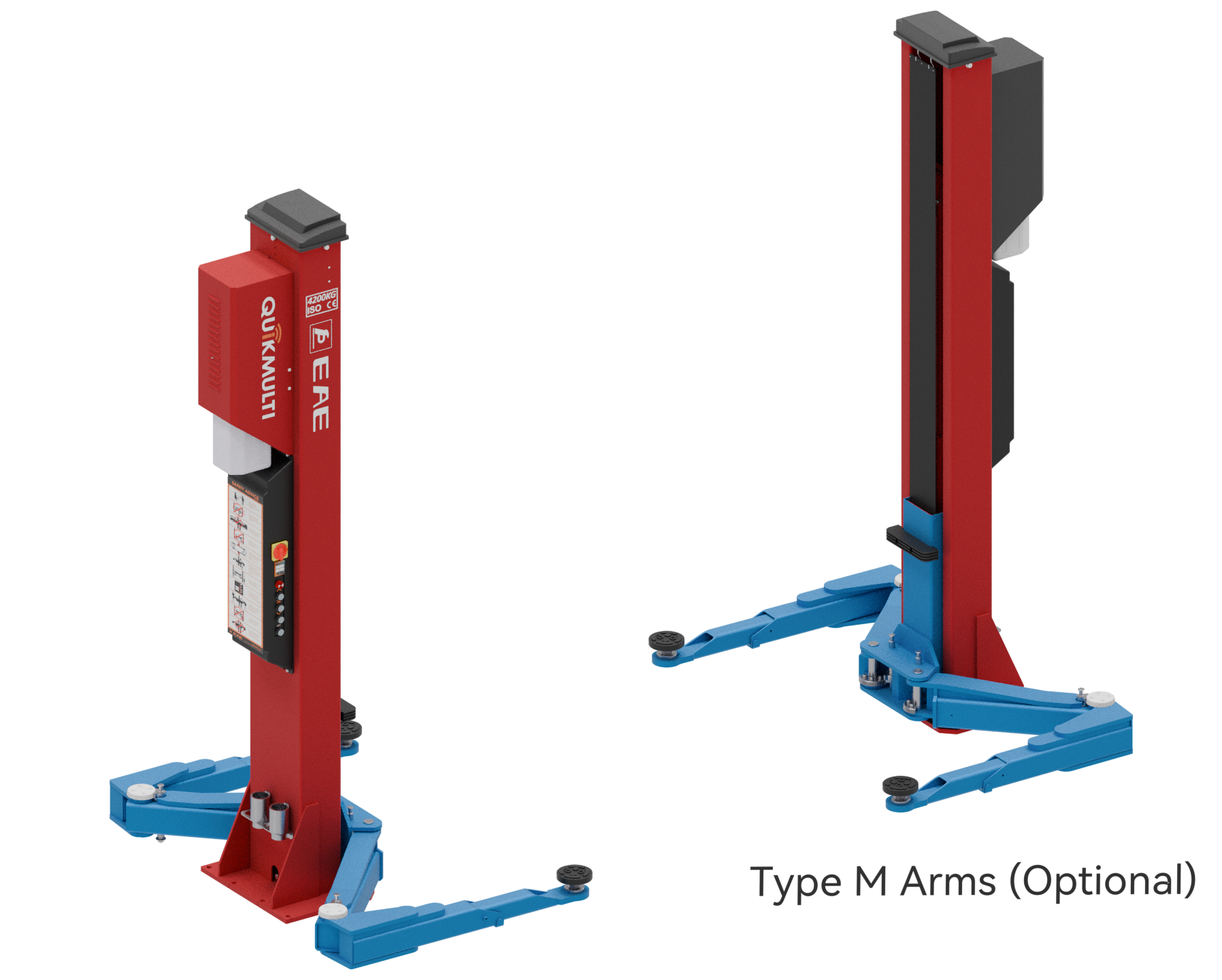

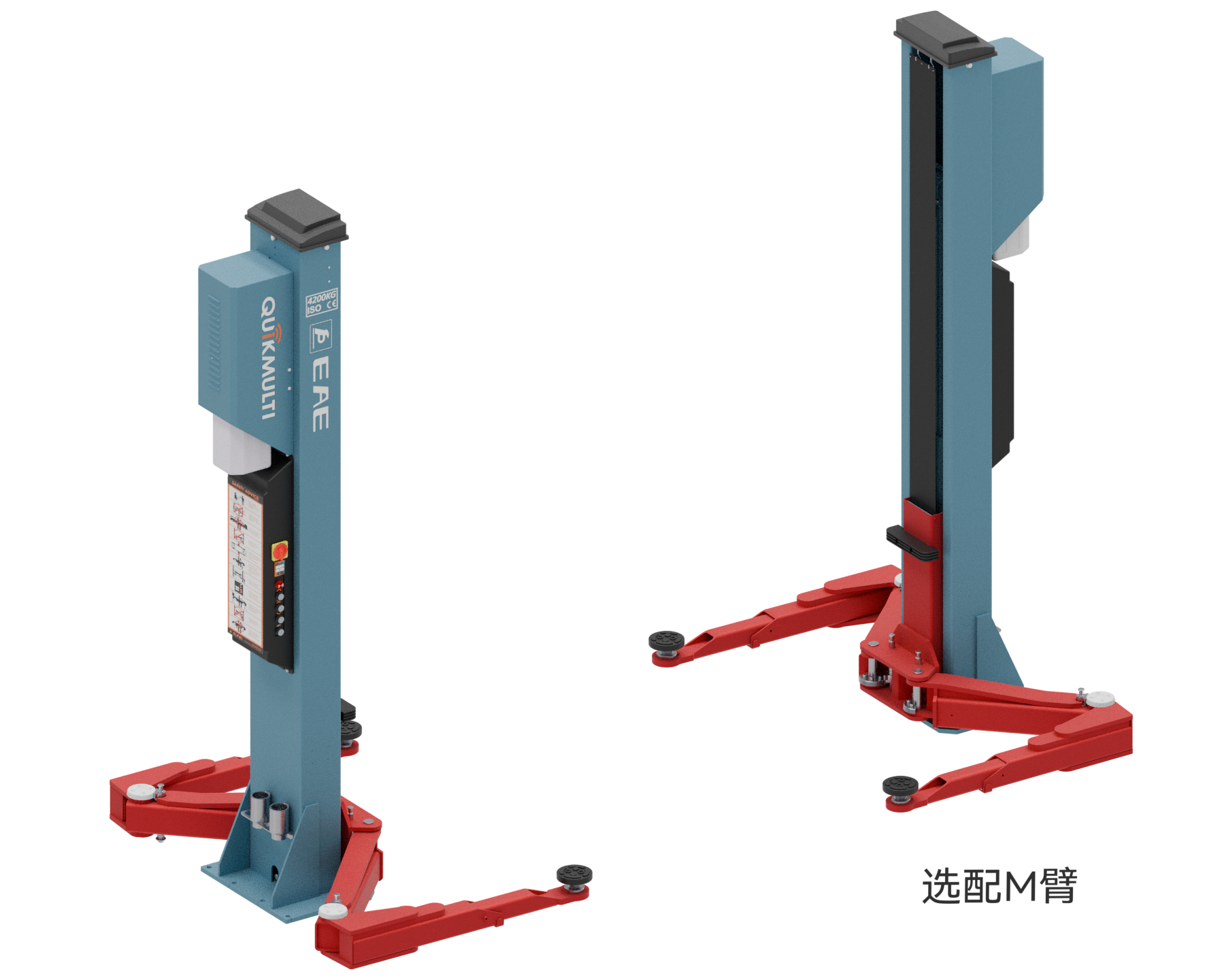

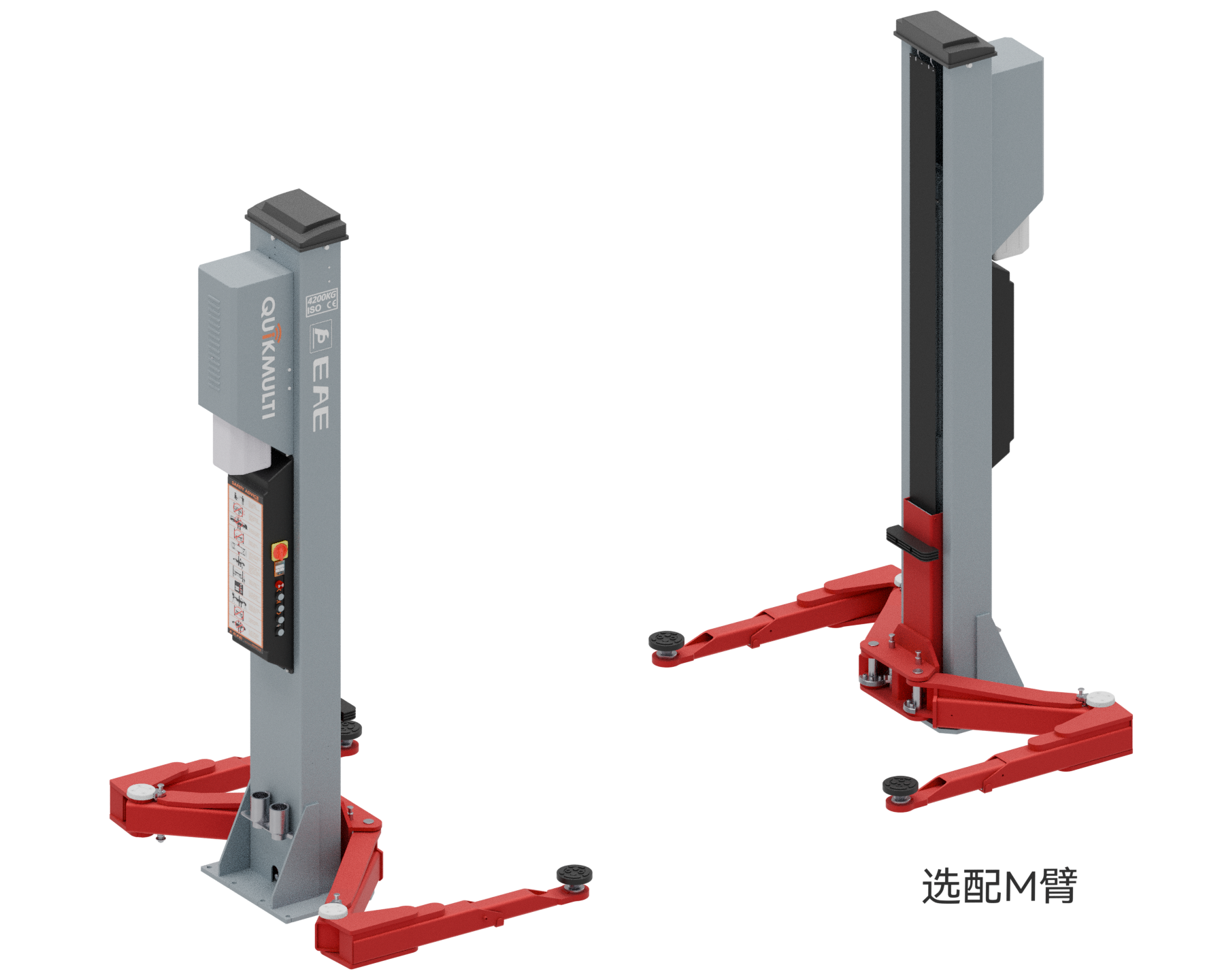

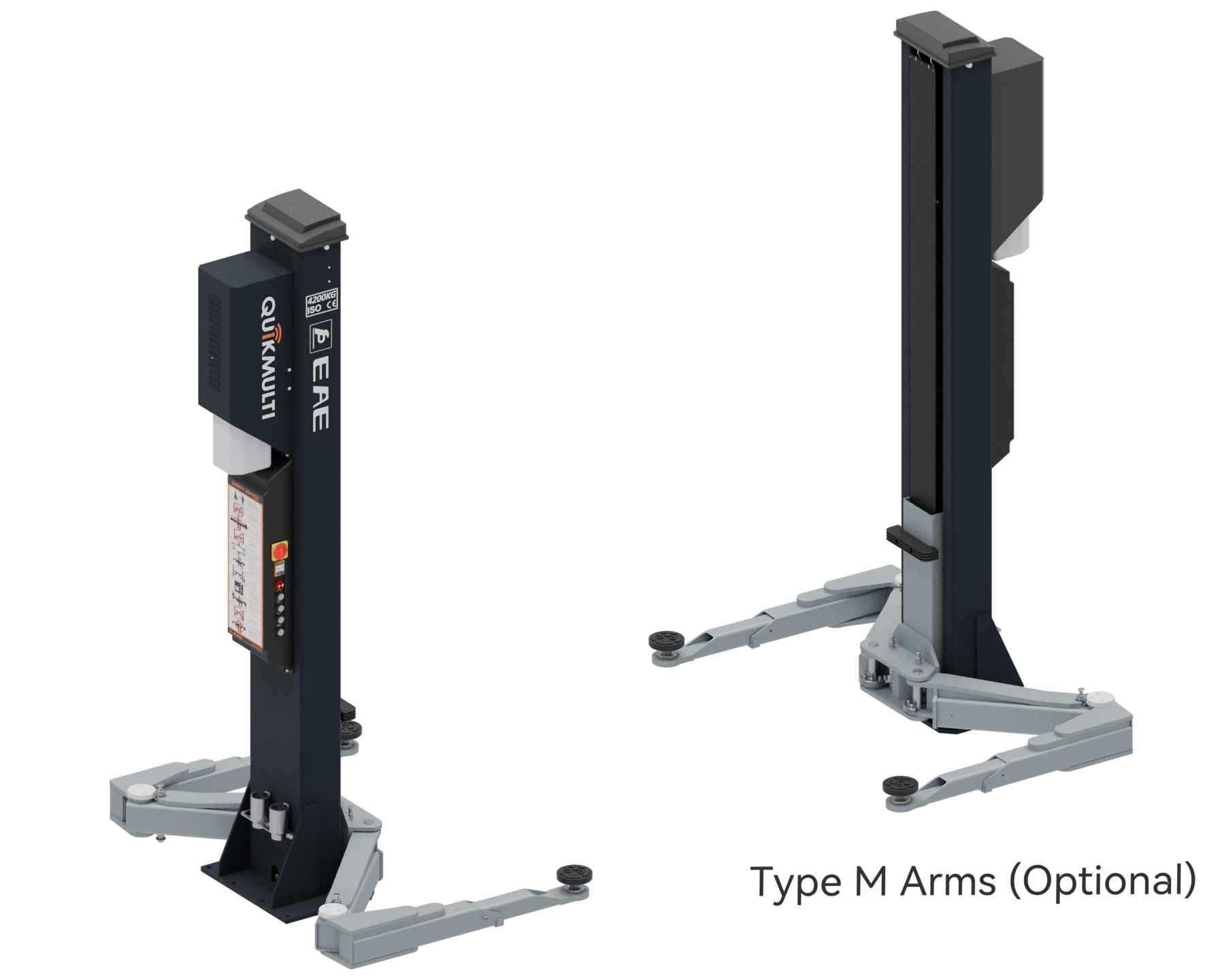

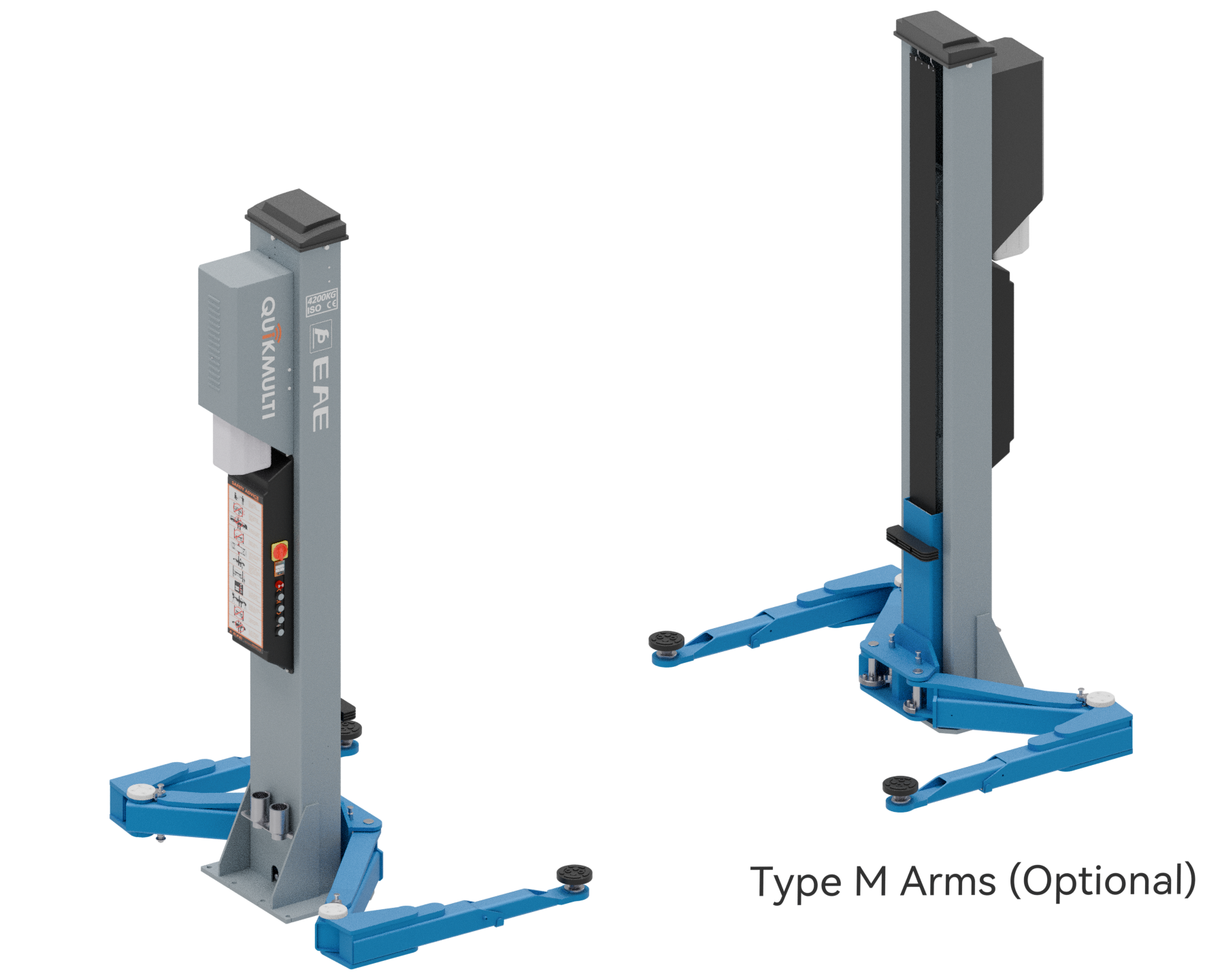

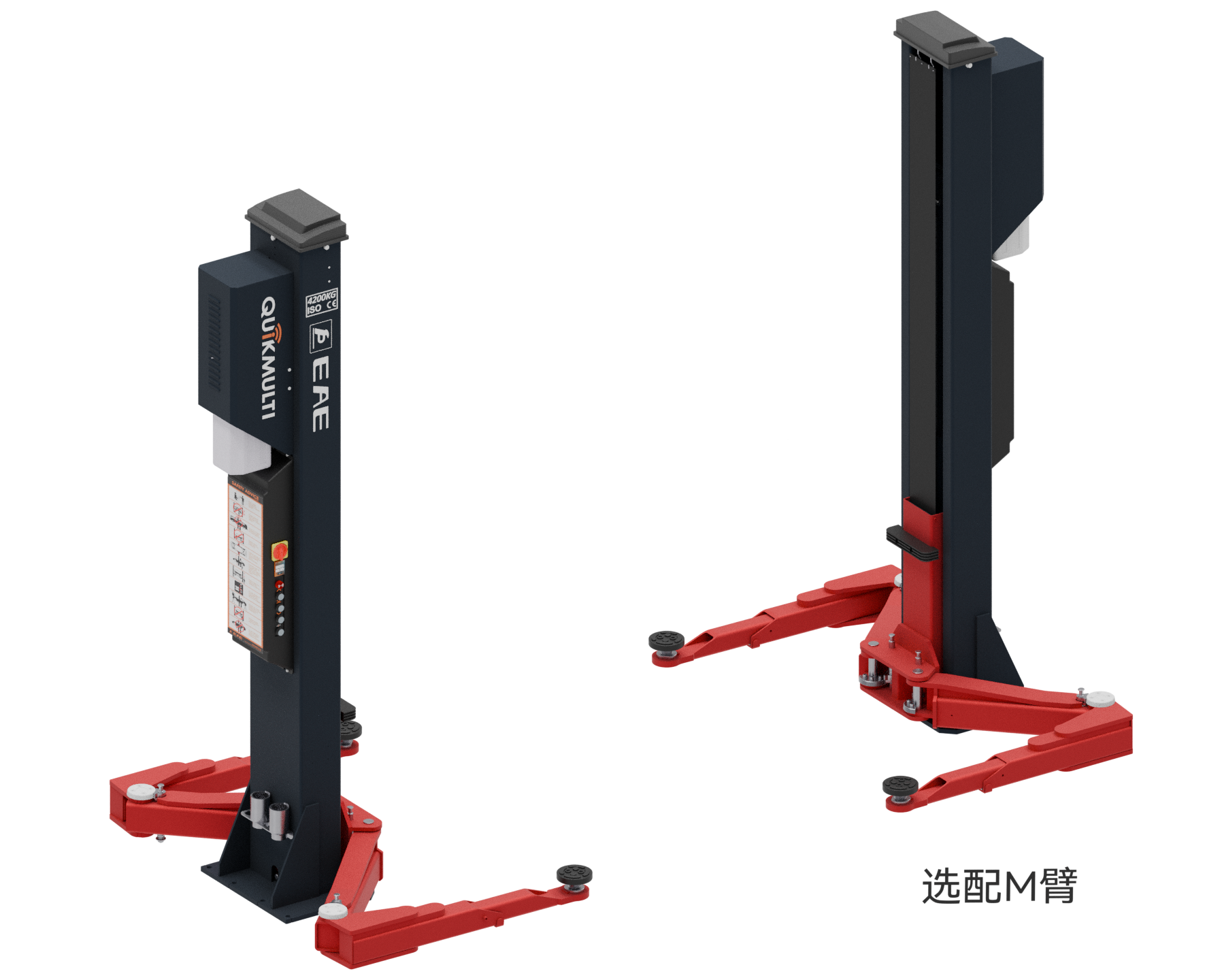

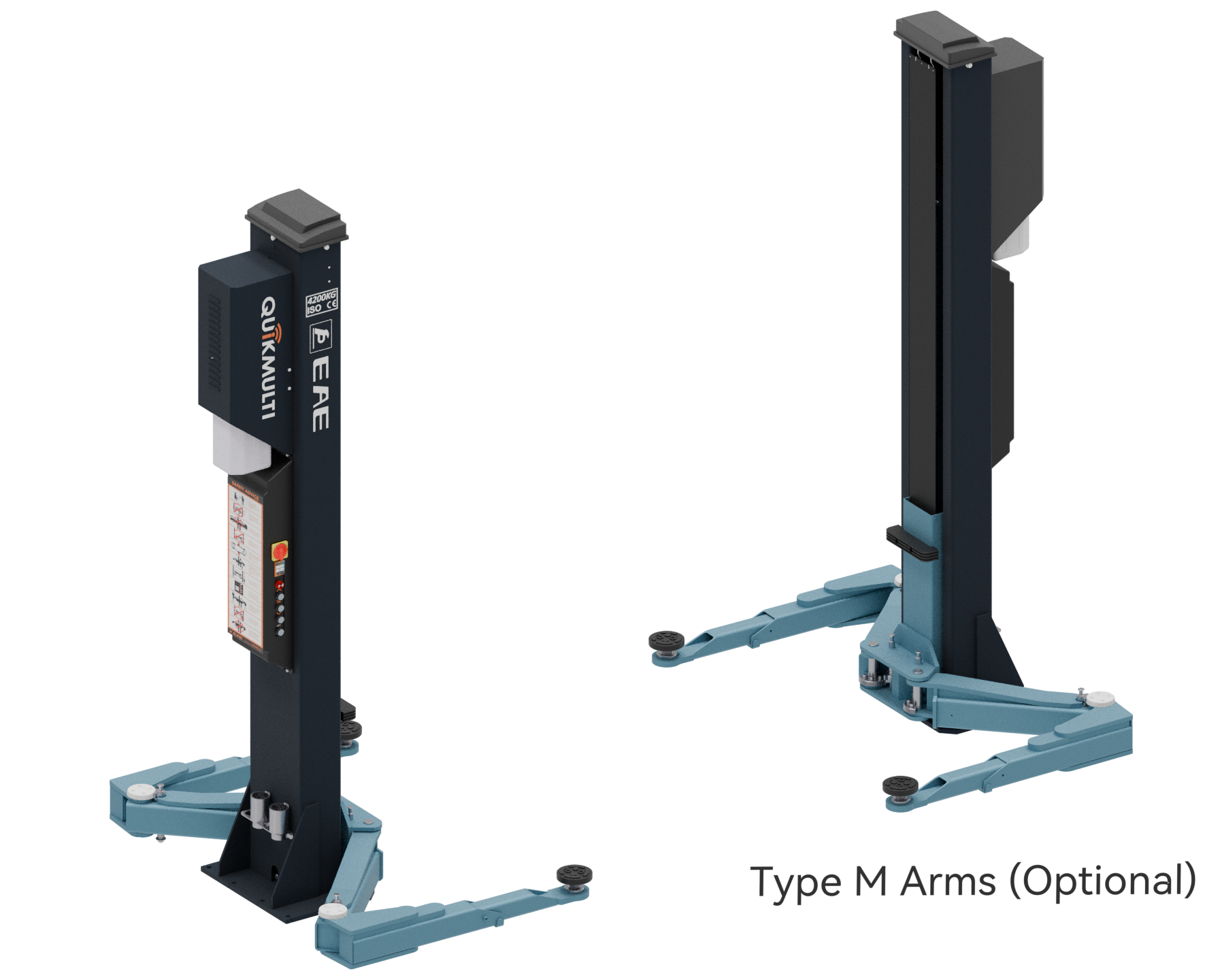

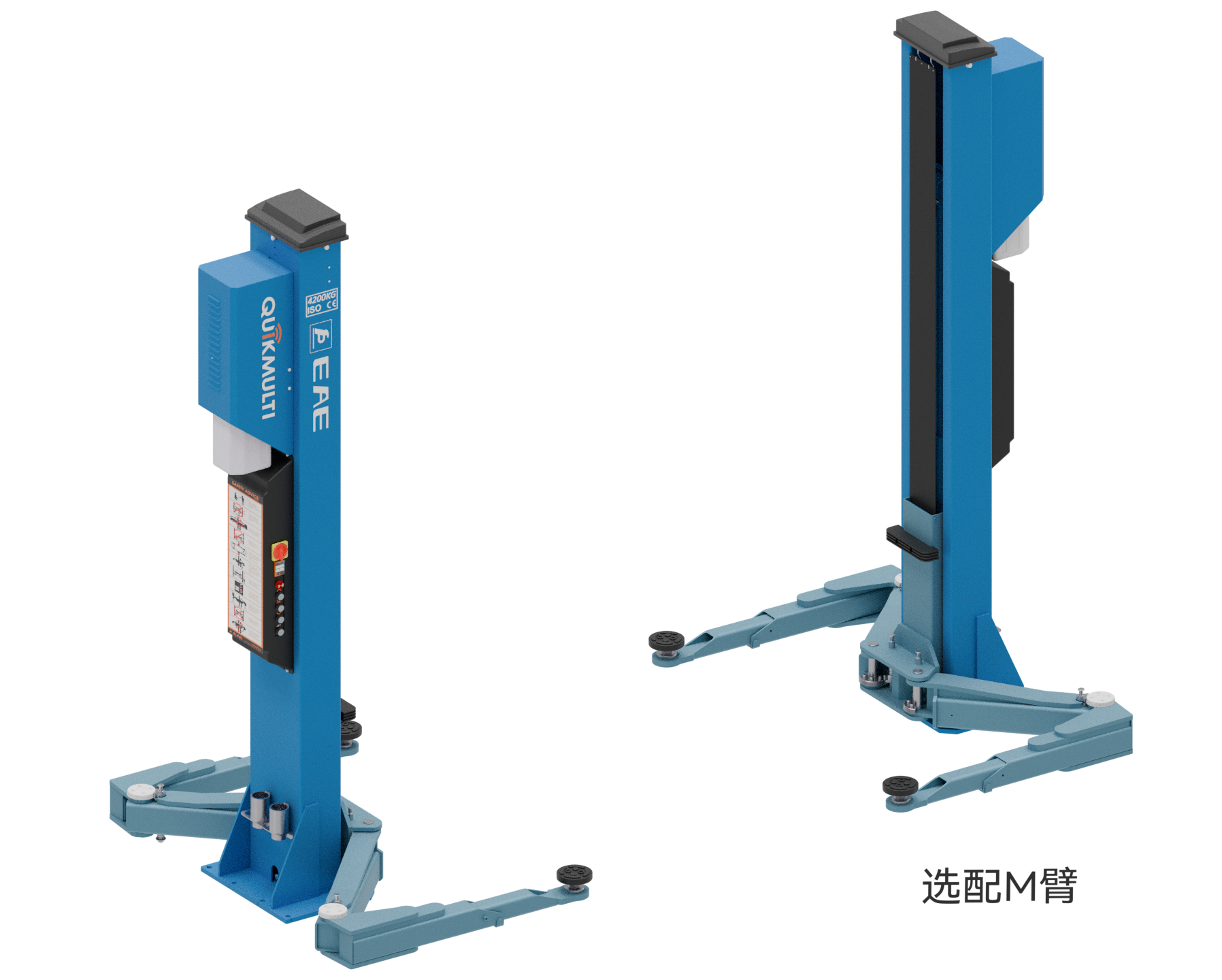

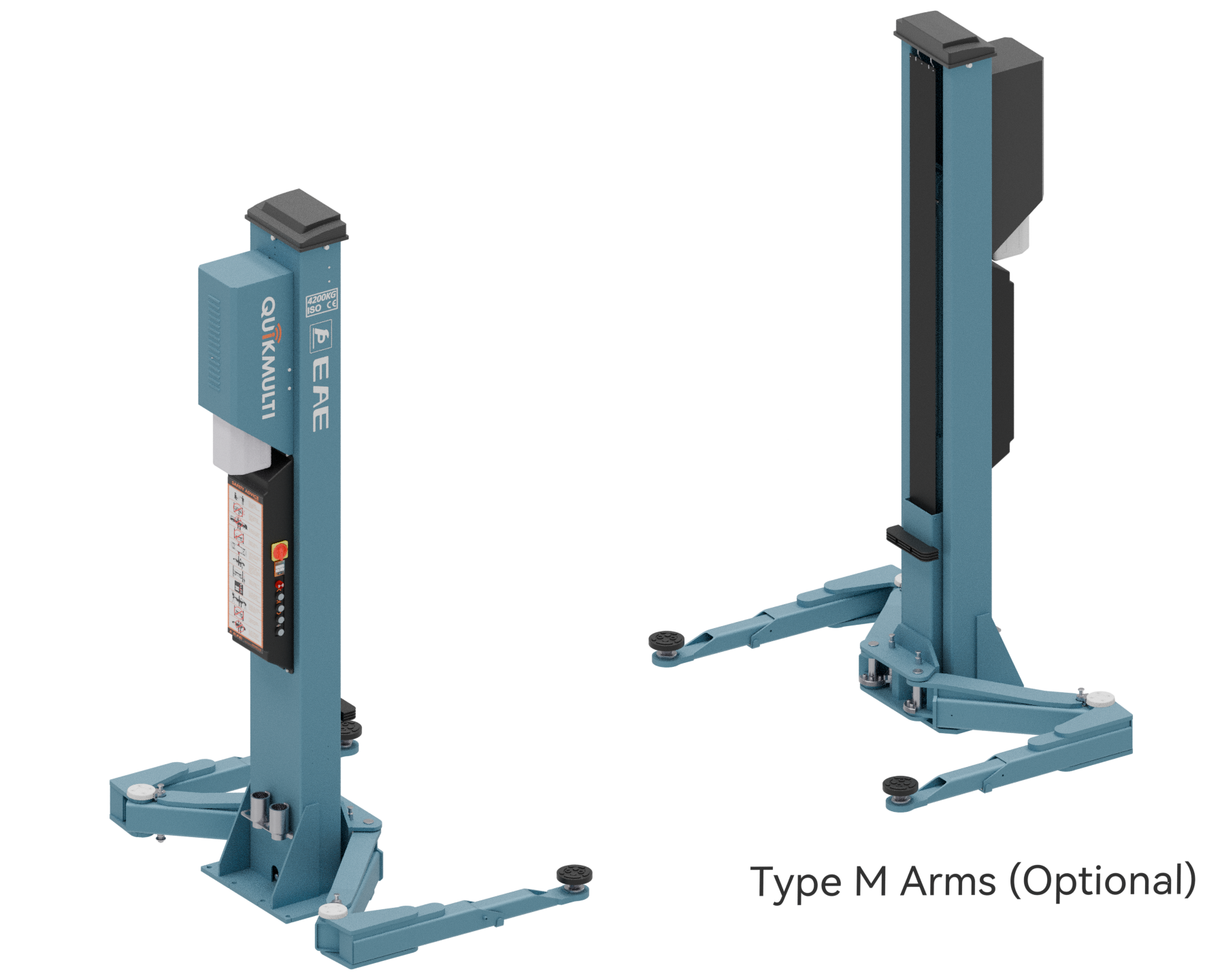

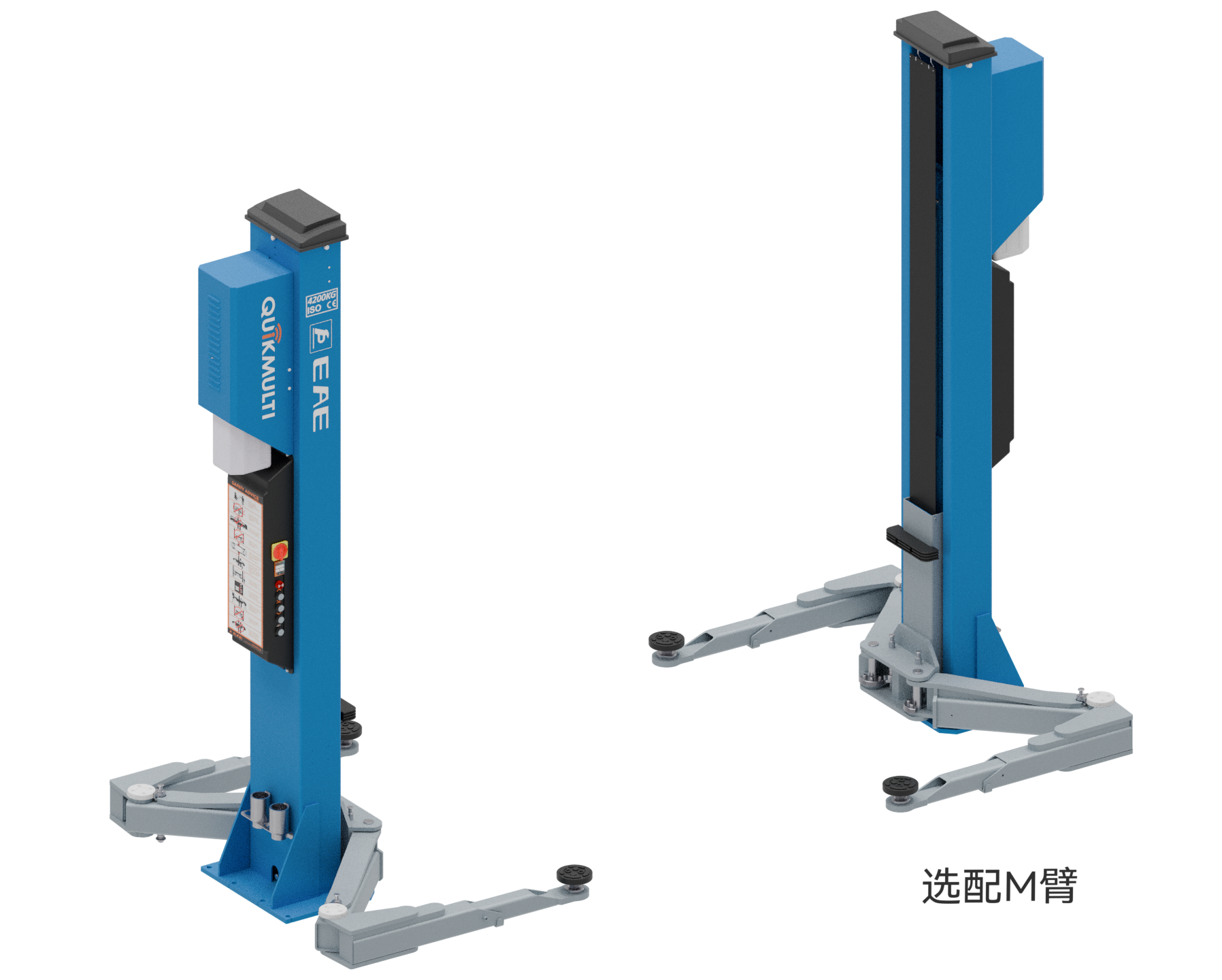

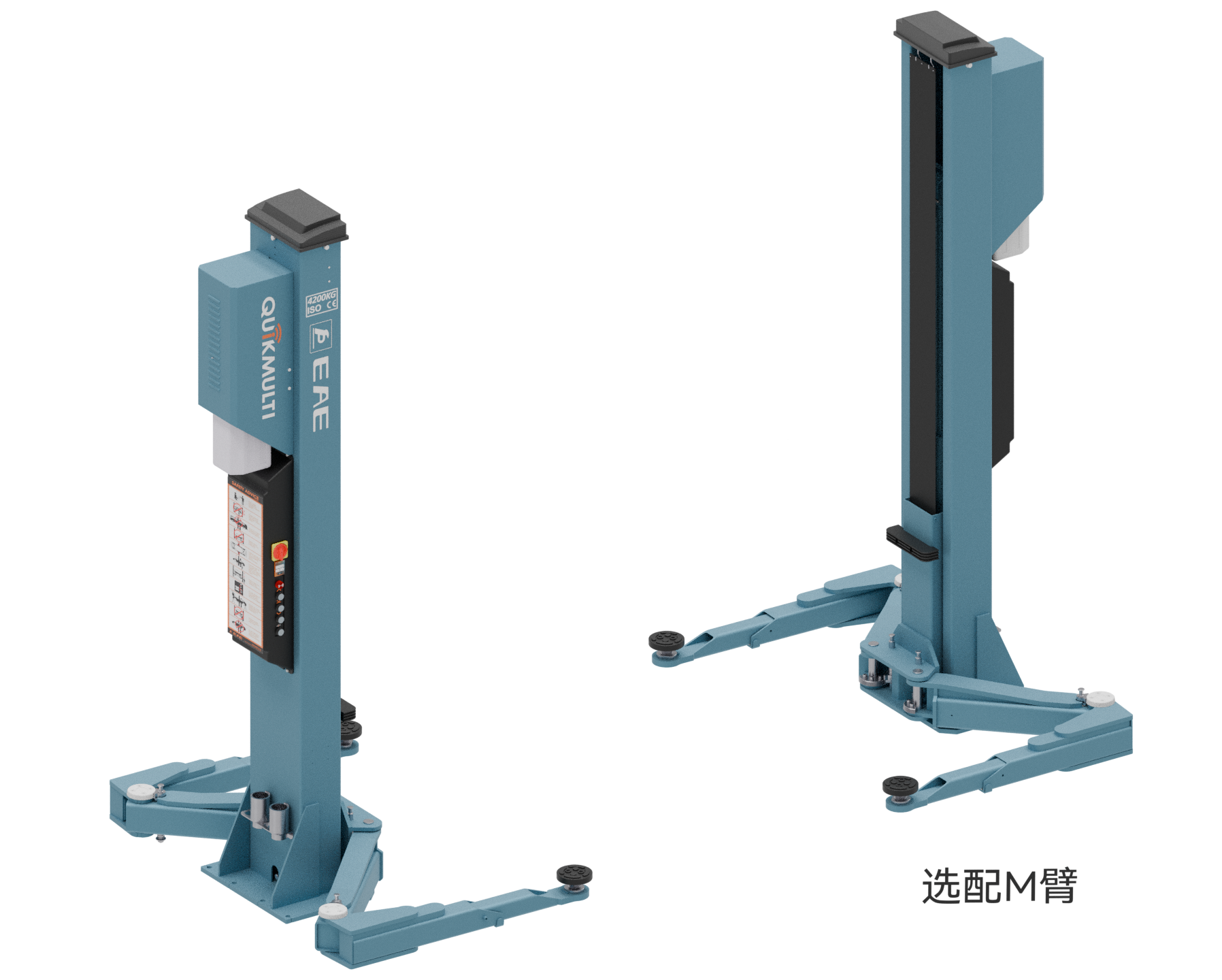

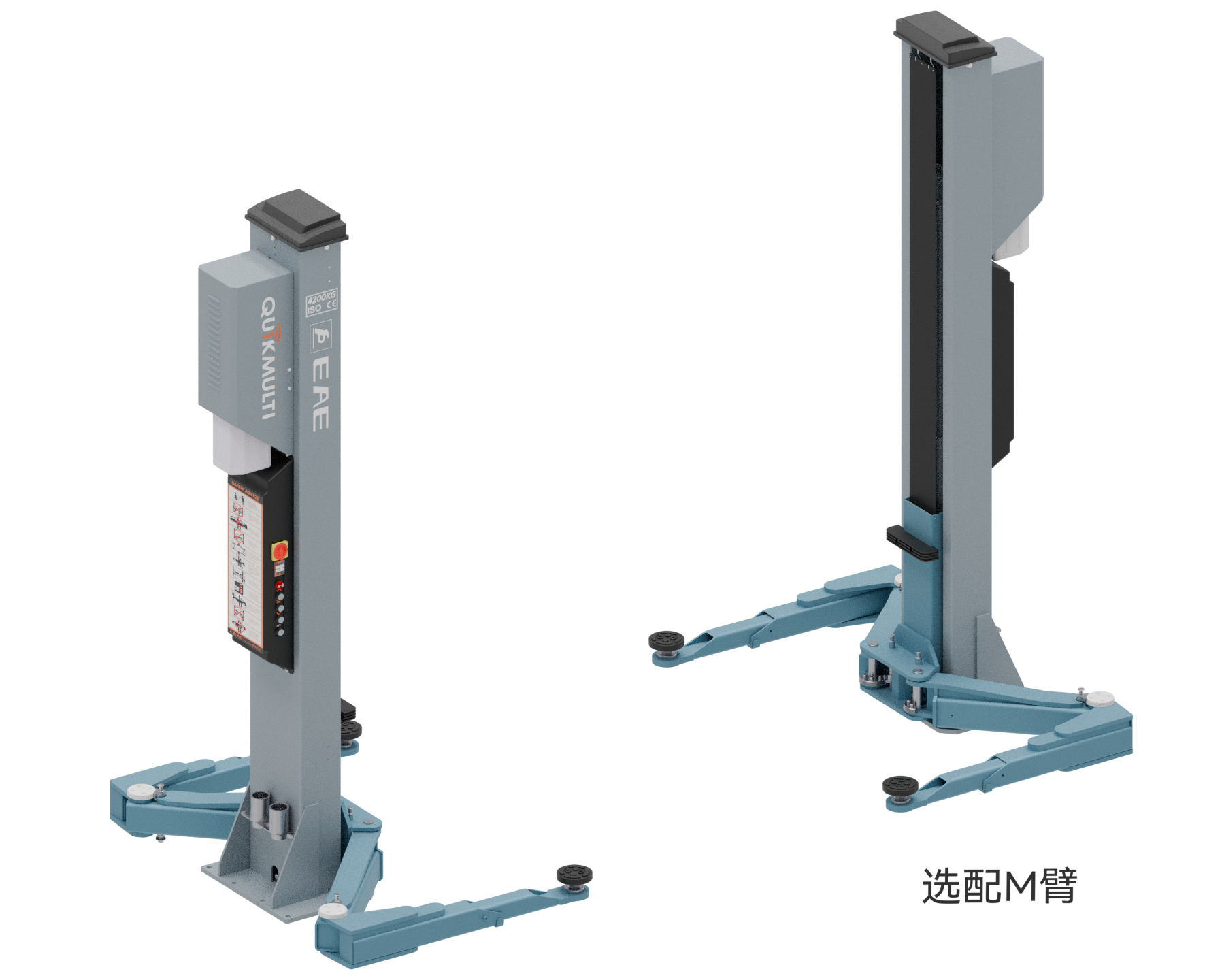

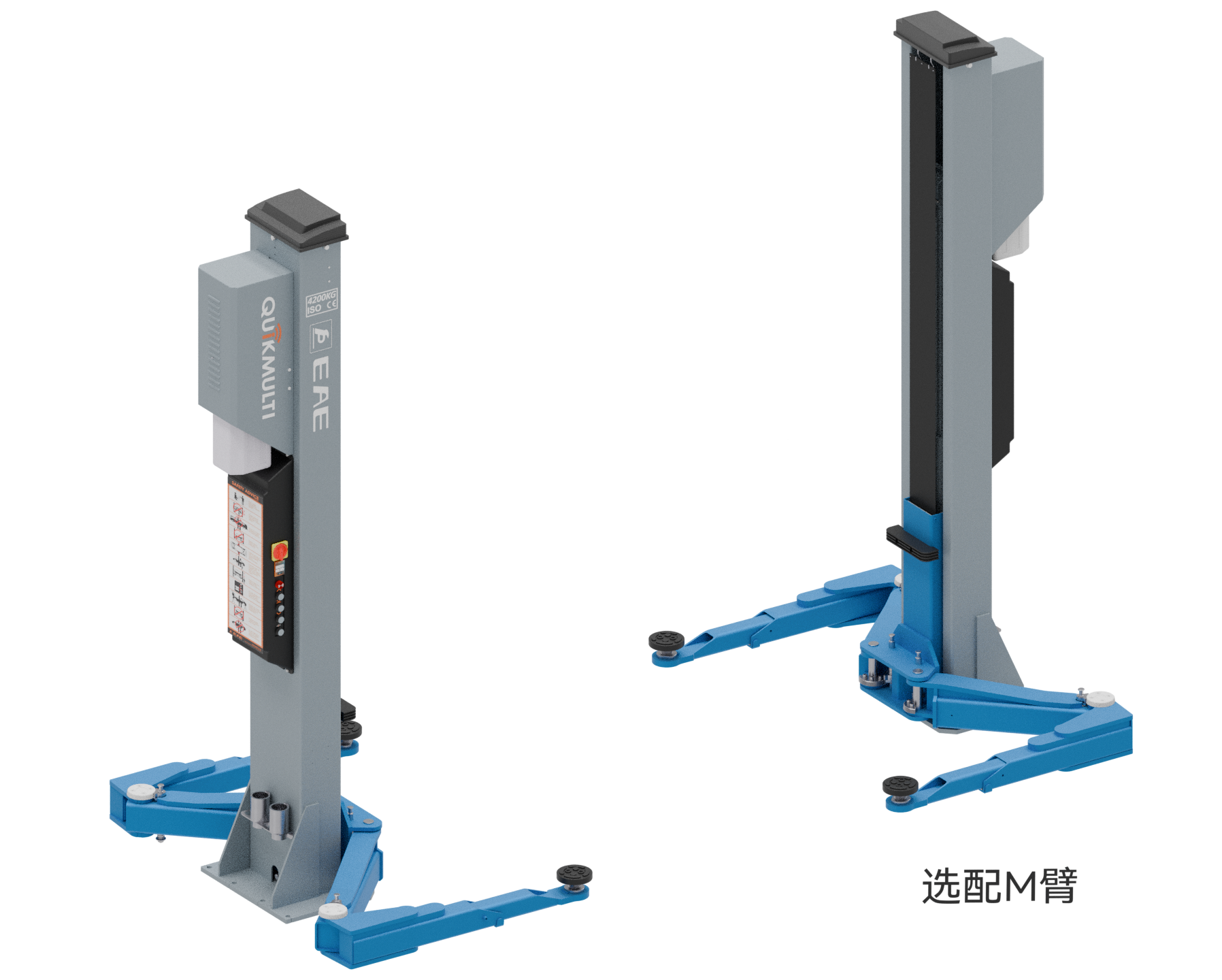

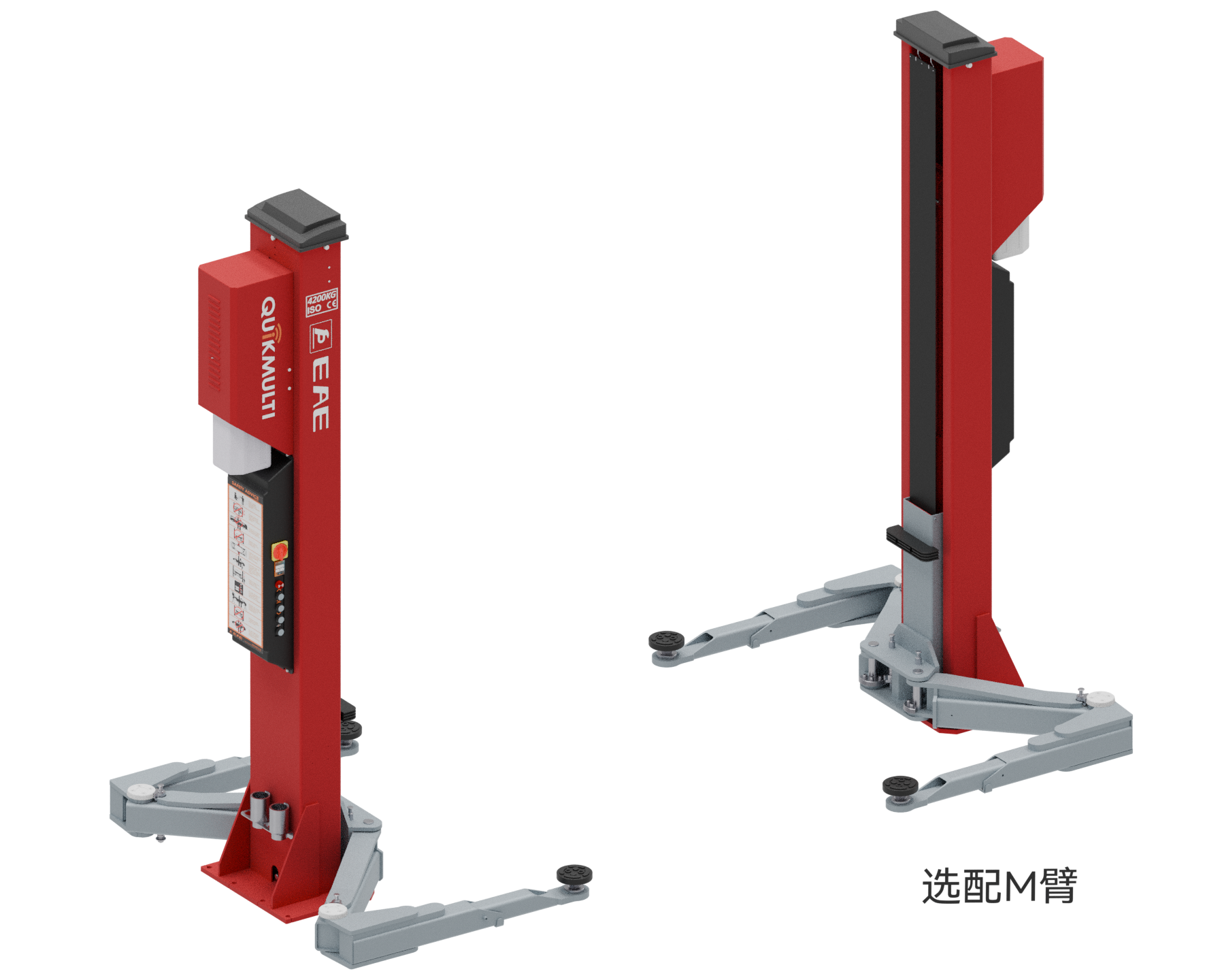

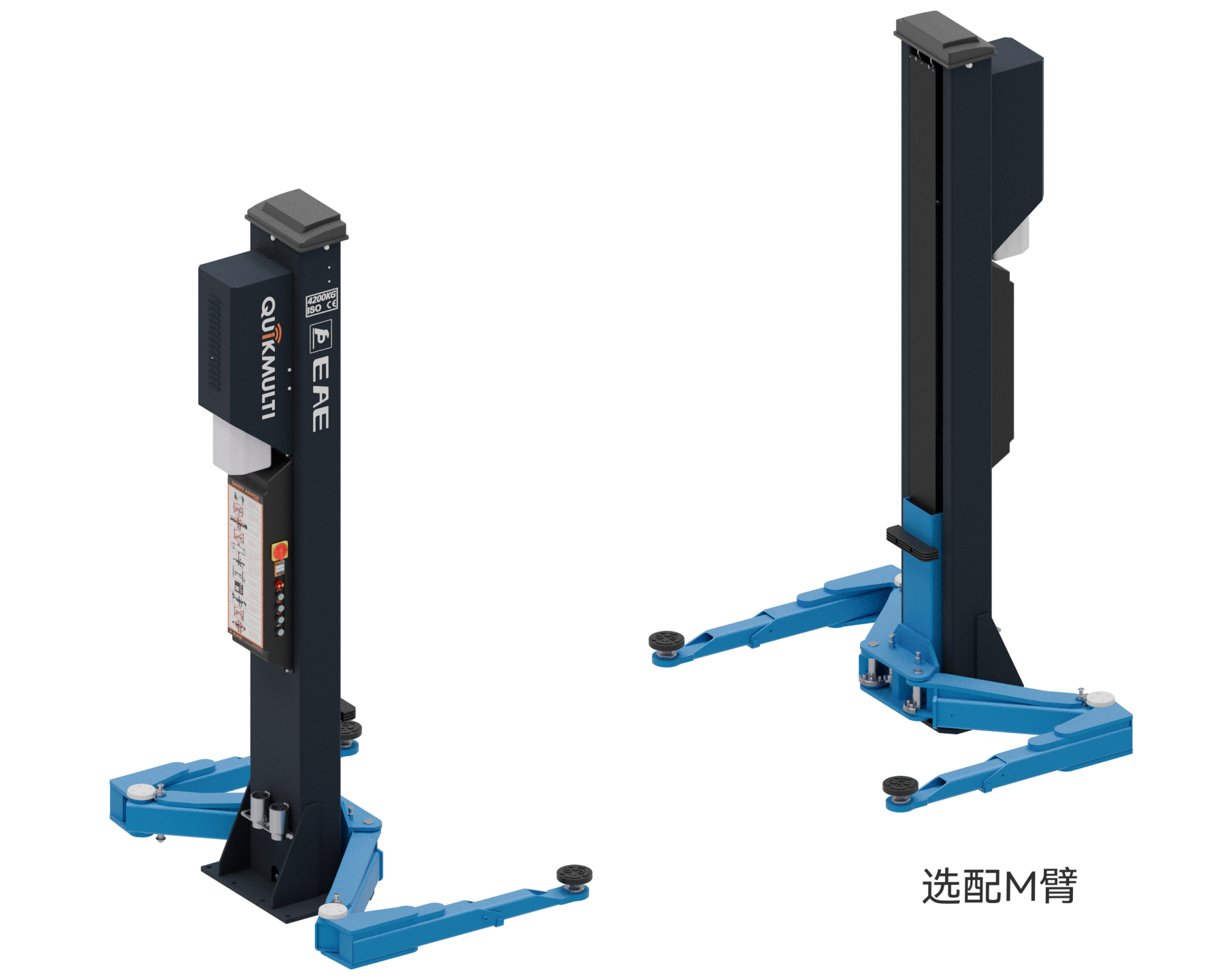

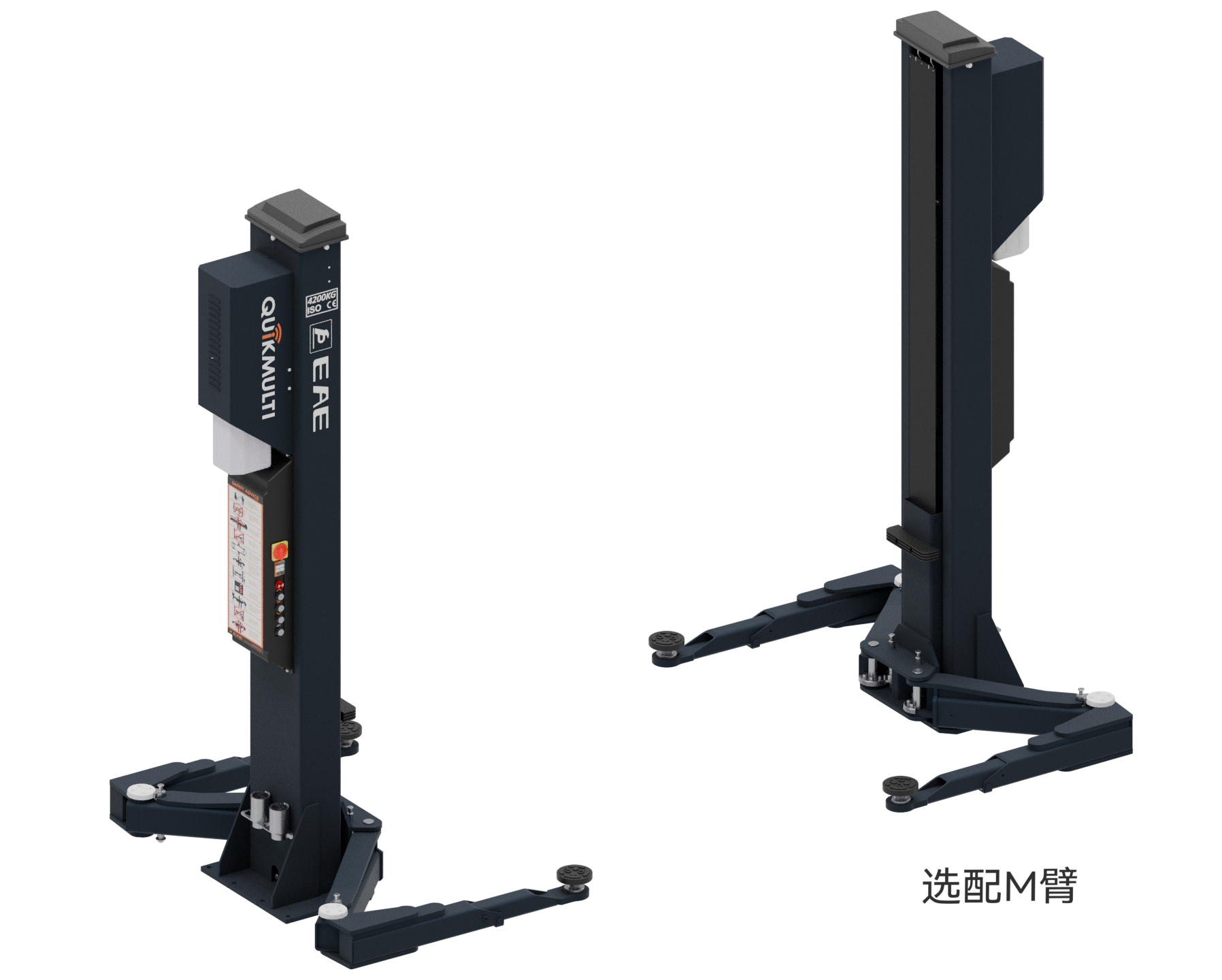

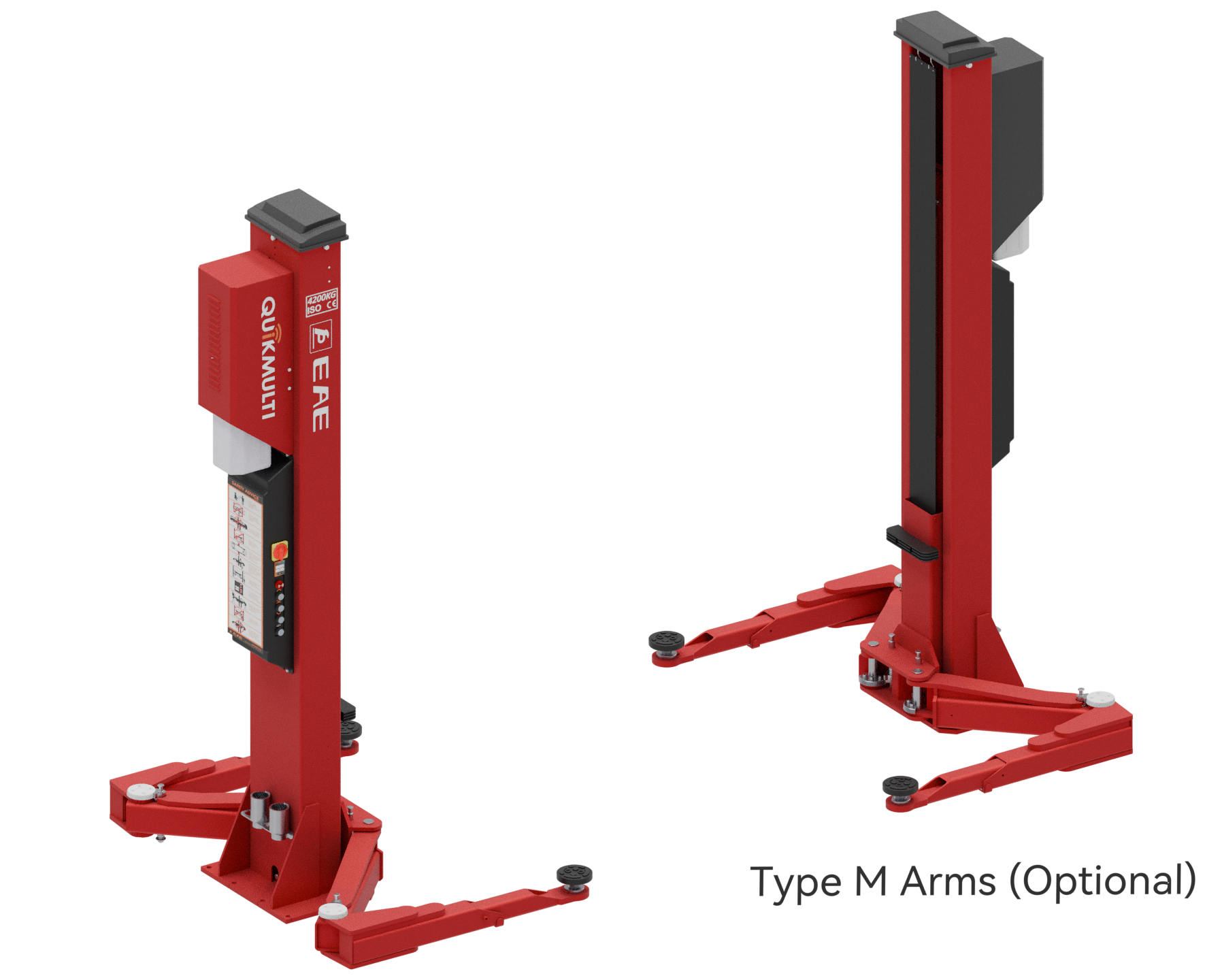

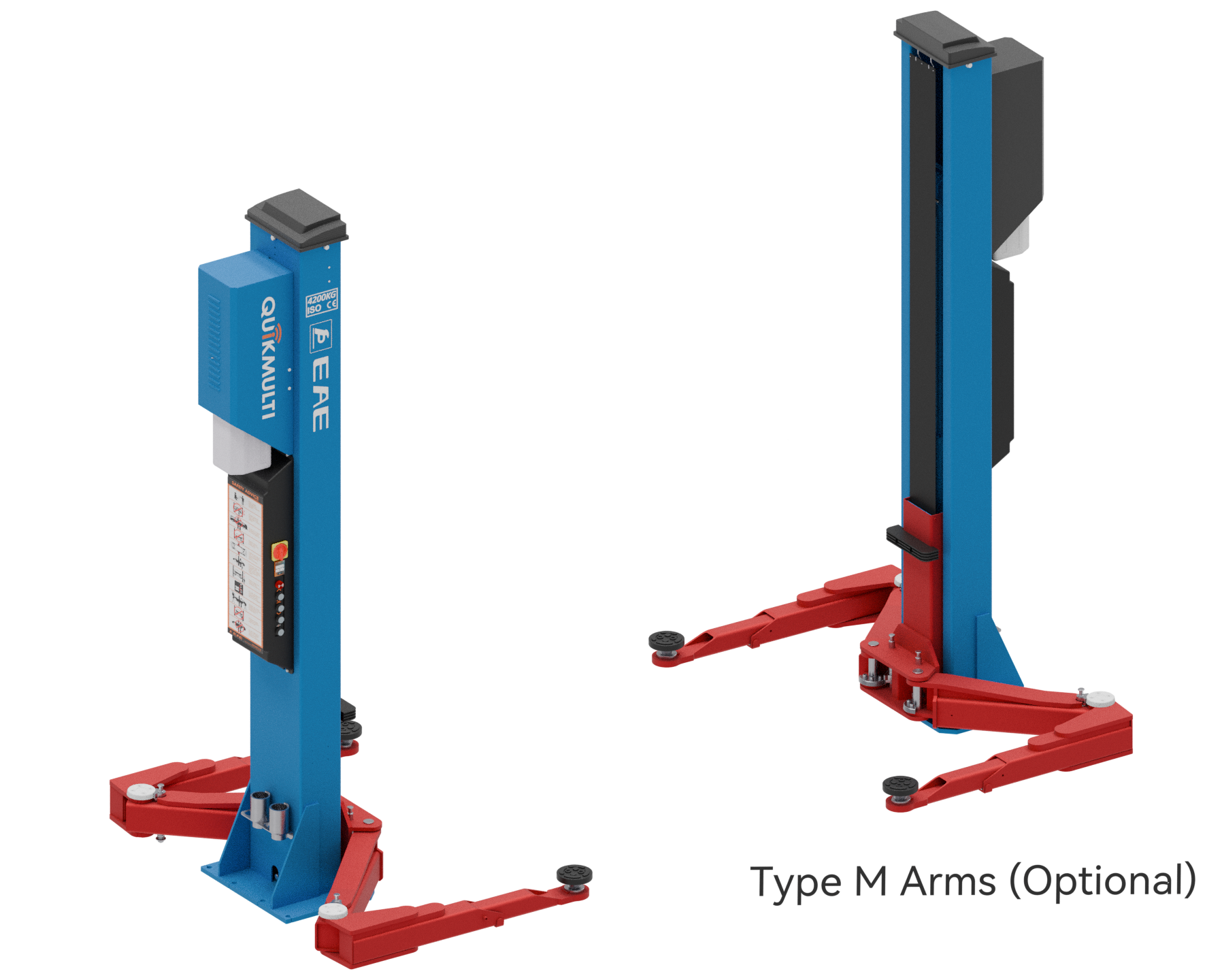

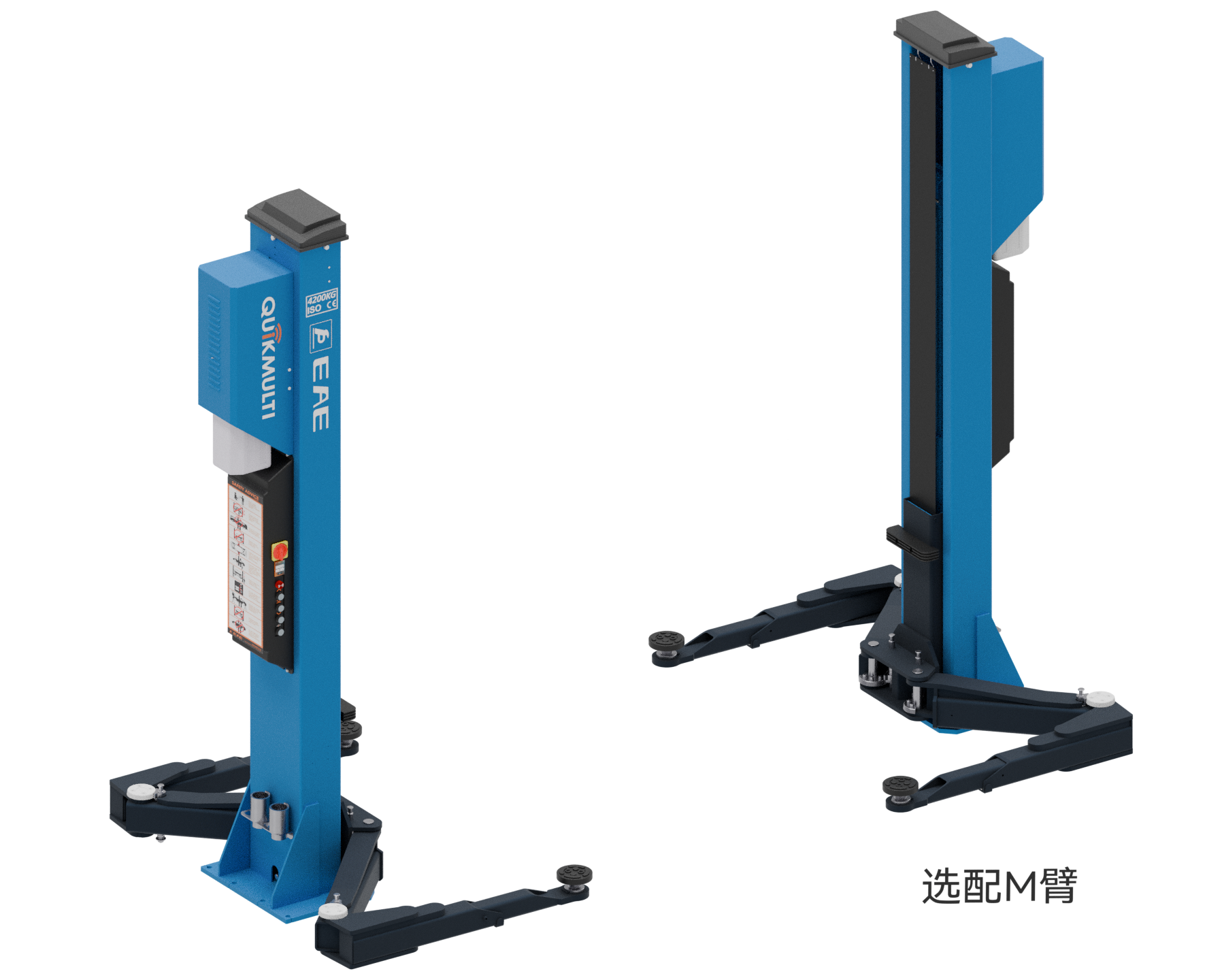

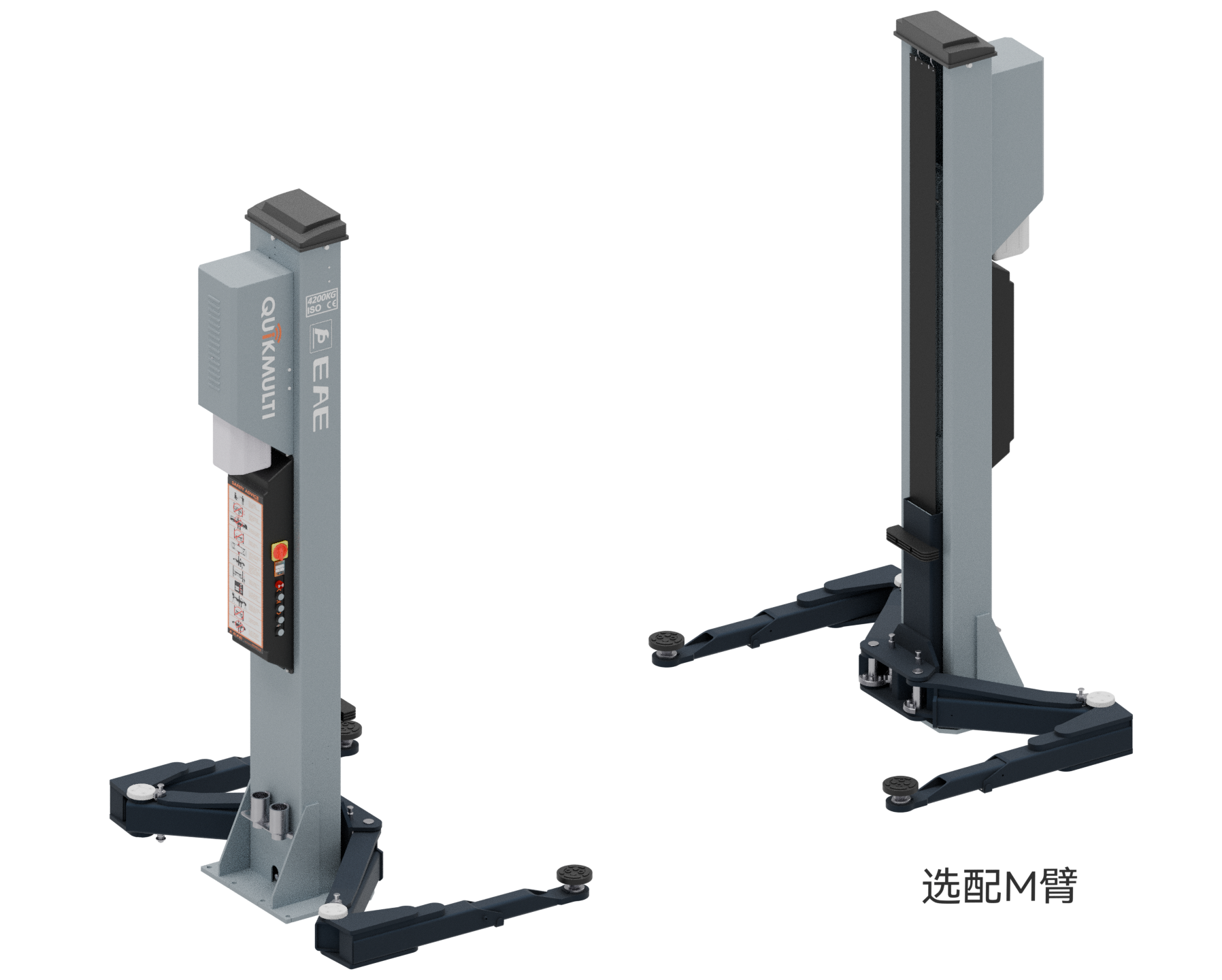

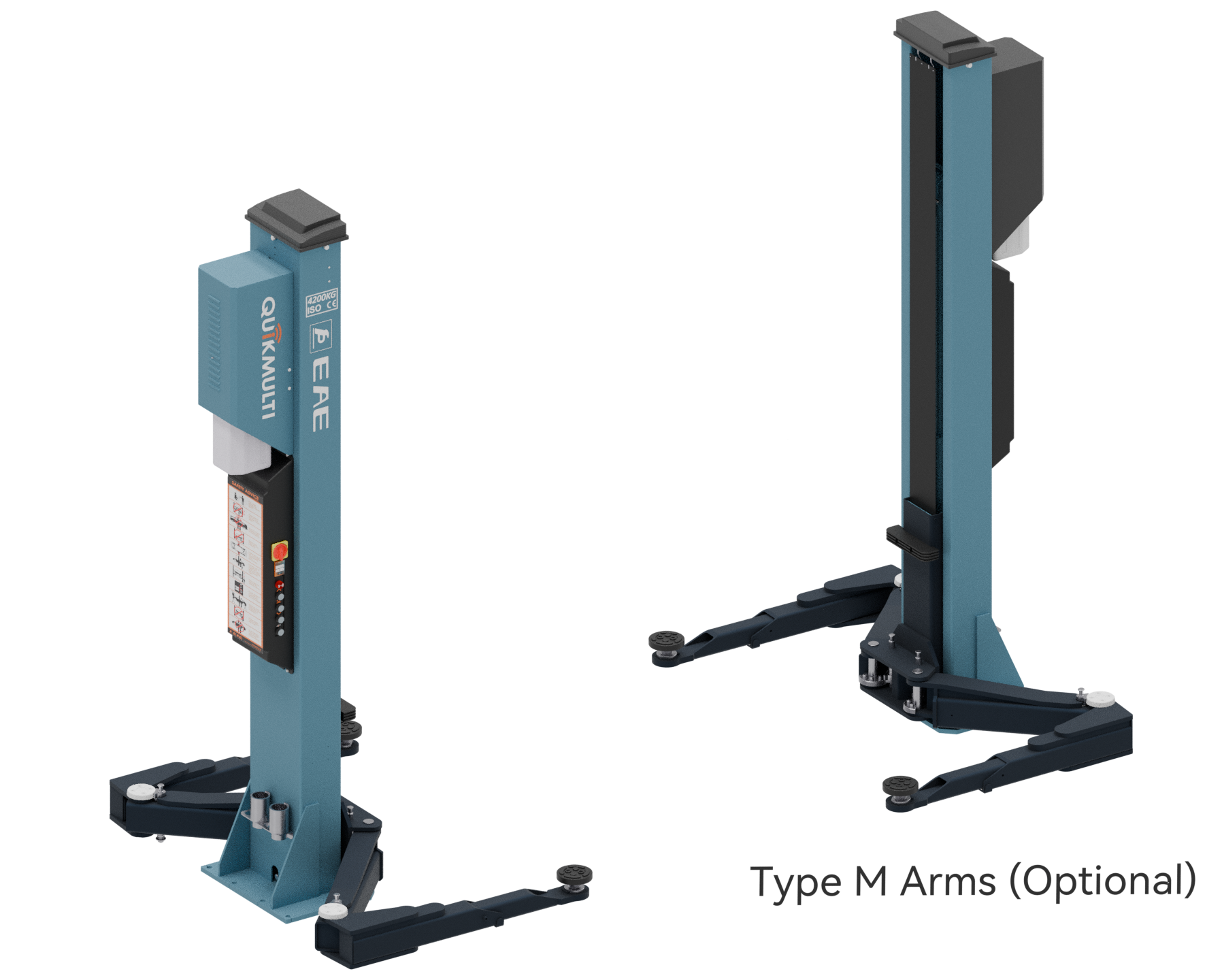

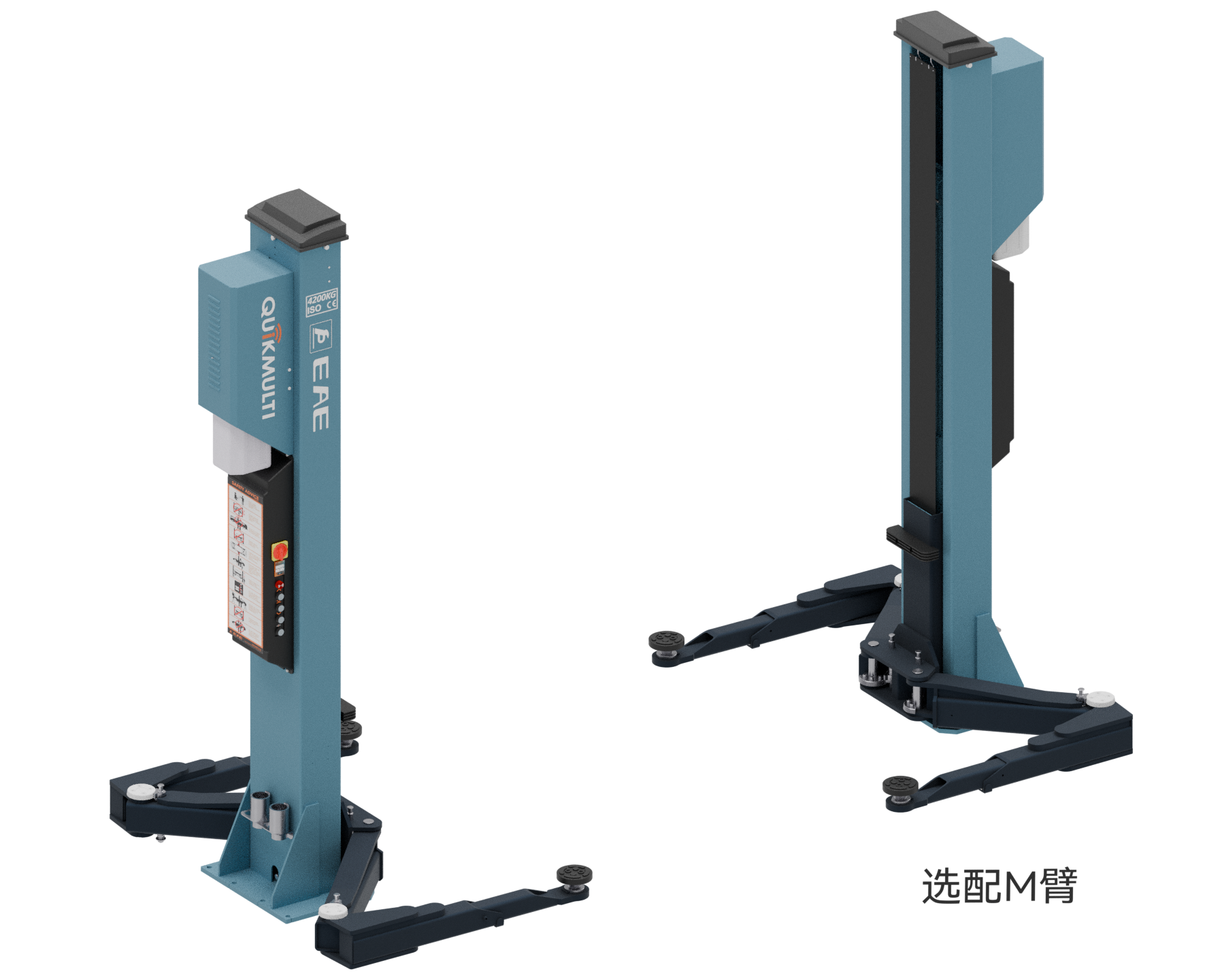

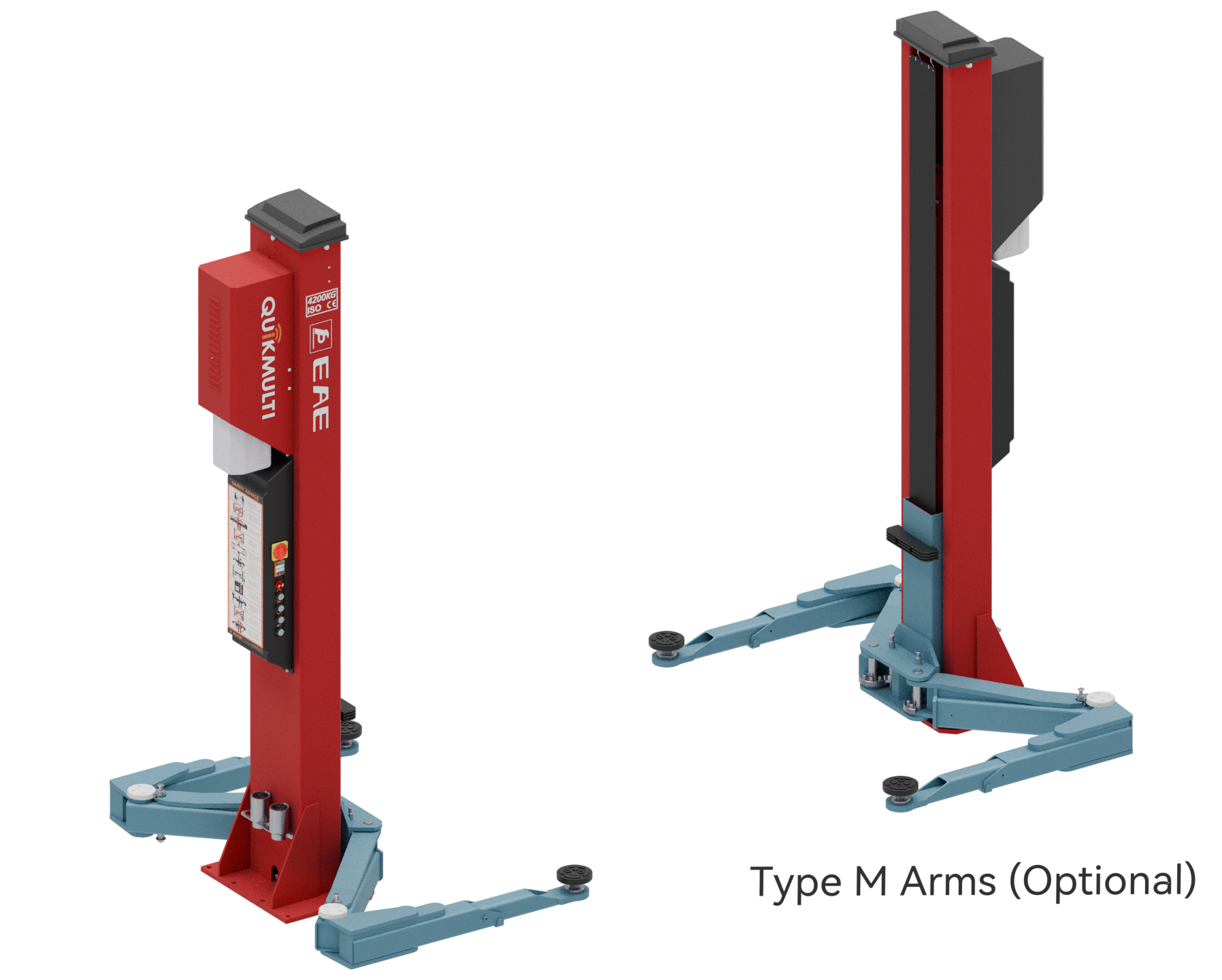

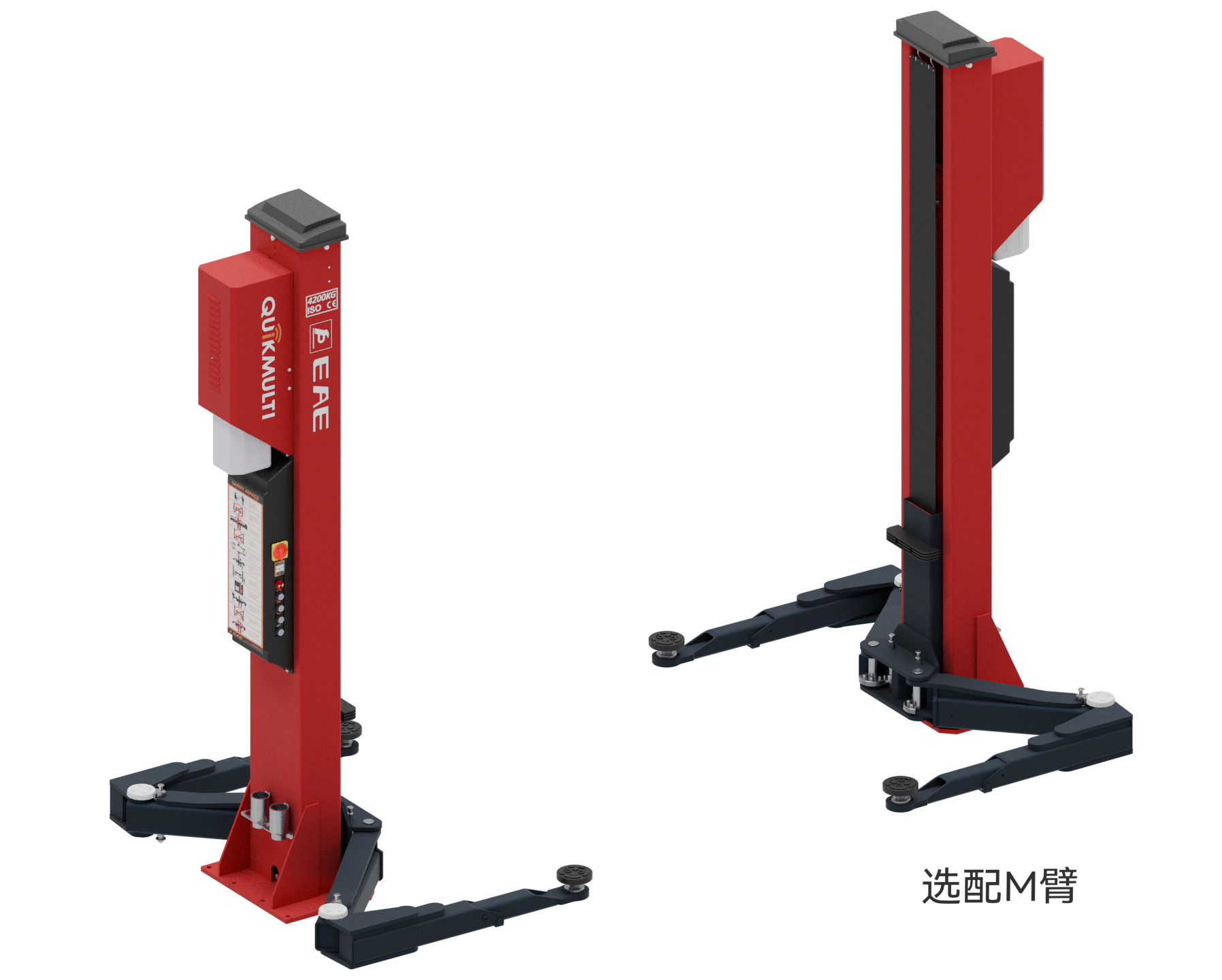

E25 | 5.0T Independent 2-Post Lift

Share:
Product Image VR View

EAE

  • 2000mm

    Max Lifting Height

  • 110mm

    Min Height

  • 2800-3500mm

    Inside Column

  • 25s

    Lifting Time

Accessories Details

C Arm

HMI Screen (Optional weight indicator)

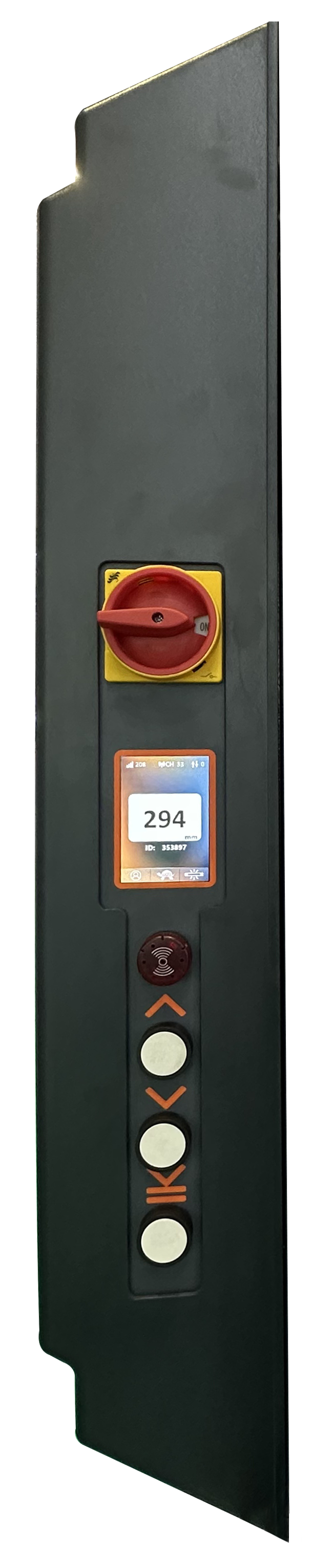

Intelligent control system

Second control box

Displacement Sensor

Four 3-Stage Arms

Motor Protected

Aluminum motor

Locking system

Technical Data
Description

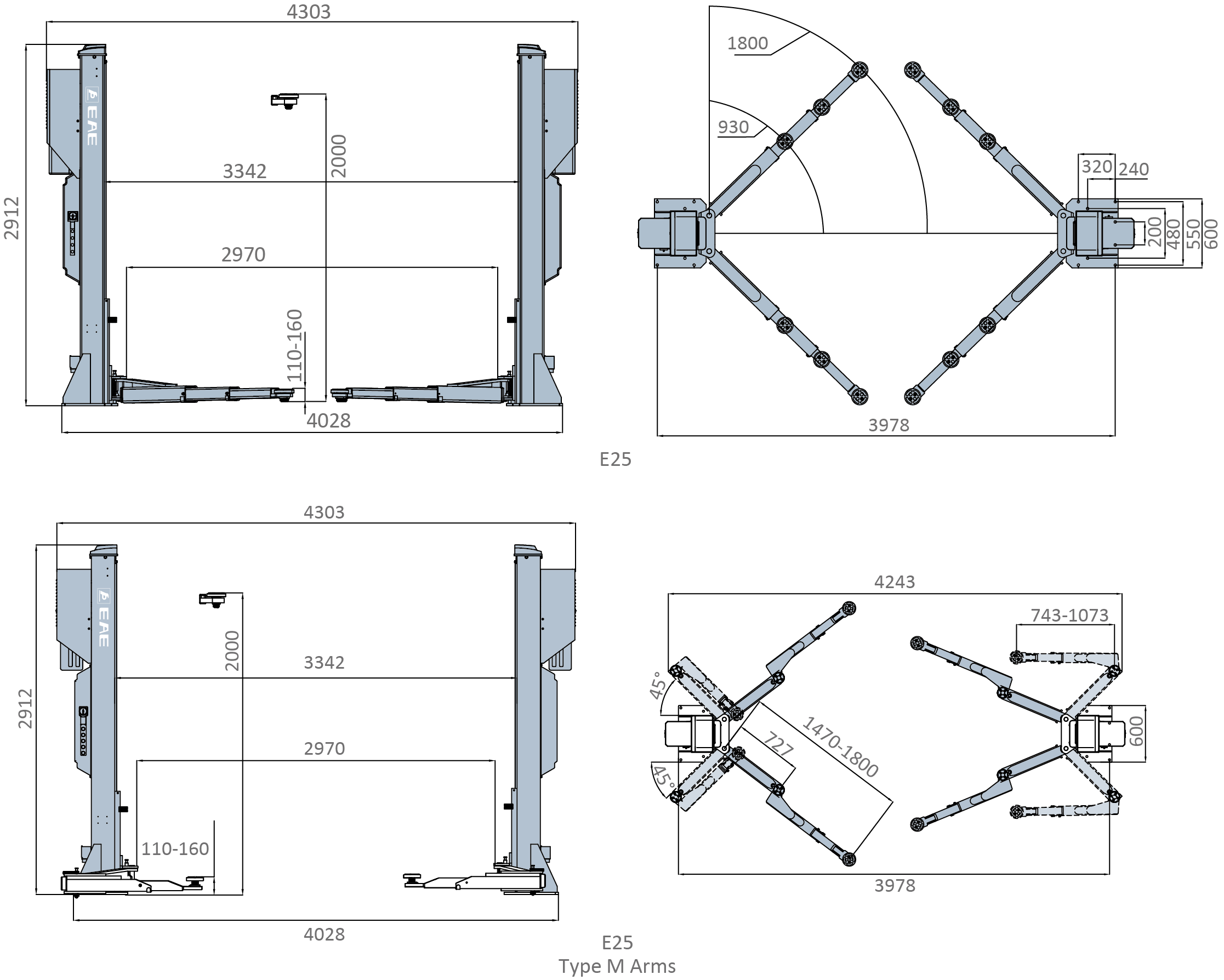

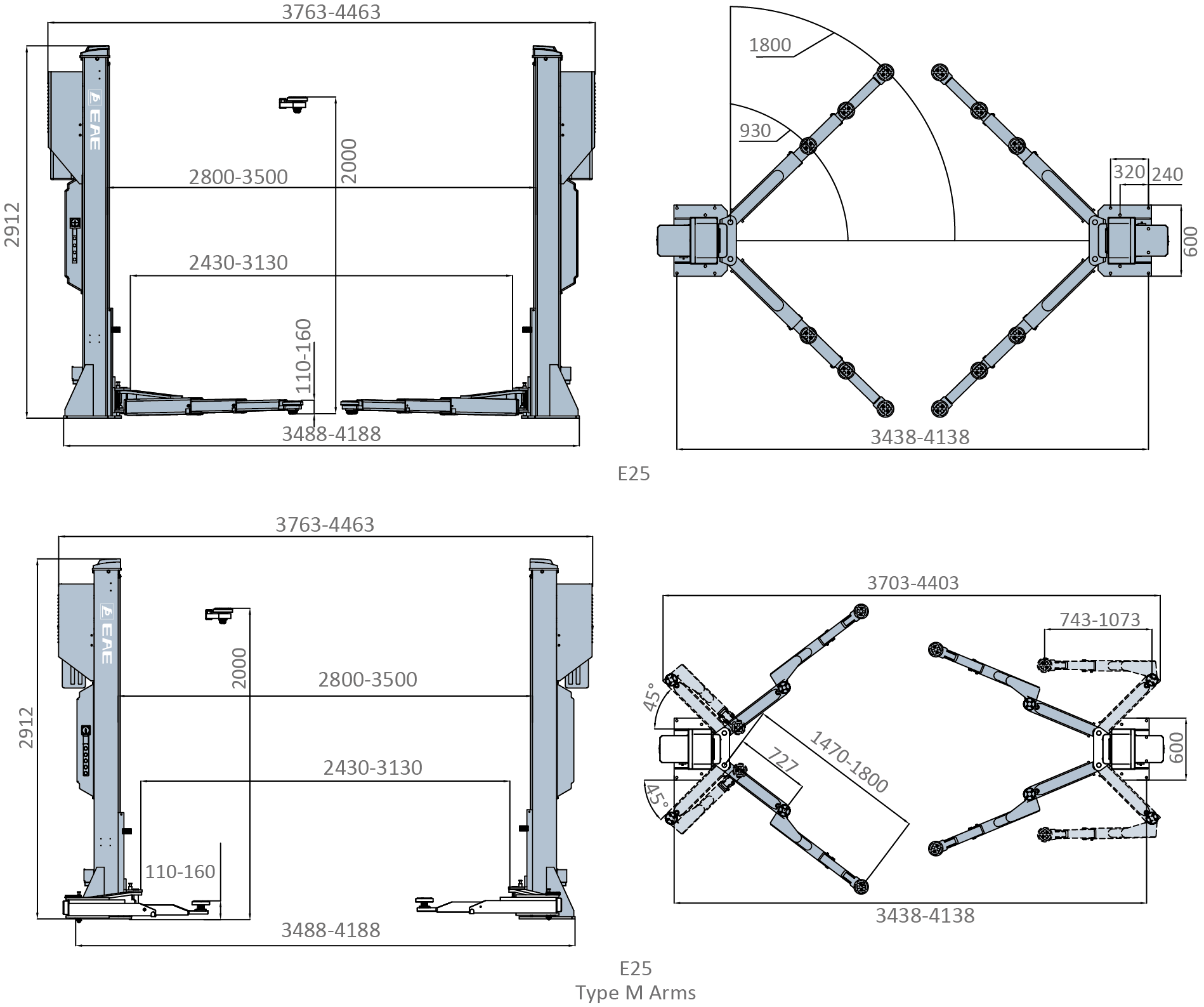

Overall Dimension

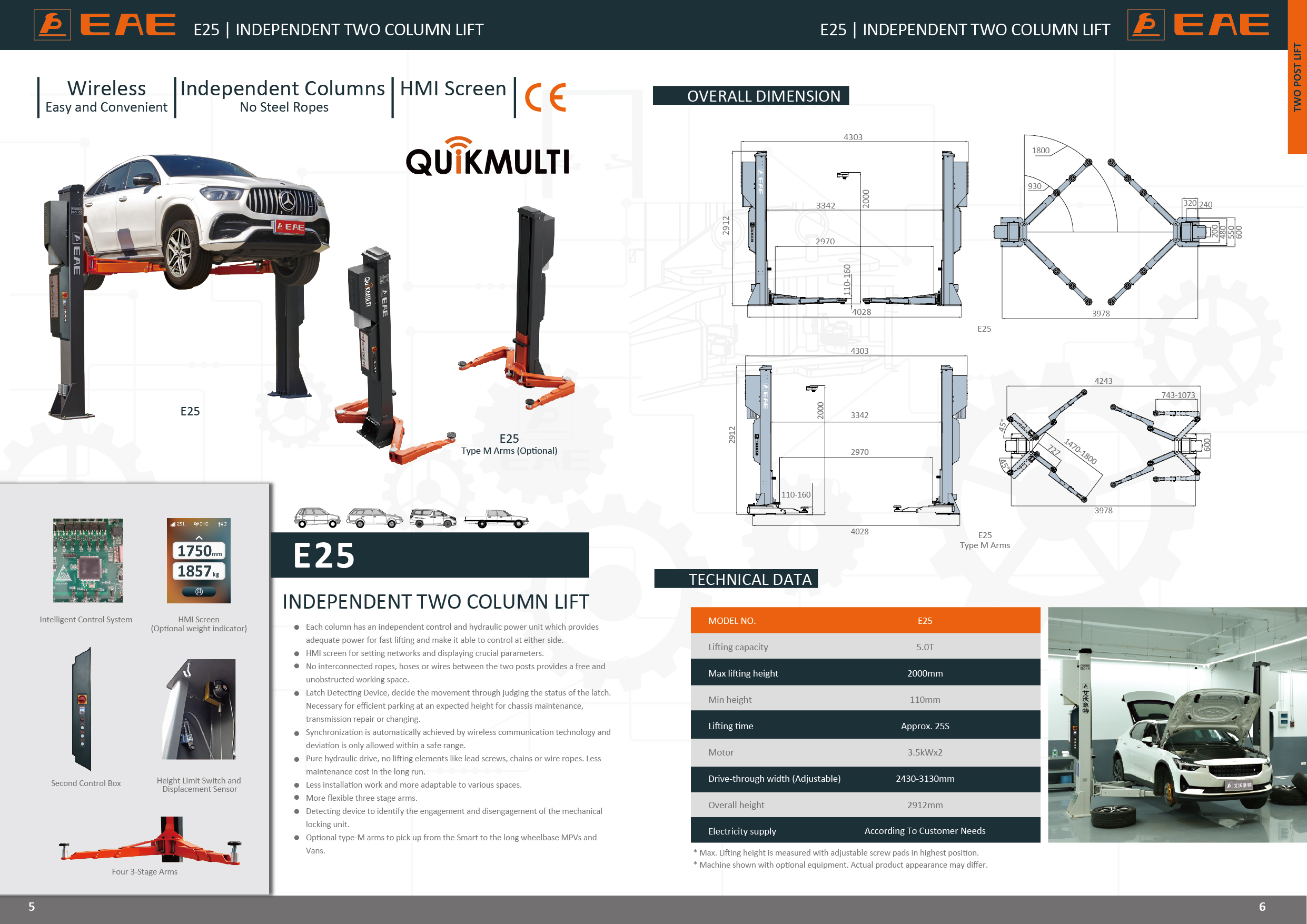

Brochure

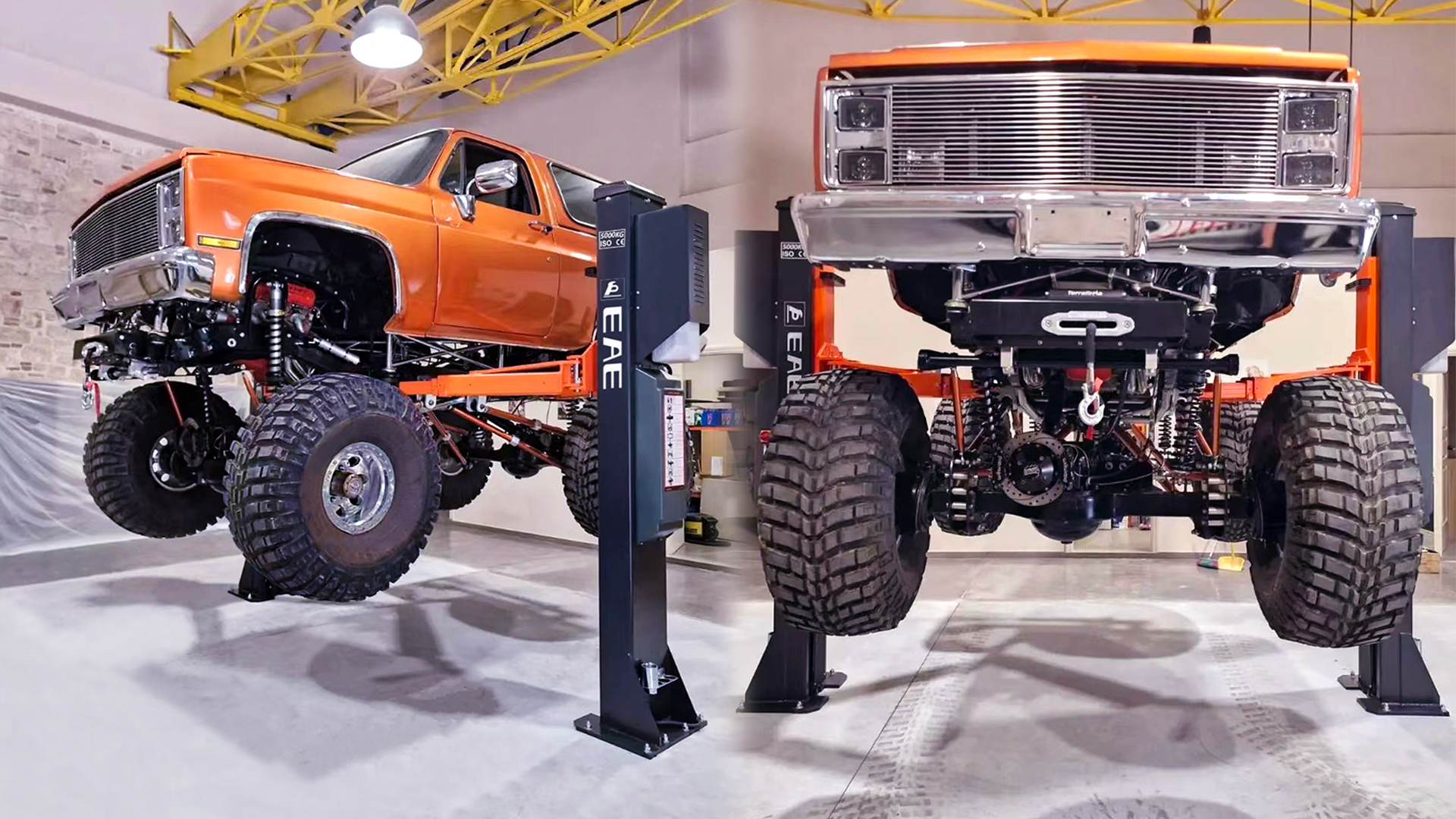

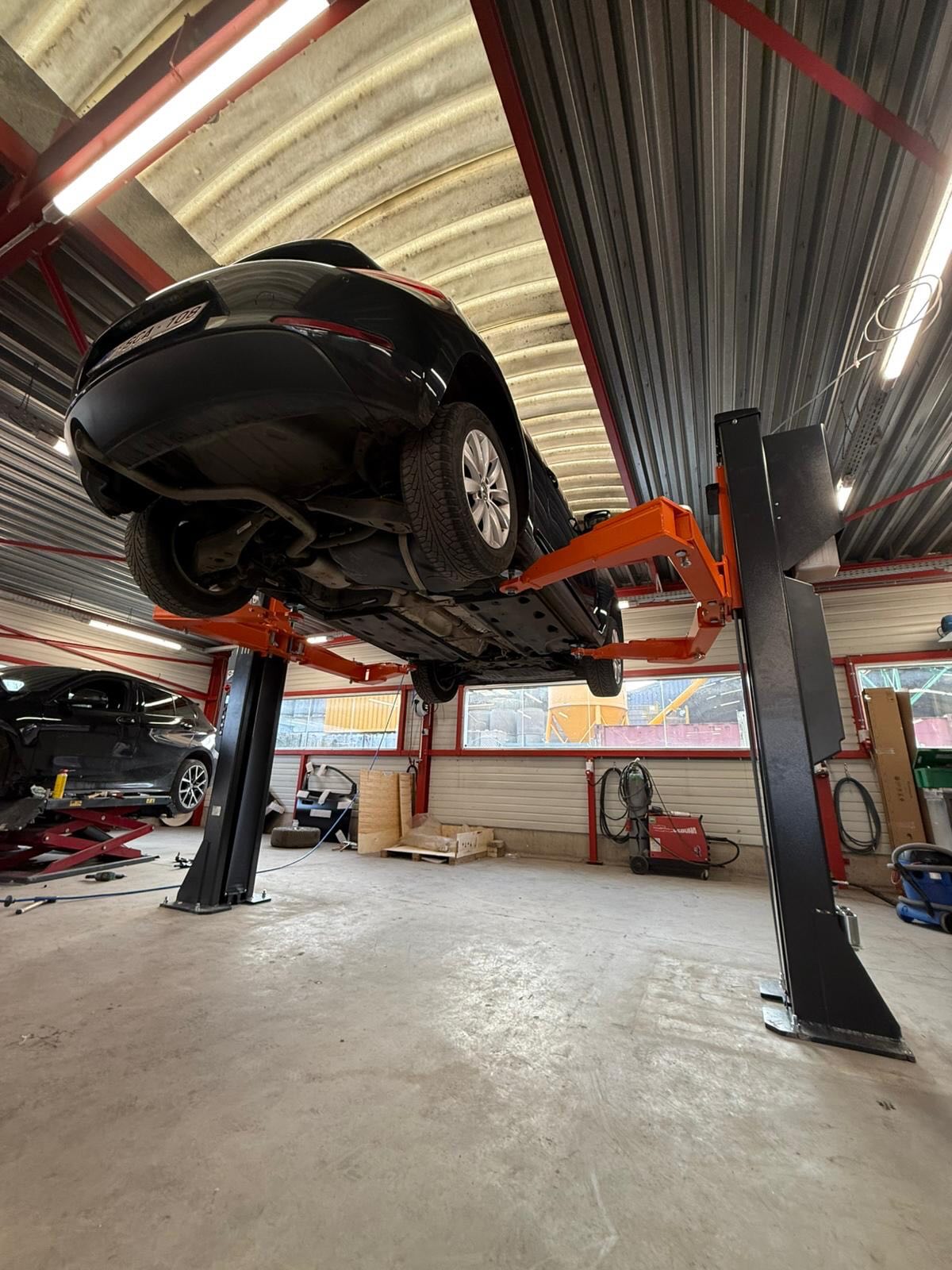

Cases

MODEL NO.

E25
Lifting Capacity 5.0T
Max Lifting Height
2000mm
Min Height
110mm
Lifting Time ≈25s
Capacity of Motor
2.2kw x 2
Drive-through width
2900-3300mm
Overall height
2912mm
Electricity Supply
According To Customer Needs


* Max. Lifting height is measured with adjustable screw pads in highest position.

* Machine shown with optional equipment. Actual product appearance may differ.

·Each column has an independent control and hydraulic power unit which provides adequate power for fast lifting and make it able to control at either side.

·HMI screen for setting networks and displaying crucial parameters

·No interconnected ropes, hoses or wires between the two posts provides a free and unobstructed working space

·Latch Detecting Device, Decide the movement through judging the status of the latch. Necessary for efficient parking at an expected height for chassis maintenance, transmission repair or changing.

·Synchronization is automatically achieved by wireless communication technology and deviation is only allowed within a safe range

·Pure hydraulic drive, no lifting elements like lead screws, chains or wire ropes. Less maintenance cost in the long run
·Less installation work and more adaptable to various spaces
·More flexible three stage arms
·Detecting device to identify the engagement and disengagement of the mechanical locking unit

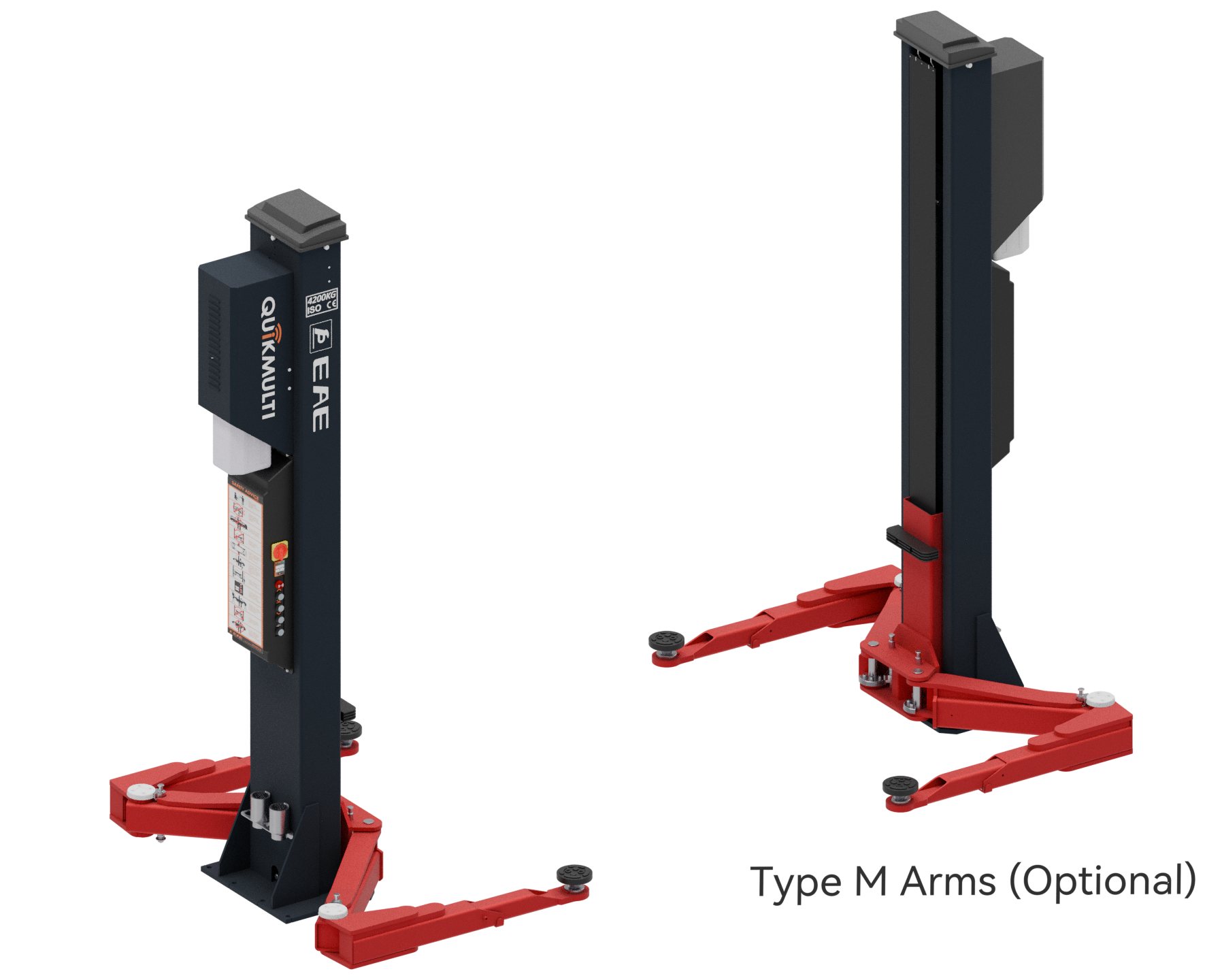

·Optional type-C arms to pick up from the Smart to the long wheelbase MPVs or Vans
