Home>Two Post>62C | 3.5/4.2T

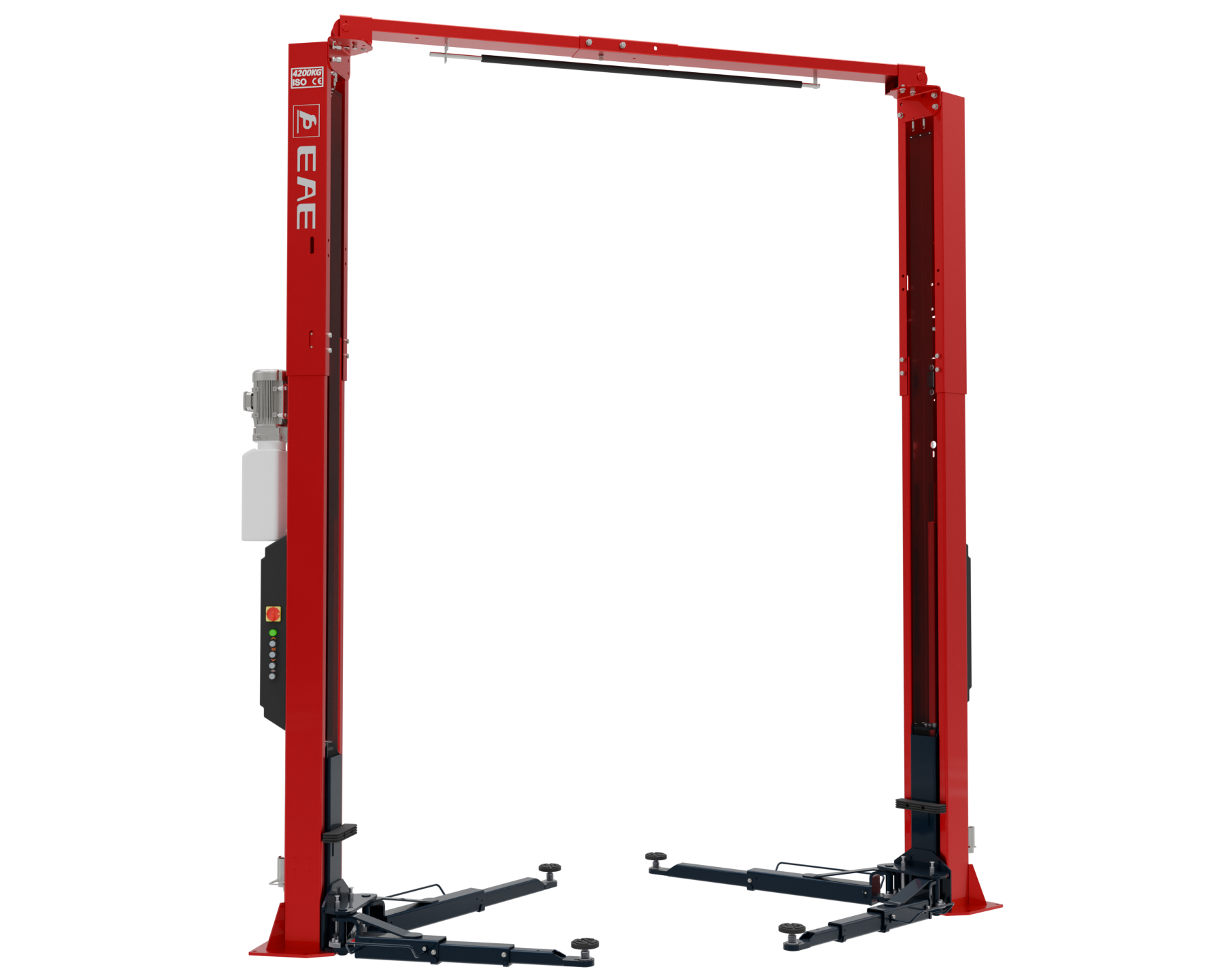

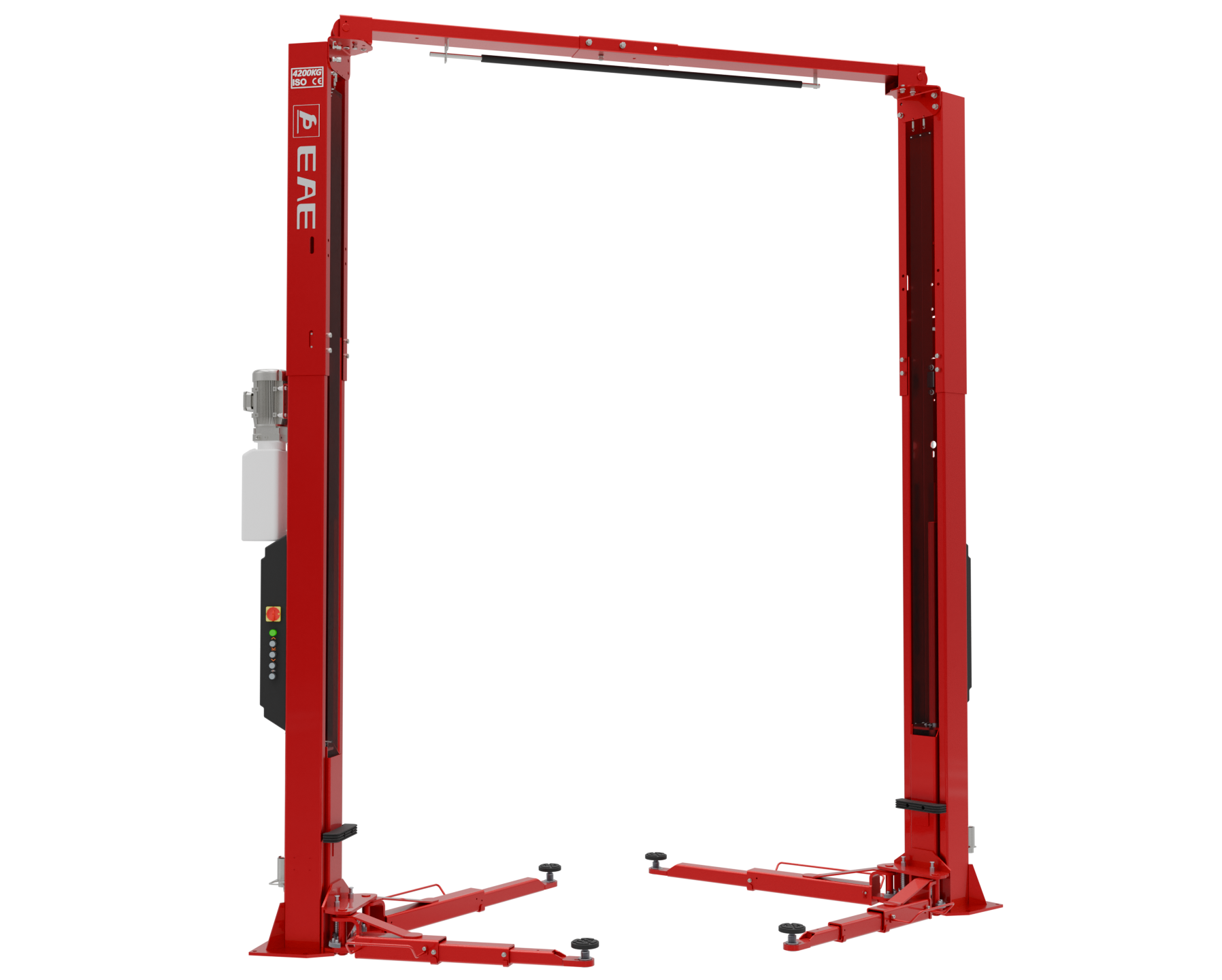

62C | 3.5/4.2T Asymmetric or Symmetric installation

Share:
Product Image VR View

EAE

  • 1900mm

    Max Lifting Height

  • 95mm

    Min Height

  • 3867/4300mm

    Overall Height

  • 2872/3016mm

    Inside Column

  • 35s

    Lifting Time

Accessories Details

Three Stage Thin Arm (≤4.2T)

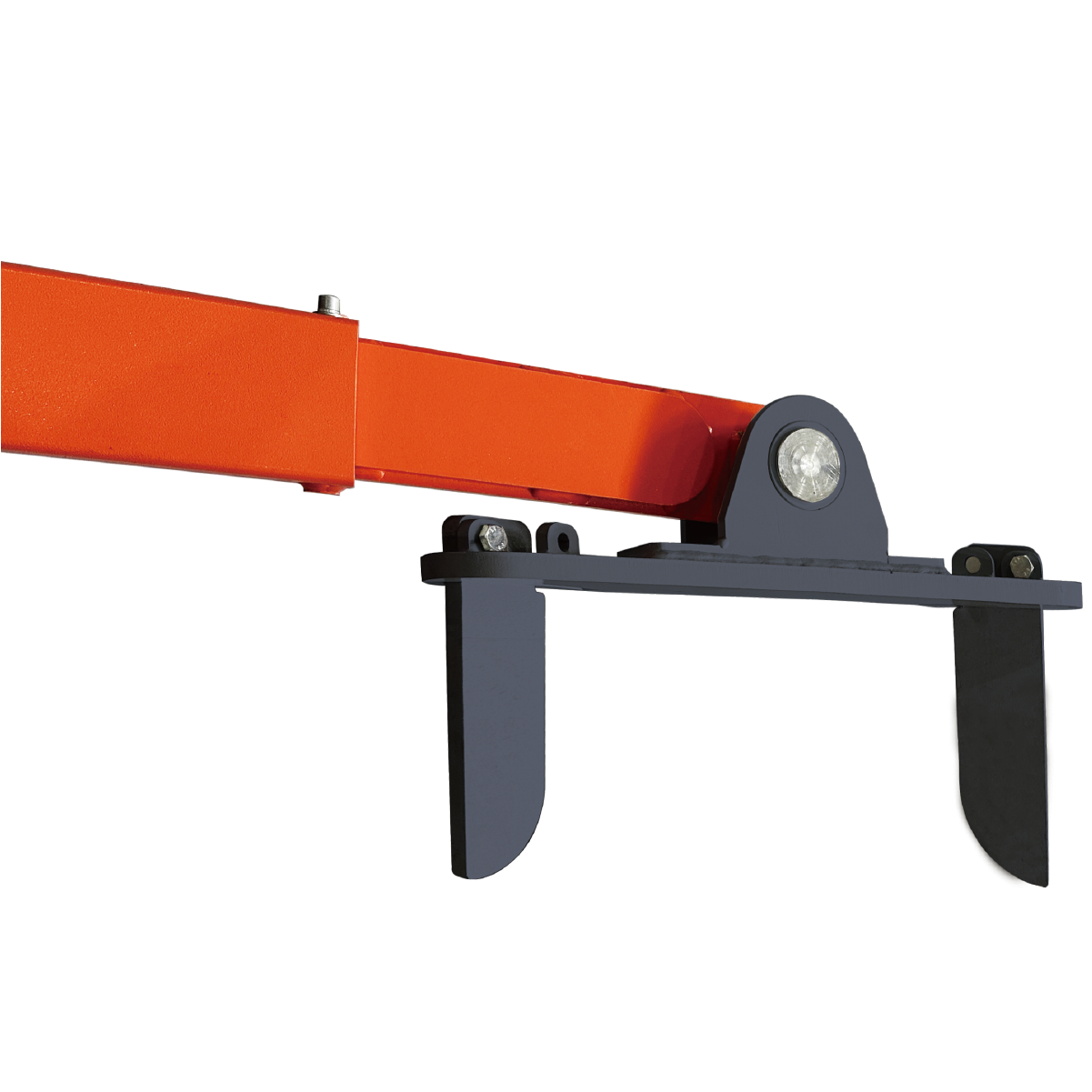

Wheel Support Adapter(≤3.5T)

Elbow Arm (≤4.2T)

Tool Tray

M Arm

24V Control Box

Auxiliary Control(Optional)

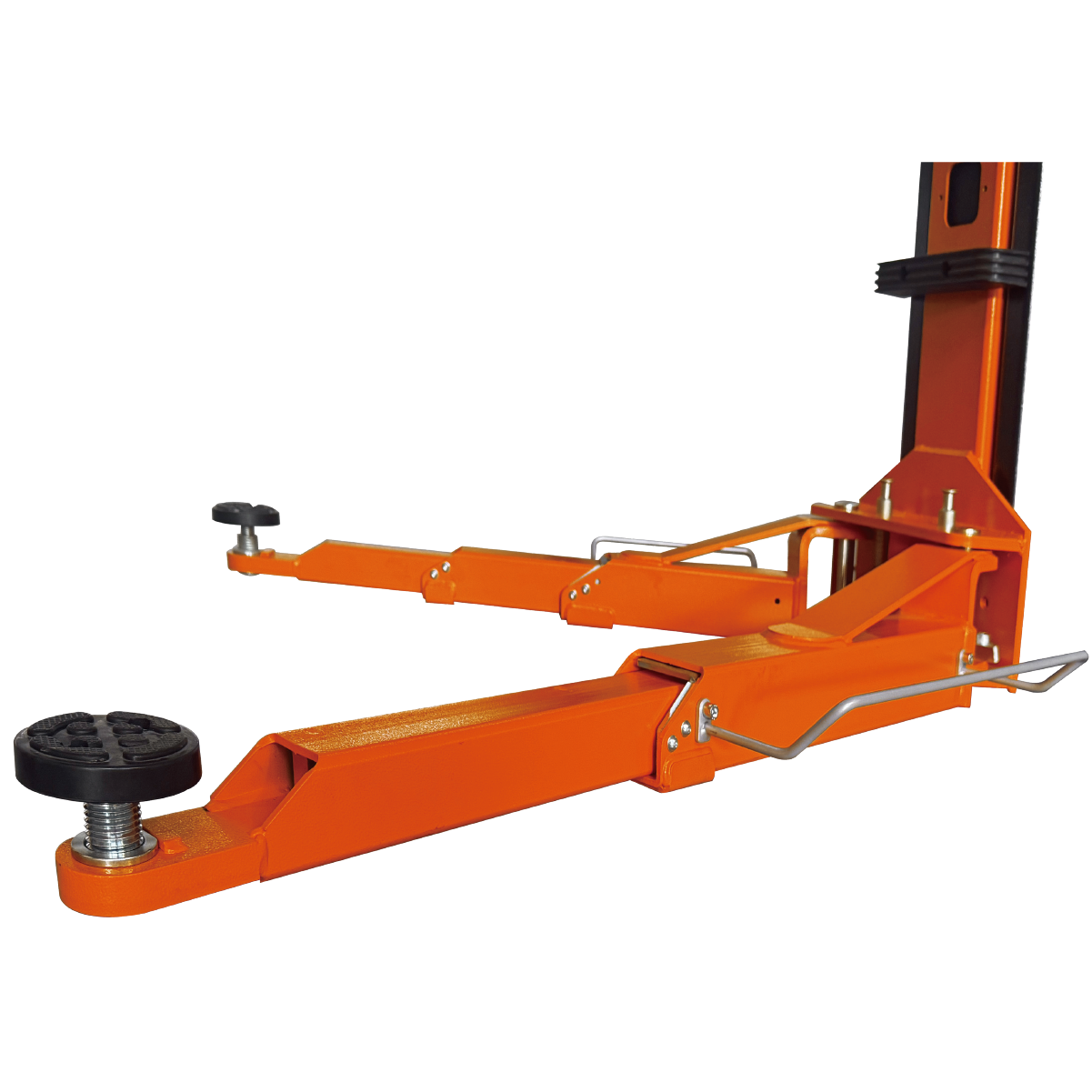

3-Stage Short Arm And 2-Stage Long Arm

Height Bracket

Technical Data
Description

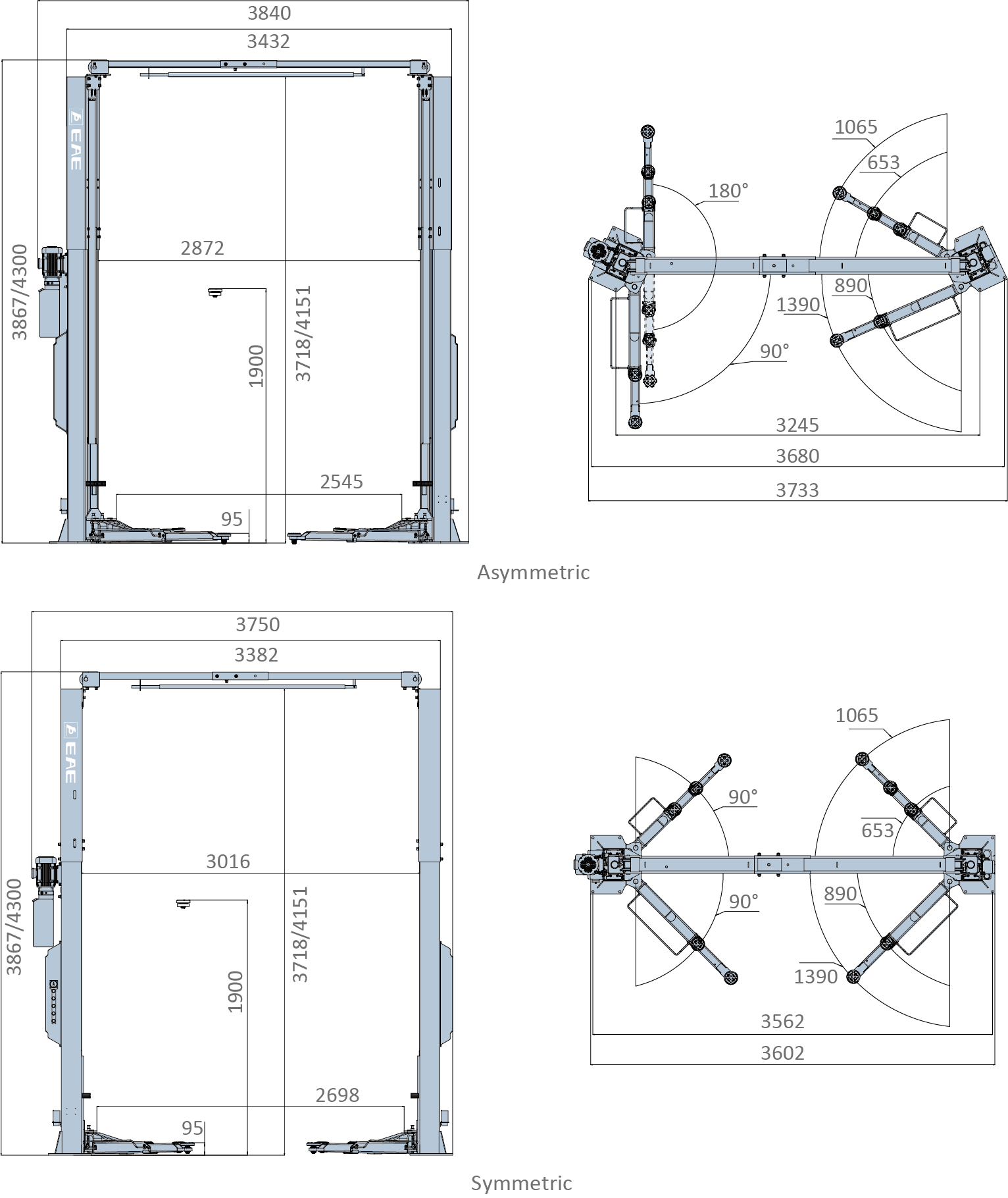

Overall Dimension

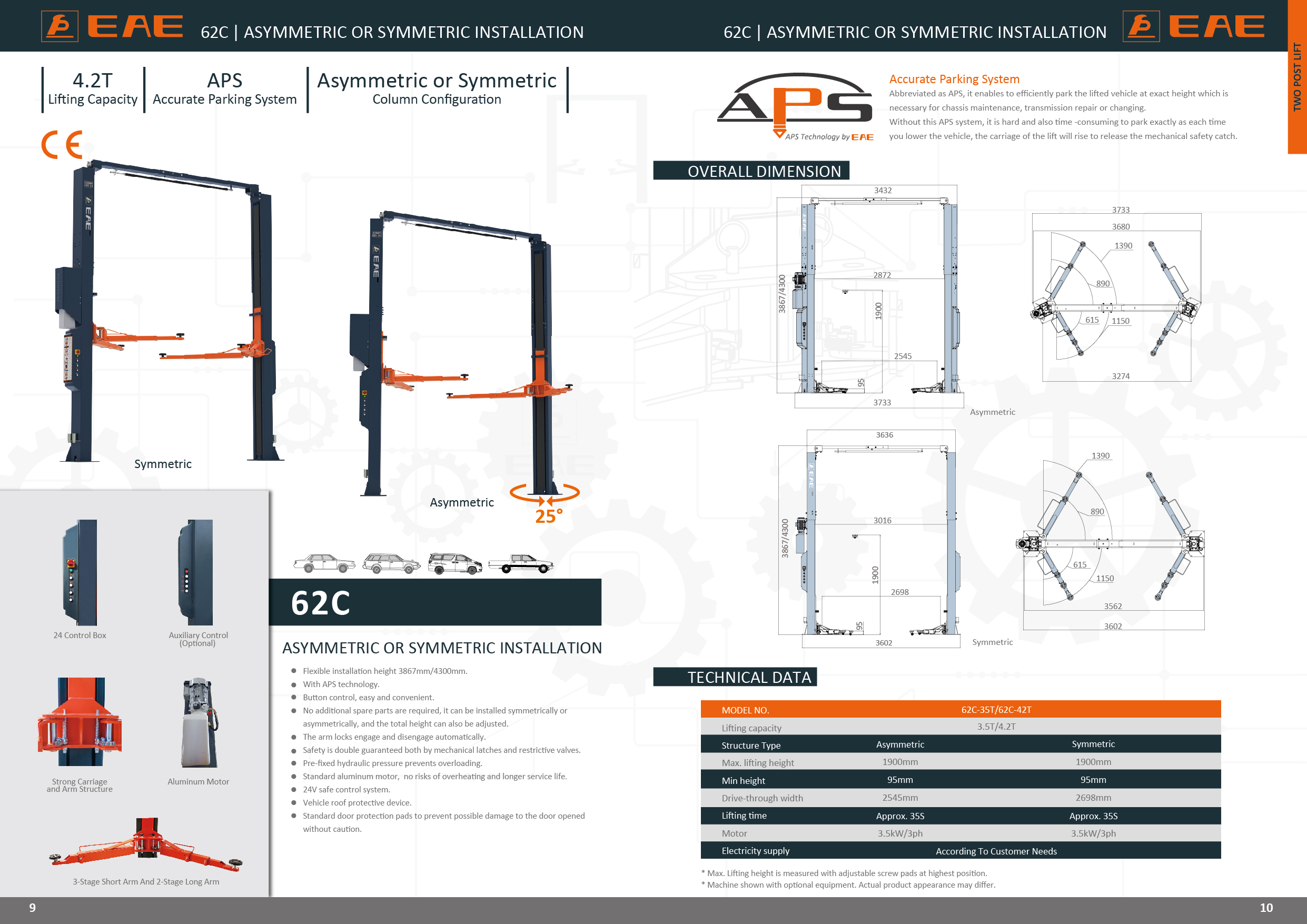

Brochure
MODEL NO. 62C-35T/62C-42T
Structure Type
Asymmetric
Symmetric
Max Lifting Height 1900mm 1900mm
Min Height 95mm 95mm
Overall height 3867mm/4300mm 3867mm/4300mm
Drive-through width 2545mm 2698mm
Lifting Time ≈35s ≈35s
Capacity of Motor 3.5kW/3ph 3.5kW/3ph
Electricity Supply According To Customer Needs


* Max. Lifting height is measured with adjustable screw pads in highest position.

* Machine shown with optional equipment. Actual product appearance may differ.

·Flexible installation height 3867mm/4300mm
·With APS technology
·Button control, easy and convenient
·No additional spare parts are required, it can be installed symmetrically or asymmetrically, and the total height can also be adjusted
·The arm locks engage and disengage automatically
·Safety is double guaranteed both by mechanical latches and restrictive valves
·Pre-fixed hydraulic pressure prevents overloading
·Standard aluminum motor,  no risks of overheating and longer service life
·24V safe control system
·Vehicle roof protective device
·Standard door protection pads to prevent possible damage to the door opened without caution
