6604 Series | 4.0T Low Profile Scissor Lift

Share:
Product Image VR View

EAE

  • 1900mm

    Max Lifting Height

  • 180mm

    Min Height

  • 5000mm

    Platform Length

  • 660mm

    Platform Width

  • 70s

    Lifting Time

Accessories Details

Turntable

Rolling jack

Rear side slip

Pneumatic Release Mechanical Lock

Anti-abrasion Slider

Wheel Free Lift

Mechanical Safety Lock

Rear side slip

Drive-on Ramp

Technical Data
Description
Overall Dimension
Brochure
Cases

MODEL NO. 6604
Lifting Capacity 4.0T
Max Lifting Height 1900mm
Min Height 180mm
Platform Width 660mm
Lifting Time ≈70s
Air Supply 6-8bar
Capacity of Motor 3.5kW
Electricity Supply According To Customer Needs

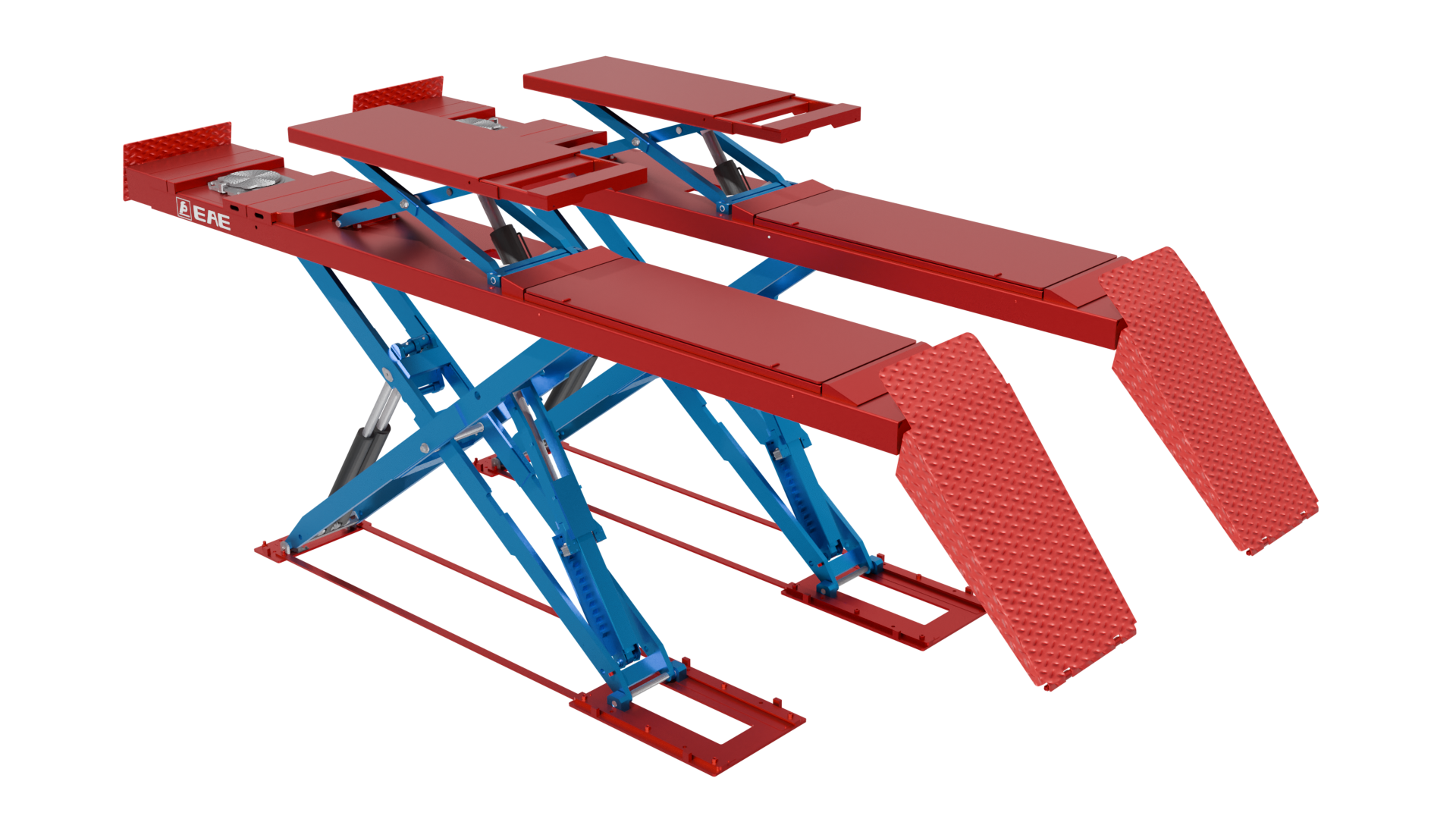

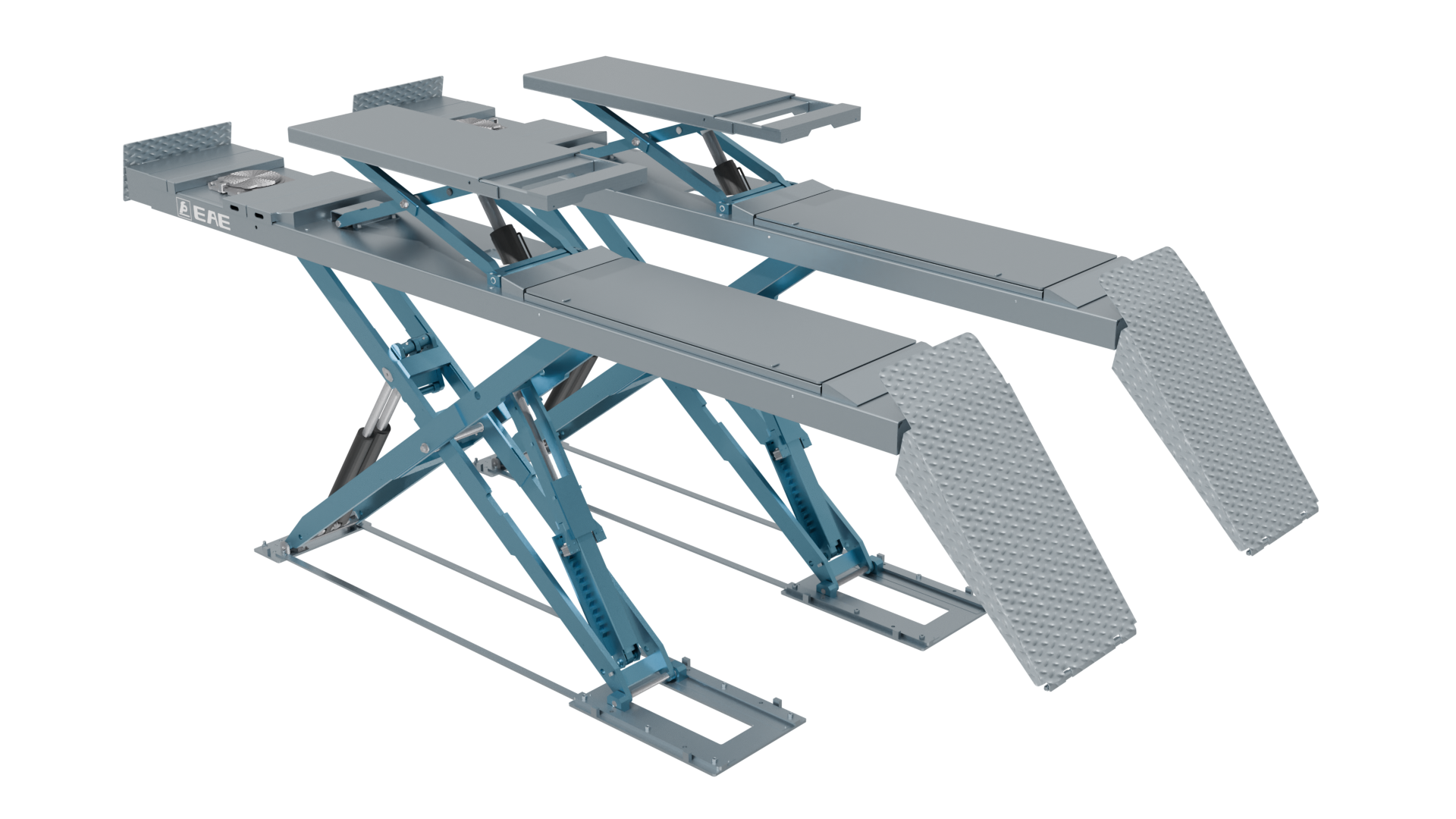

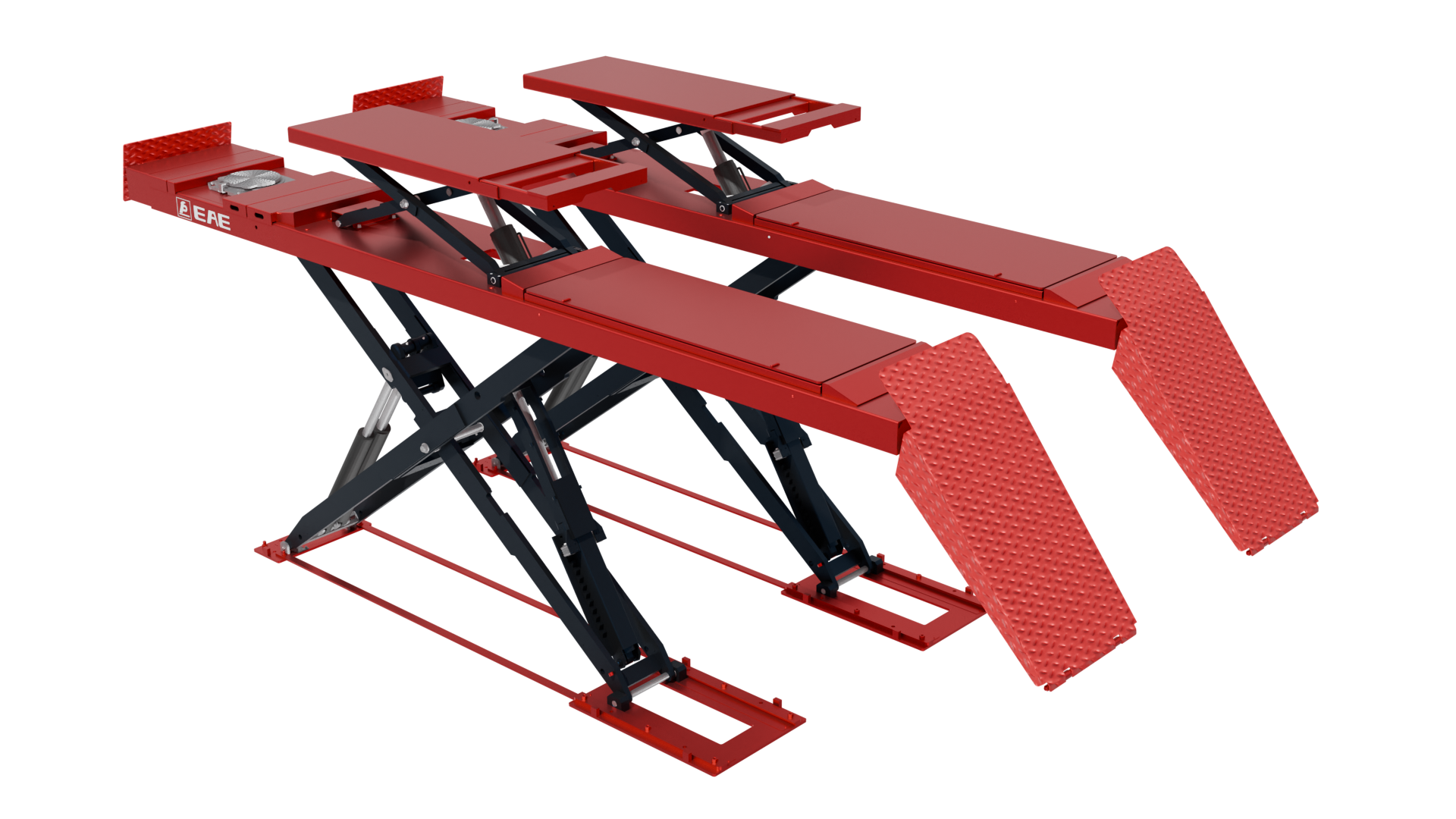

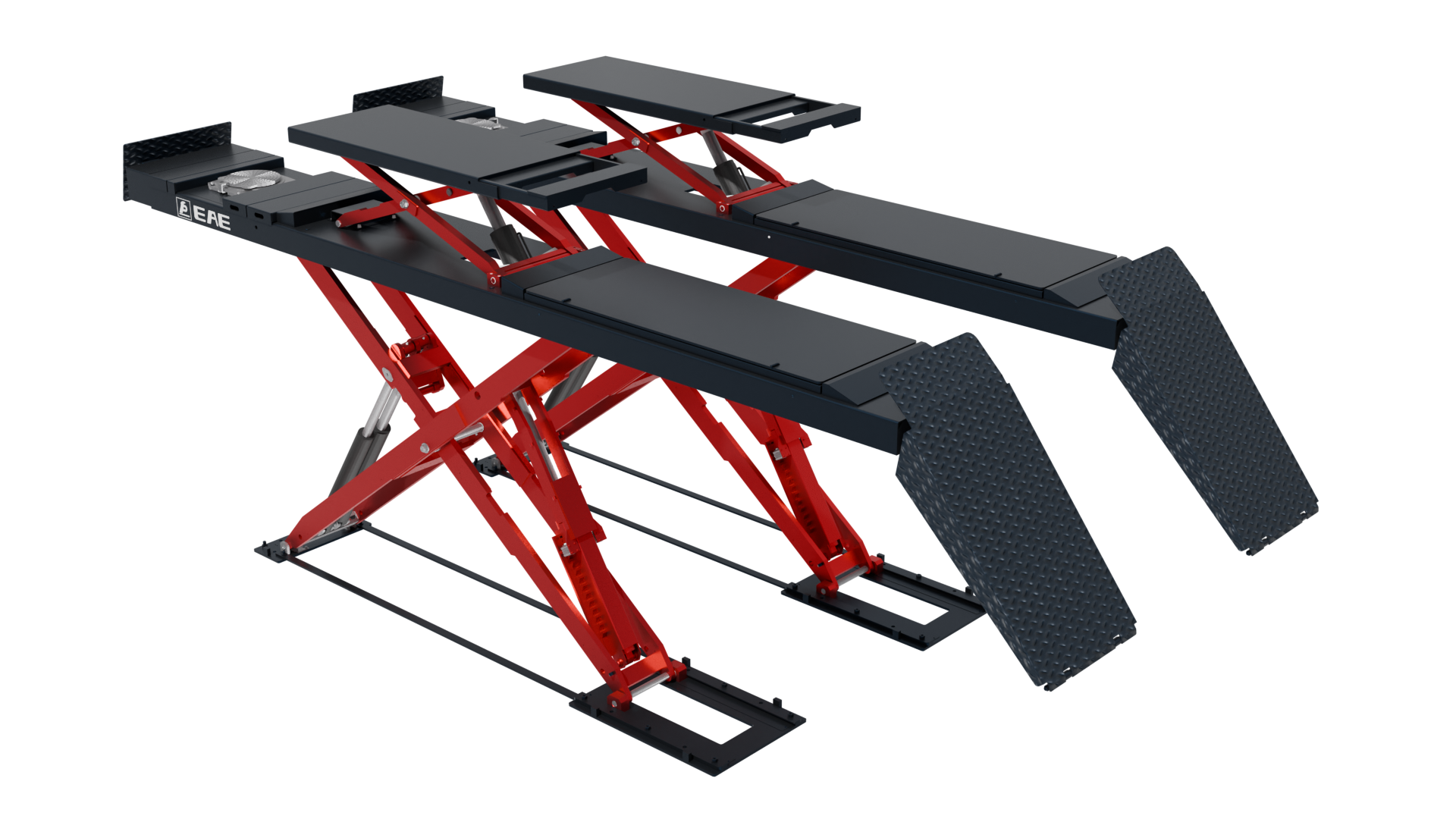

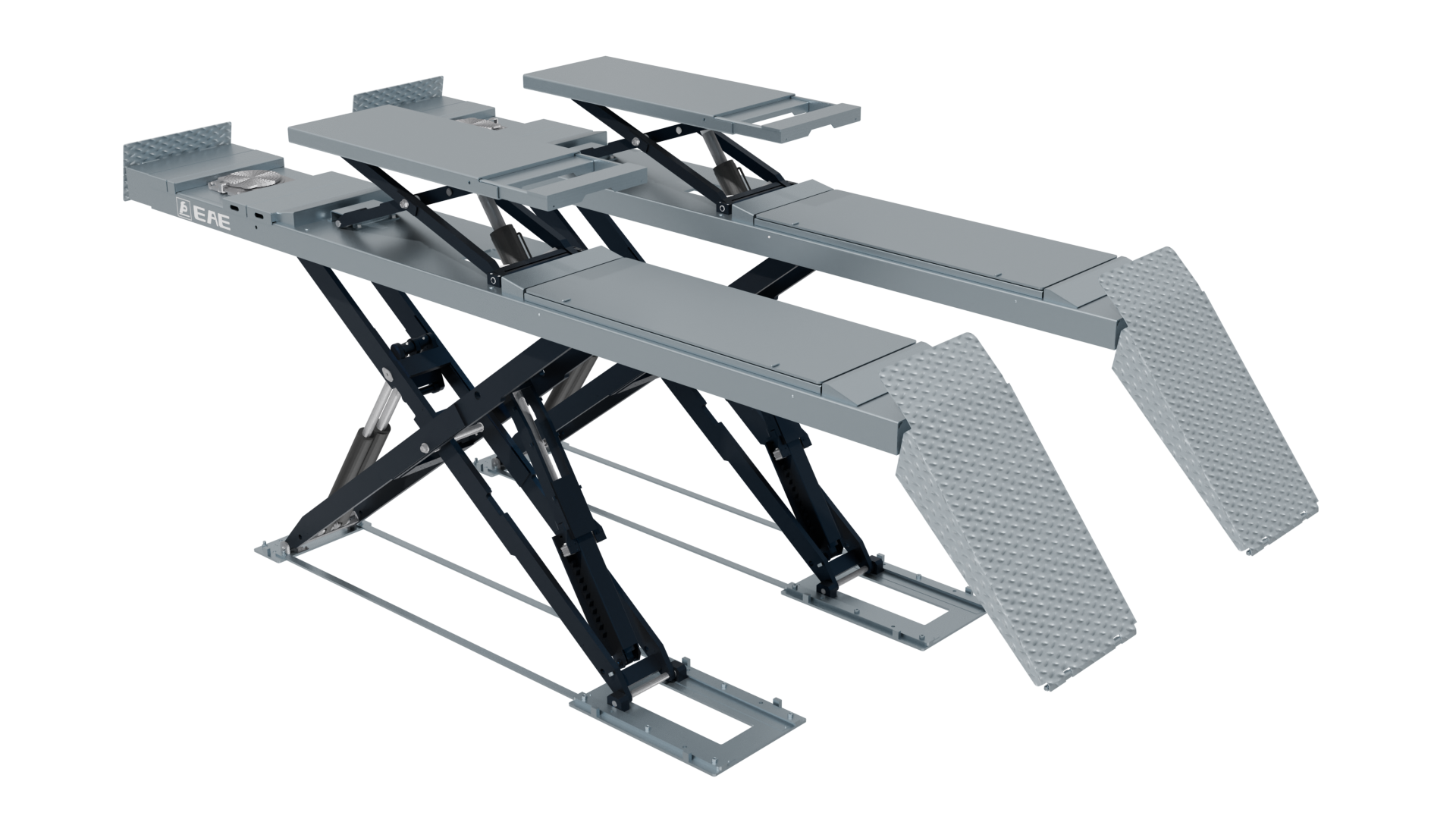

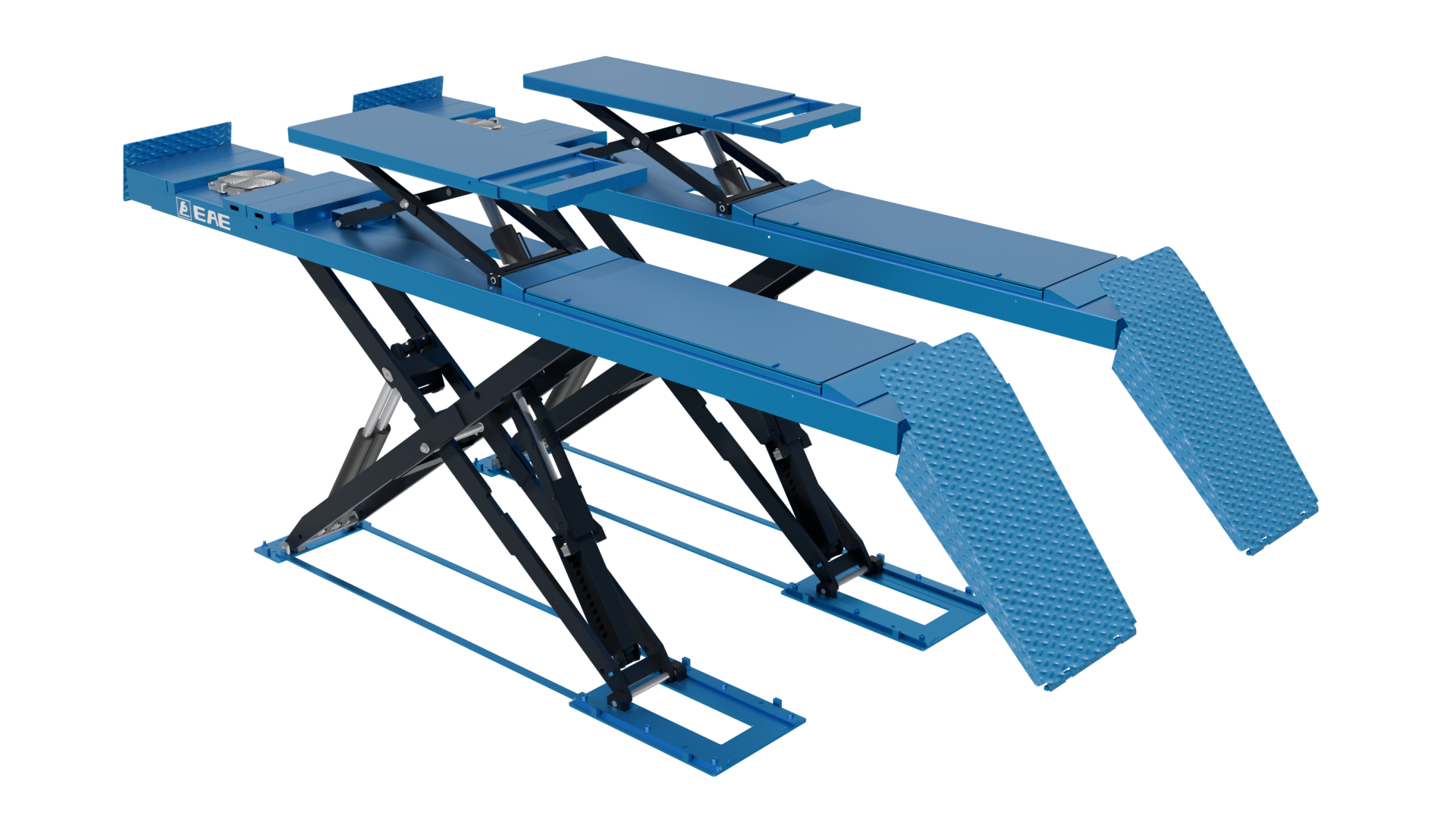

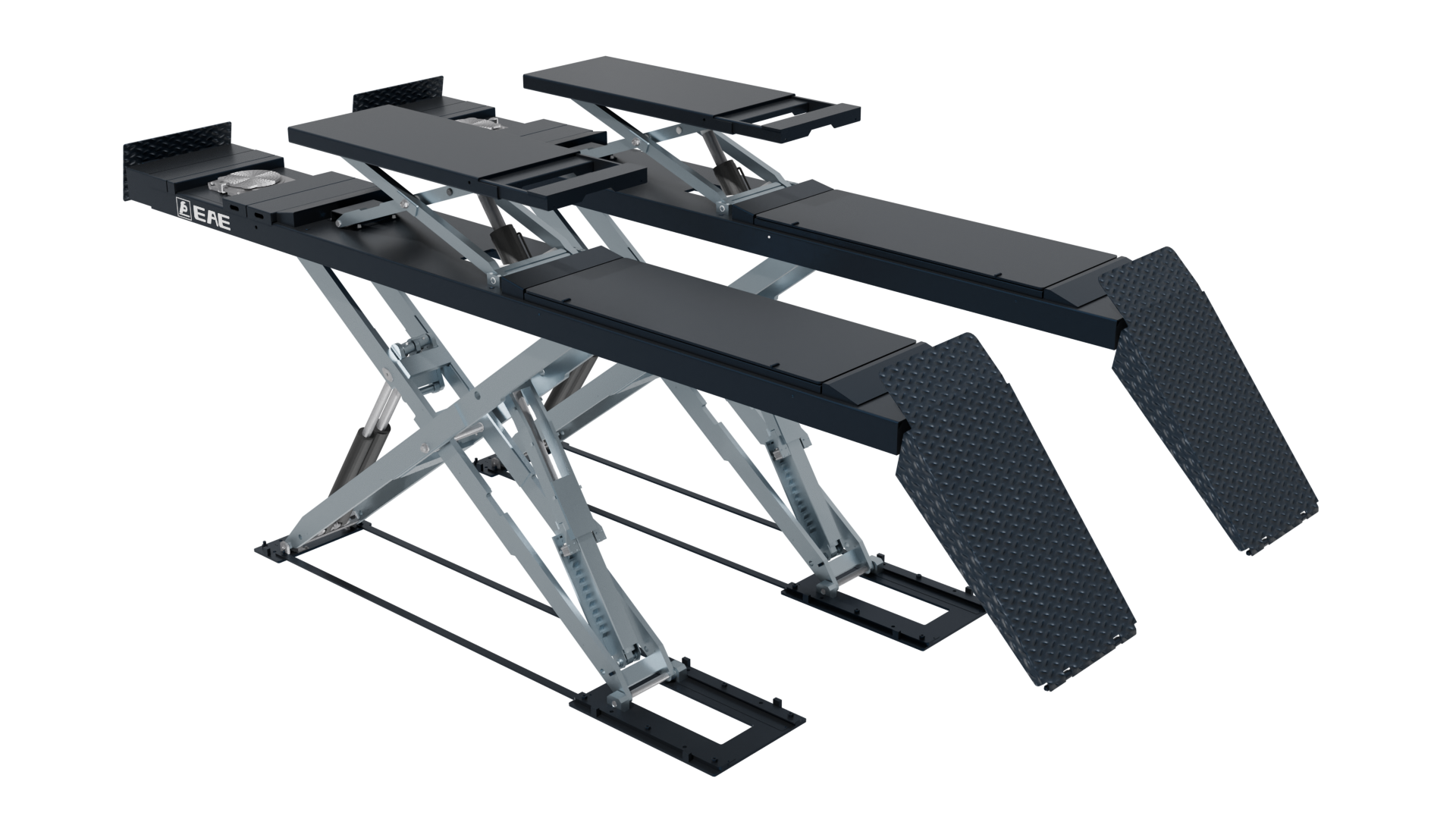

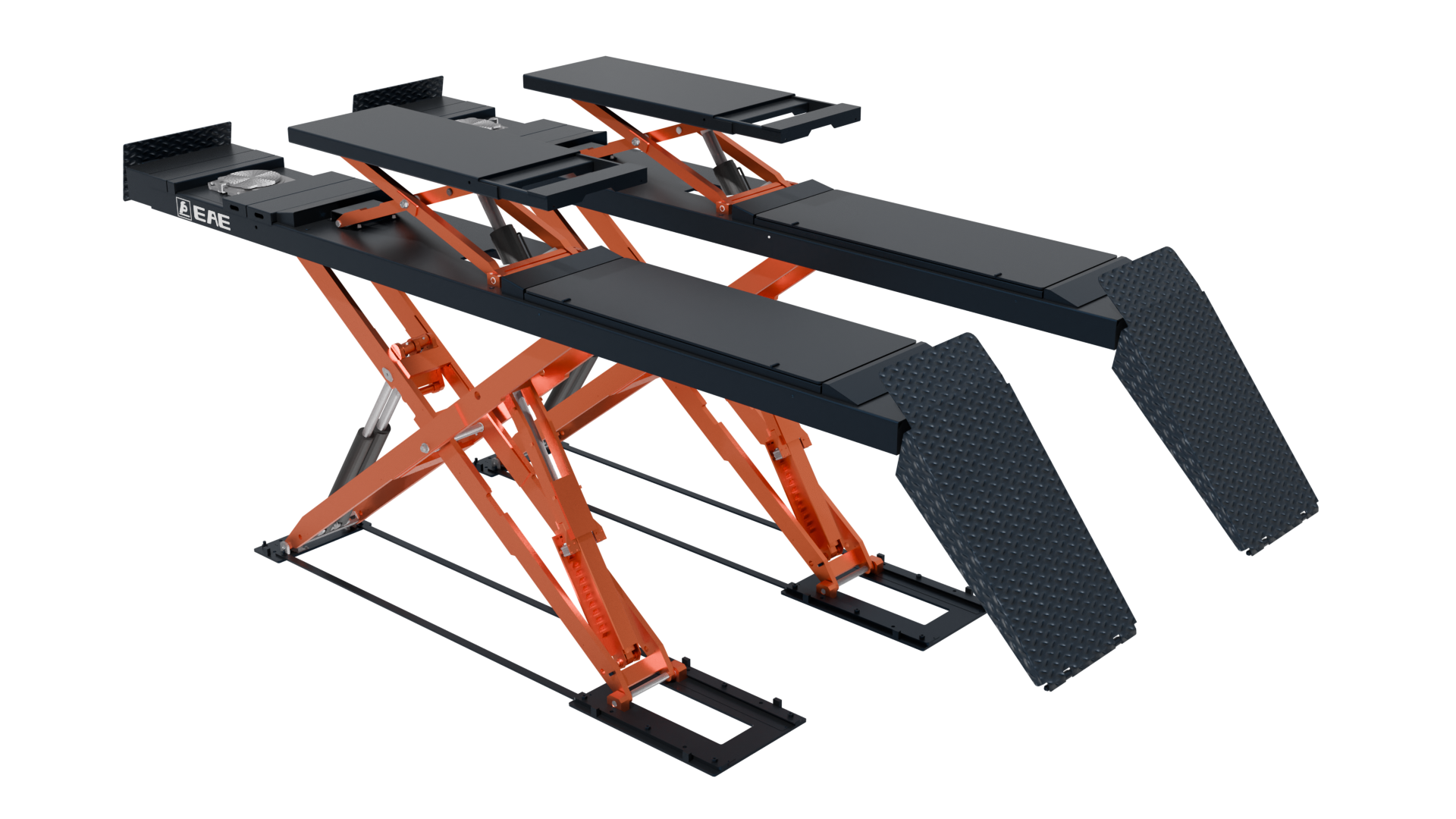

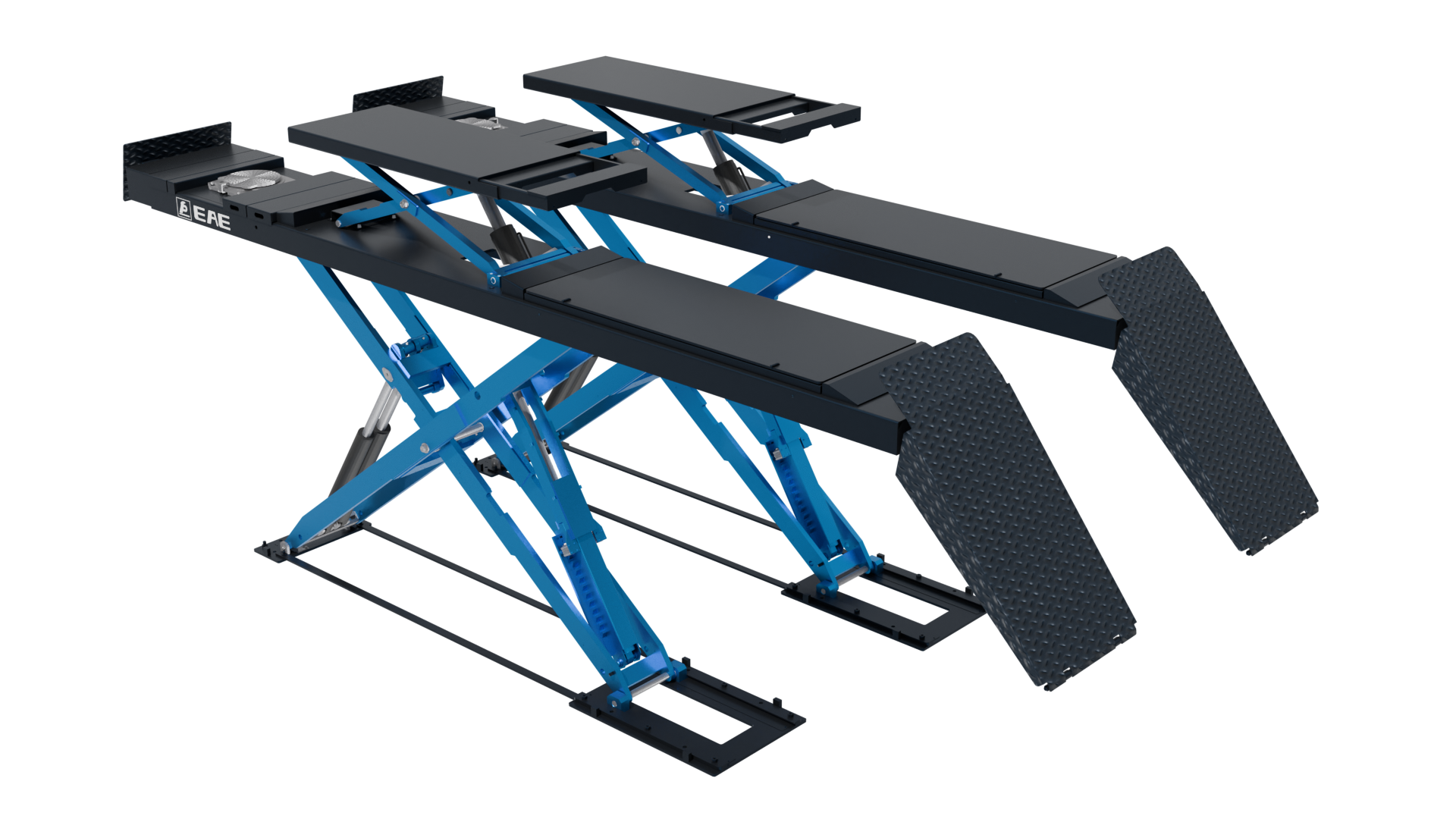

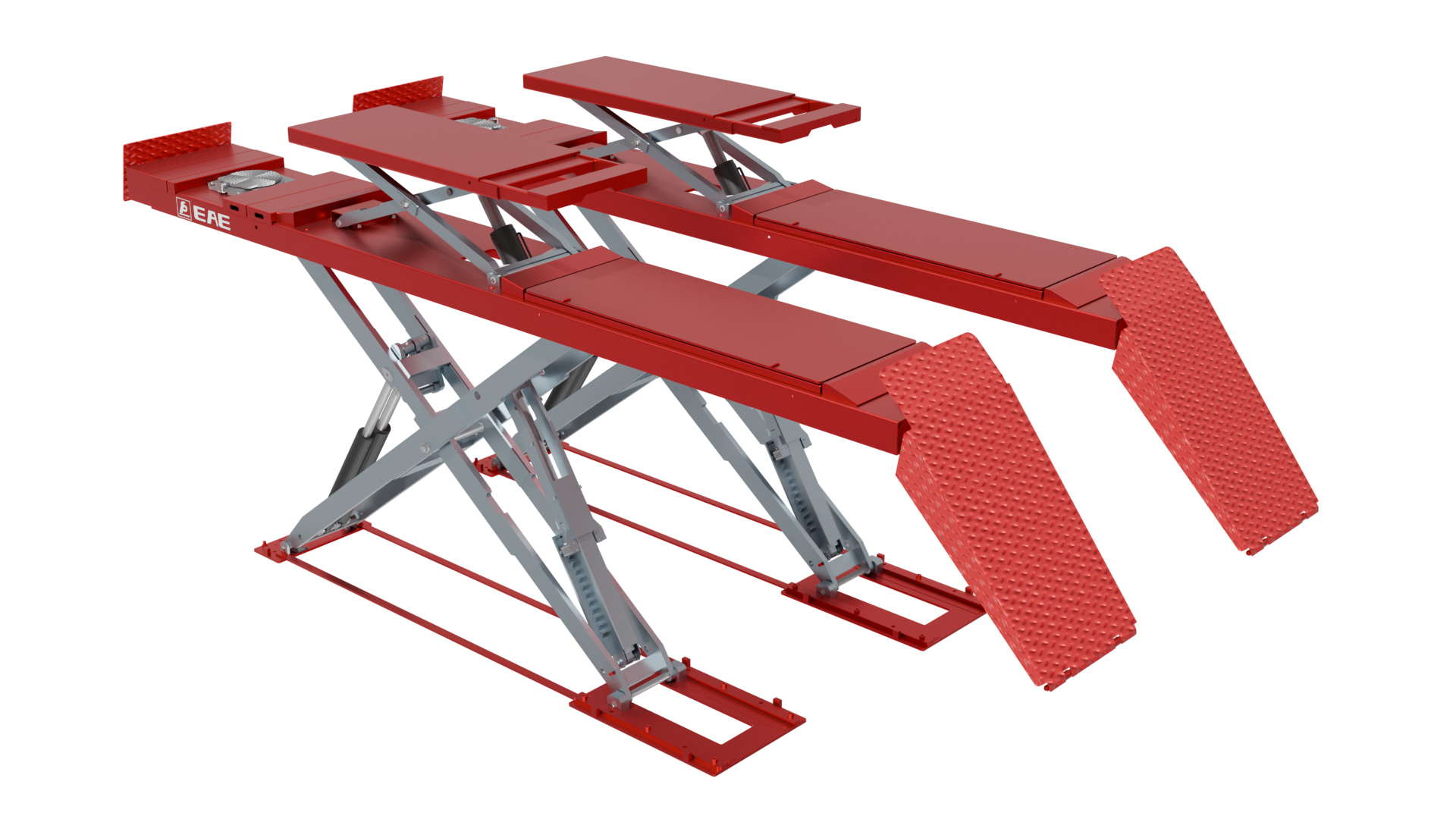

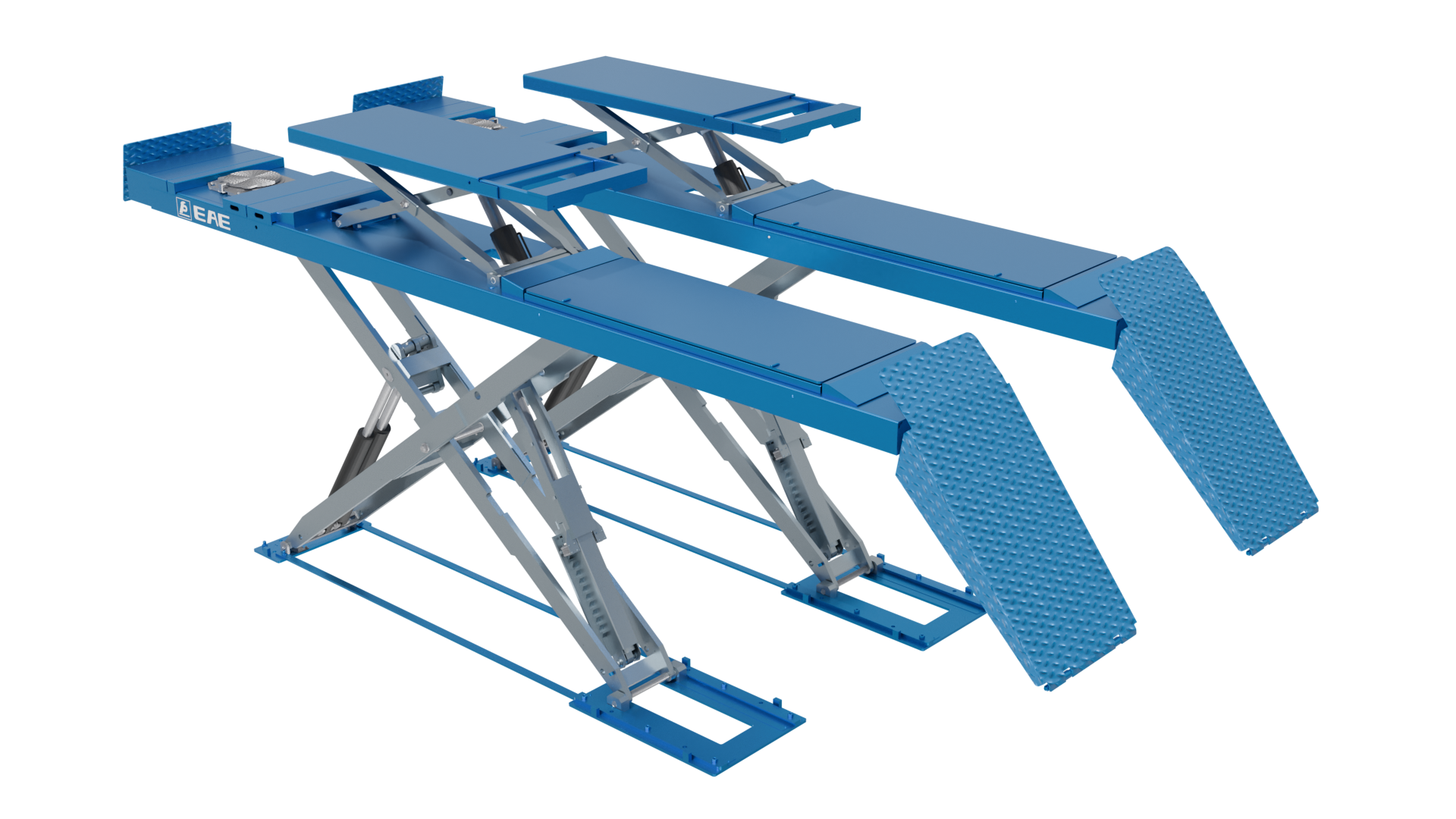

* Machine shown with optional equipment. Actual product appearance may differ.

·4.0T lifting capacity
·Above-ground installation
·Low profile runways demands less space
·Infrared synchronization protection system
·The great planeness of runways is perfect for high accuracy wheel aligning
·Long slip plate and adjustable turntable positions accommodate differentsizes of wheelbases
·Reserved tracks on platforms fit for optional rolling jacks.(exclude type BWF)
·Pneumatic safety locking system
·24V safe control system
·Self-lubricated bushing and bearing
·The alarm buzzer for safe descending
·Aluminum motor, no risks of overheating
·Optional rolling jack
