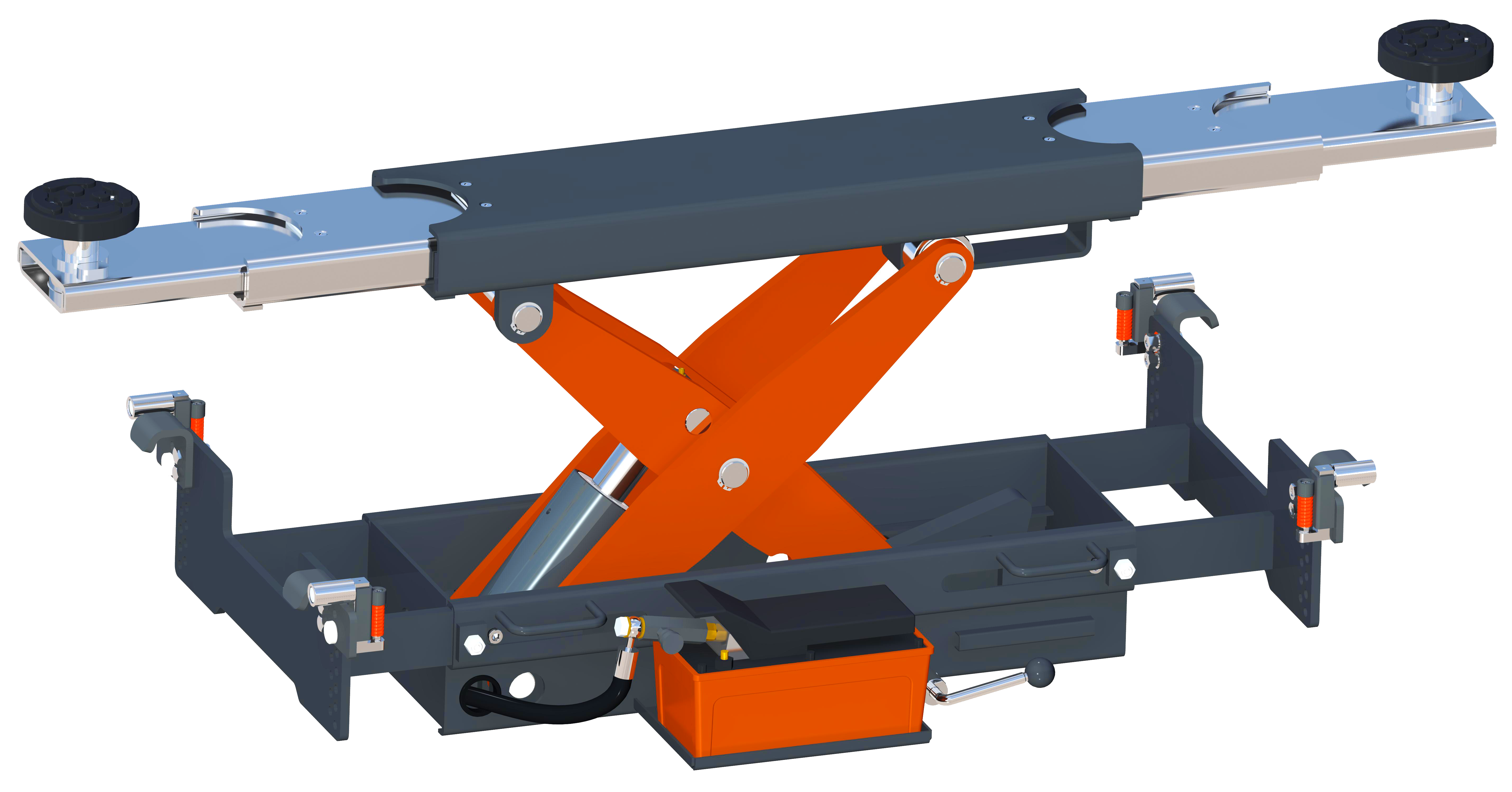

SCJ | 3.0T

Share:
Optional Parts Product Details

·3.0T lifting capacity
·Durable and compact scissor carrying structure
·Adjustable width between support wheels to fit different widths between runways
·Holder-pads extension for various wheelbases
·With manual release mechanical safety locking unit
·Steel-made driving rolls with ball-bearings move easily and smoothly on the track
·With shock absorber springs included in the support wheels, the load distributes more evenly

·Manual or pneumatic drive



Technical Data

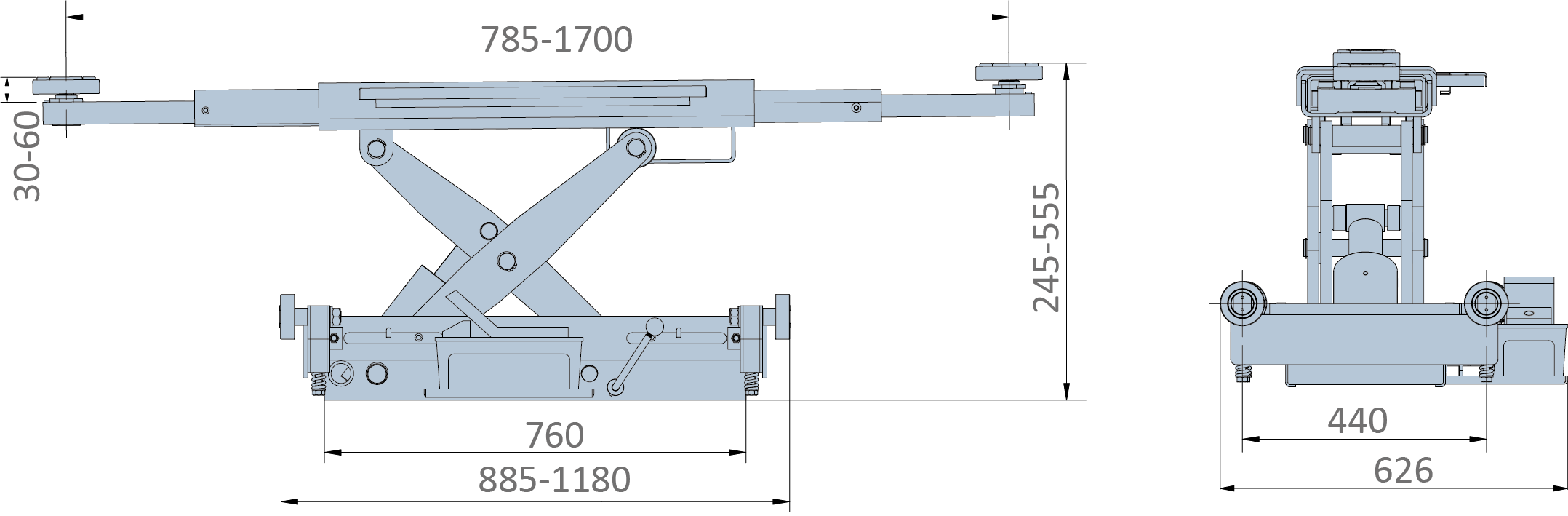

Overall Dimension

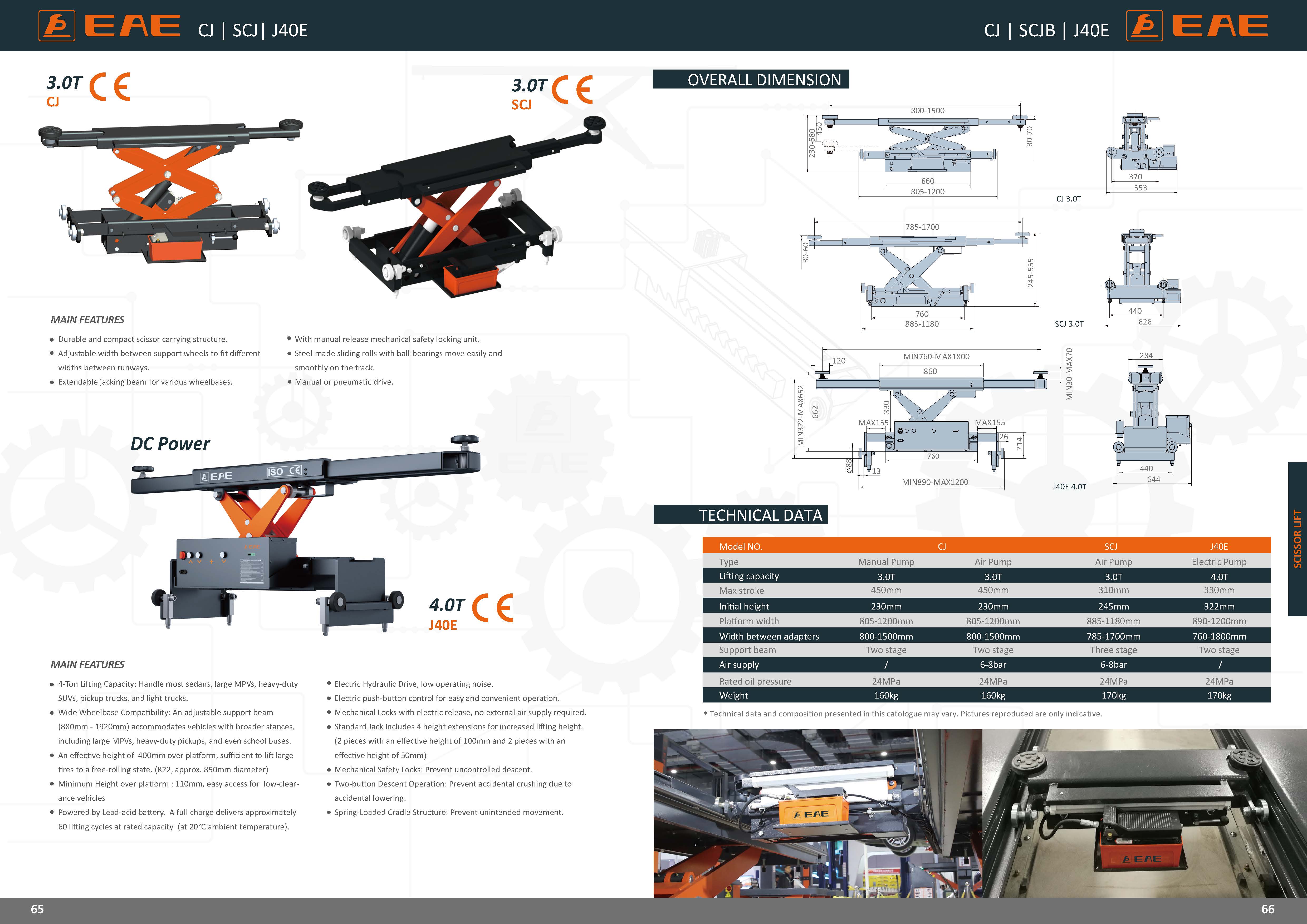

Brochure
MODEL NO.
SCJ
SCJ
Type Manual Pump
Air Pump
Lifting Capacity 3.0T
3.0T
Max Stroke 310mm
310mm
Initial Height
245mm
245mm
Platform Width
885-1180mm
885-1180mm
Width Between Adapters 785-1700mm
785-1700mm
Support Beam
Three Stage
Three Stage
Air Supply /
6-8bar
Rated Oil Pressure 24Mpa
24Mpa
Weight
170kg
170kg


* Machine shown with optional equipment. Actual product appearance may differ.
