Home>Heavy Duty>HDM Series | 8T/10T

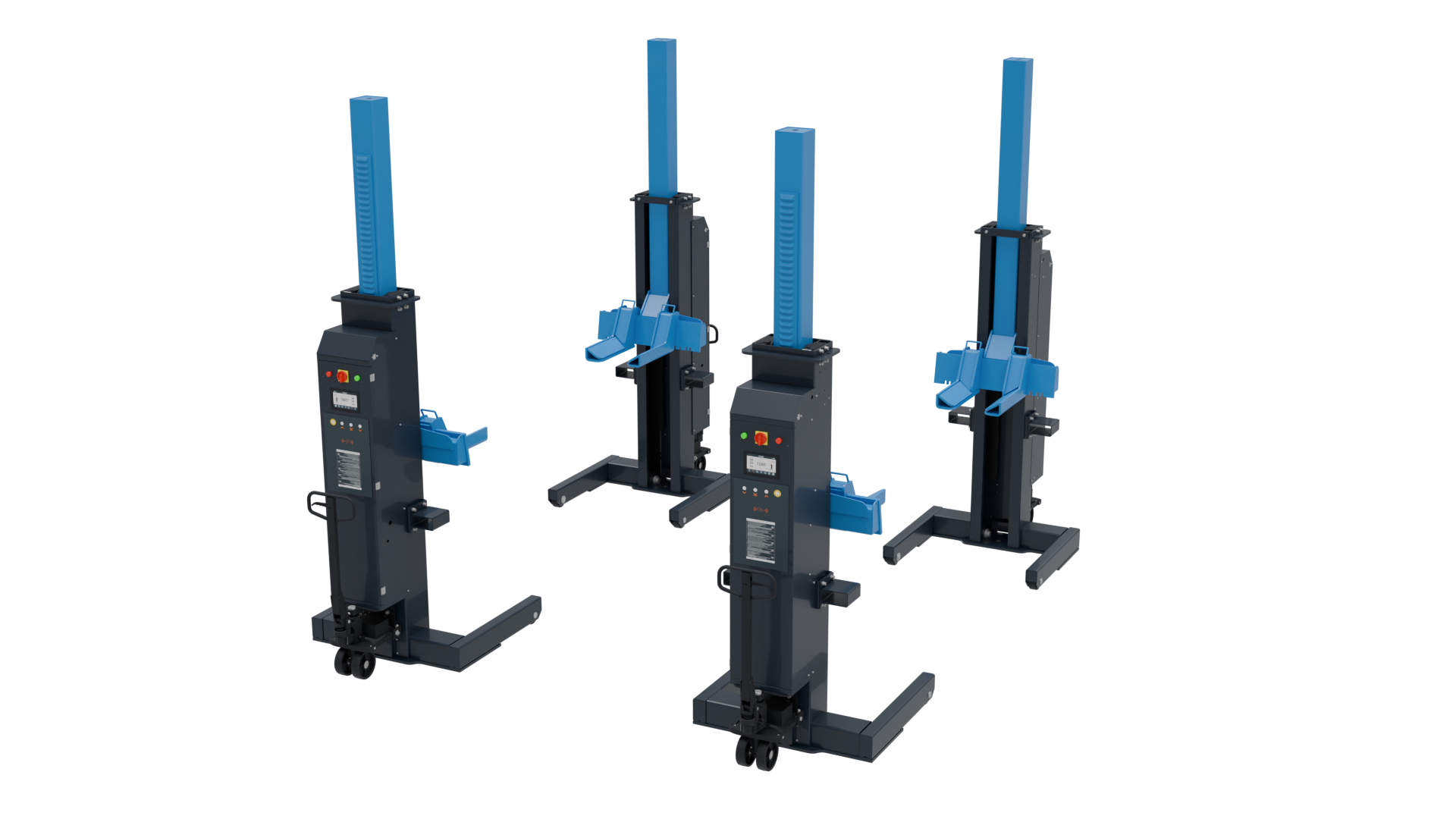

HDM Series | 8T/10T Heavy Duty Mobile Column

Share:
Product Image VR View

EAE

  • 1800mm

    Maximum Height

  • 500-1250mm

    Applicable Tire Diameter

  • 48

    Maximum Columns

  • 80s

    Lifting Time

Accessories Details

Height Extension Support

Support Frame

CrossbeamSupport,TriangleHeightSupport

HMI Screen

Permitted Authorized

Adjustable wheel pick-up fork

Accurate control for synchronization

Wireless Communication

Pallet Jack

Technical Data
Description

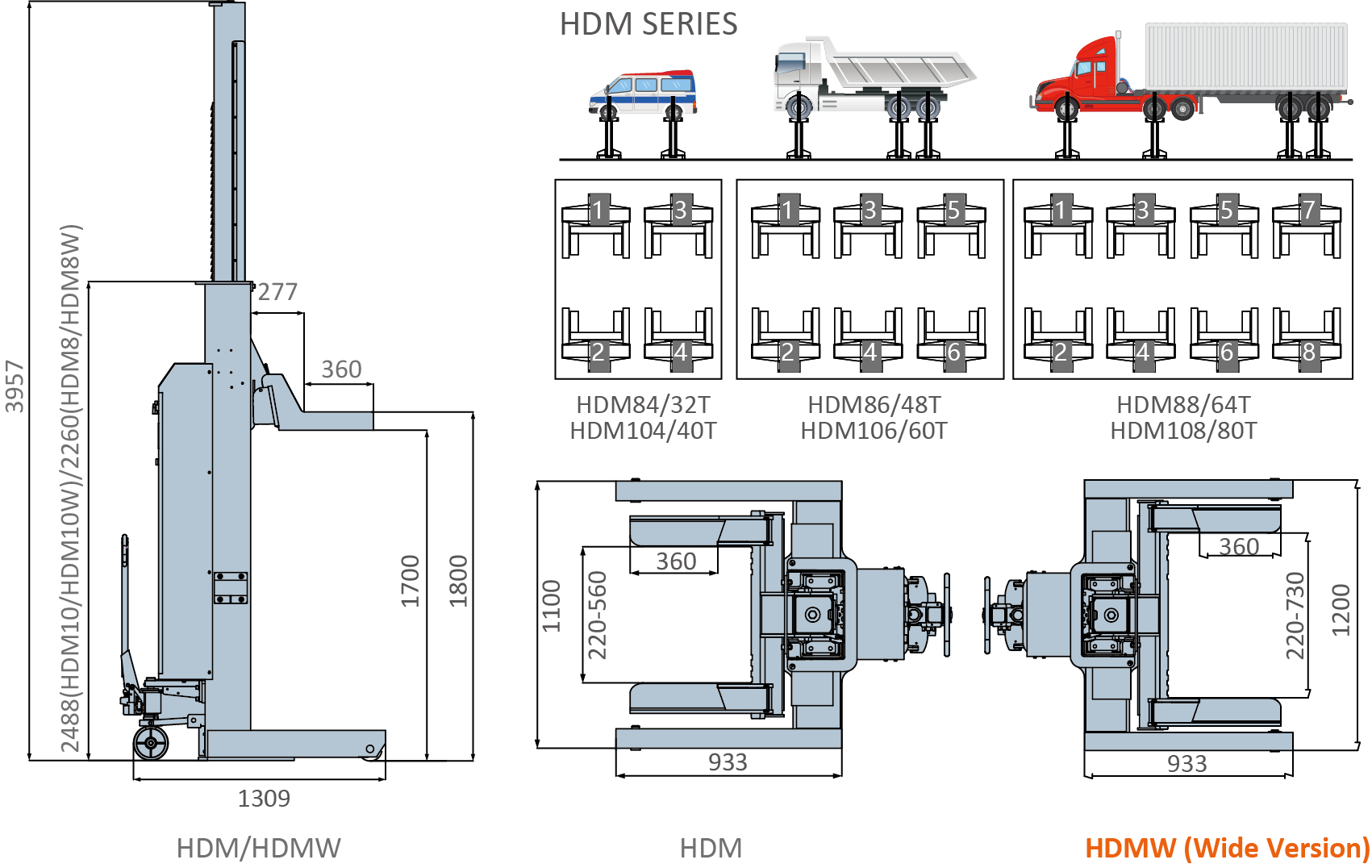

Overall Dimension

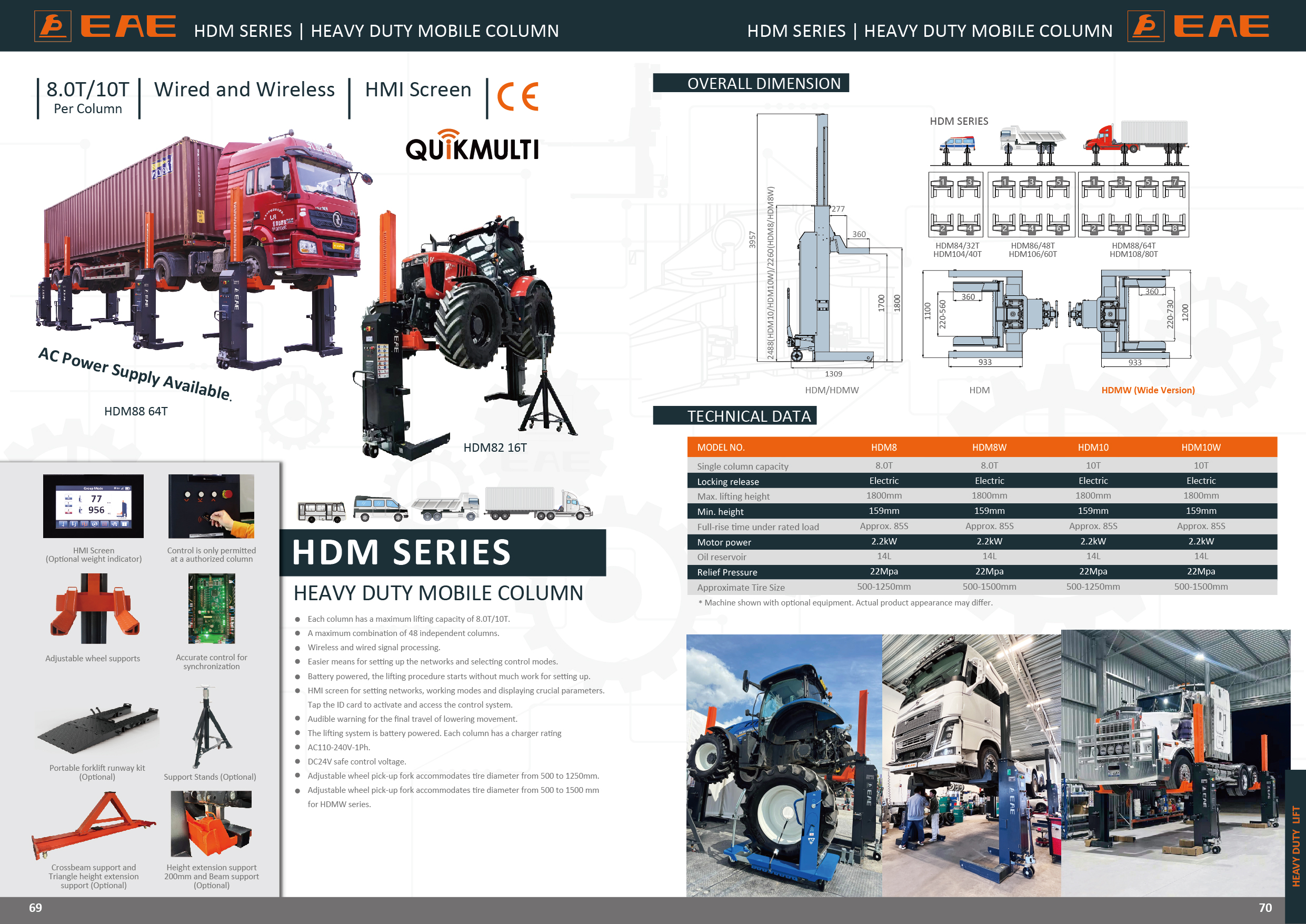

Brochure
Cases
MODEL NO. HDM8 HDM10
Lifting Capacity 8.0T 10T
Locking Release Electric Electric
Max Lifting Height 1800mm 1800mm
Min Height 159mm 159mm
Full-rise time under reted load ≈85s ≈85s
Oil Reservoir 14L 14L
Motor power 2.2kW 2.2kW
Relief Pressure
14Mpa 17Mpa
Applicable Tre Diameter 500-1250mm 500-1250mm

* Machine shown with optional equipment. Actual product appearance may differ.

·Each column has a maximum lifting capacity of 8T/10T
·A maximum combination of 48 independent columns
·Wireless and wired signal processing
·Easier means for setting up the networks and selecting control modes
·Battery powered, the lifting procedure starts without much work for setting up
·HMI screen for setting networks, working modes and displaying crucial parameters
·Tap the ID card to activate and access the control system
·Audible warning for the final travel of lowering movement
·The lifting system is battery powered. Each column has a charger rating AC110-240V-1Ph
·DC24V safe control voltage
·Adjustable wheel pick-up fork accommodates tire diameter from 500 to 1250mm
