LX35 | 3.5T Low Profile Scissor Lift

Share:

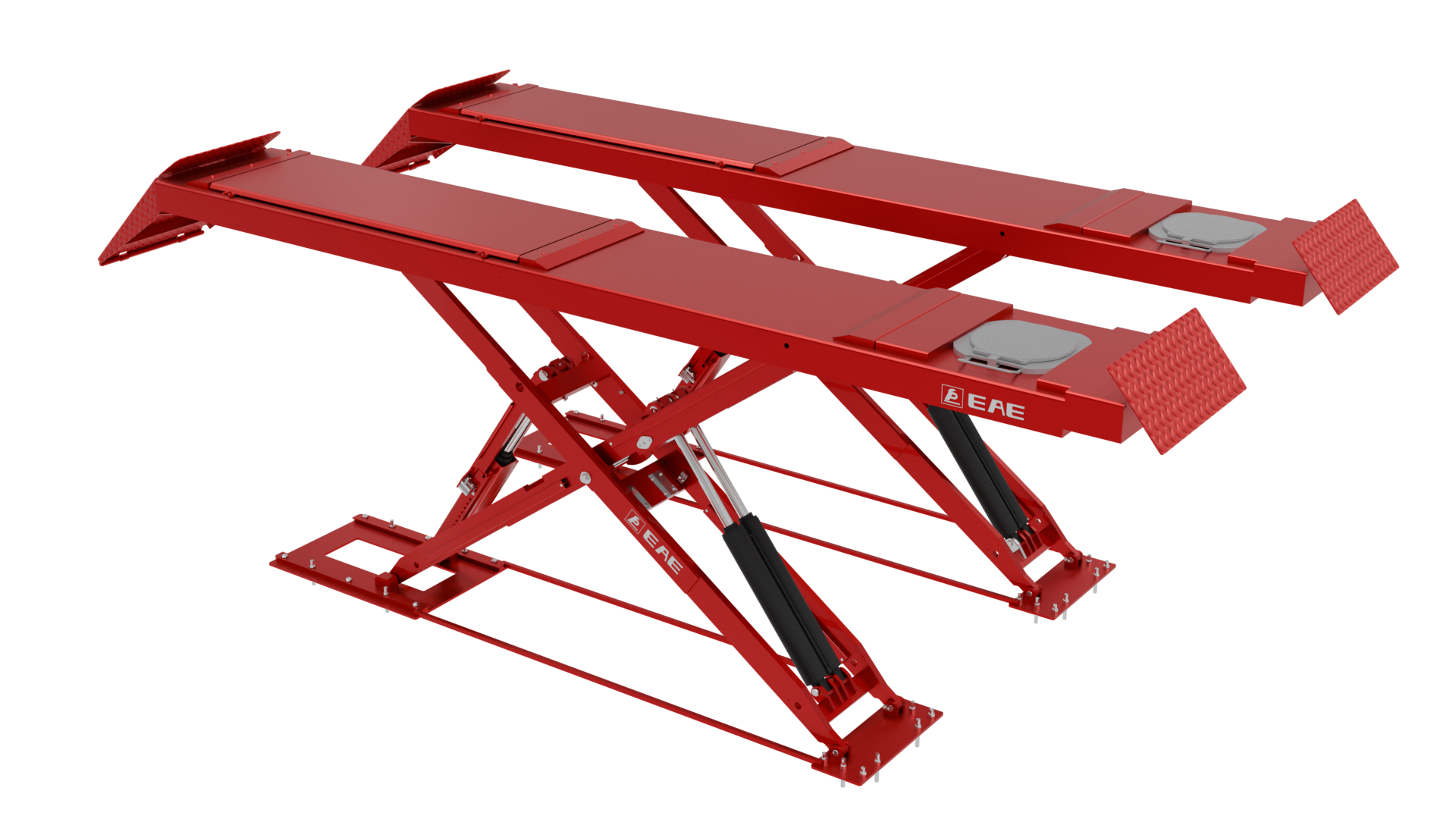

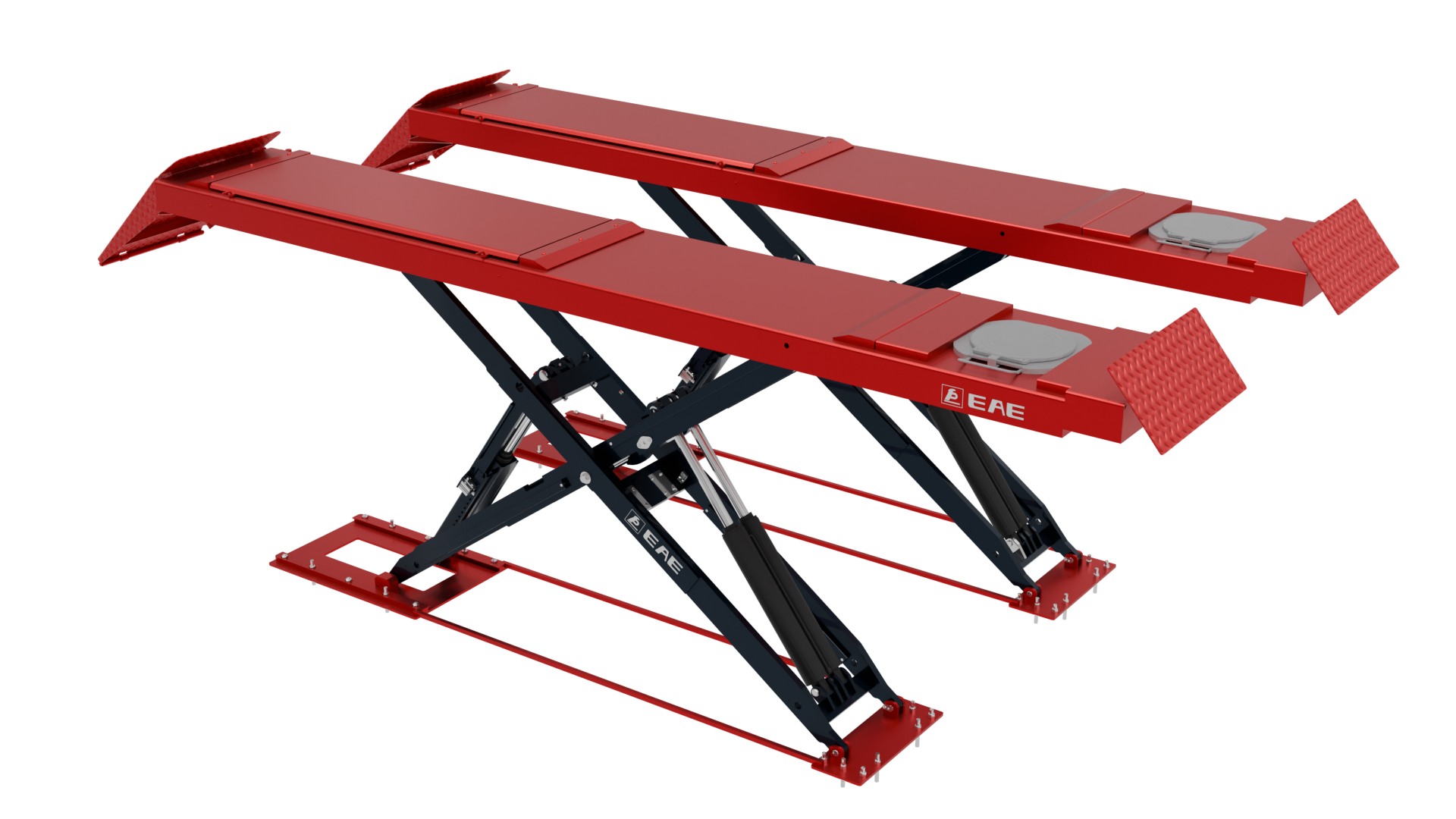

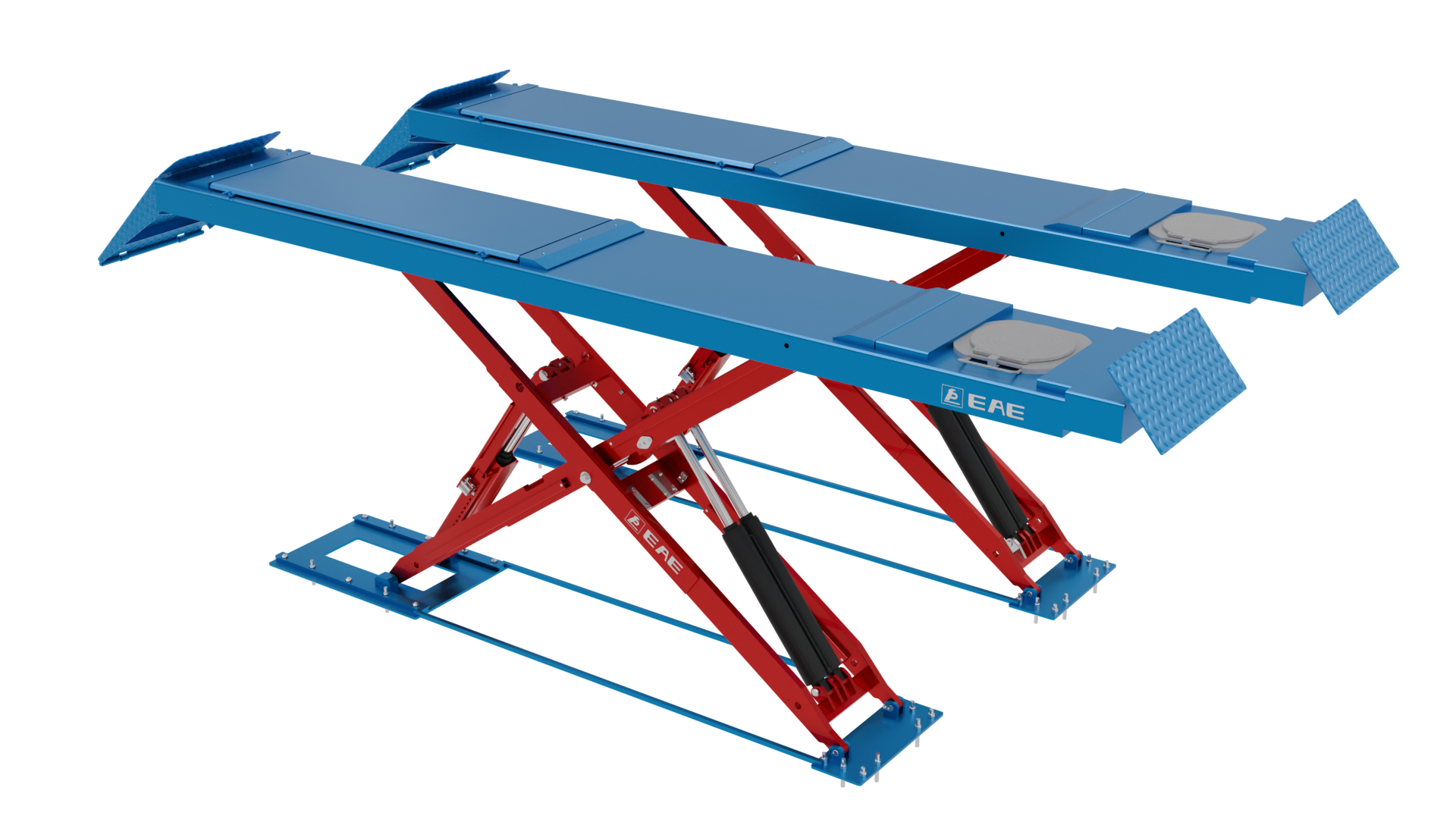

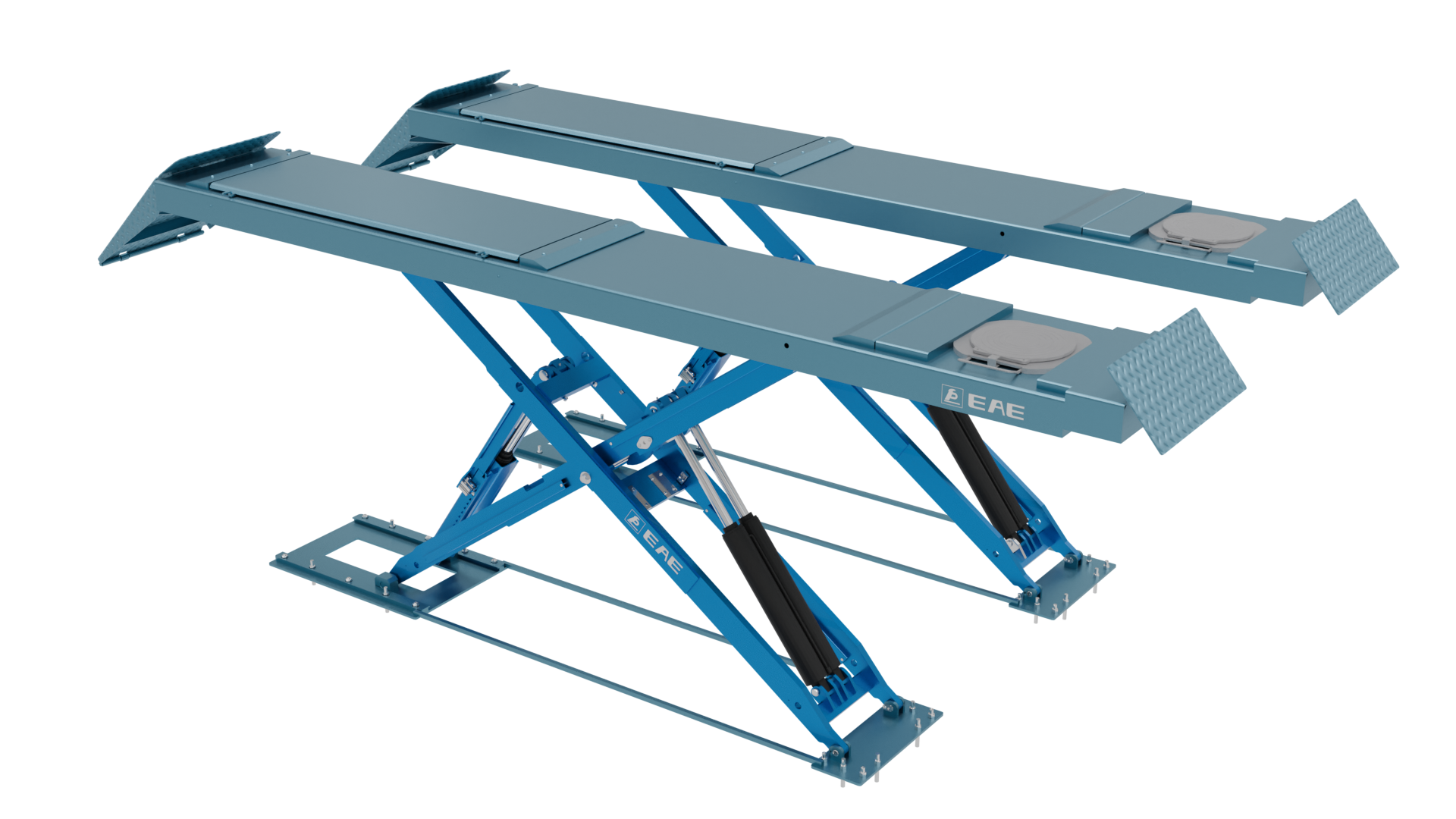

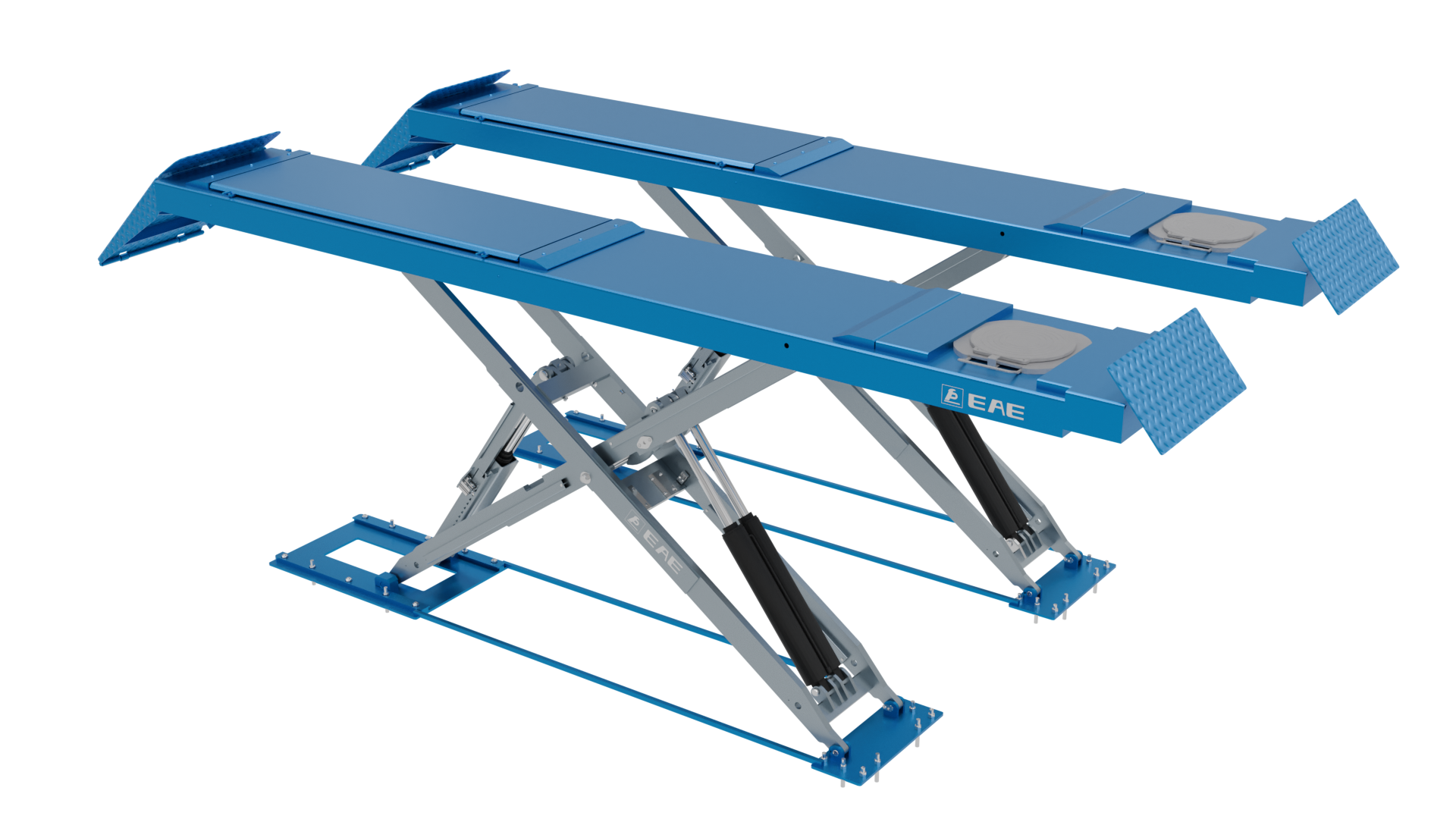

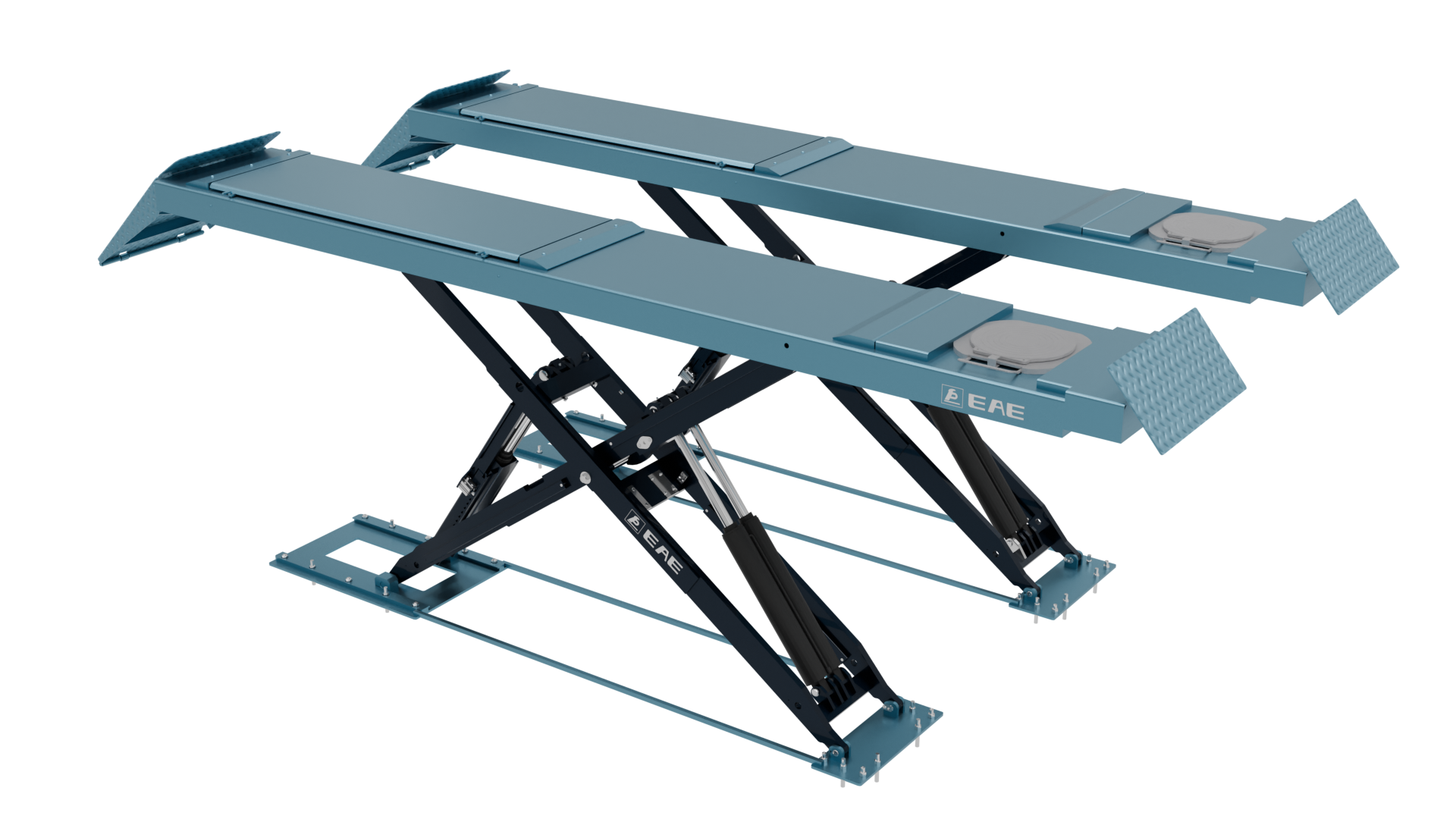

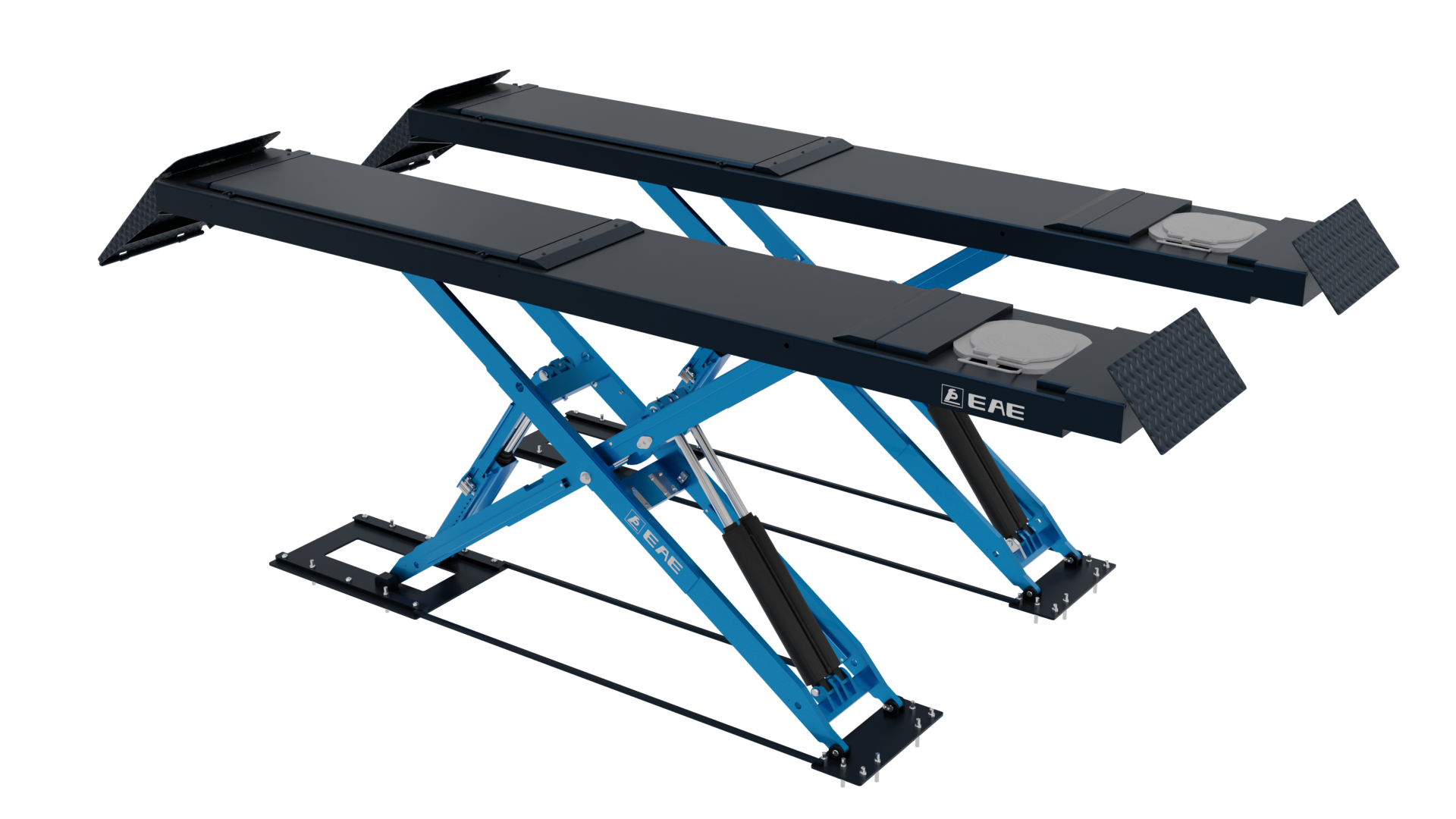

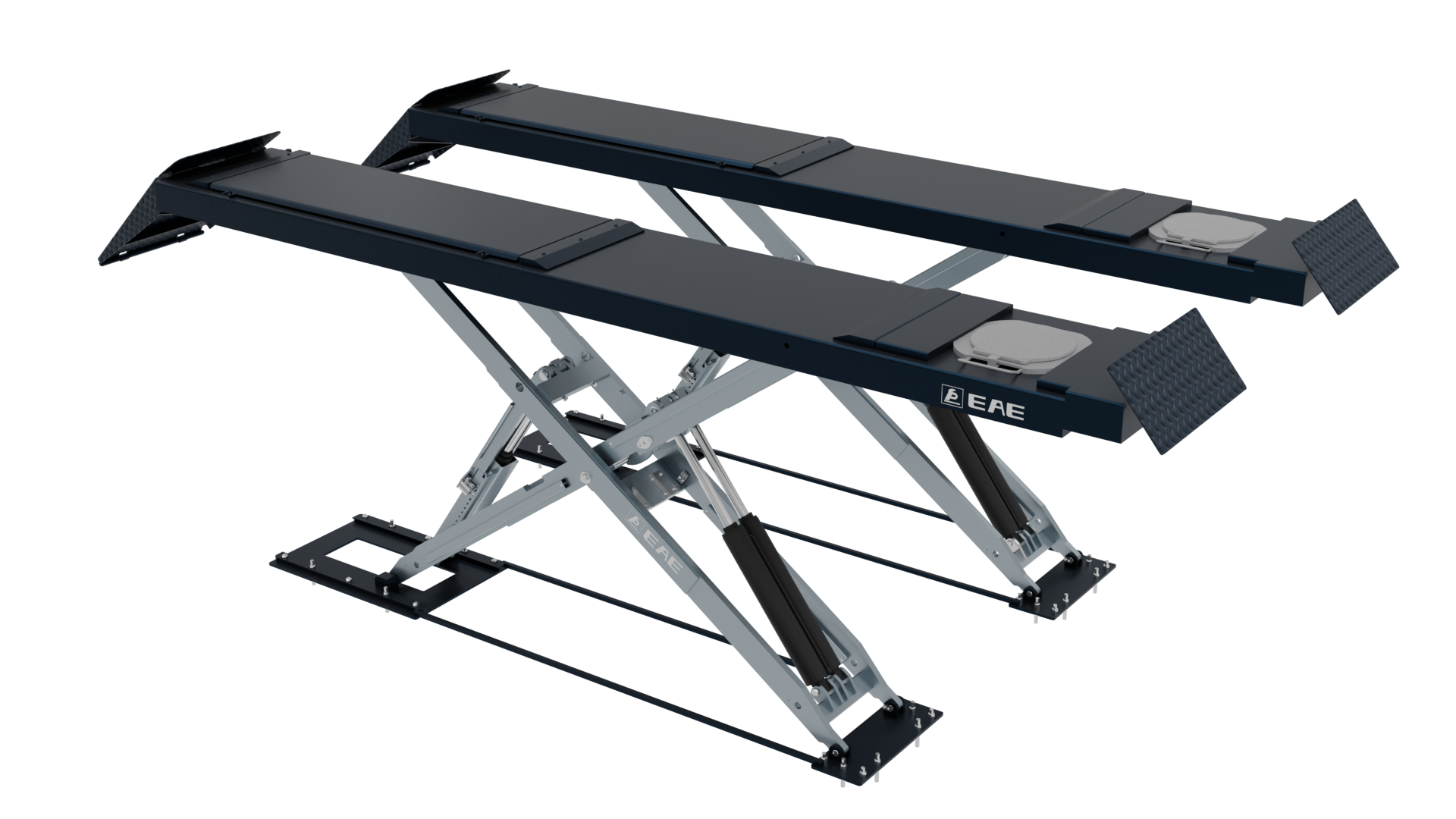

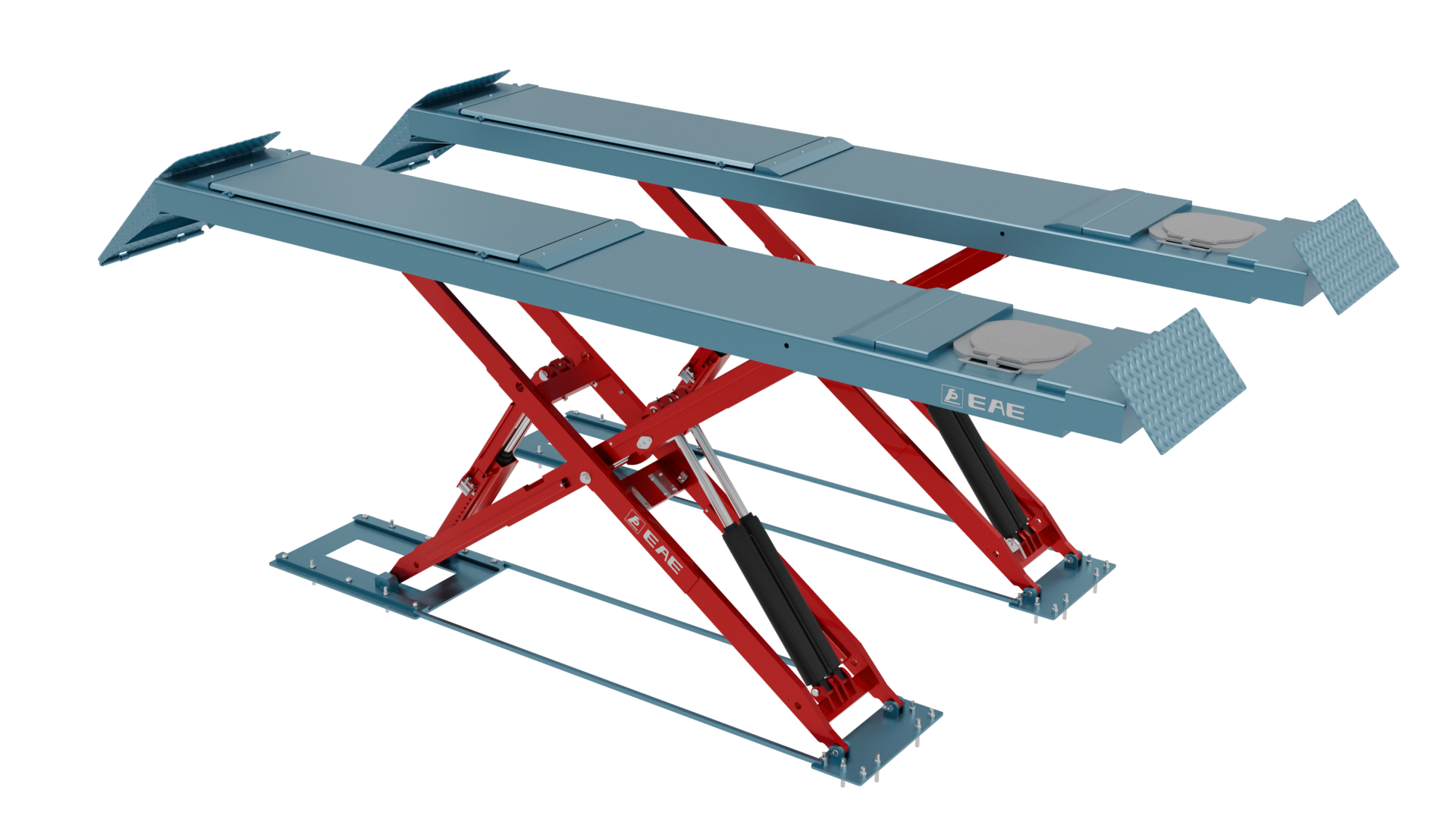

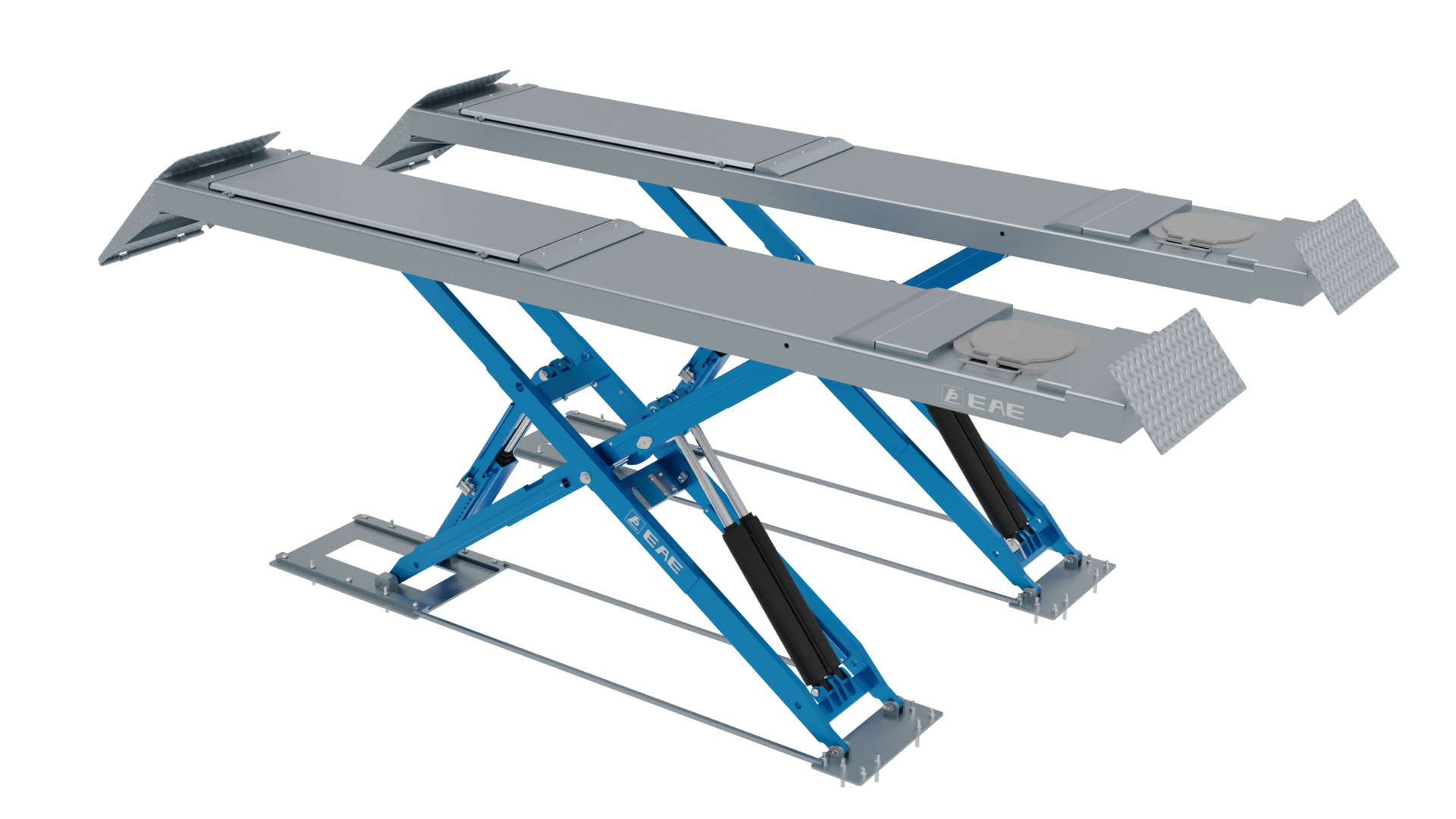

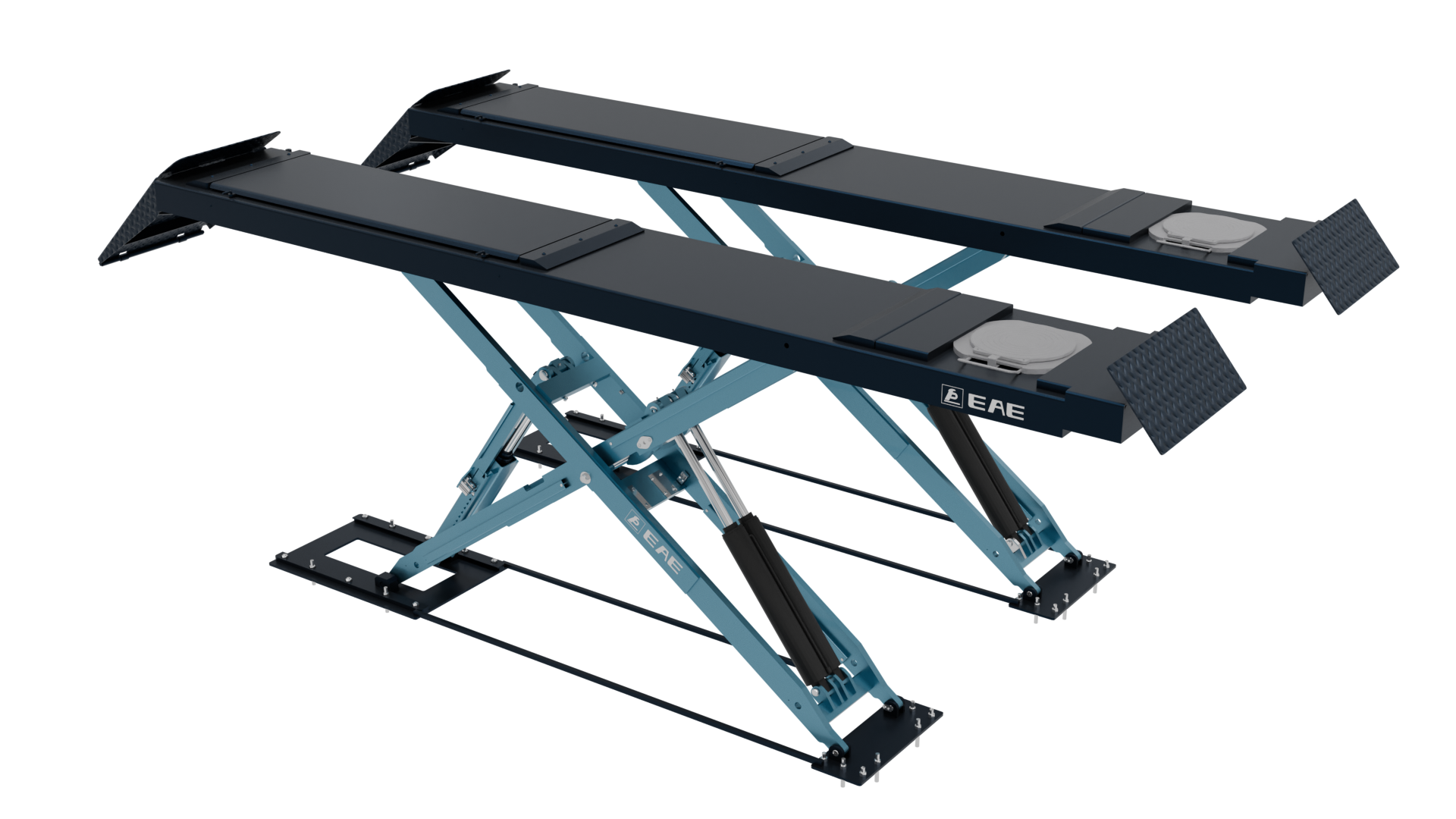

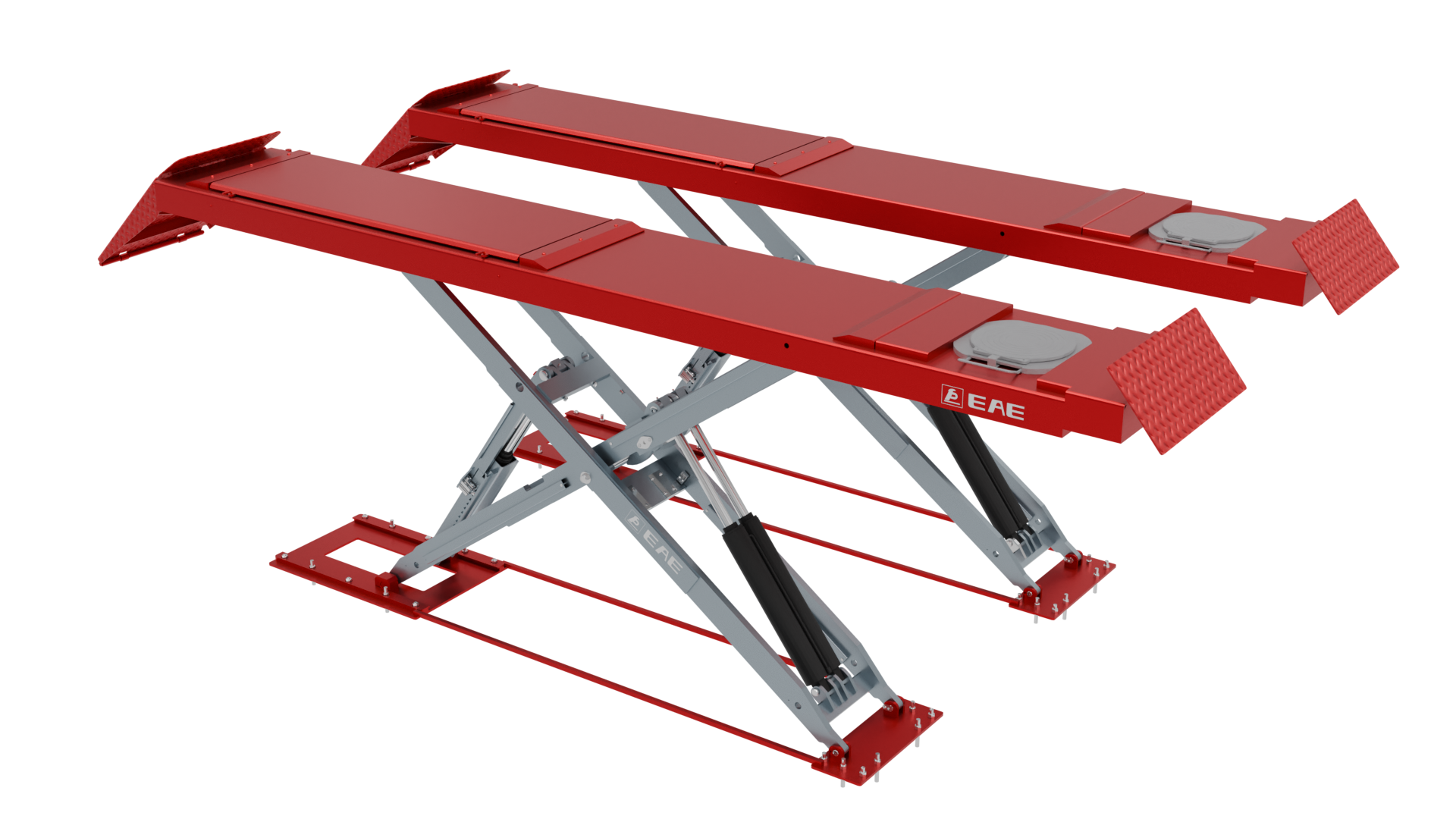

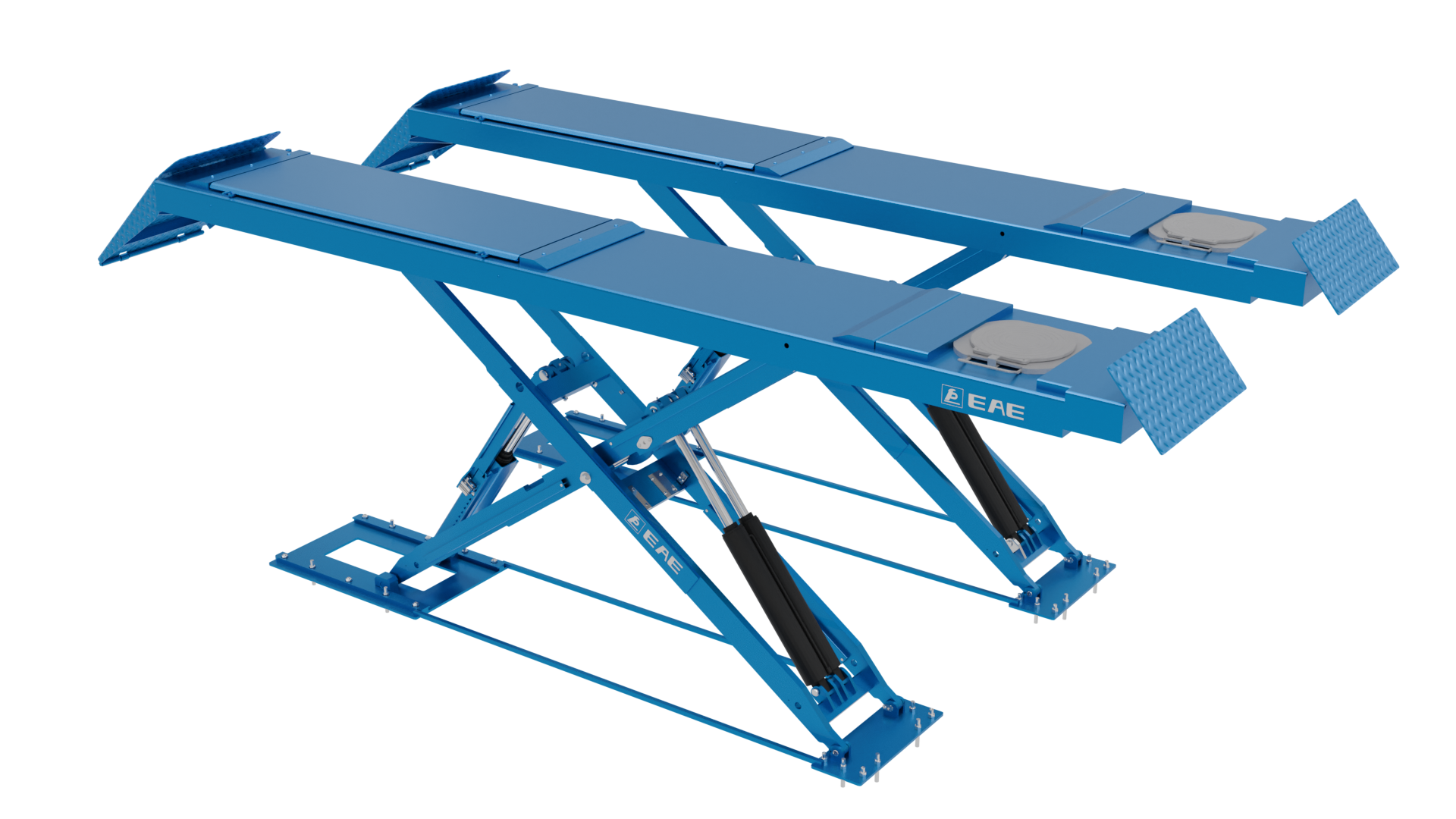

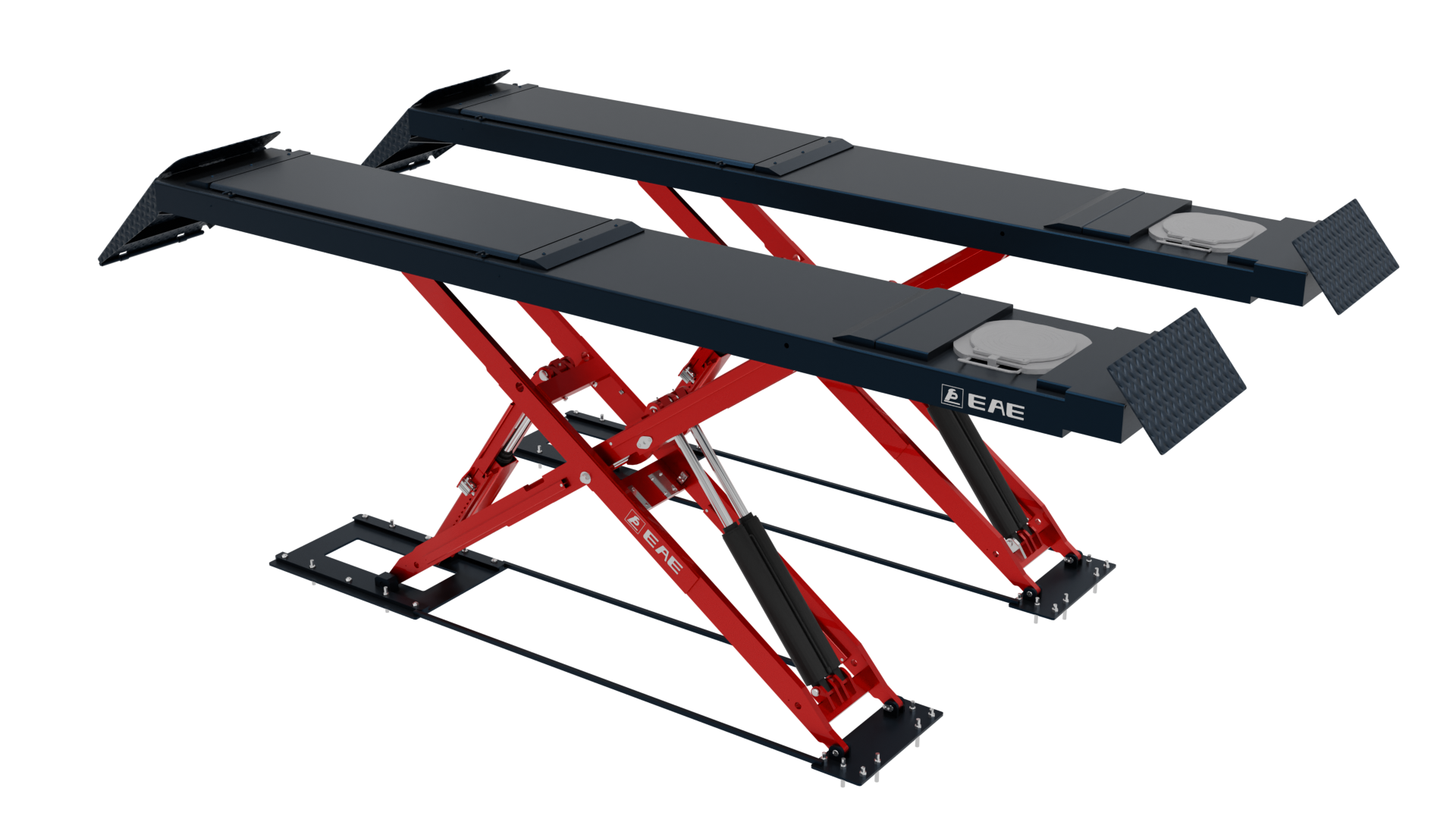

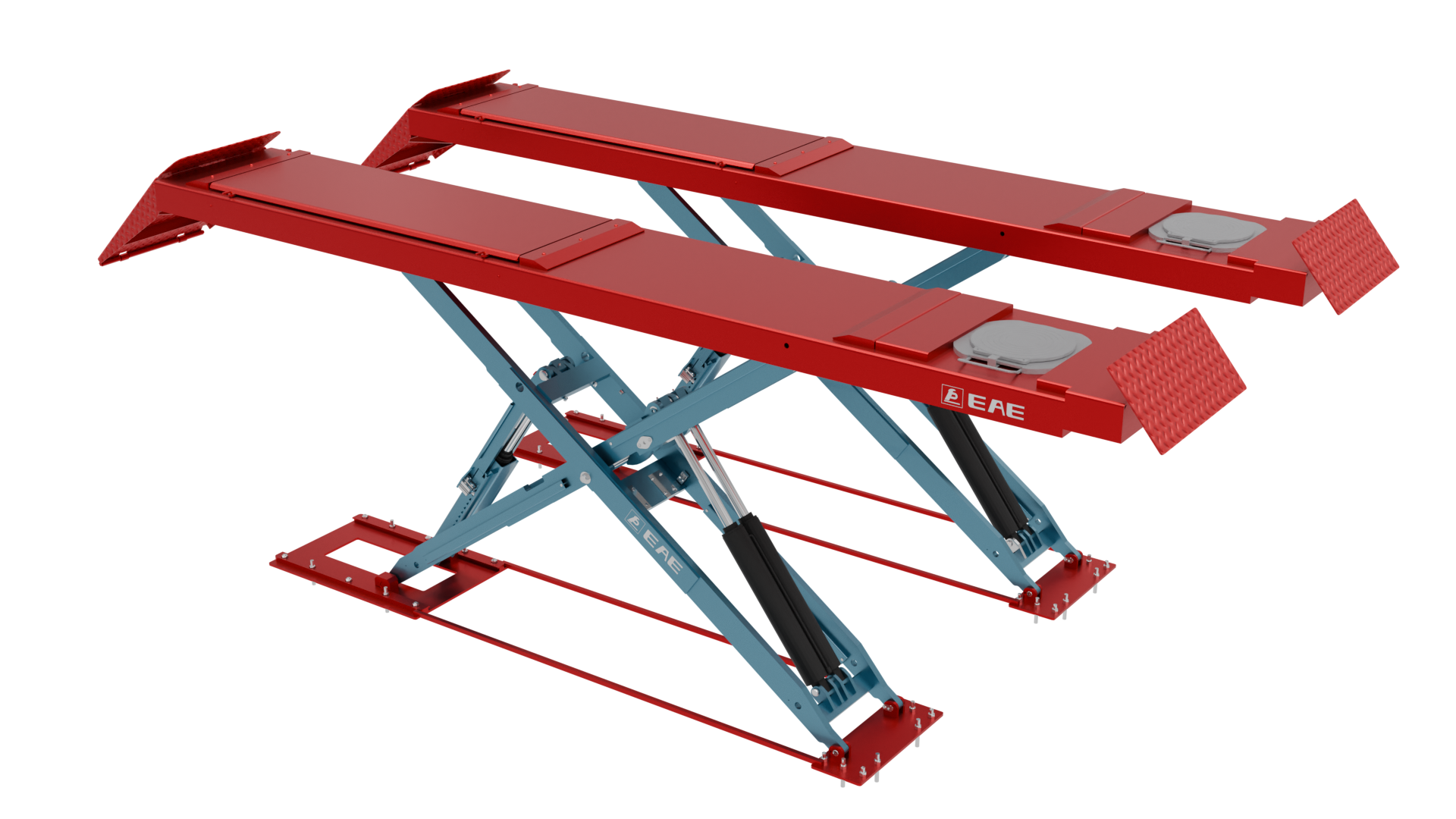

Product Image

EAE

  • 1850mm

    Max Lifting Height

  • 140mm

    Min Height

  • 4500mm

    Platform Length

  • 680mm

    Platform width

  • 55s

    Lifting Time

Accessories Details

Rolling Jack

Turntable

Mechanical Safety Lock

24V Control System

Add-on Alignment Kit

Technical Data
Description
Overall Dimension
Brochure
Cases

MODEL NO. LX35
Lifting Capacity 3.5T
Max Lifting Height 1850mm
Min Height 140mm
Platform Width 680mm
Lifting Time ≈55s
Air Supply 6-8bar
Motor 3.5kW/3ph
Weight
2200kg
Electricity Supply According To Customer Needs


* Machine shown with optional equipment. Actual product appearance may differ.

·Six-Cylinder mechanical structure. Reliable mechanical locking system protects against rapture of hydraulic circuit and ensure better mechanical balance when it is engaged
·Avoid rapid descending caused by leakages of hydraulic system by applying FLOW-CONTROL technique
·Max height switch limits the travel of runways and ensures cylinders work within the stroke
·Protect against pinching and shearing using alarming buzzer in descending process
·24V safety control voltage
·Low profile runway design is less demanding on space and suitable for surface installation in basement and other place where it is forbidden to dig a pit
·Flat and smooth runway (type S) is better for quick body checking service
·Aluminum motor, no risks of overheating
·Reserved tracks for optional jacks
·Modular design meets various practical needs. It is possible to extend S runway to B runway with extra accessories
