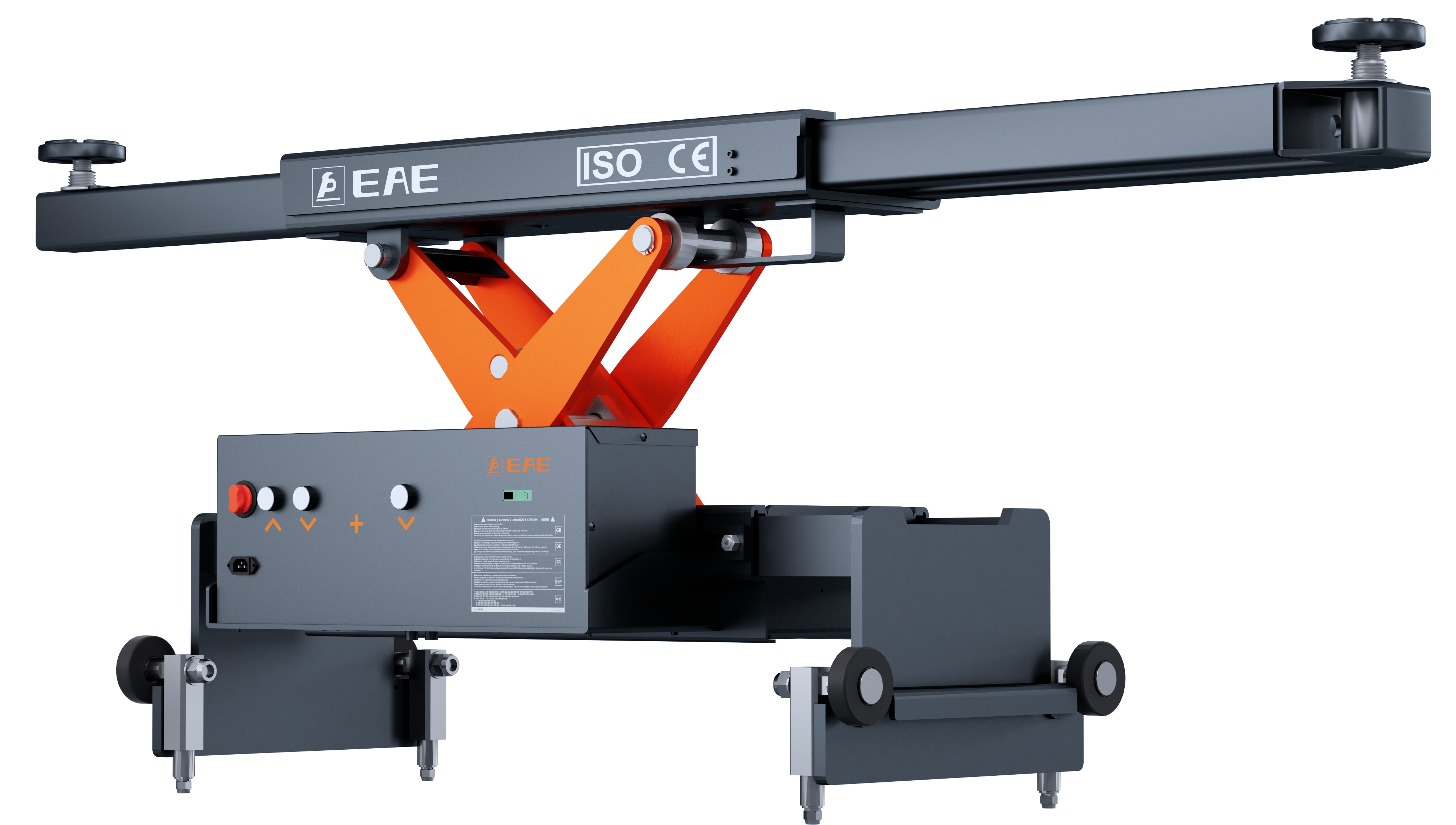

MR30 | 3.0T Mid Rise Scissor Lift

Share:
Product Image VR View

EAE

  • 1000mm

    Max Lifting Height

  • 105mm

    Min Height

  • 1420-2028mm

    Platform Length

  • 30s

    Lifting Time

Accessories Details

Mobile Kit

Height Limit Switch

Low Position

Low Position

Drive-on Ramp & Platform Extension

Low Voltage & Movable Control

Mechanical Safety Lock

Technical Data
Description
Overall Dimension
Brochure
Cases

MODEL NO. MR30
Lifting Capacity 3.0T
Max Lifting Height 1000mm
Min Height 105mm
Platform Width 460mm
Lifting Time ≈30s
Air Supply 6-8bar
Capacity of Motor 2.2kW
Weight
474kg
Electricity Supply According To Customer Needs


* Machine shown with optional equipment. Actual product appearance may differ.

·3.0T lifting capacity
·Ideal for tire service and narrow bays
·Mobile design
·Electrical released safety locking system
·Durable cylinders with anti-surge valves
·24V safe control system
·Height limit switch
·Powder coated finish
·Self-lubricated bushing and bearing
·Drive up ramps lock into position as platform extension for longer vehicles
·Optional mobile kit makes the lift move in your garage very easily
·Aluminum motor, no risks of overheating
