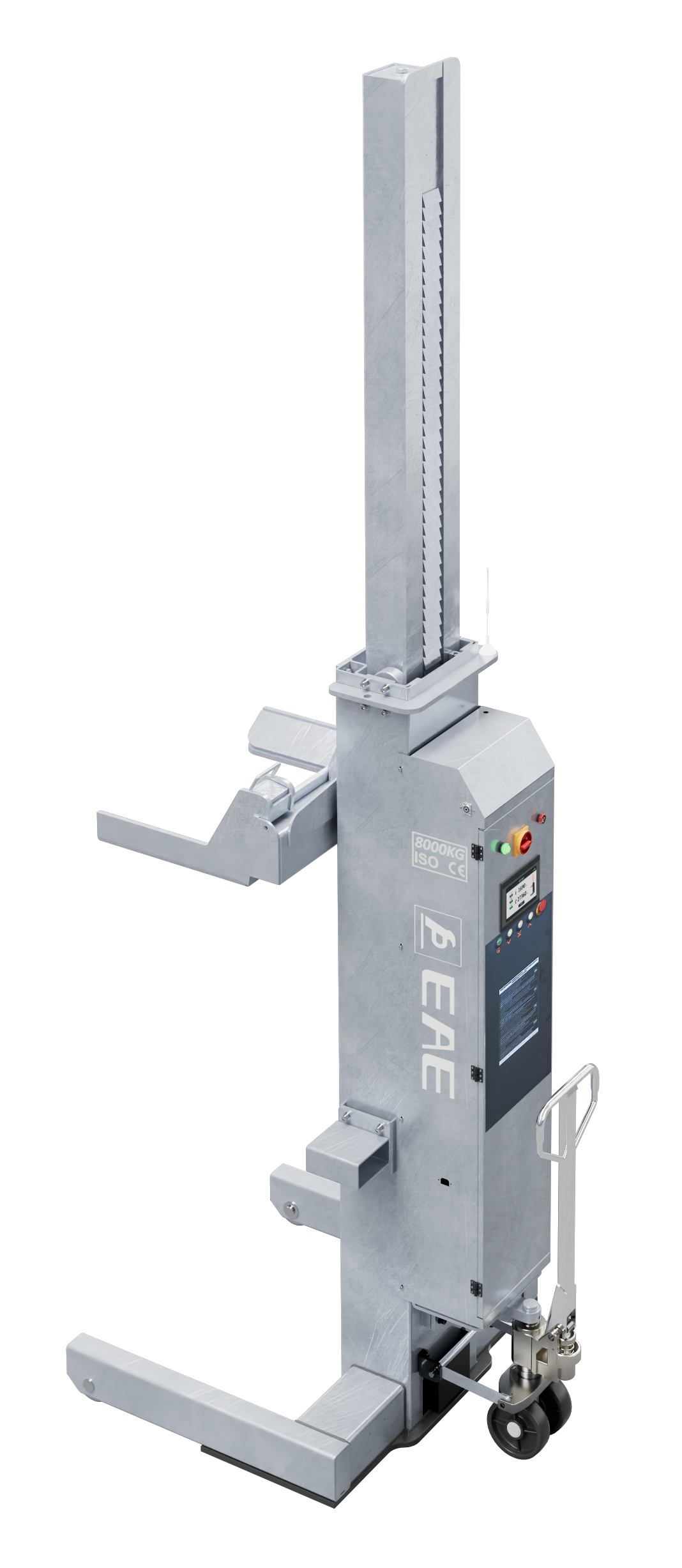

HDMG | 8T/10T Galvanized Mobile Column

Share:
Product Image

EAE

  • 1800mm

    Max Lifting Height

  • 500-1250mm

    Applicable Tire Diameter

  • IP65

    Ingress Protection

  • Battery

    Power Supply

Details
Technical Data
Description

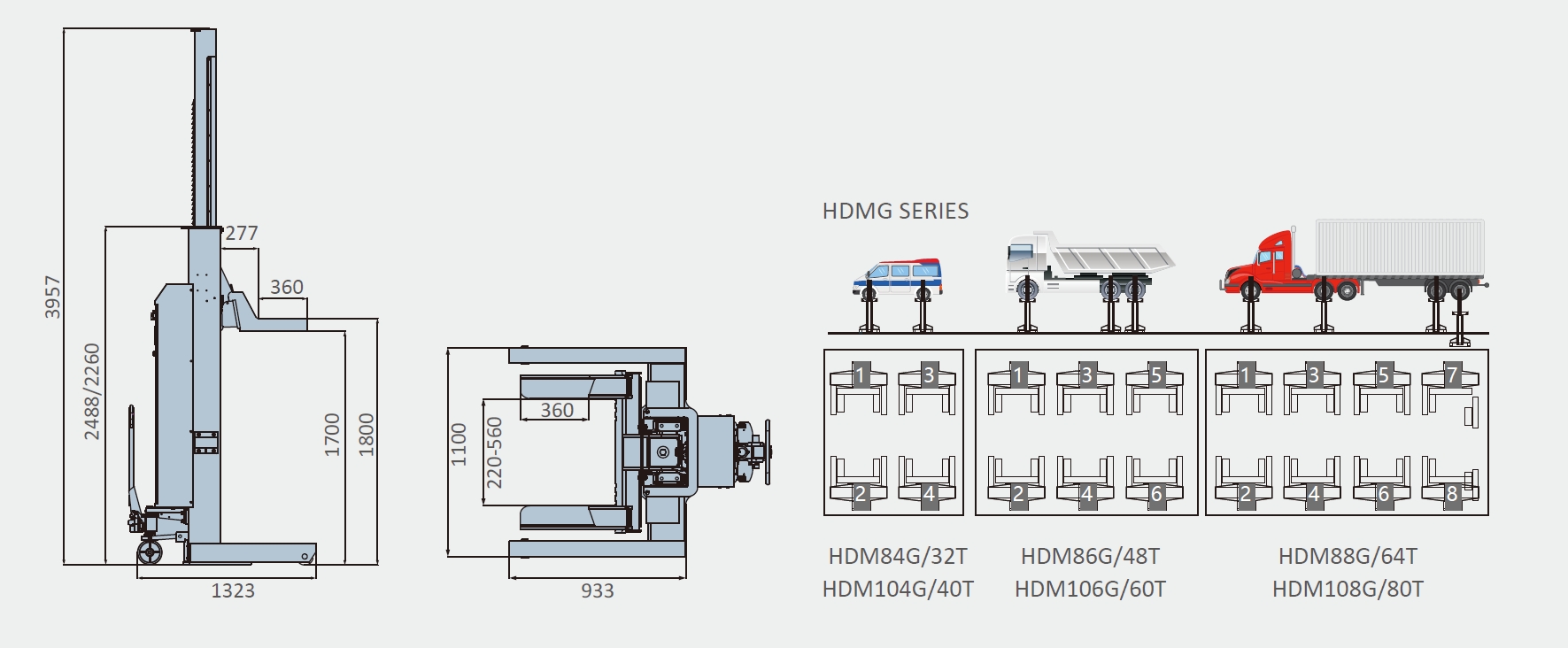

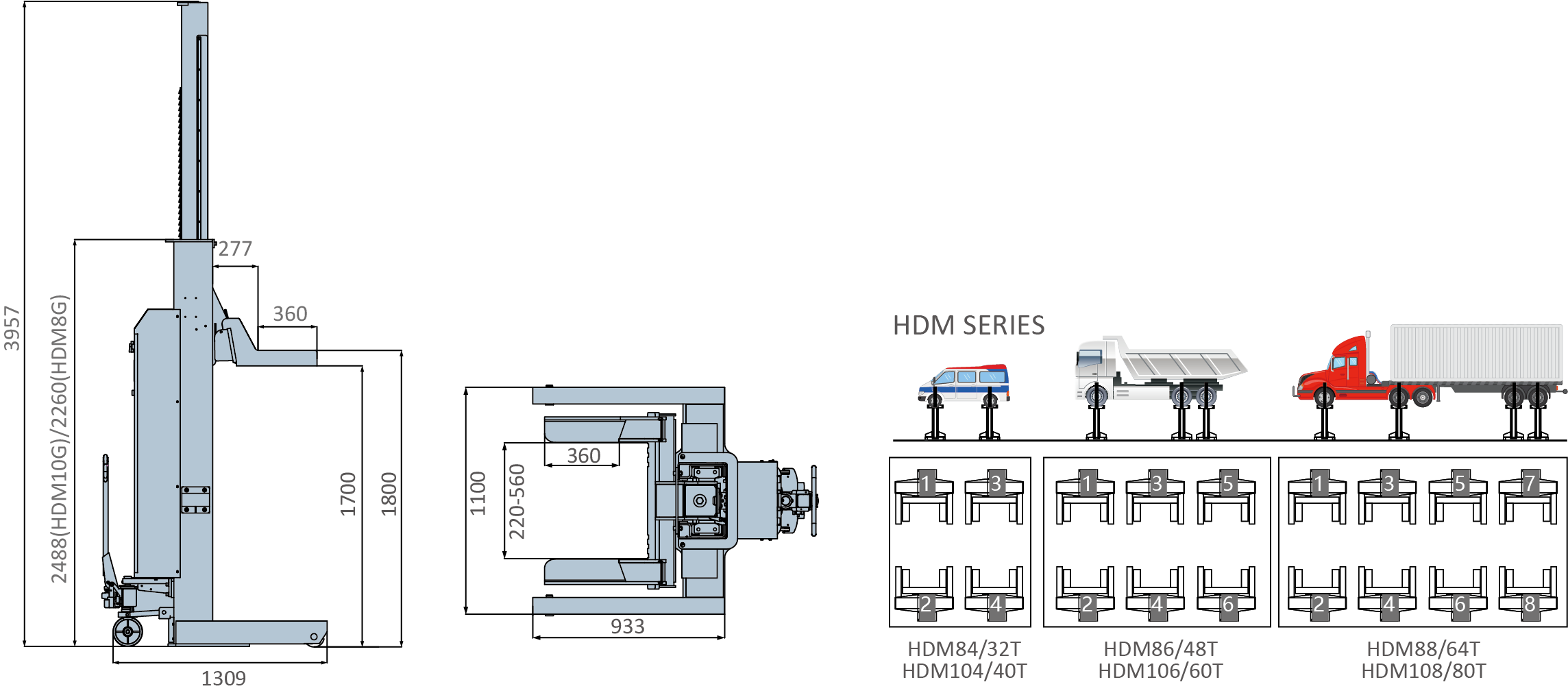

Overall Dimension
Brochure
Cases
MODEL NO. HDM8G HDM10G
Single column capacity 8.0T 10T
Locking release Electric Electric
Max. lifting height 1800mm 1800mm
Min. height 159mm 159mm
Full-rise time under rated load Approx. 85S Approx. 85S
Motor power 2.2kW 2.2kW
Oil reservoir 14L 14L
Relief Pressure 22Mpa 22Mpa
Approximate Tire Size 500-1250mm 500-1250mm

·Capacity: 8.0T/10T per column.

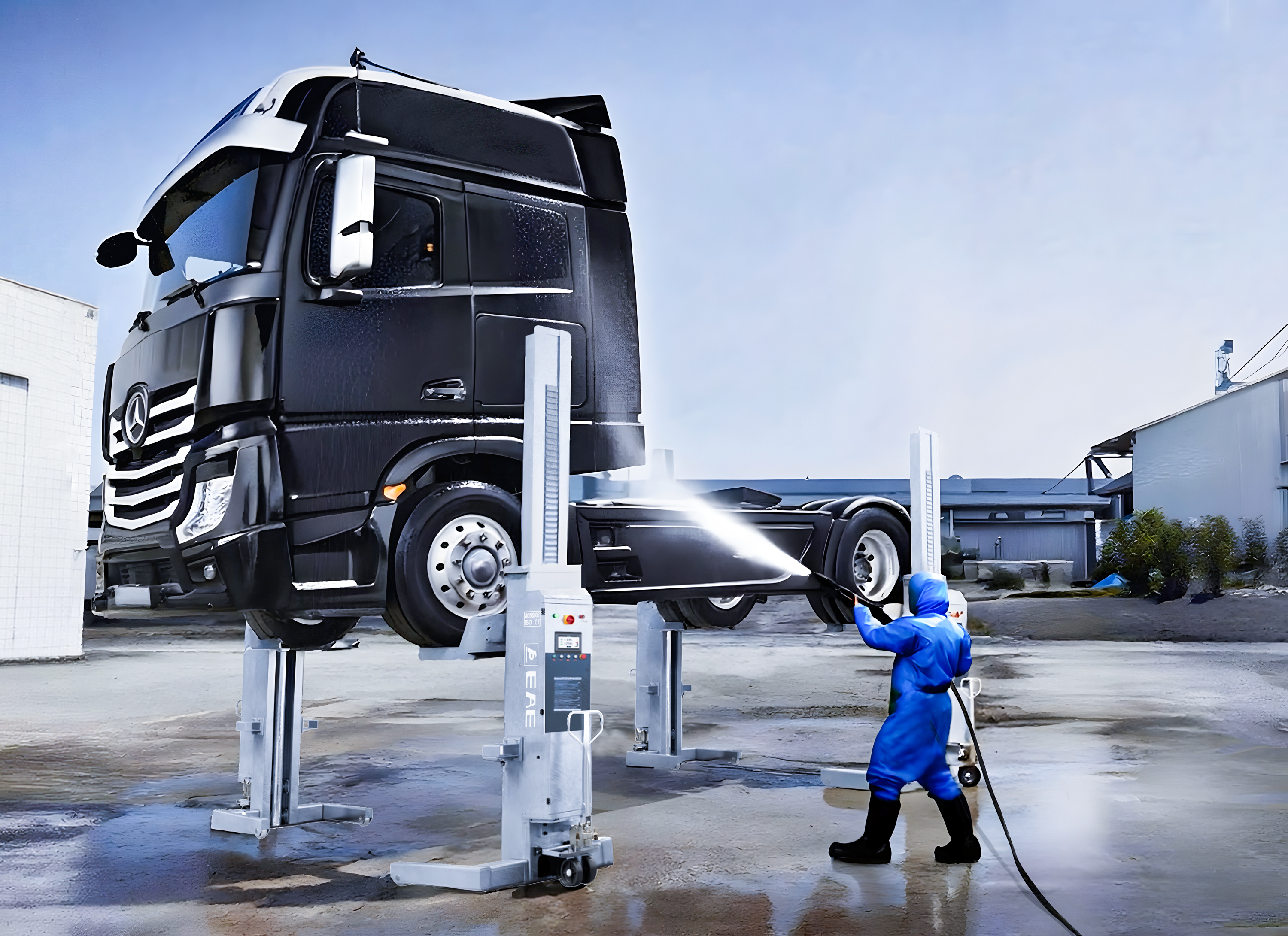

·Corrosion-Resistant, suitable for wet or humid environments like wash bays.
·Hot-Dip Galvanized Structural Components, Stainless Steel Control Cover and Anti-Corrosion Fasteners.
·IP65 Protection: Resistant to water spay.
·Cordless, Battery Powered: Eliminate tripping hazards and enhance Mobility.
·Wireless Radio Control: Enable safe and eficient control at any column.
·Adjustable wheel pick-up fork: Accommodate tire diameter from 500 to 1250mm.

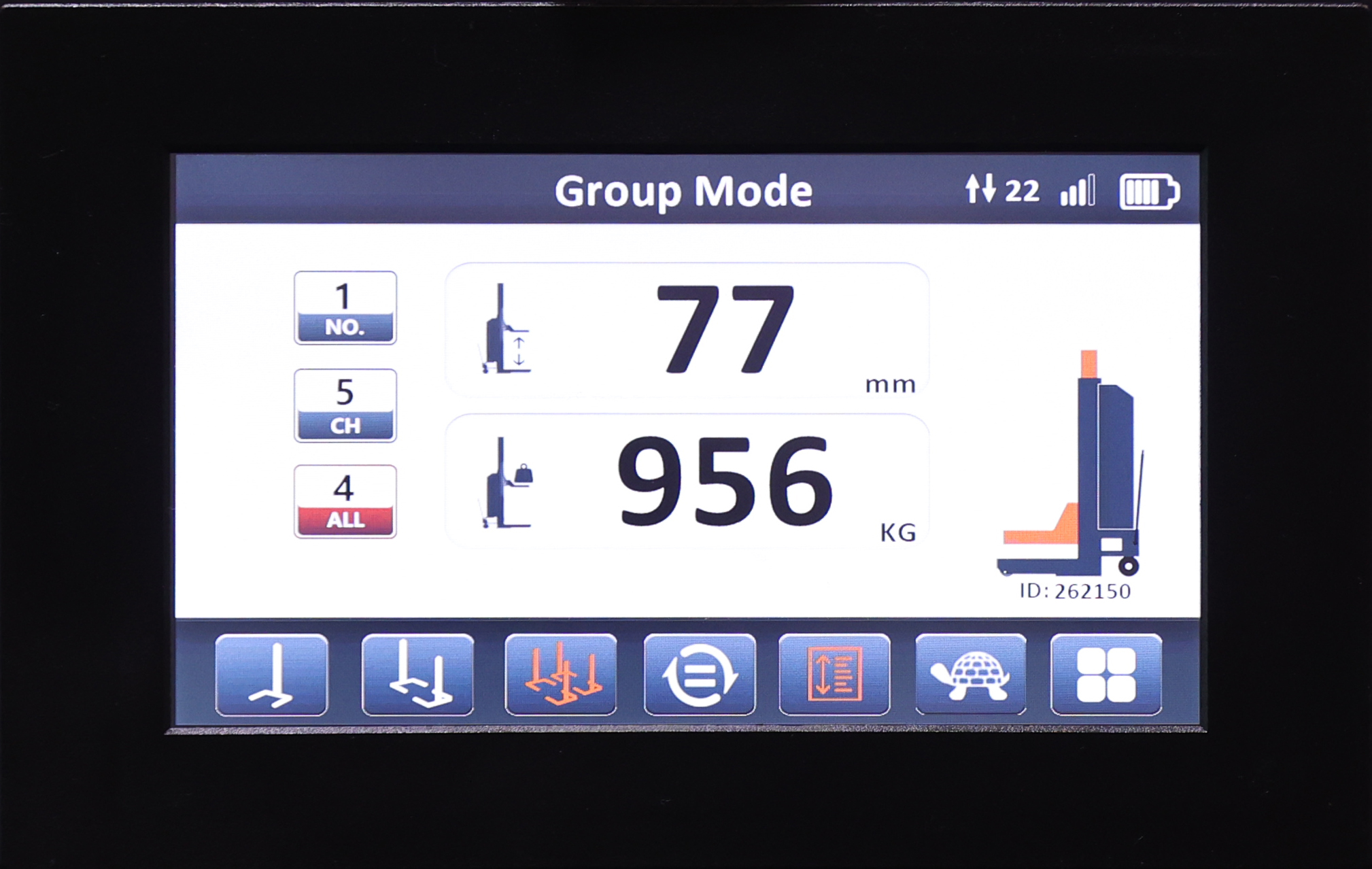

·HMl Screen:Simplified way for linkage and modes selection.
·Control voltageDC24V
·Charger RatingAC 110-240V, 1-phase (per column).
