MS10 | 1.0T Mobile Lifting Table

Share:
Product Image

EAE

  • 1800mm

    Max Lifting Height

  • 1305-1480mm

    Platform Length

  • 800mm

    Platform Width

  • 110s

    Lifting Time

Accessories Details

Adapter

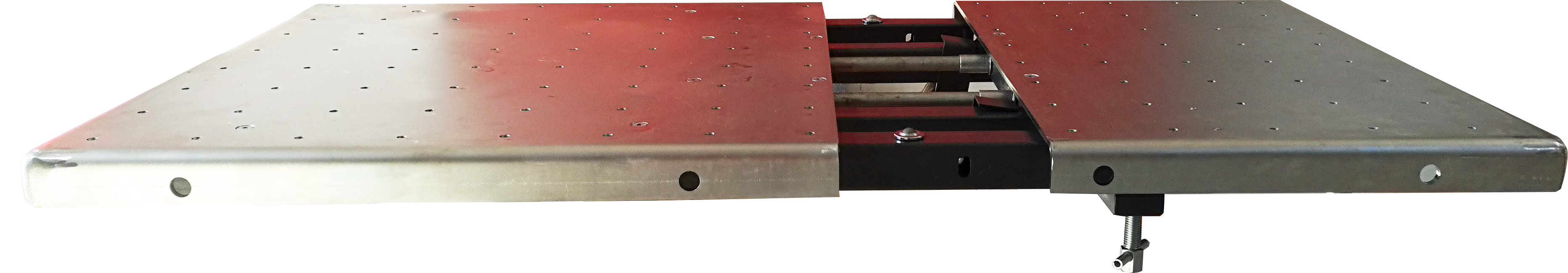

Extendable Platform

Hydraulic Pump

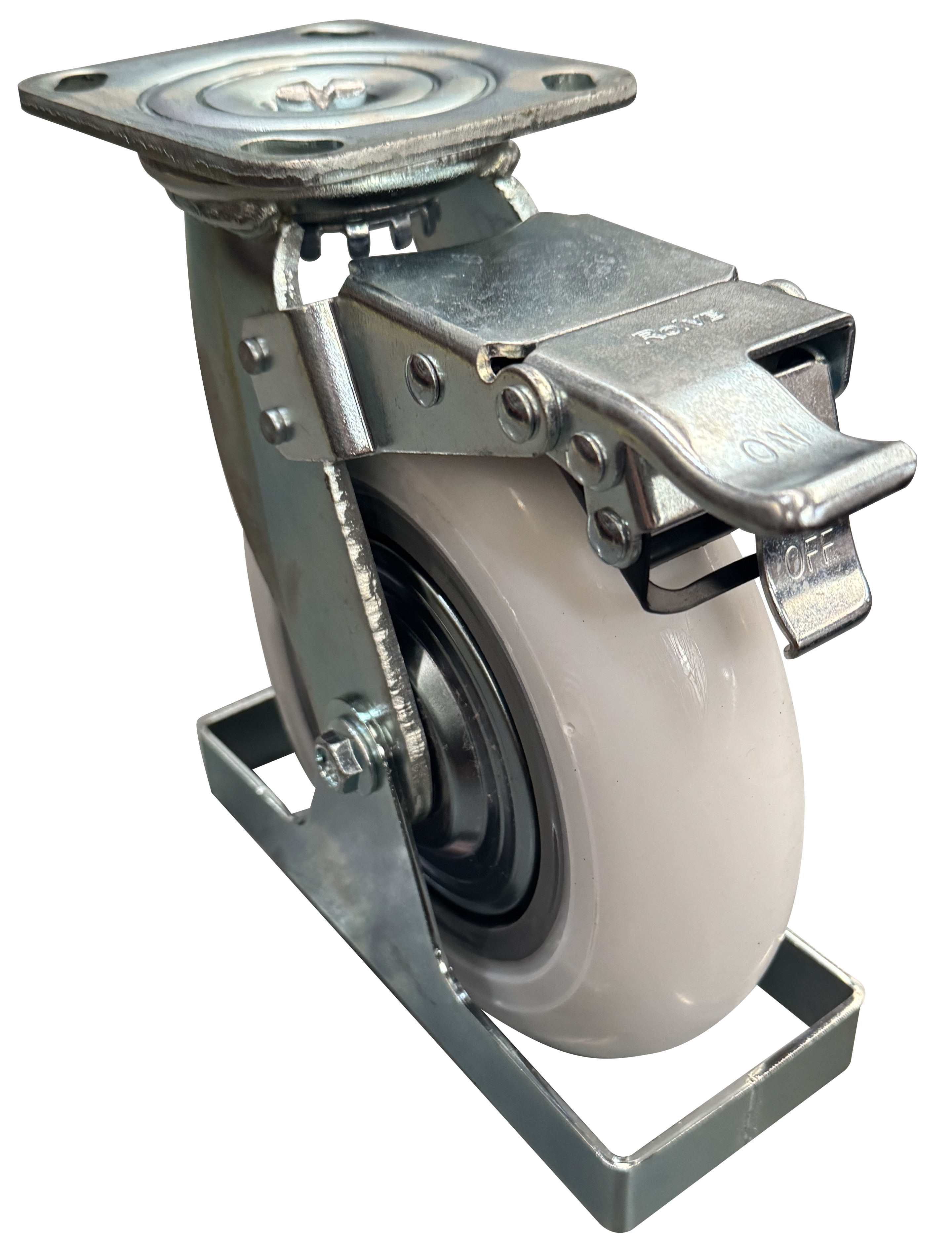

Heavy-duty and Abrasion-resisting caster

Technical Data
Description

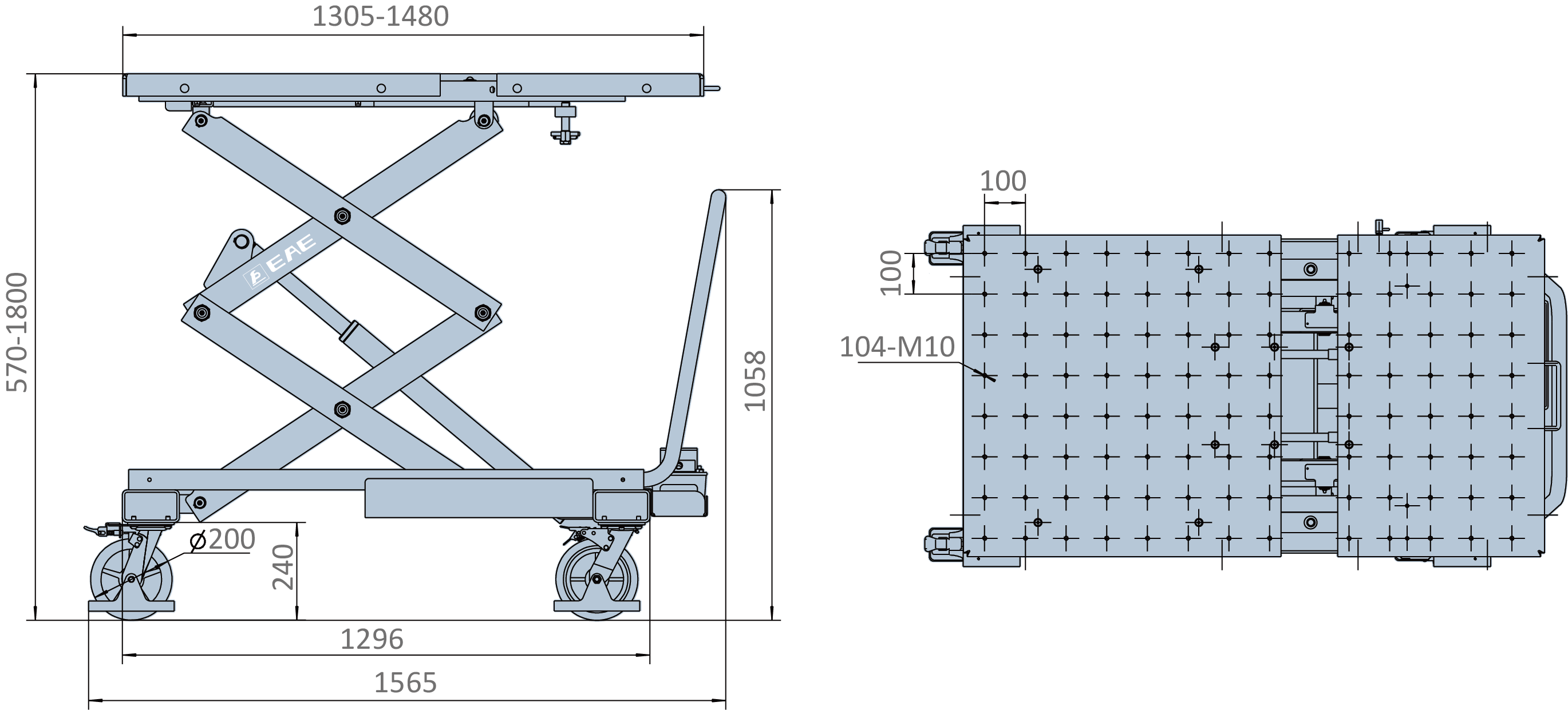

Overall Dimension
Brochure
Cases
MODEL NO.
MS10
Lifting Capacity 1.0T
Max Lifting Height 1800mm
Initial Height 570mm
Platform Length
1305mm-1480mm
Platform Width
800mm
Air Supply Pressure 6-8bar
Lifting Time 110s


* Machine shown with optional equipment. Actual product appearance may differ.


·Designed for dismantling and fixing battery packs of electric vehicles as well as engine, gearbox, drive axle, fuel tank, suspension, bracket and chassis components of traditional vehicles
·Control and power by foot activated pneumatic driven hydraulic pump
·The working table can be tilted by adjusting two independent screws attached with T shape handle
·The working table can be extended to 1480mm in length for more applications
·Reserved holes (100mmx100mm) on the working table for positioning and fixing components with specialized fixtures
·Four heavy-duty and abrasion-resisting casters can steer and move easily and brake effectively
·Optional non-slip rubber pad to increase friction and avoid clashing with the battery packs
·Hydraulic cylinder and seal rings with high quality.  Overload dynamic test under 115% of the rated capacity
·Larger base frame ensures better stability and reliability
·Reserved holes at both sides of the working table for fixing loads with proper straps
·Power-coating surface ensure long time use without peeling off
