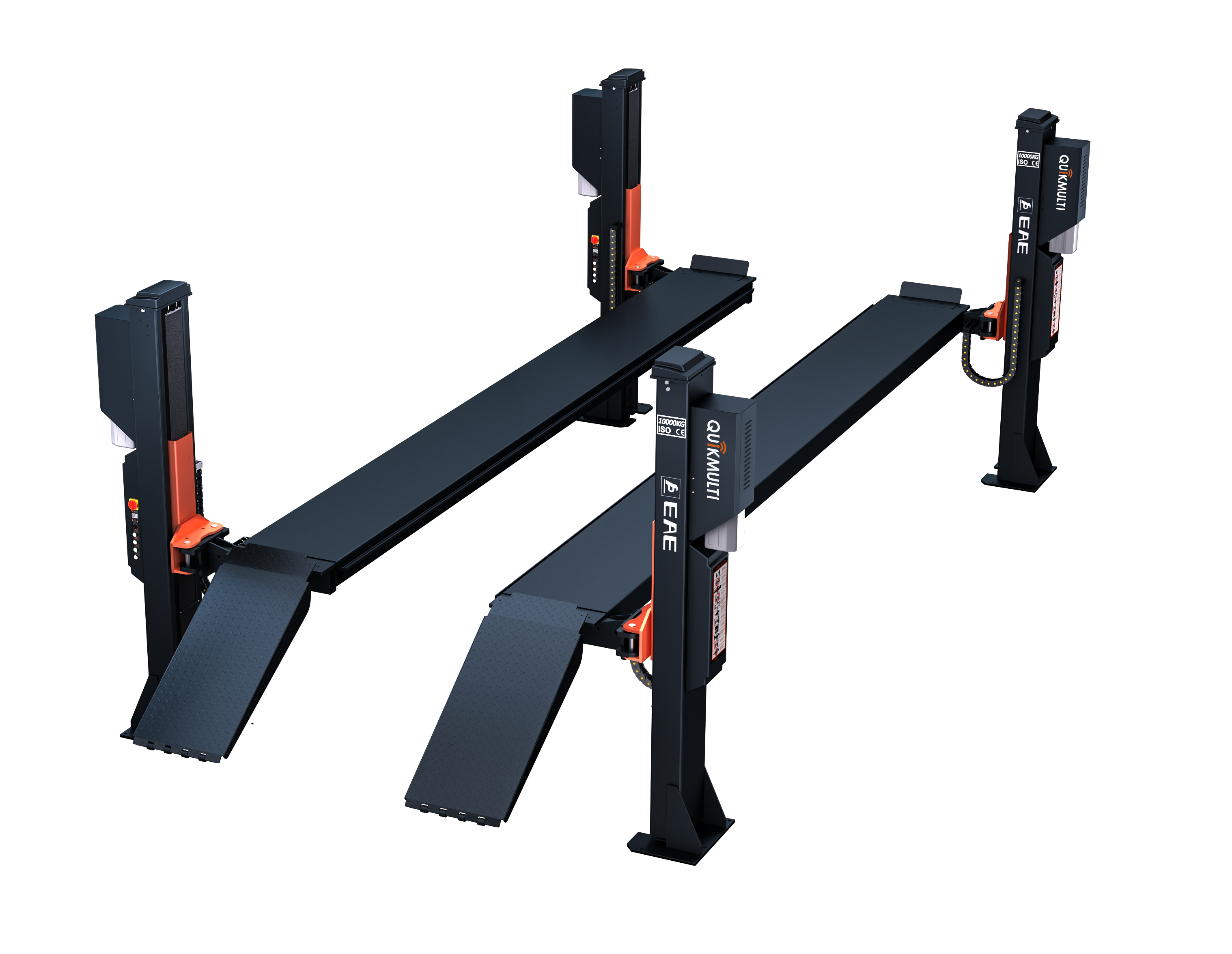

E410S | 10T Independent 4-Post Lift

Share:
Product Image VR View

EAE

  • 2040mm

    Maximum Height

  • 200mm

    Minimum Height

  • 7000mm

    Platform Length

  • 680mm

    Platform width

  • 35s

    Lifting Time

Accessories Details

HMI Screen

Drive-on ramp

Cantilever beam

Independent and identical control panel

Car barrier

Technical Data
Description

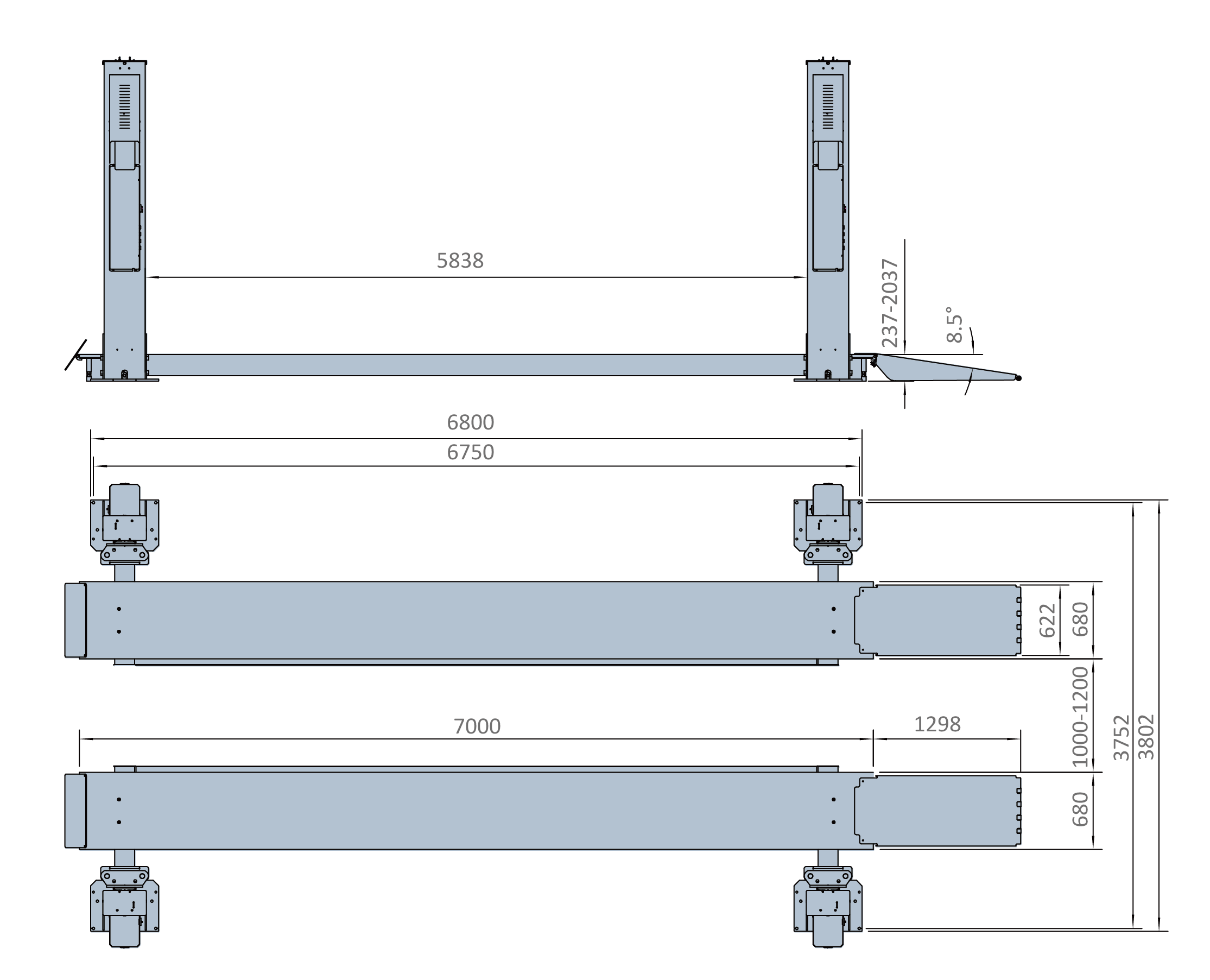

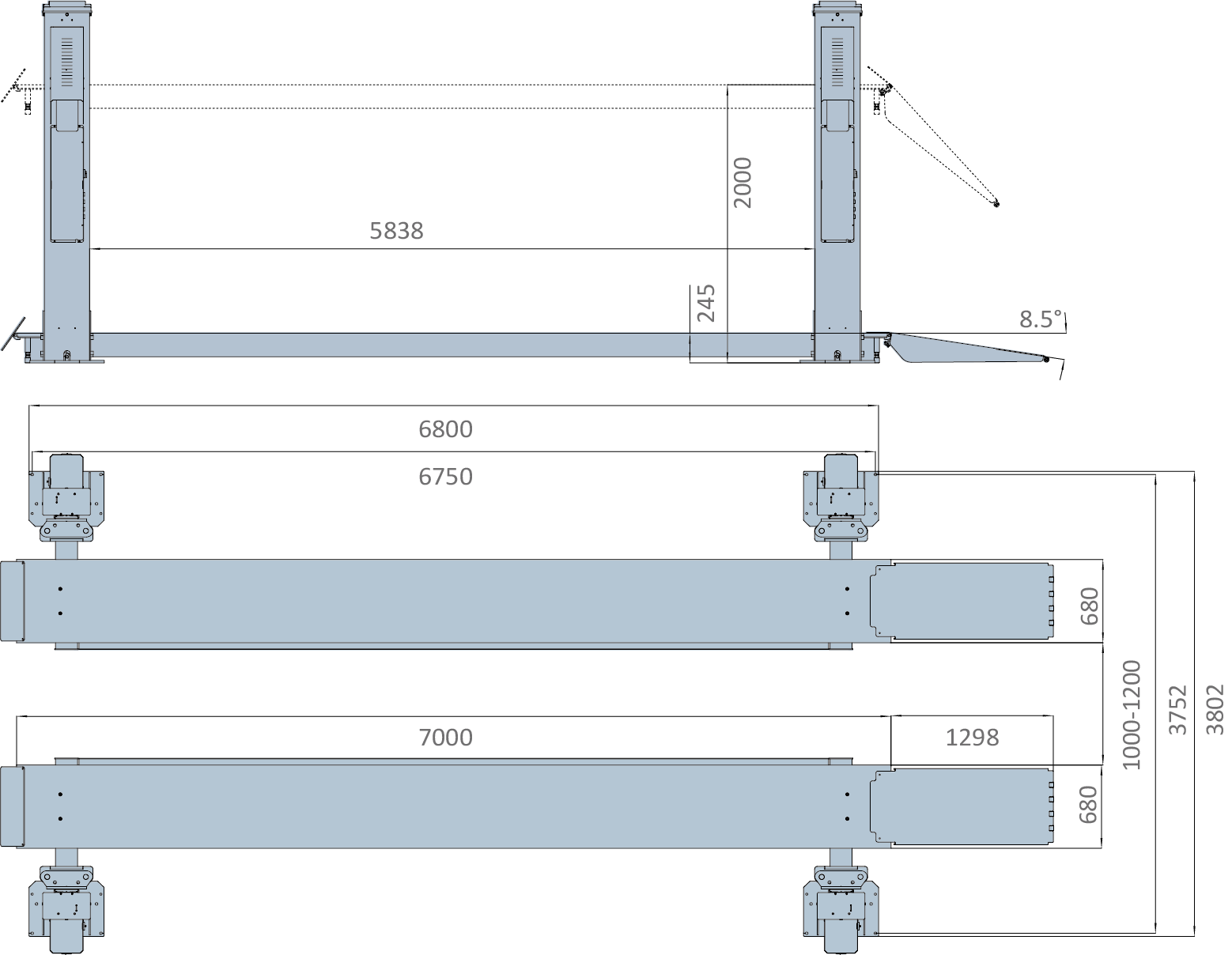

Overall Dimension

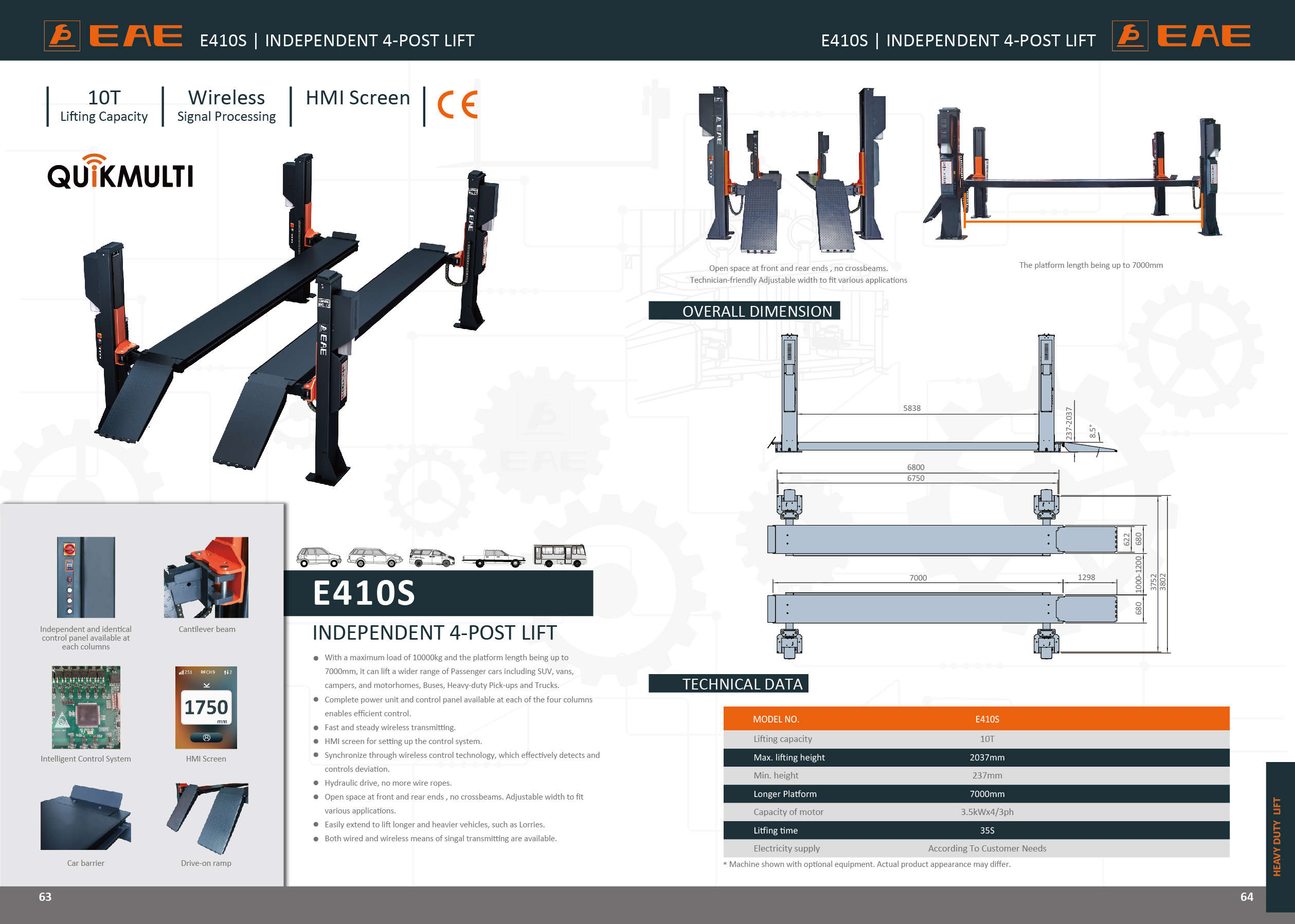

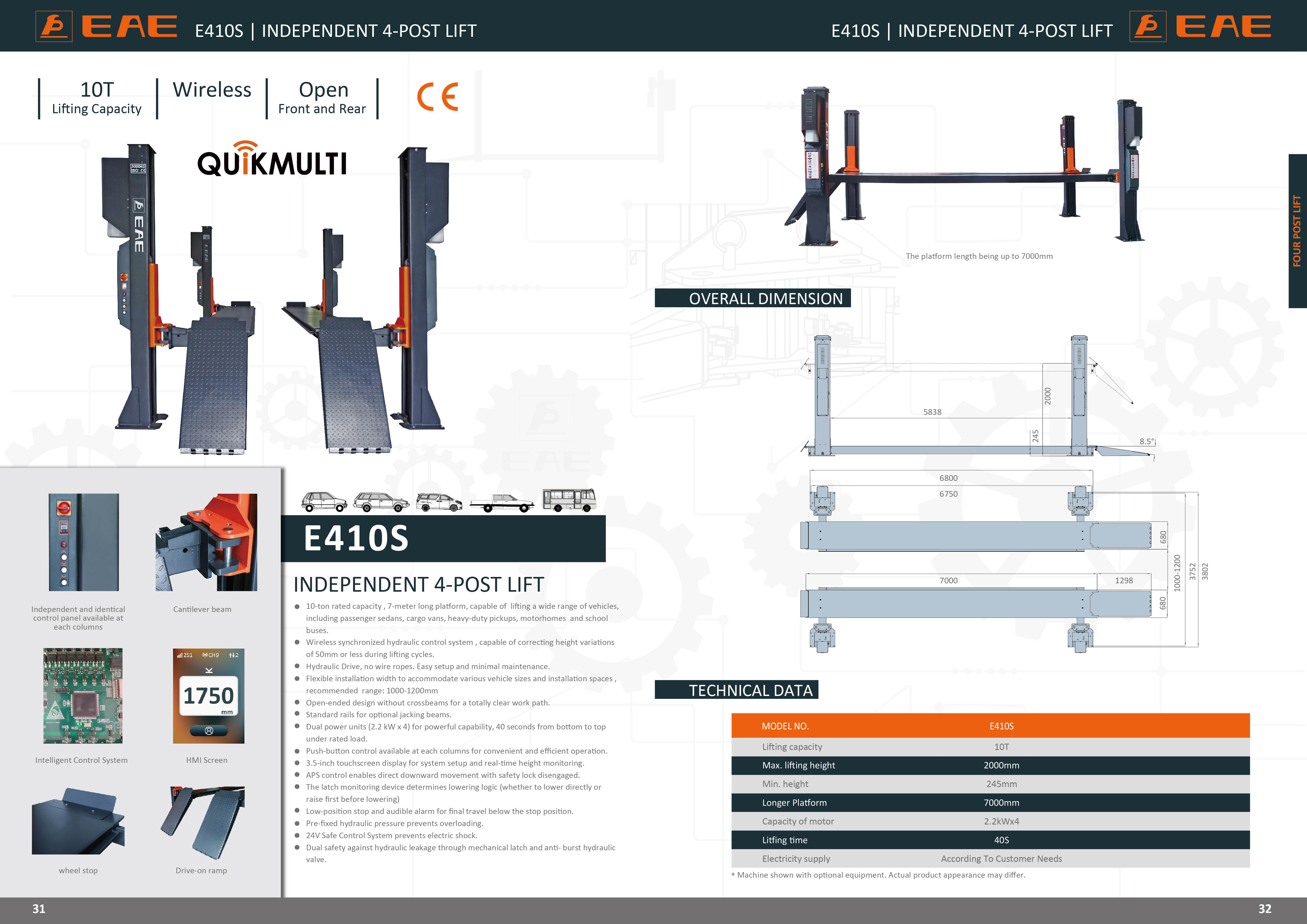

Brochure

MODEL NO.           E410S
Lifting Capacity 10000kg
Longer Platform 7000mm
Max Lifting Height 2040mm
Min Height 200mm
Litfing Time ≈35s
Motor 3.5kW×4/3ph


* Machine shown with optional equipment. Actual product appearance may differ.

·With a maximum load of 10000kg and the platform length being up to 7000mm, it can lift a wider range of Passenger cars including SUV, vans, campers, and motorhomes, Buses, Heavy-duty Pick-ups and Trucks.

·Complete power unit and control panel available at each of the four columns enables efficient control.
·Fast and steady wireless transmitting.
·HMI screen for setting up the control system.
·Synchronize through wireless control technology, which effectively detects and controls deviation.
·Hydraulic drive, no more wire ropes.
·Open space at front and rear ends , no crossbeams. Adjustable width to fit various applications.
·Easily extend to lift longer and heavier vehicles, such as Lorries.
·Both wired and wireless means of singal transmitting are available.
