6503 | 3.5T Full Rise Scissor Lift

Share:
Product Image VR View

EAE

  • 1800mm

    Max Lifting Height

  • 330mm

    Min Height

  • 1550-1990mm

    Platform Length

  • 40s

    Lifting Time

Accessories Details

24v Safe Control System

Pneumatic Release Mechanical Lock

Height Limit Switch

High Quality Ball Valve

Technical Data
Description

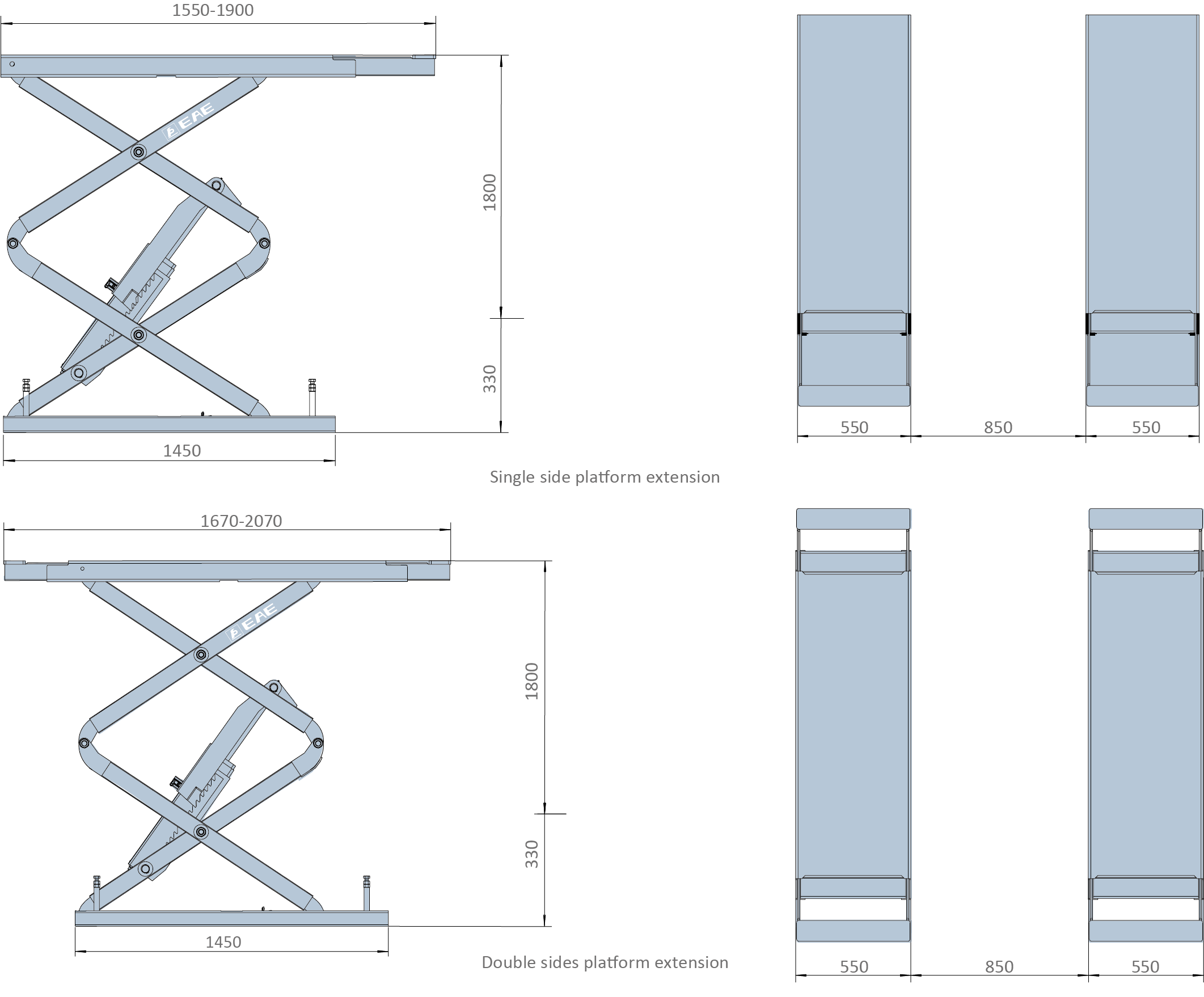

Overall Dimension
Brochure
Cases
MODEL NO. 6503
Lifting Capacity  3.5T
Max Lifting Height 2130mm (1800mm above floor)
Min Height 330mm
Platform Width 550mm
Lifting Time ≈40s
Air Supply 6-8bar
Capacity of Motor 3.5kW/3ph
Electricity Supply According To Customer Needs

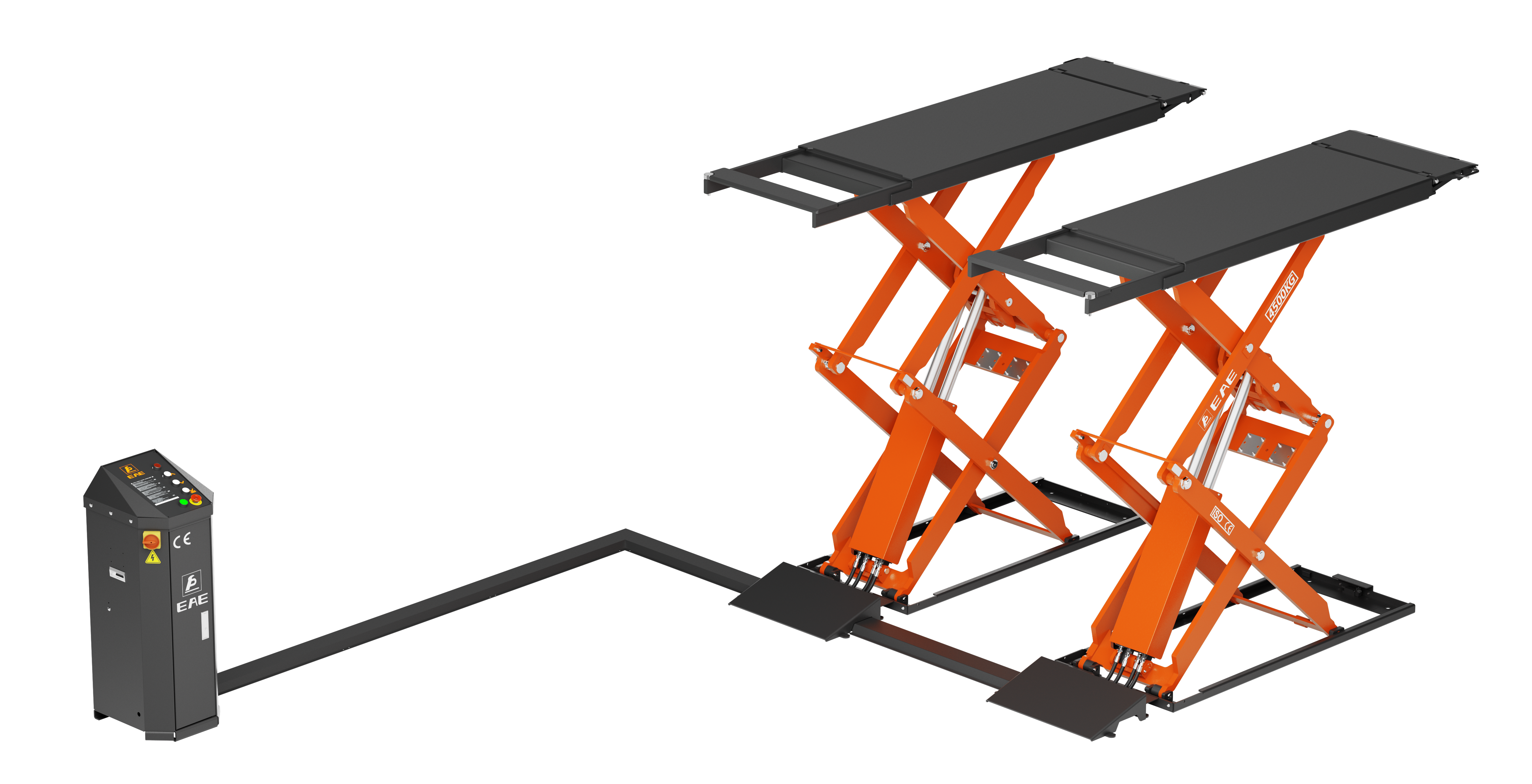

* Machine shown with optional equipment. Actual product appearance may differ.

·3.5T lifting capacity

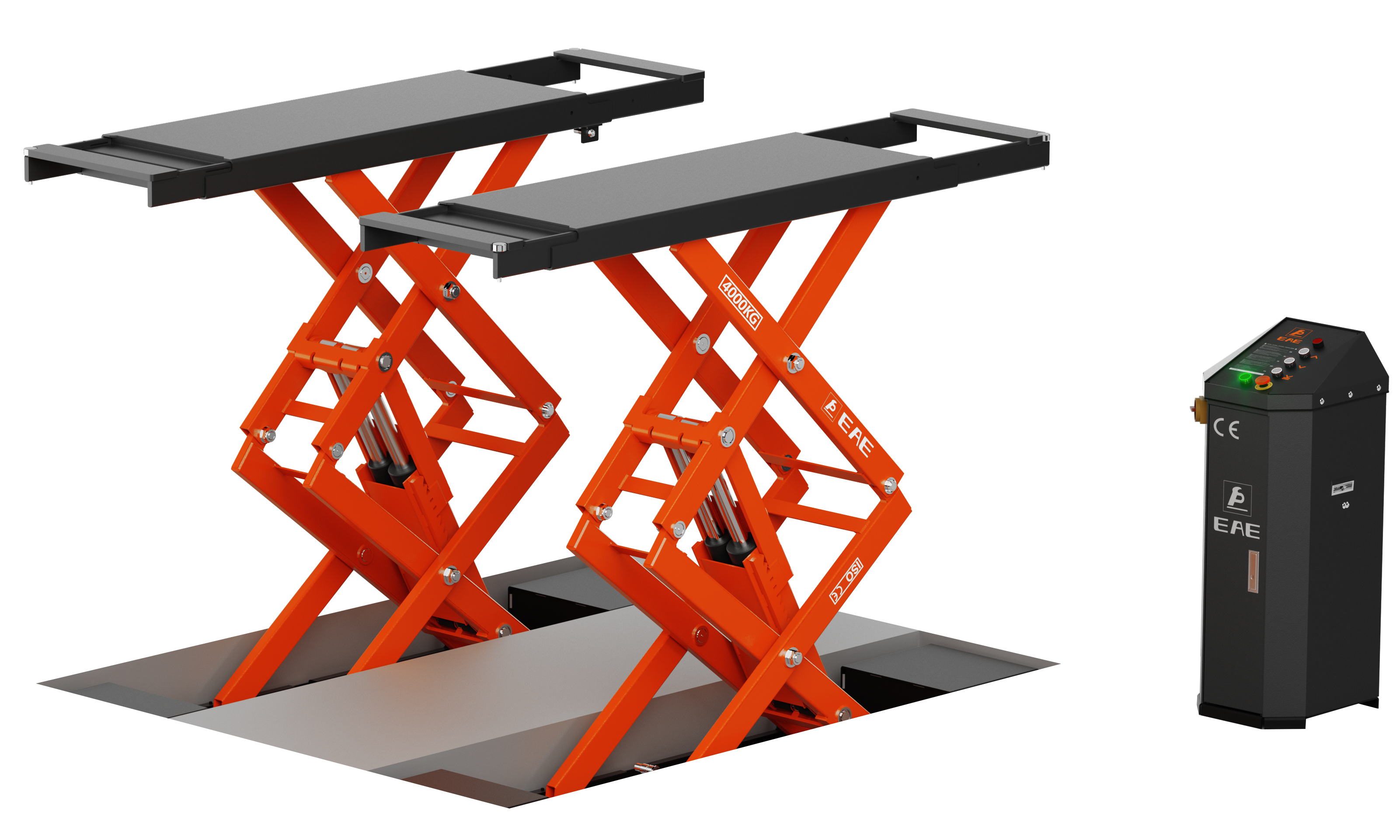

·Recessed installation

·Infrared synchronization protection system
·Pneumatic released safety locking system
·Platforms can be extended for longer vehicles
·Durable cylinders in each column carry with anti-surge valves
·24V safe control system
·Height limit switch
·Safety descent alarming buzzer
·Powder coated finish
·Self-lubricated bushing and bearing
·Aluminum motor, no risks of overheating
