CJ | 3.0T

Share:
Optional Parts Product Details
·3.0T lifting capacity
·Durable and compact scissor carrying structure
·Adjustable width between support wheels to fit different widths between runways
·With manual release mechanical safety locking unit
·Steel-made driving rolls with ball-bearings move easily and smoothly on the track
·Manual or pneumatic drive
Technical Data

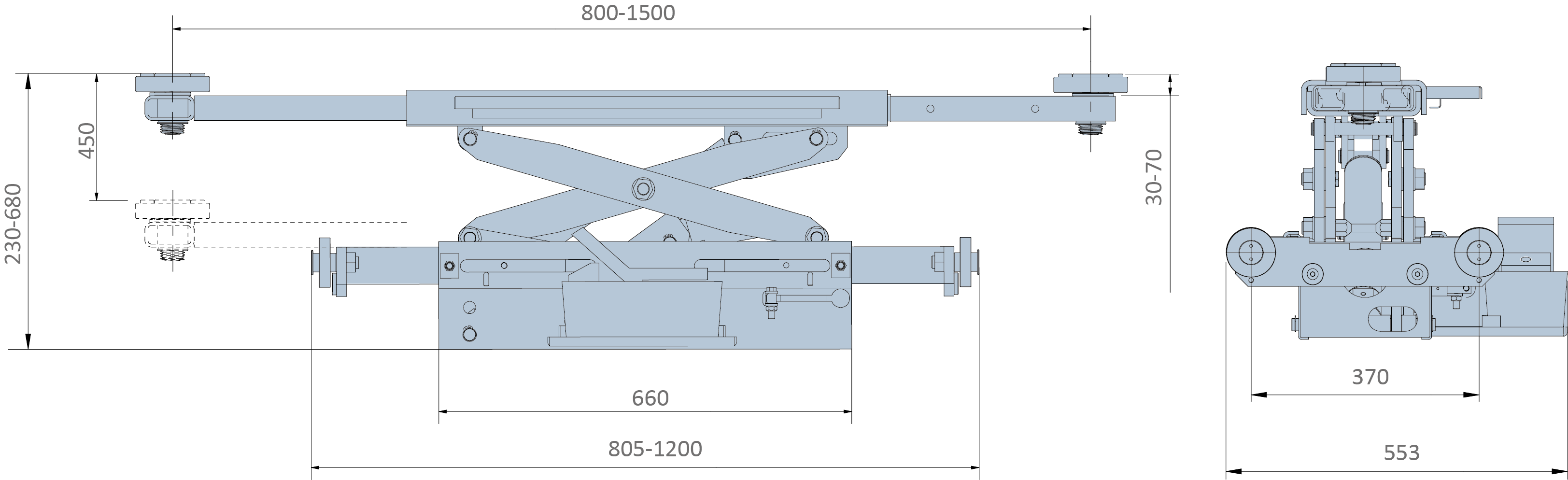

Overall Dimension

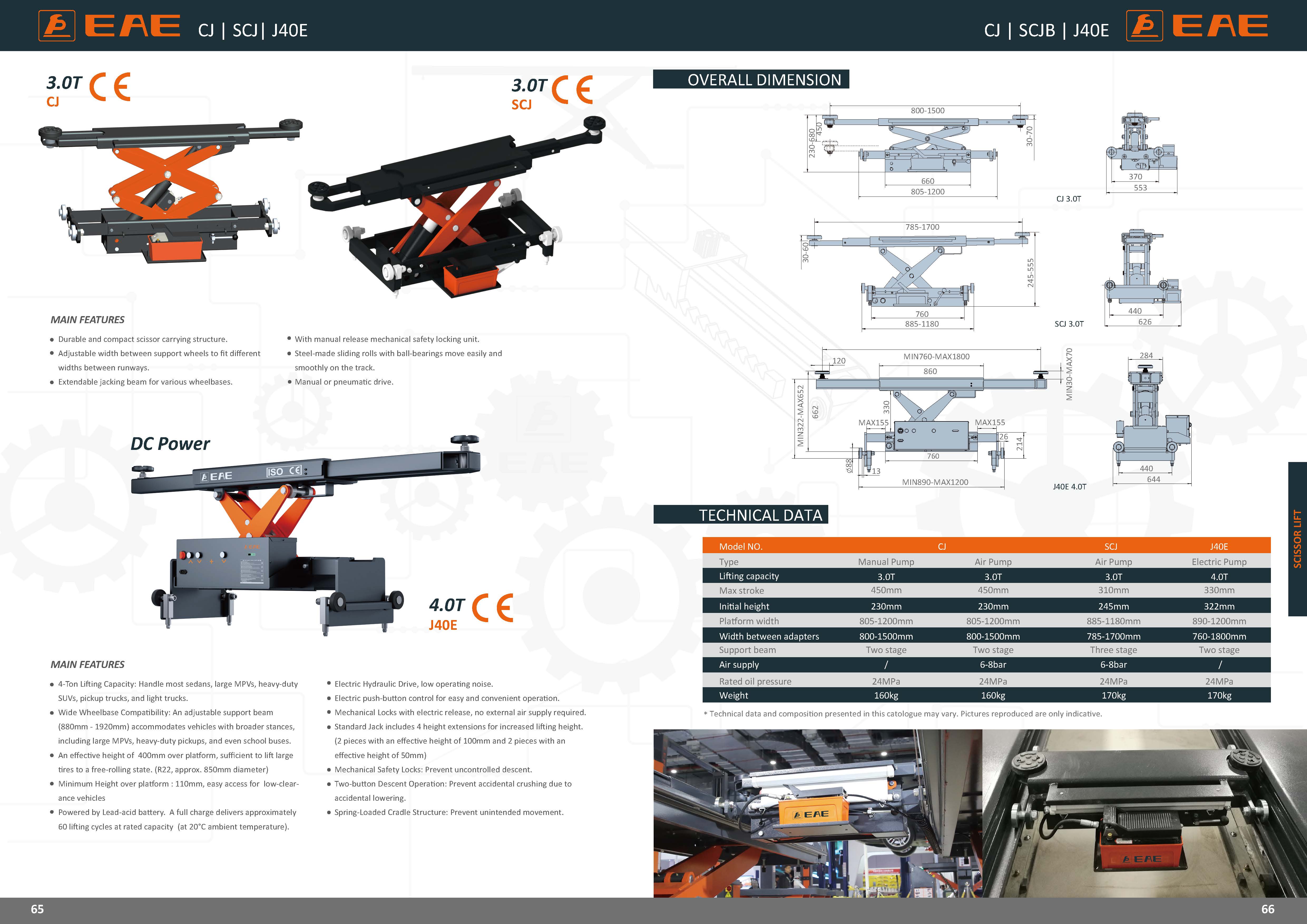

Brochure
MODEL NO.
CJ
CJ
Type Manual Pump
Air Pump
Lifting Capacity 3.0T
3.0T
Max Stroke 450mm
450mm
Initial Height
230mm
230mm
Platform Width
805-1200mm
805-1200mm
Width Between Adapters 800-1500mm
800-1500mm
Support Beam
Two Stage
Two Stage
Air Supply /
6-8bar
Rated Oil Pressure 24Mpa
24Mpa
Weight
160kg
160kg

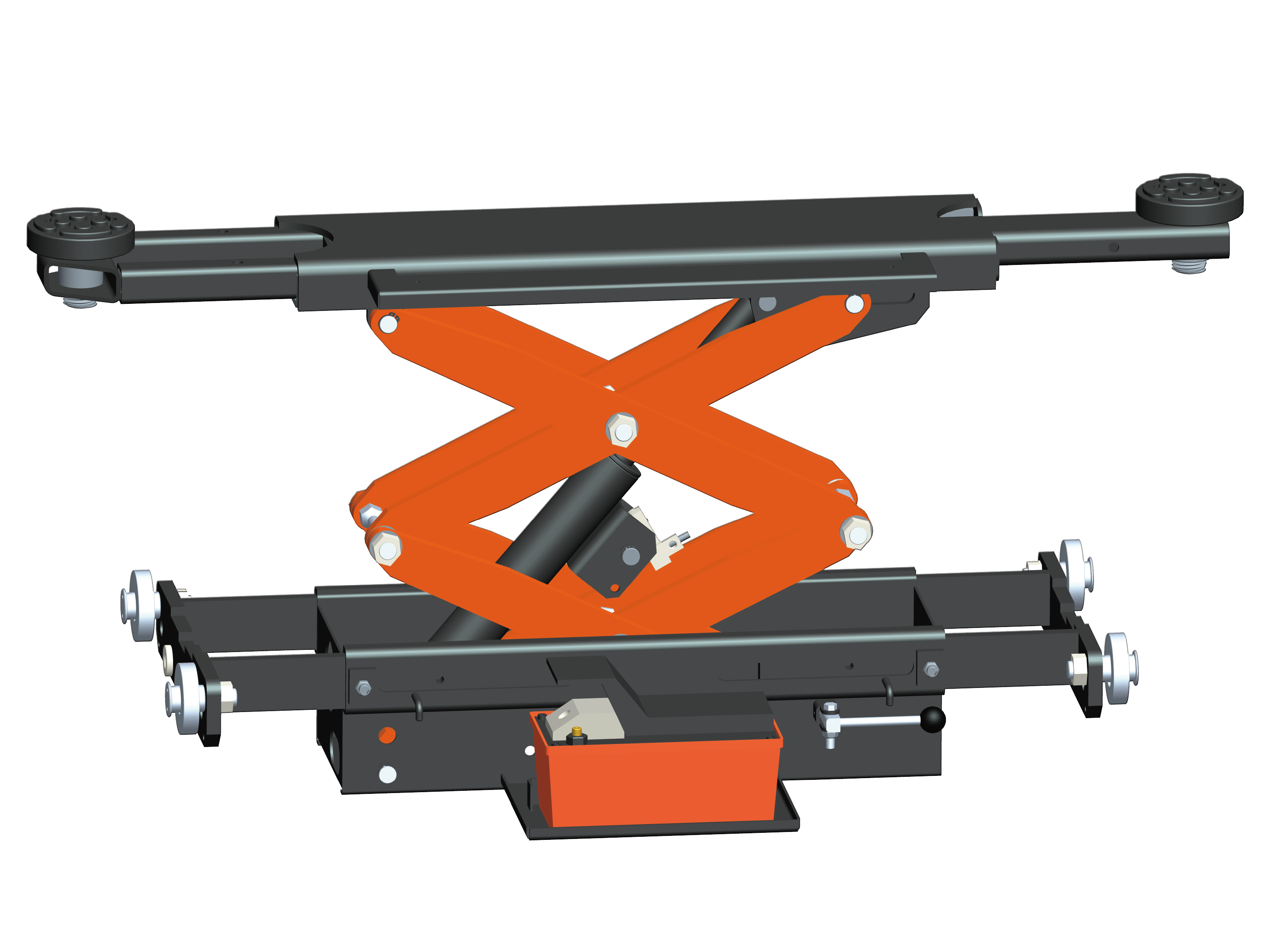

* Machine shown with optional equipment. Actual product appearance may differ.
