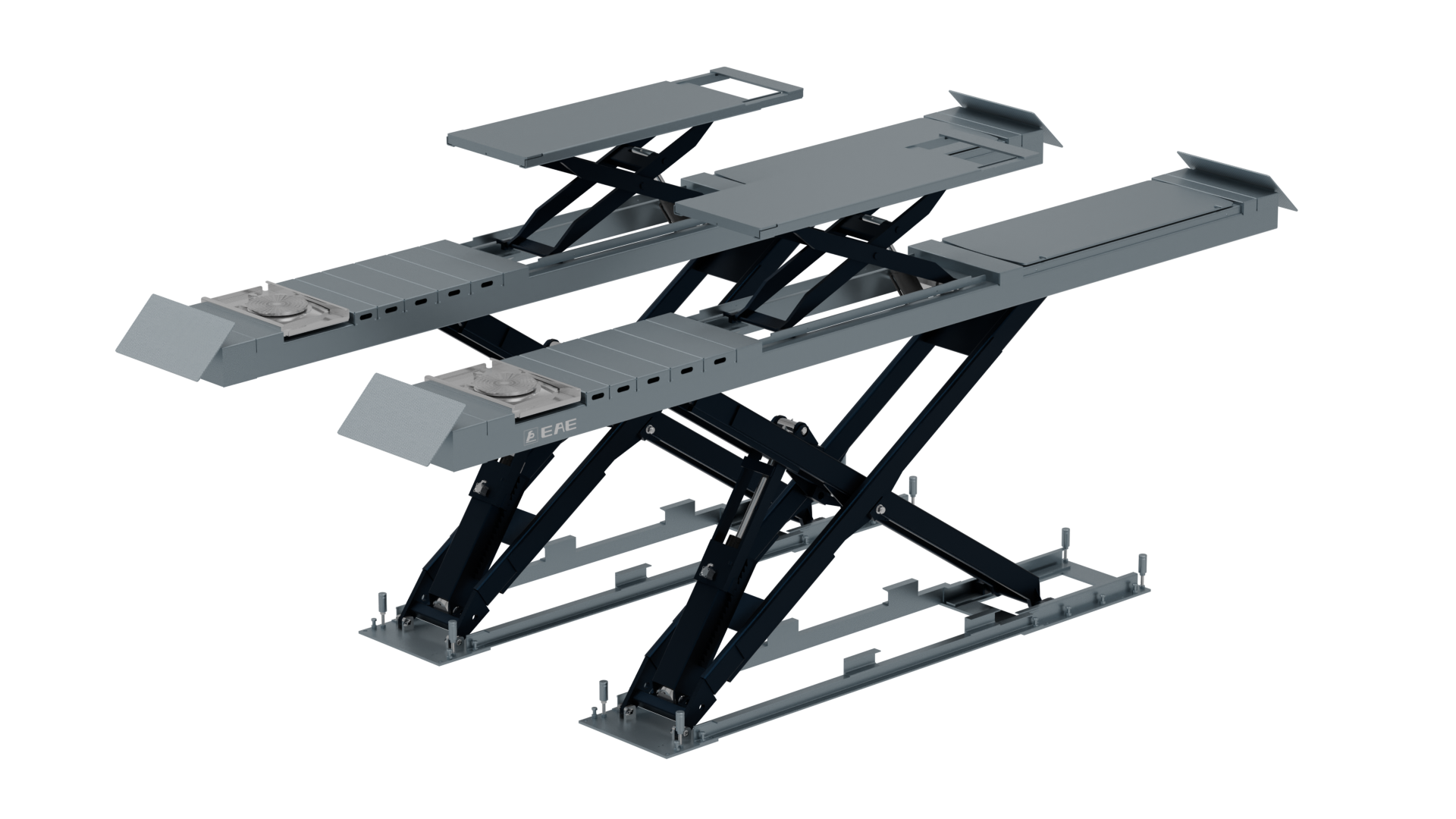

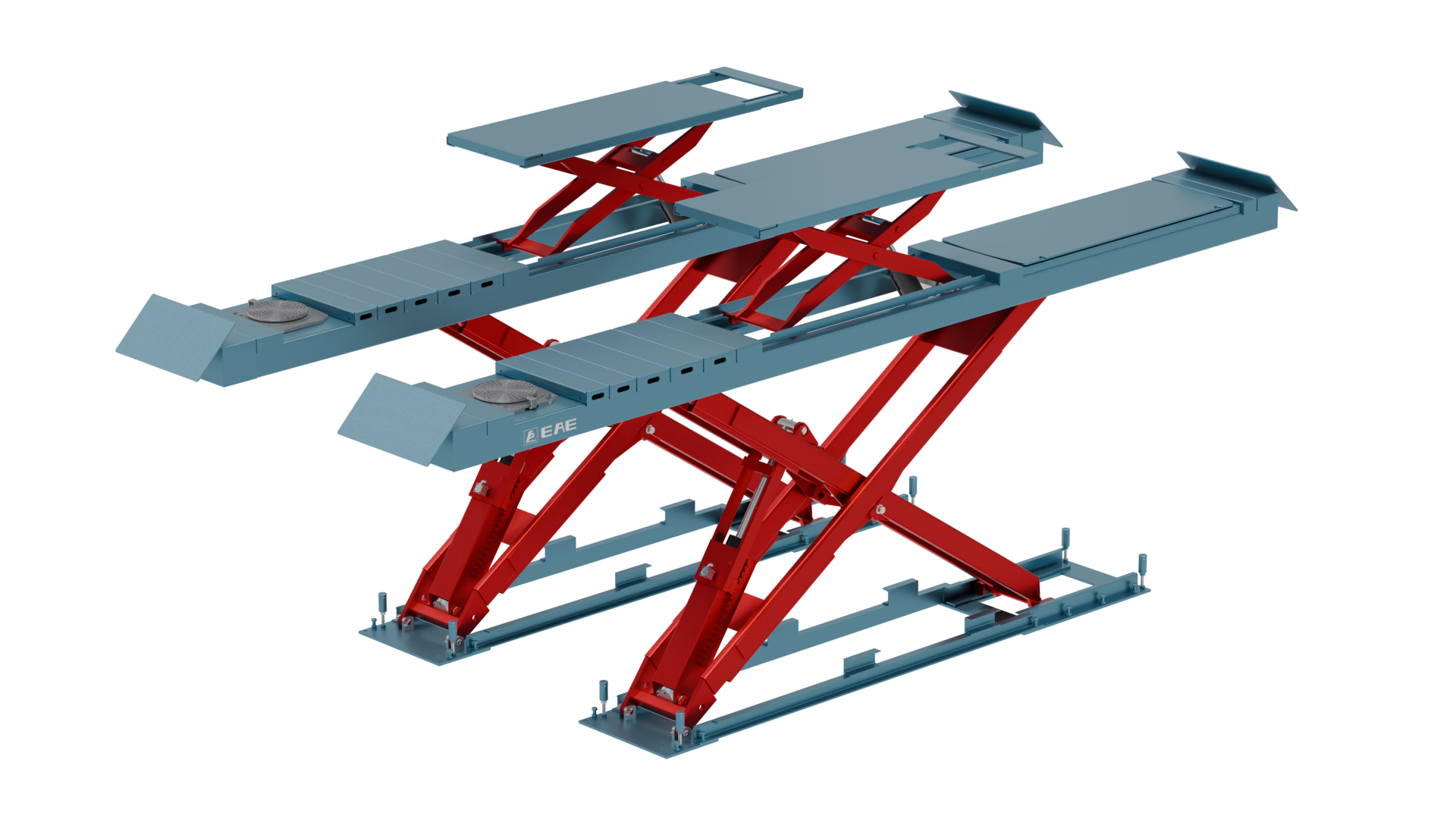

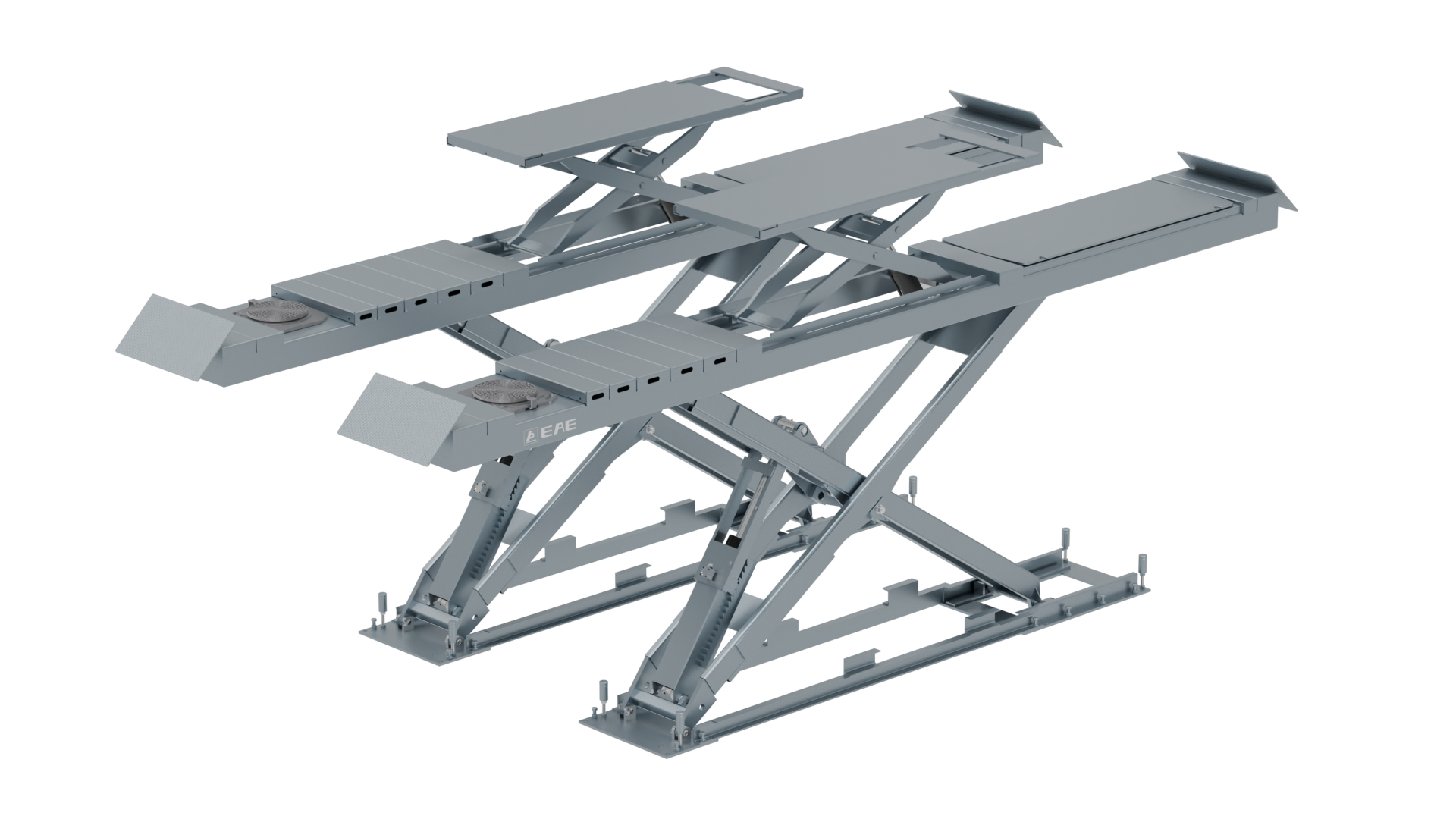

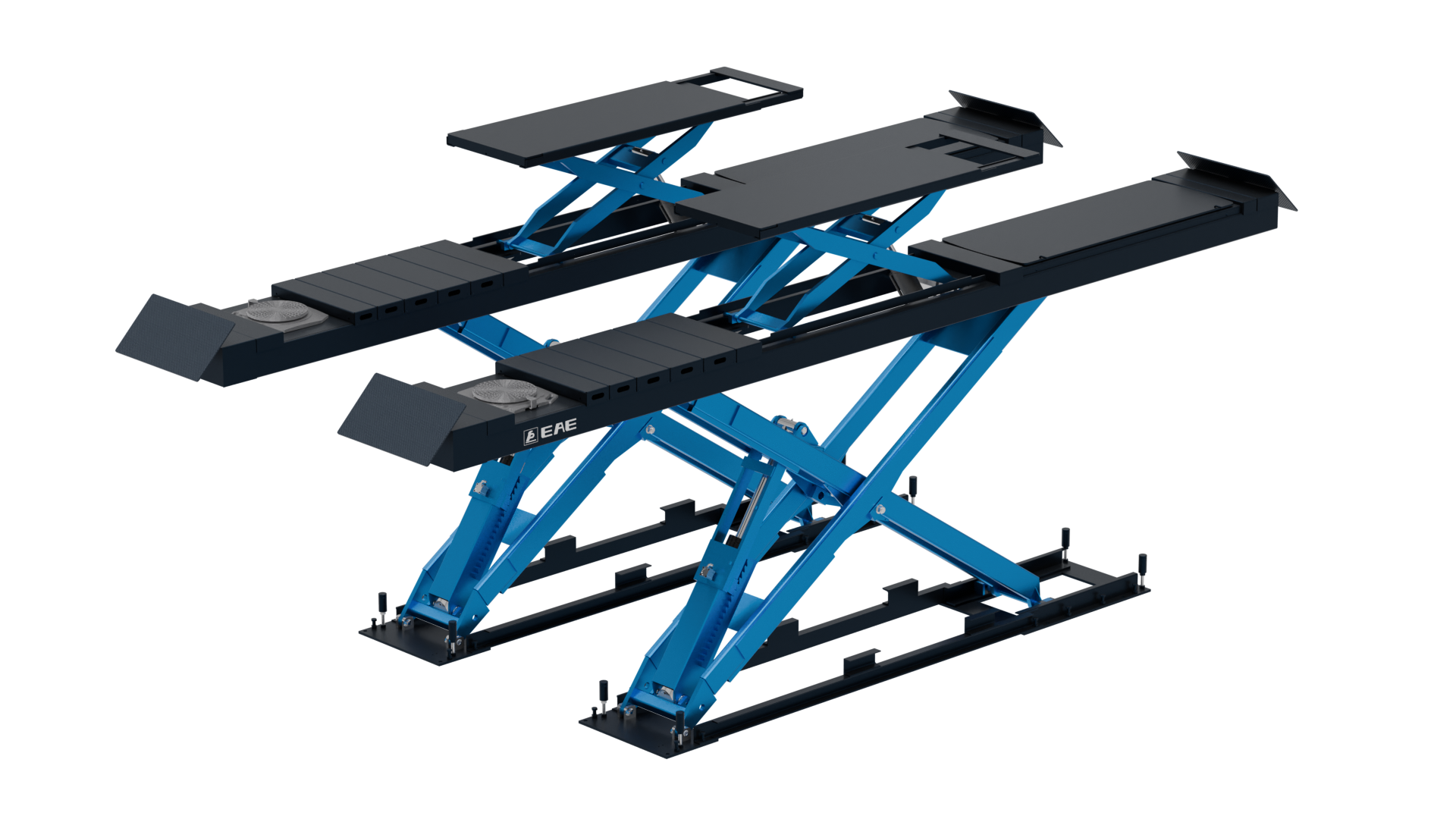

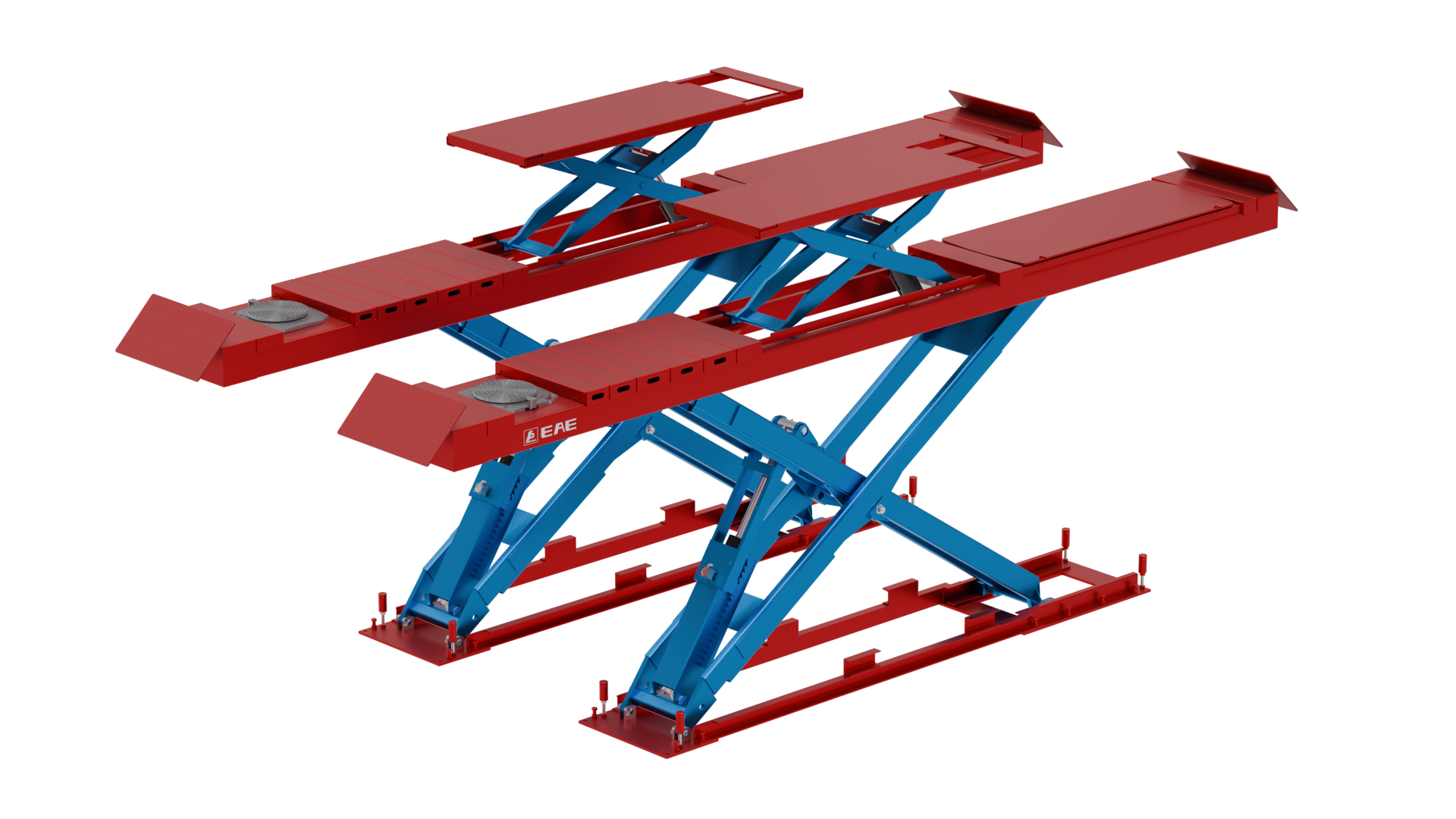

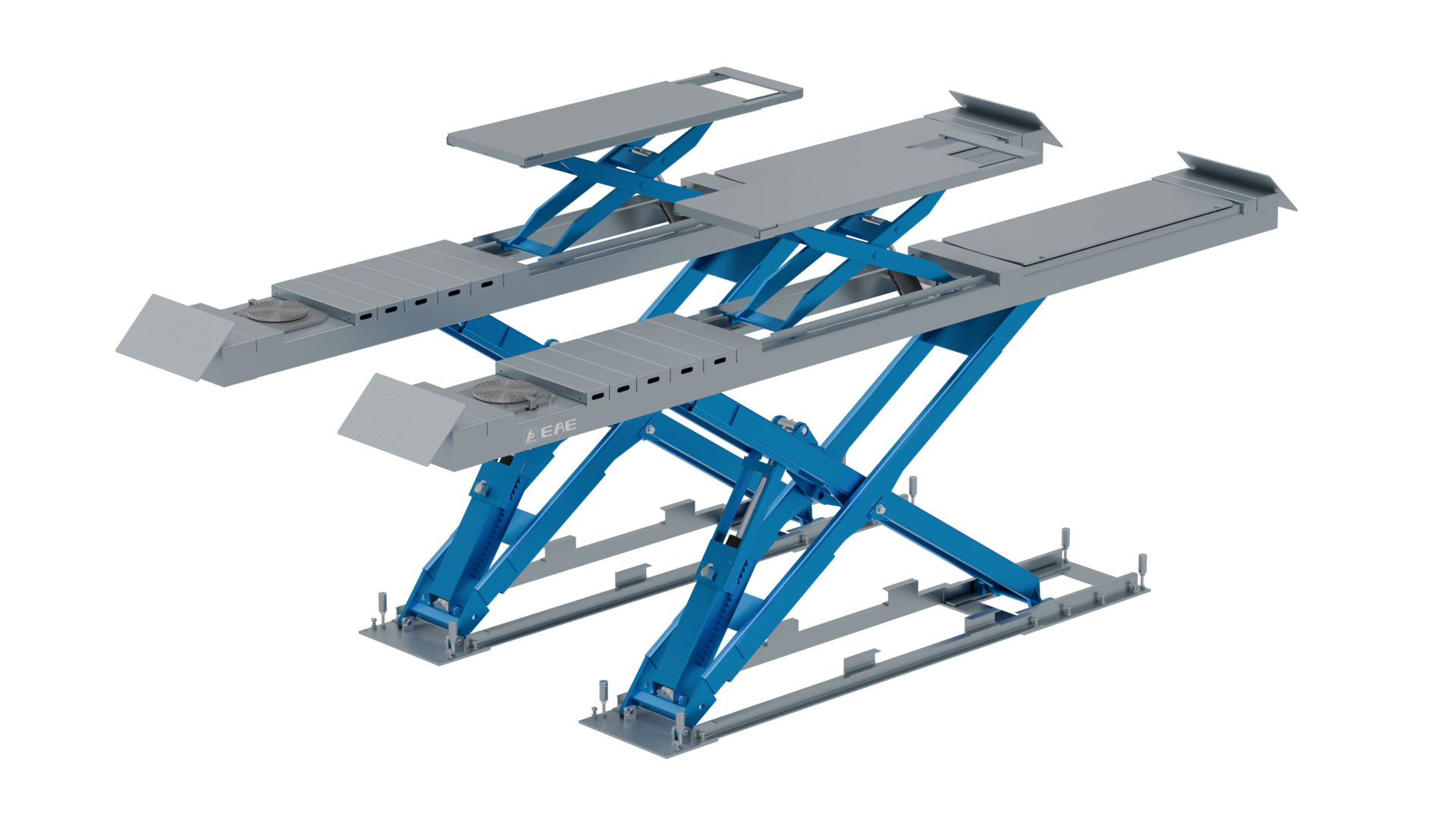

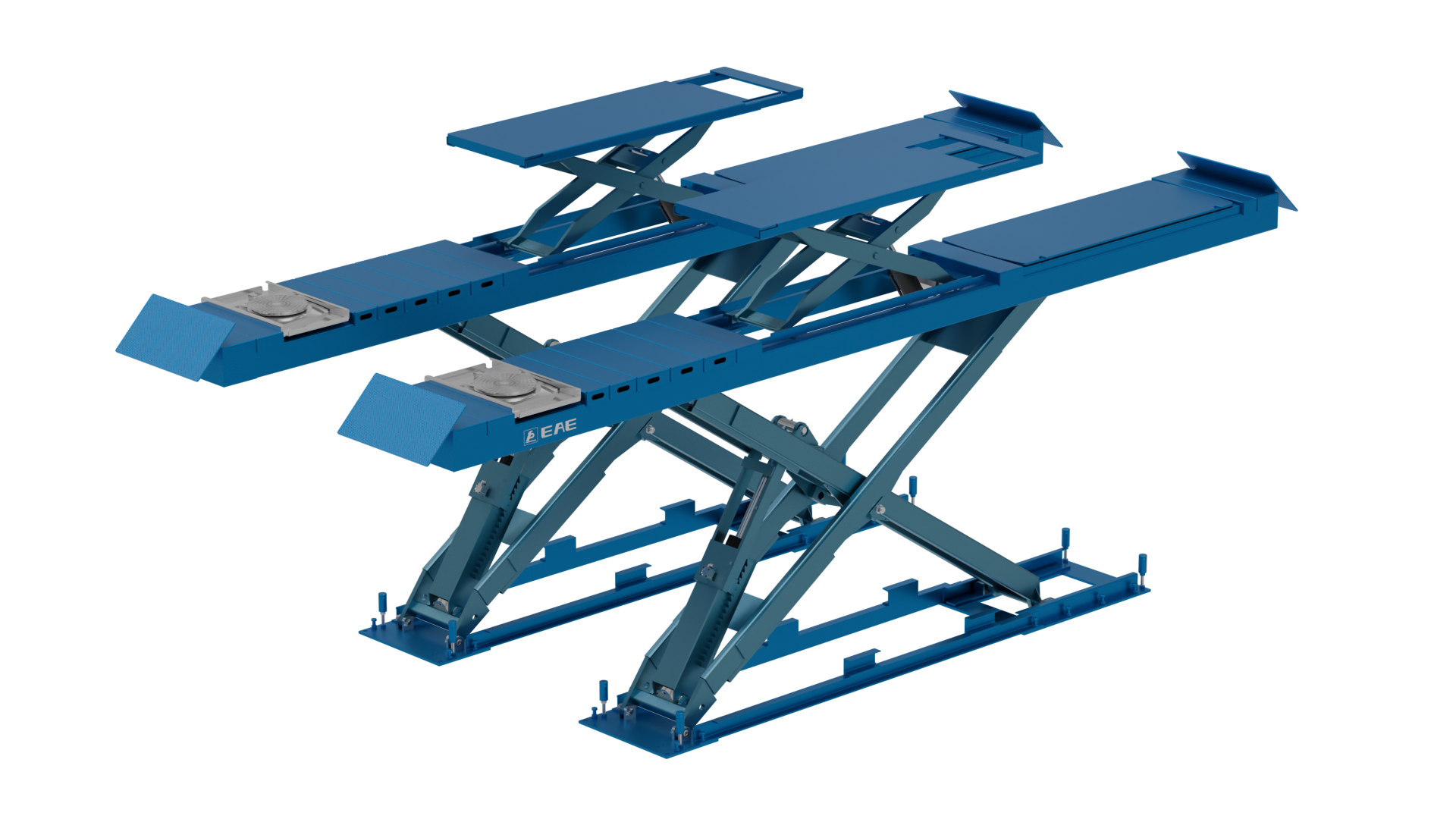

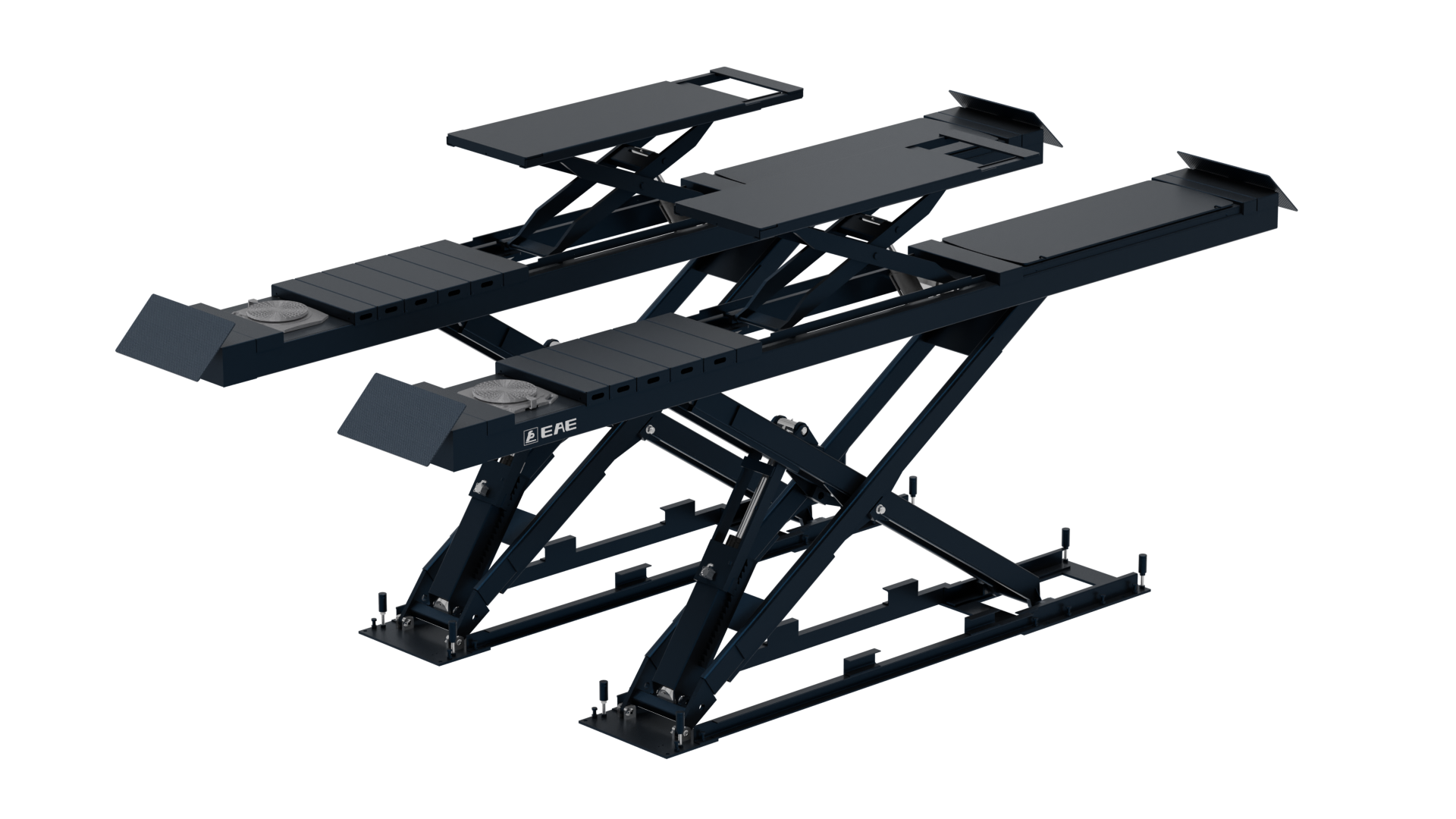

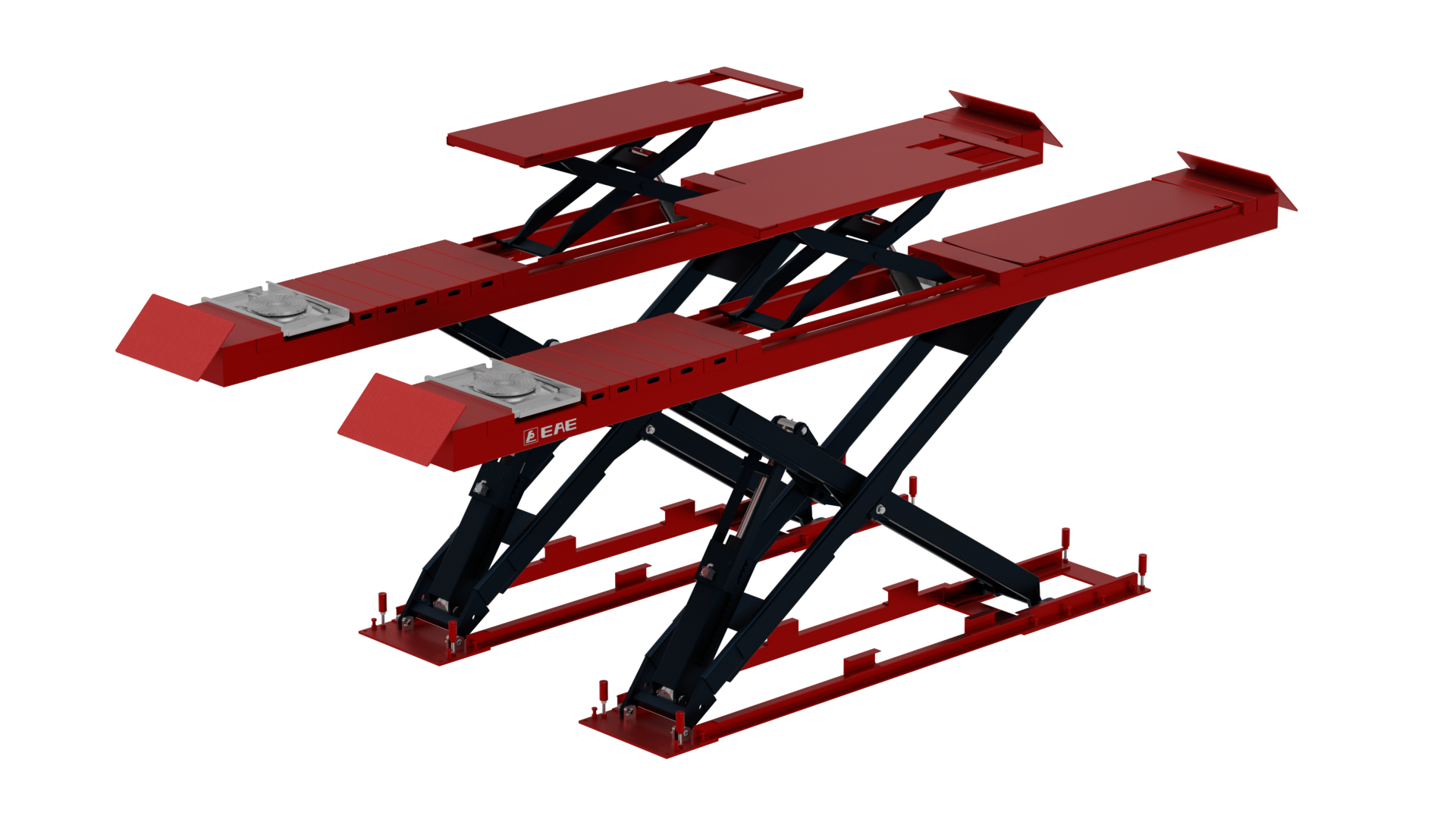

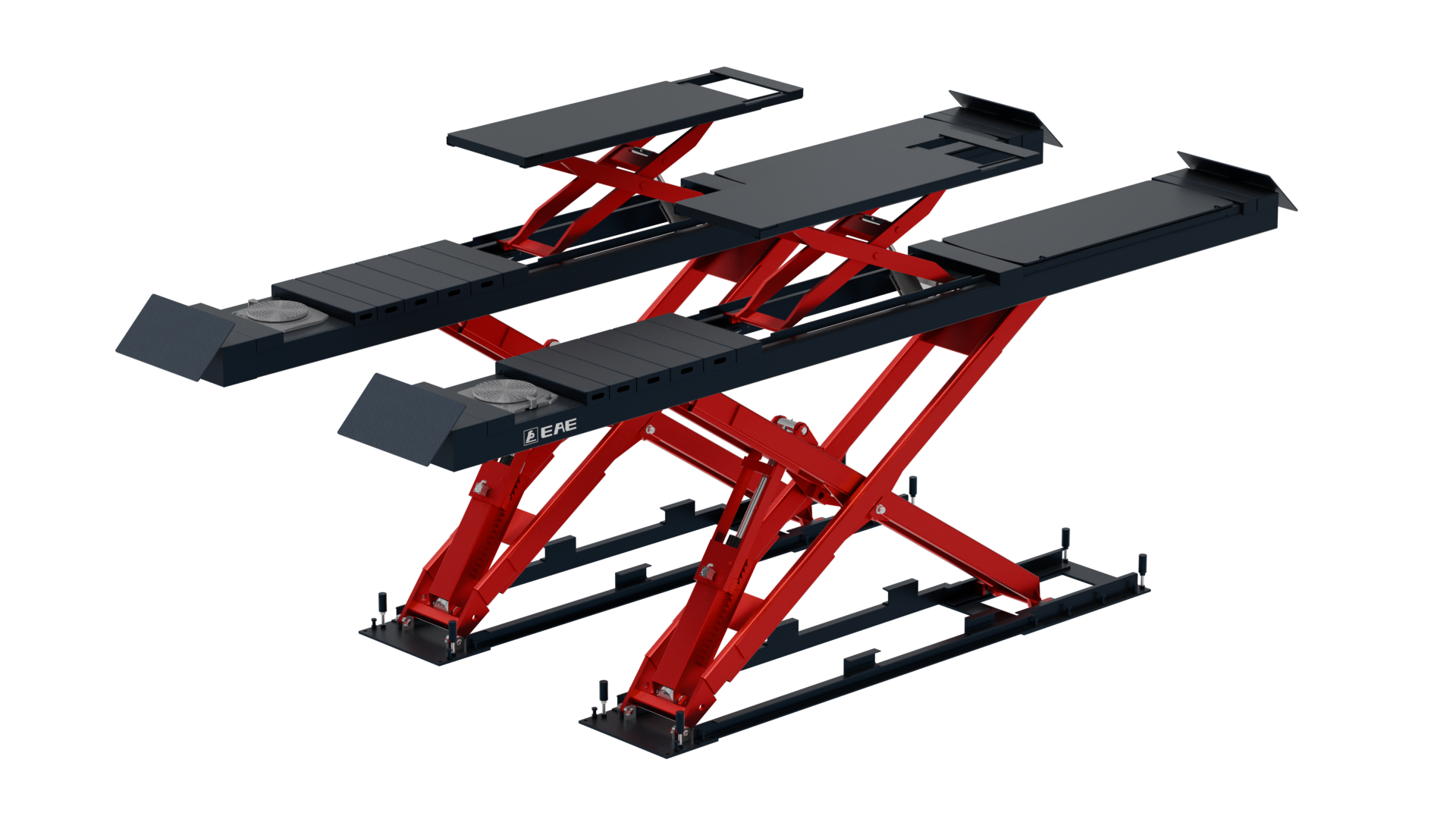

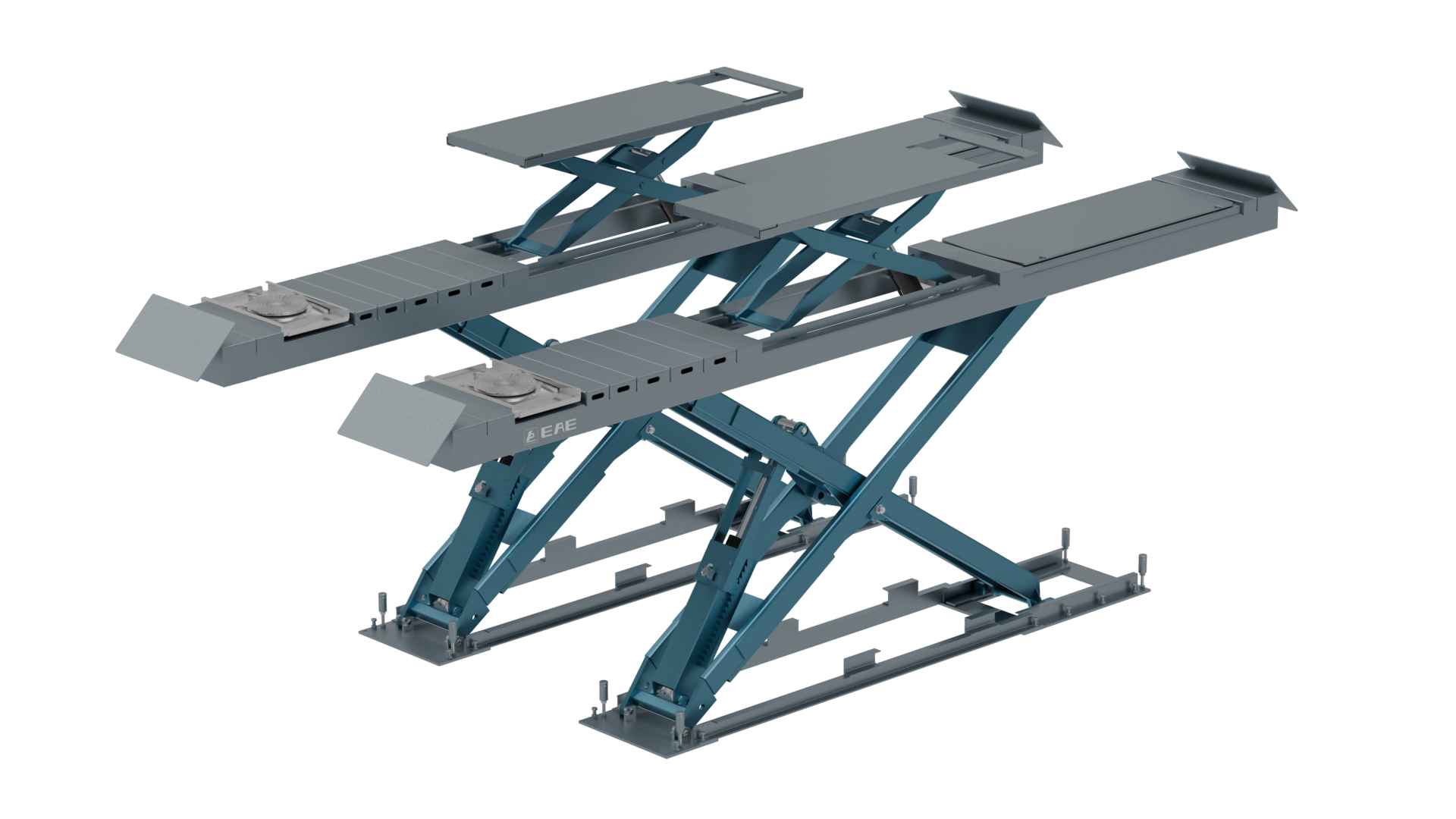

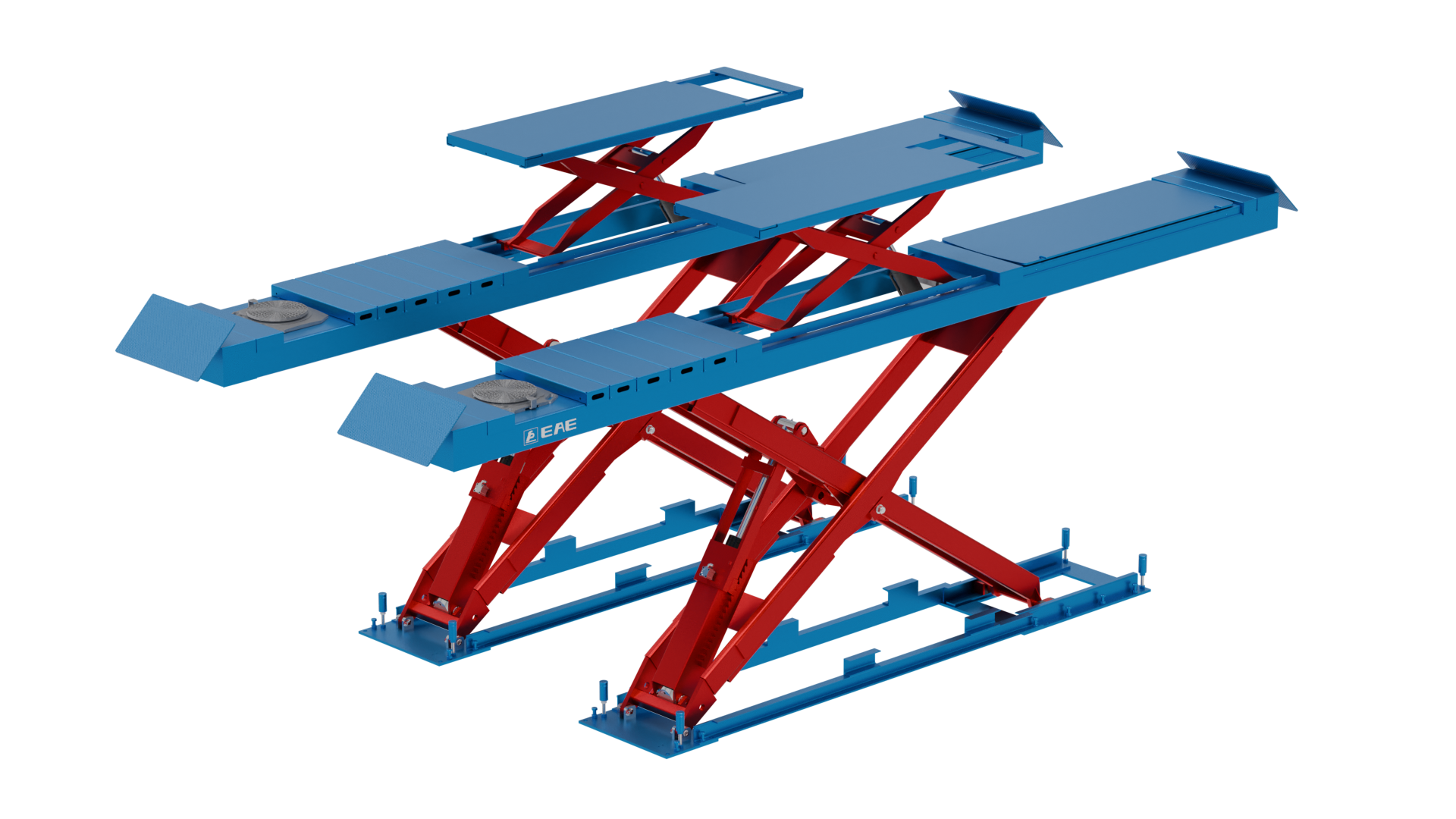

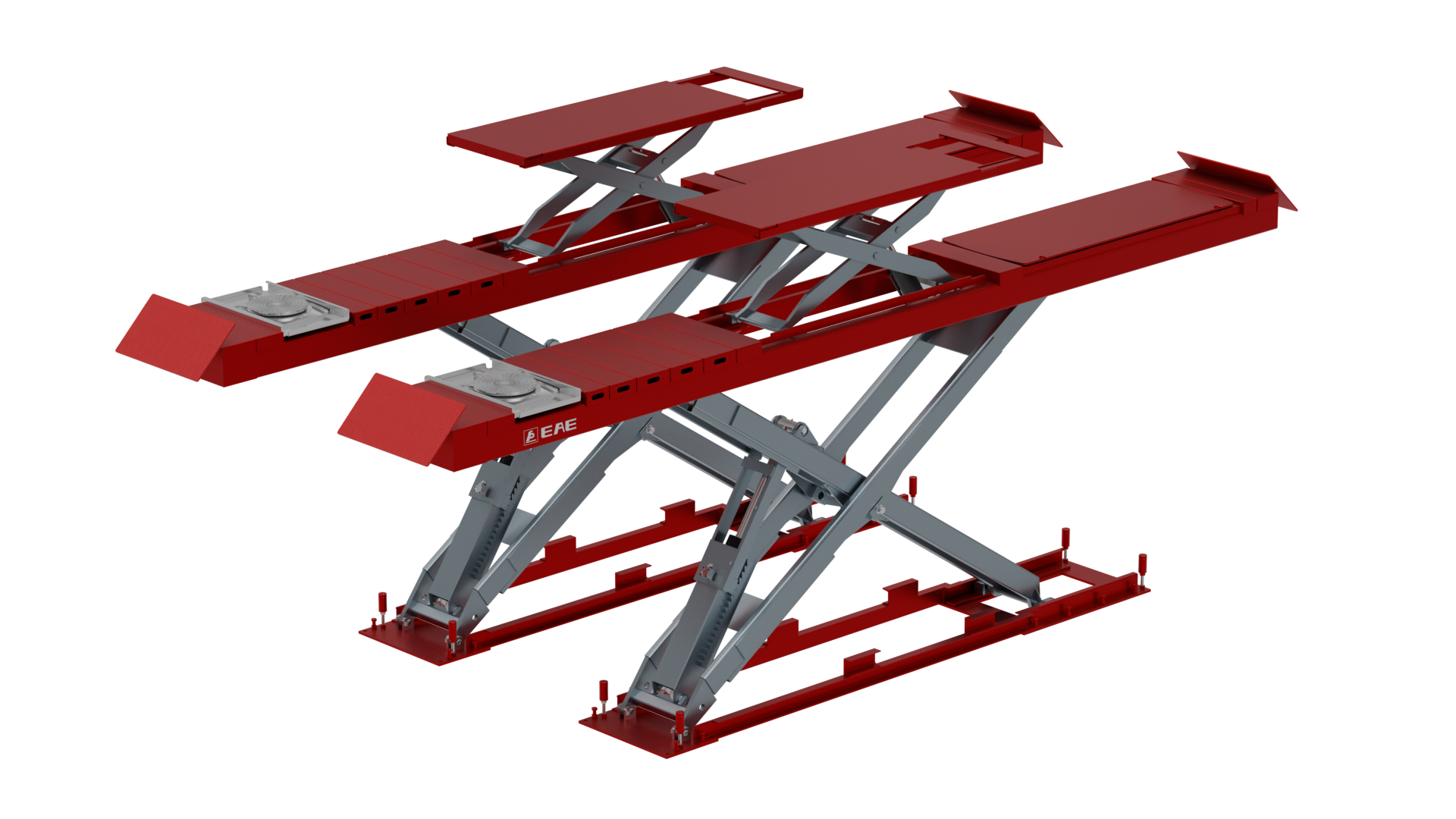

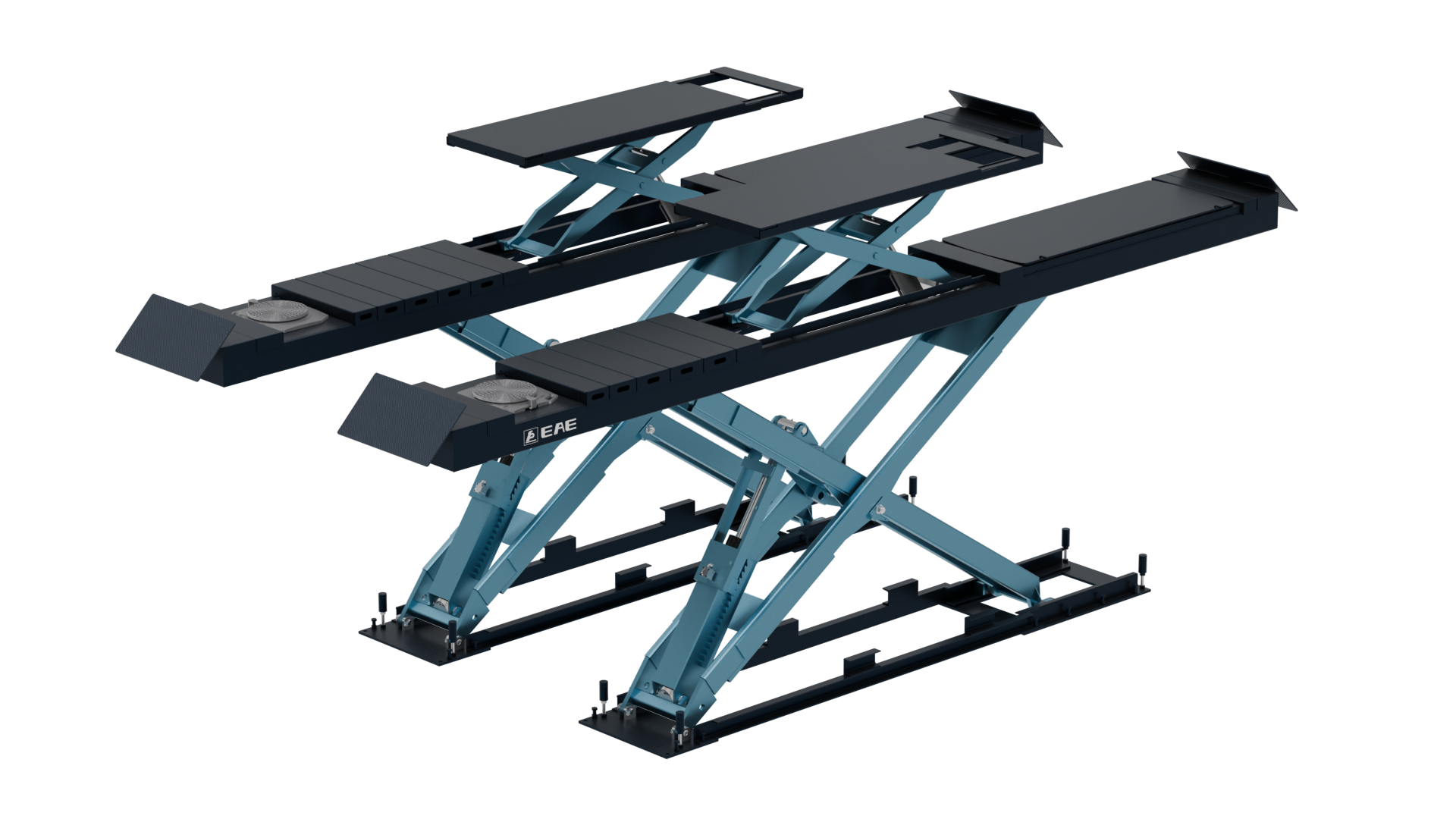

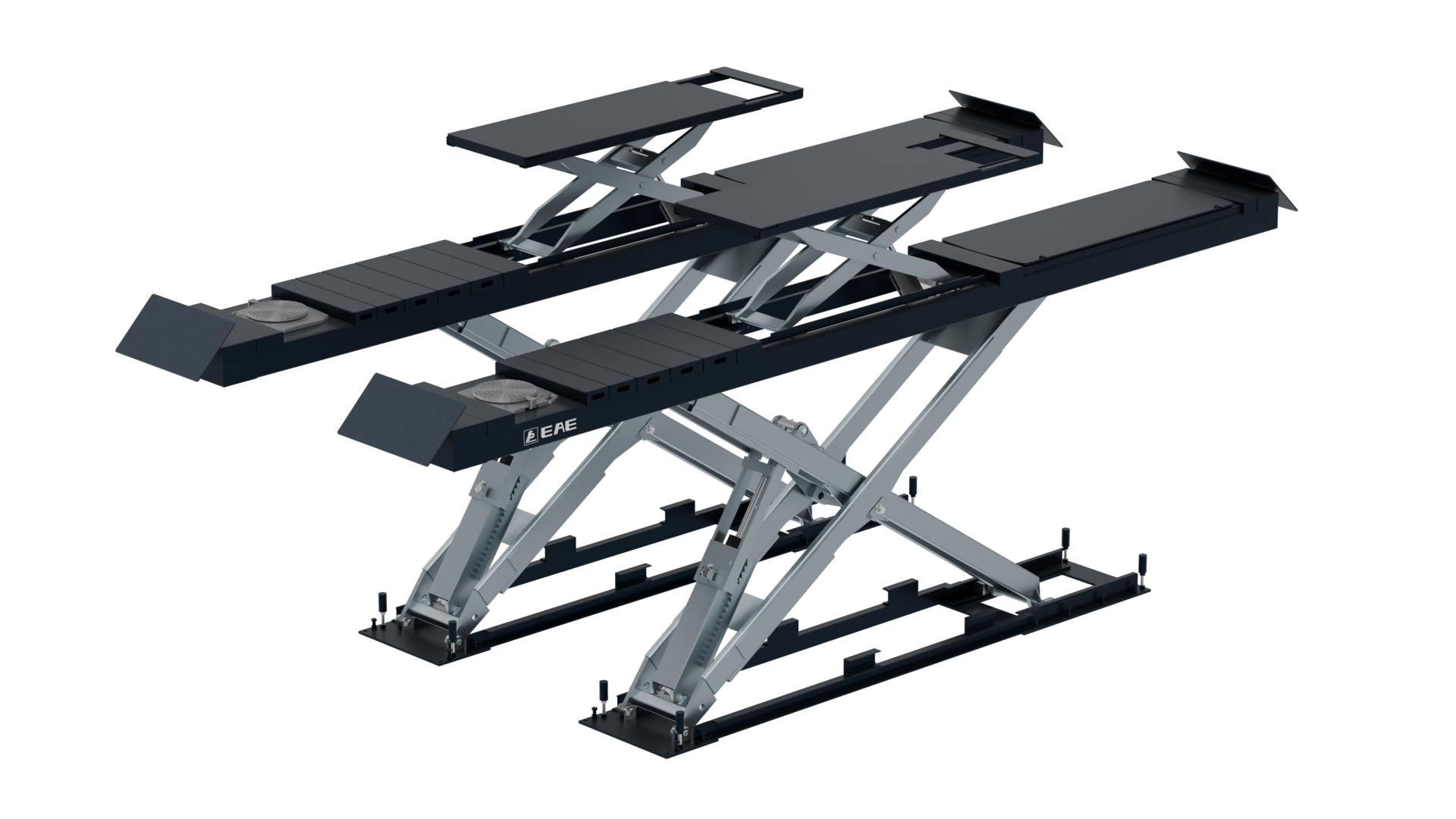

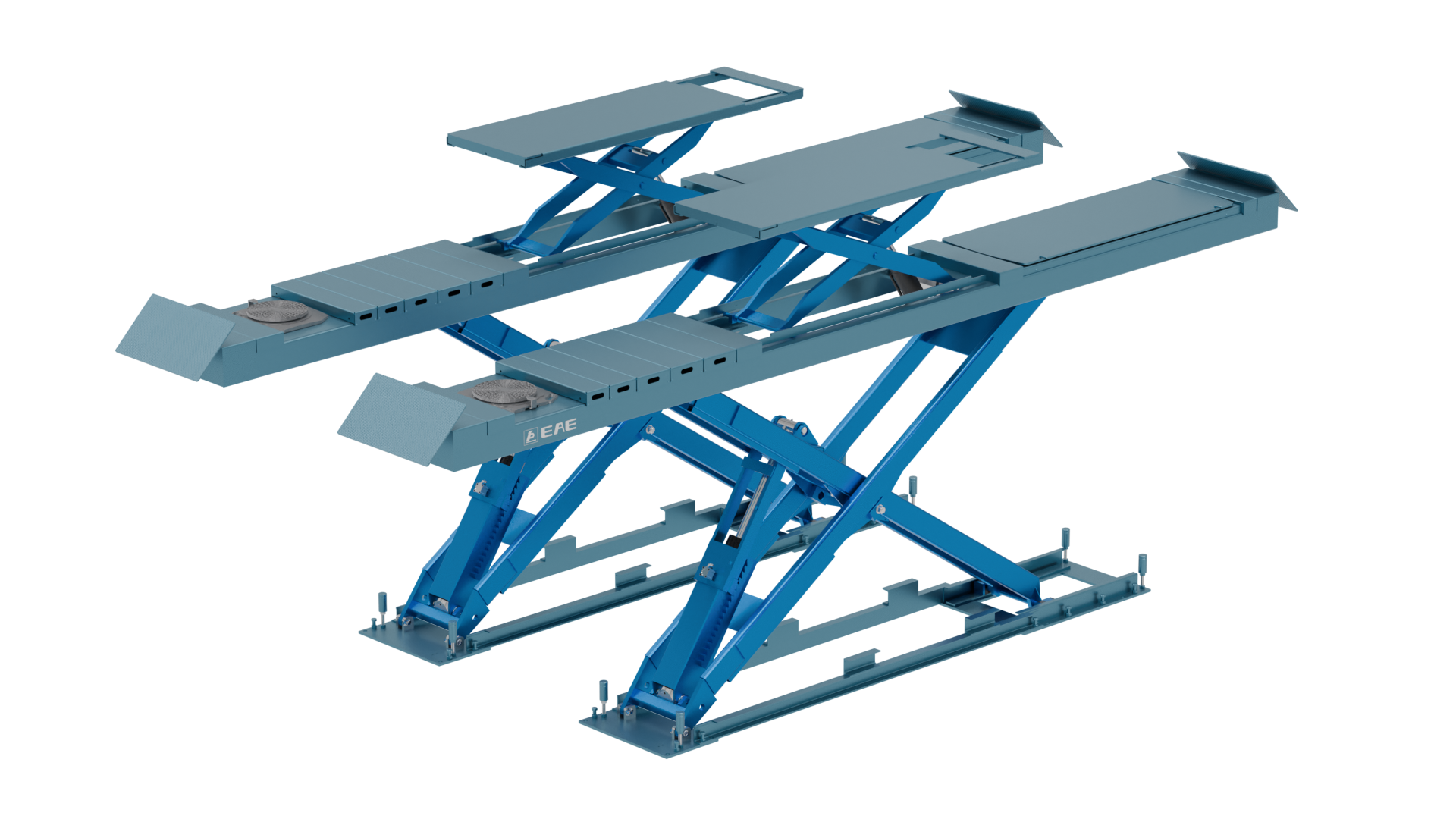

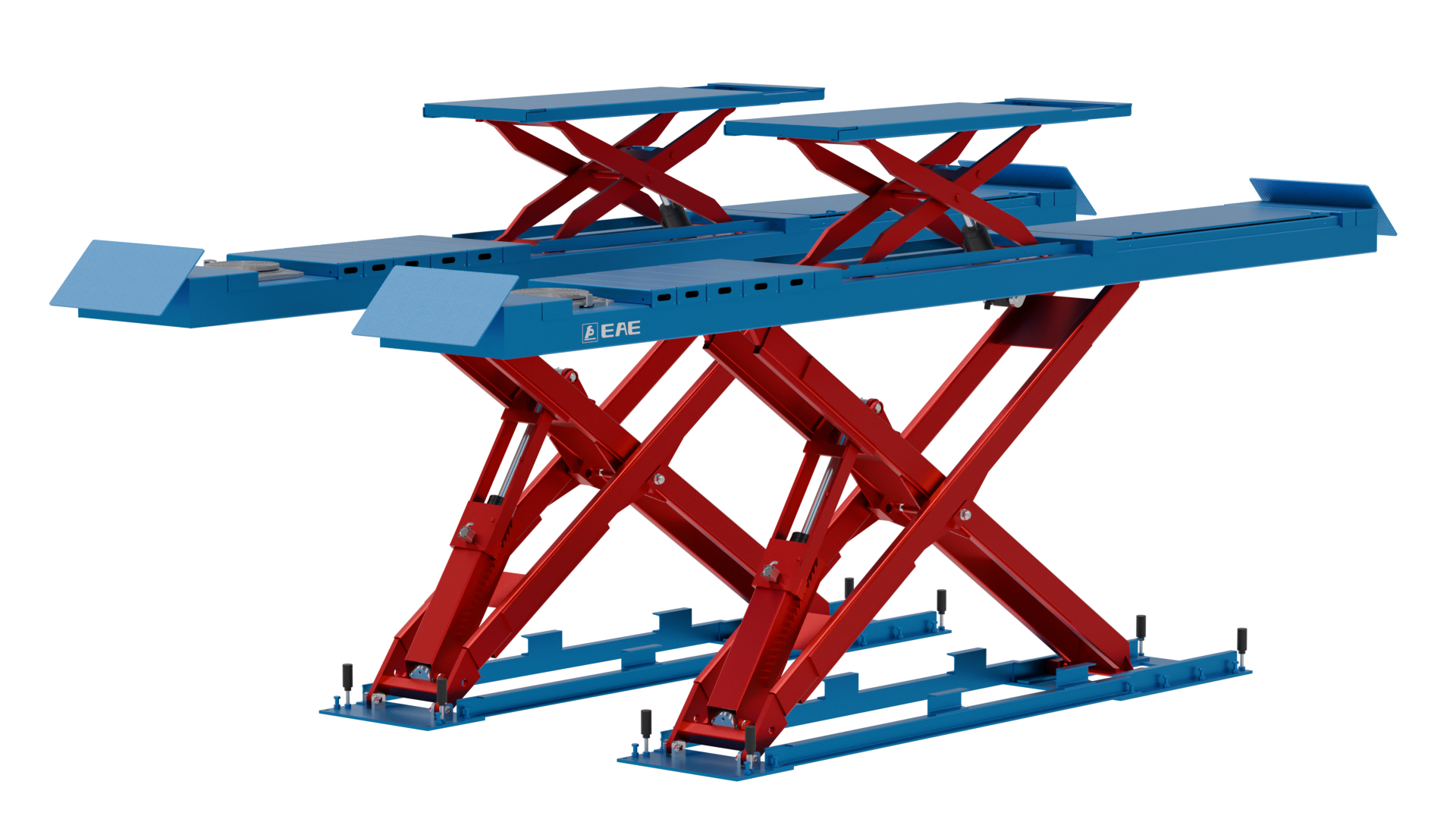

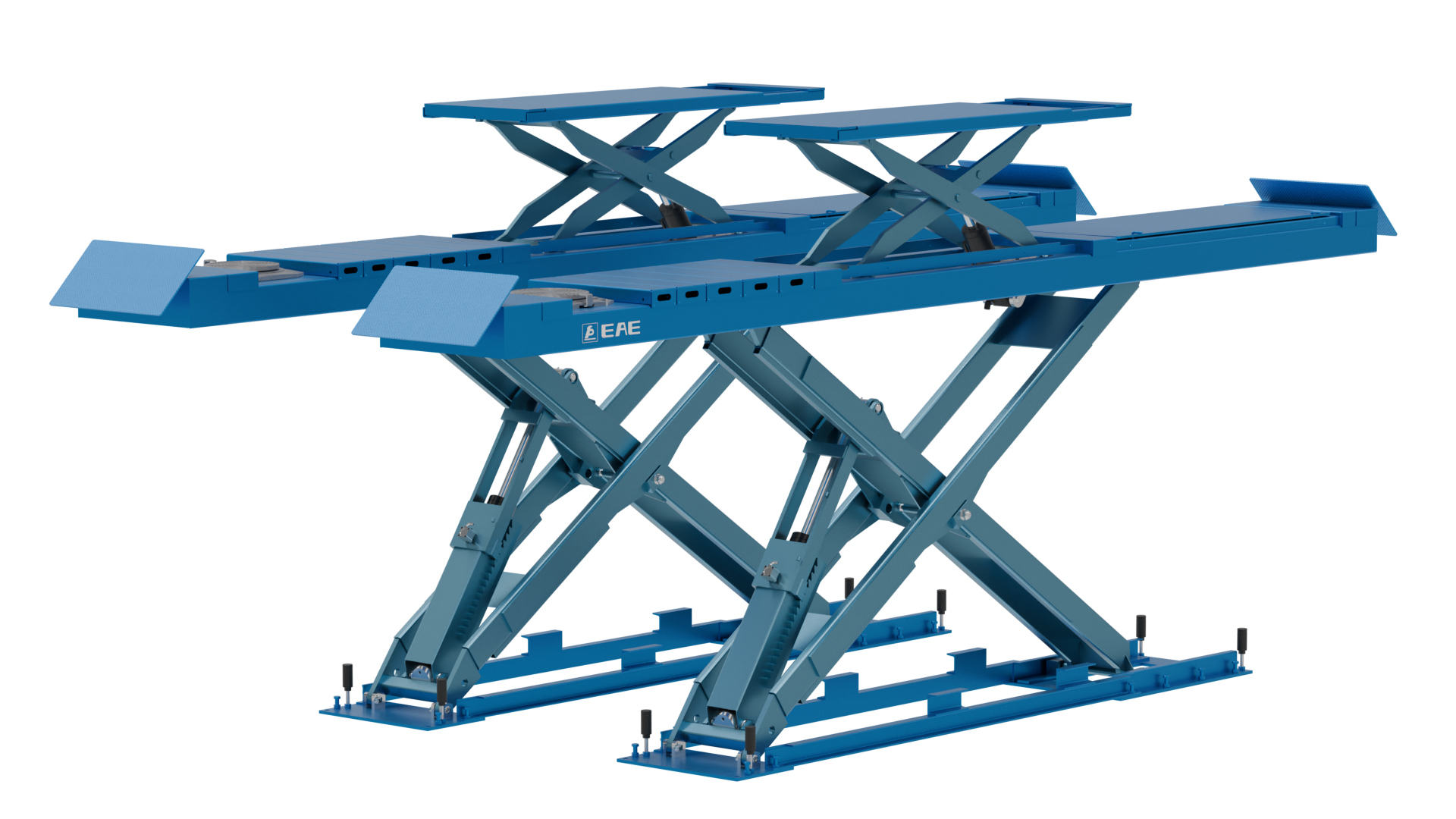

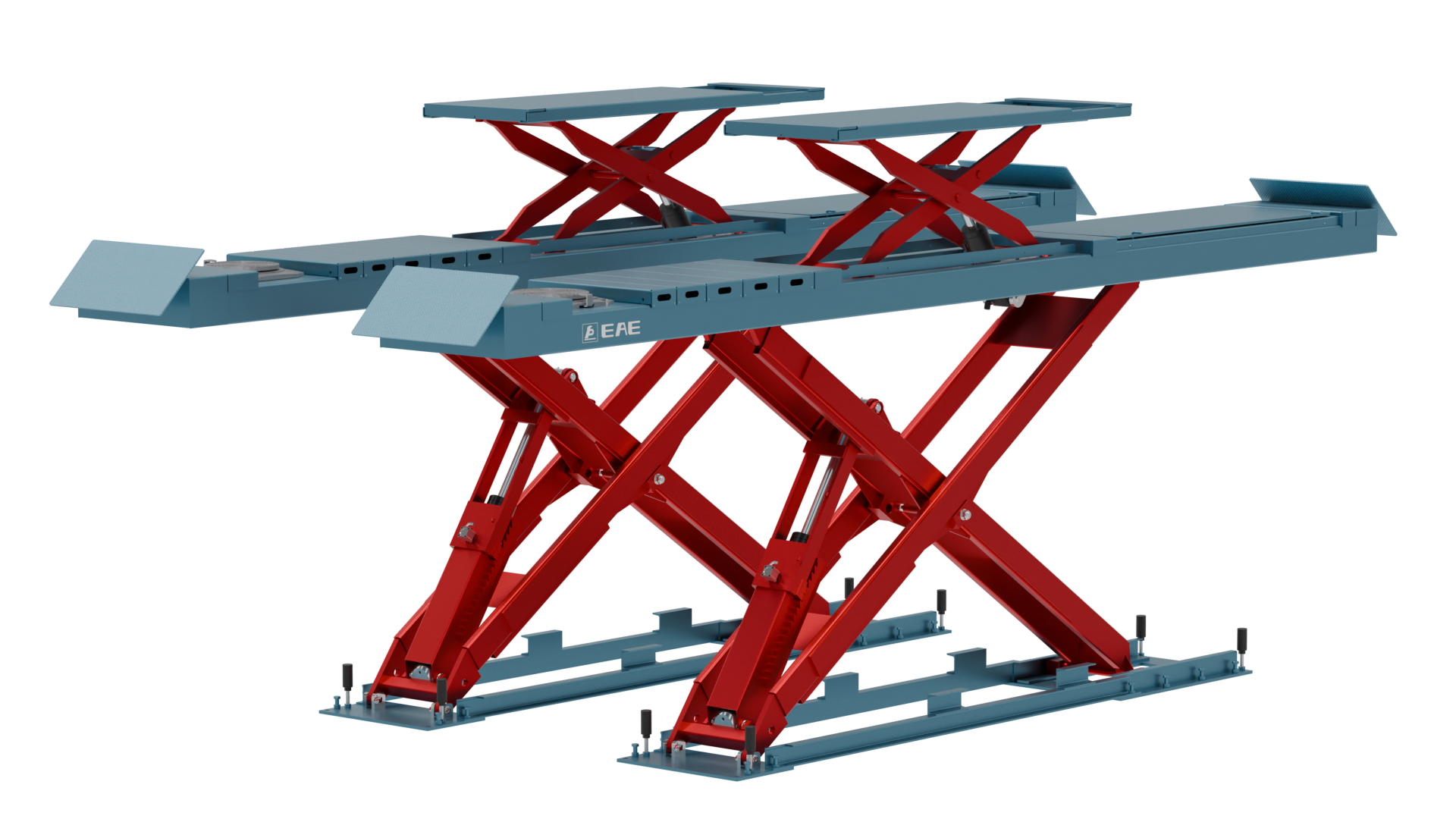

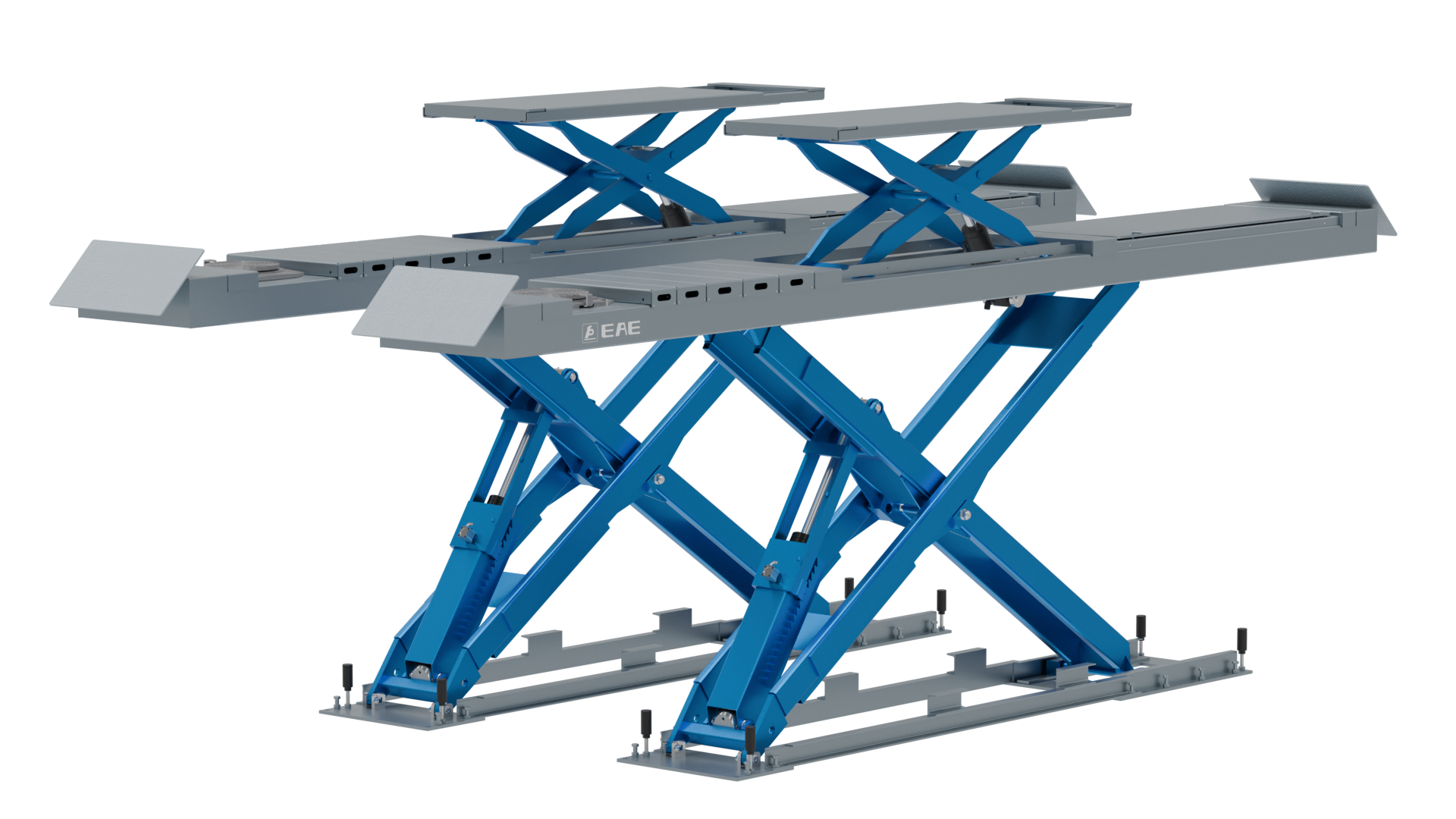

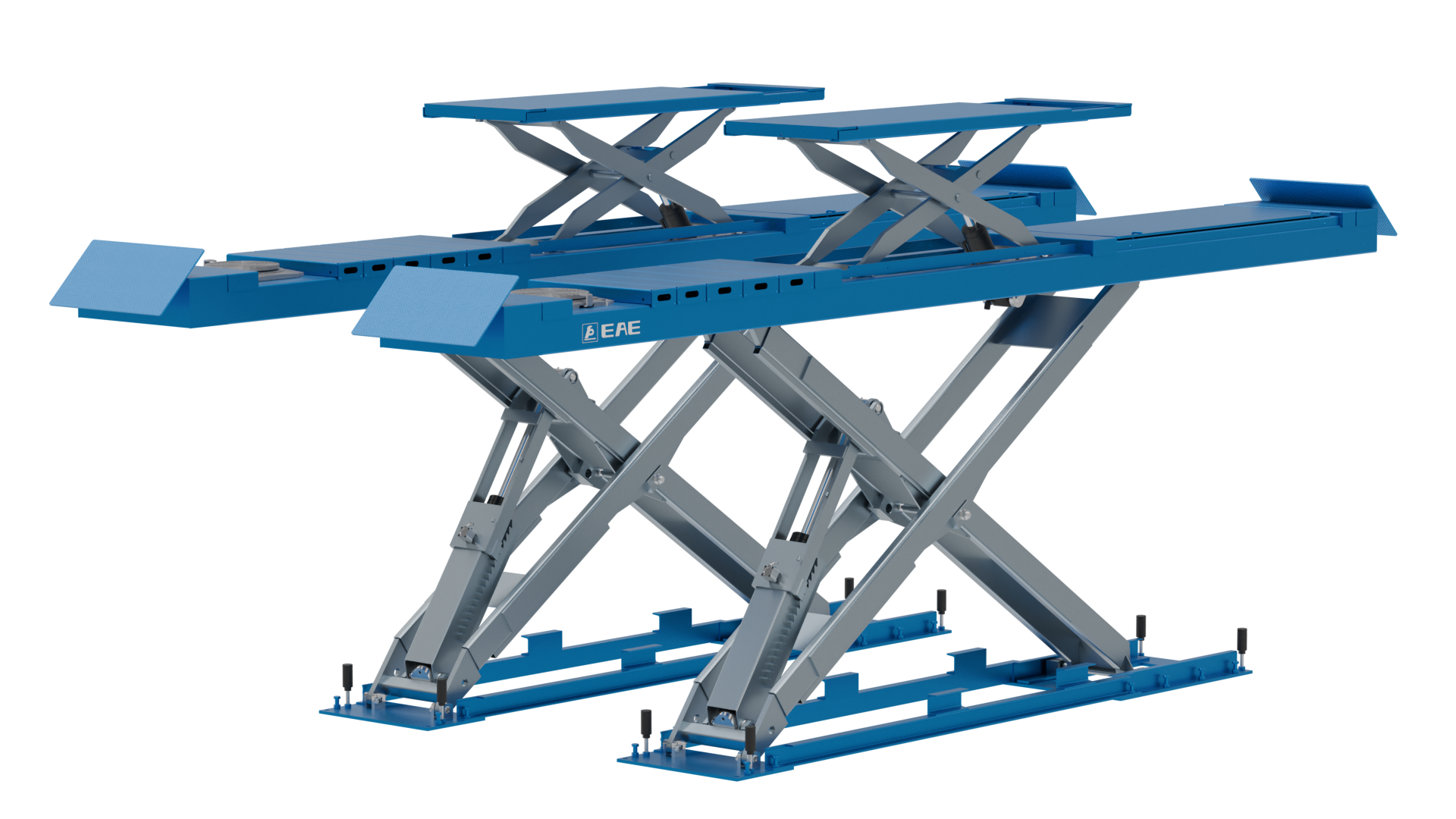

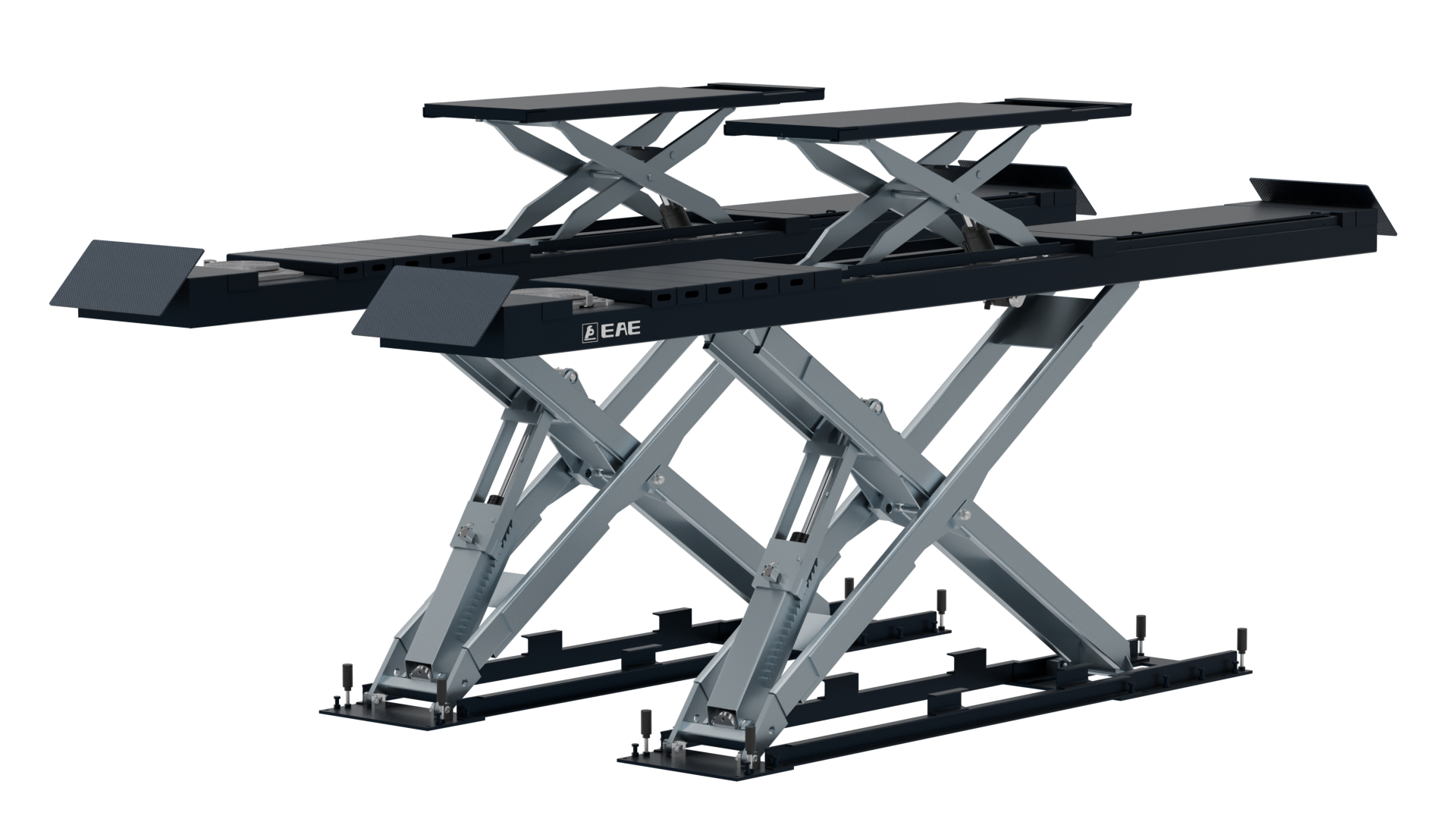

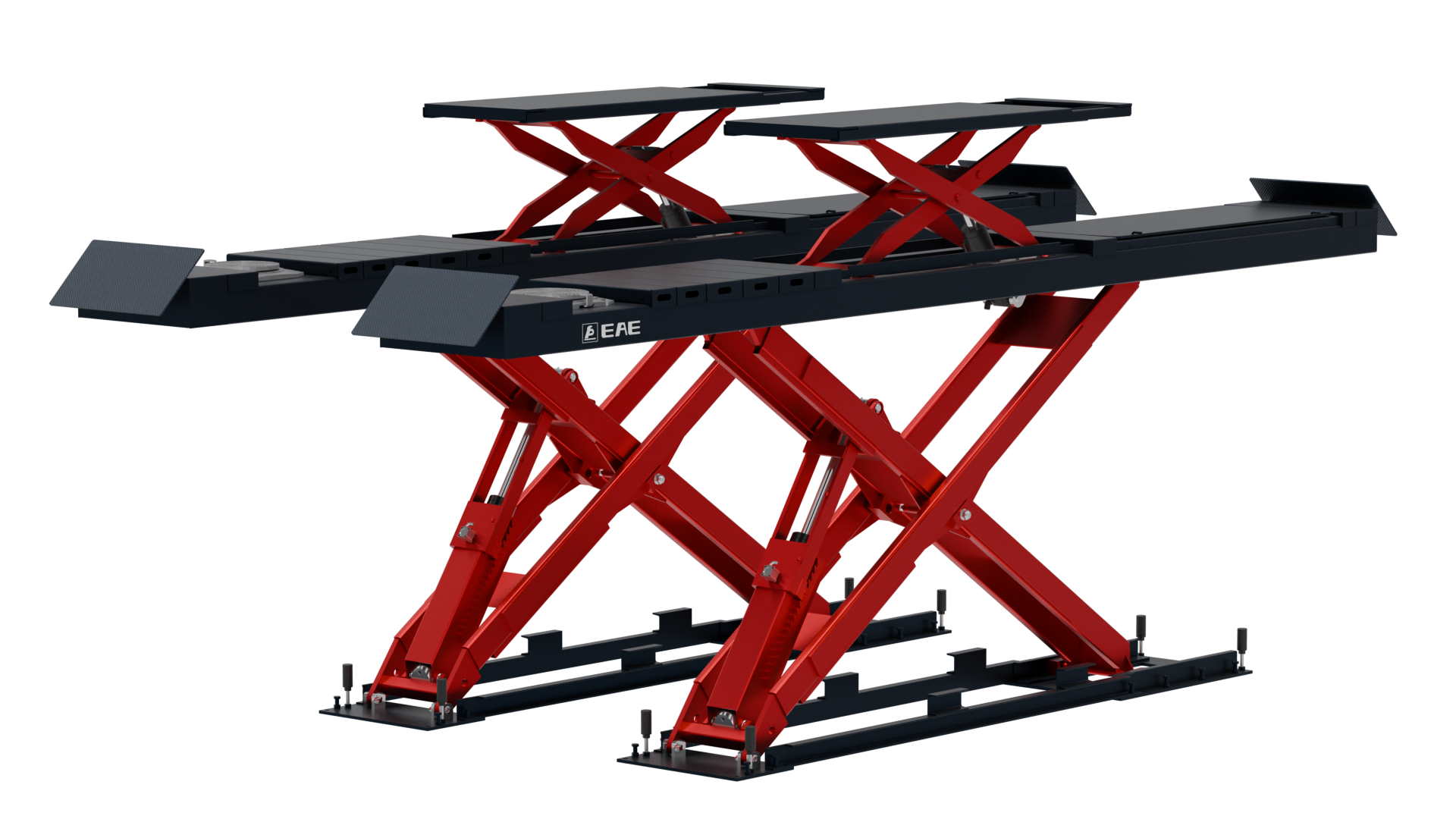

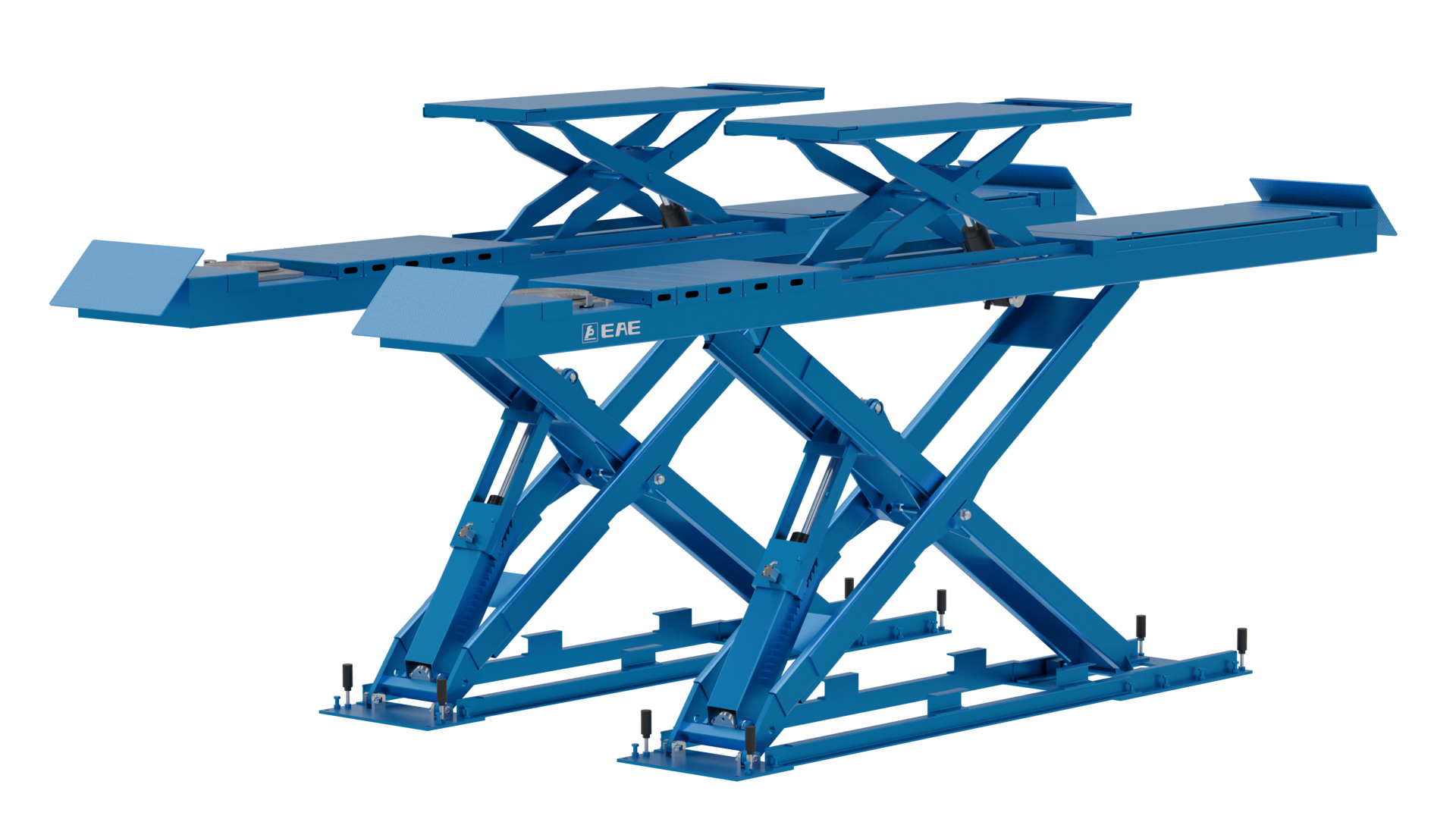

6603 Series | 4.2T/5.0T Alignment Scissor Lift

Share:
Product Image VR View

EAE

  • 2060mm

    Max Lifting Height

  • 360mm

    Min Height

  • 5342mm

    Platform Length

  • 610mm

    Platform Width

  • 50s

    Lifting Time

Accessories Details

P6241619

Rolling jack

Wheel Free Lift

Pneumatic Release System

Slip Plate

Mechanical Lock

Technical Data
Description
Overall Dimension
Brochure
Cases
MODEL NO. 6603
Lifting Capacity 4.2T/5.0T
Max Lifting Height 2060mm
Min Height 360mm
Platform Width 610mm
Lifting Time ≈50s
Air Supply 6-8bar
Capacity of Motor 4.2T(3.0kW)/5.0T(3.5kW)
Electricity Supply According To Customer Needs

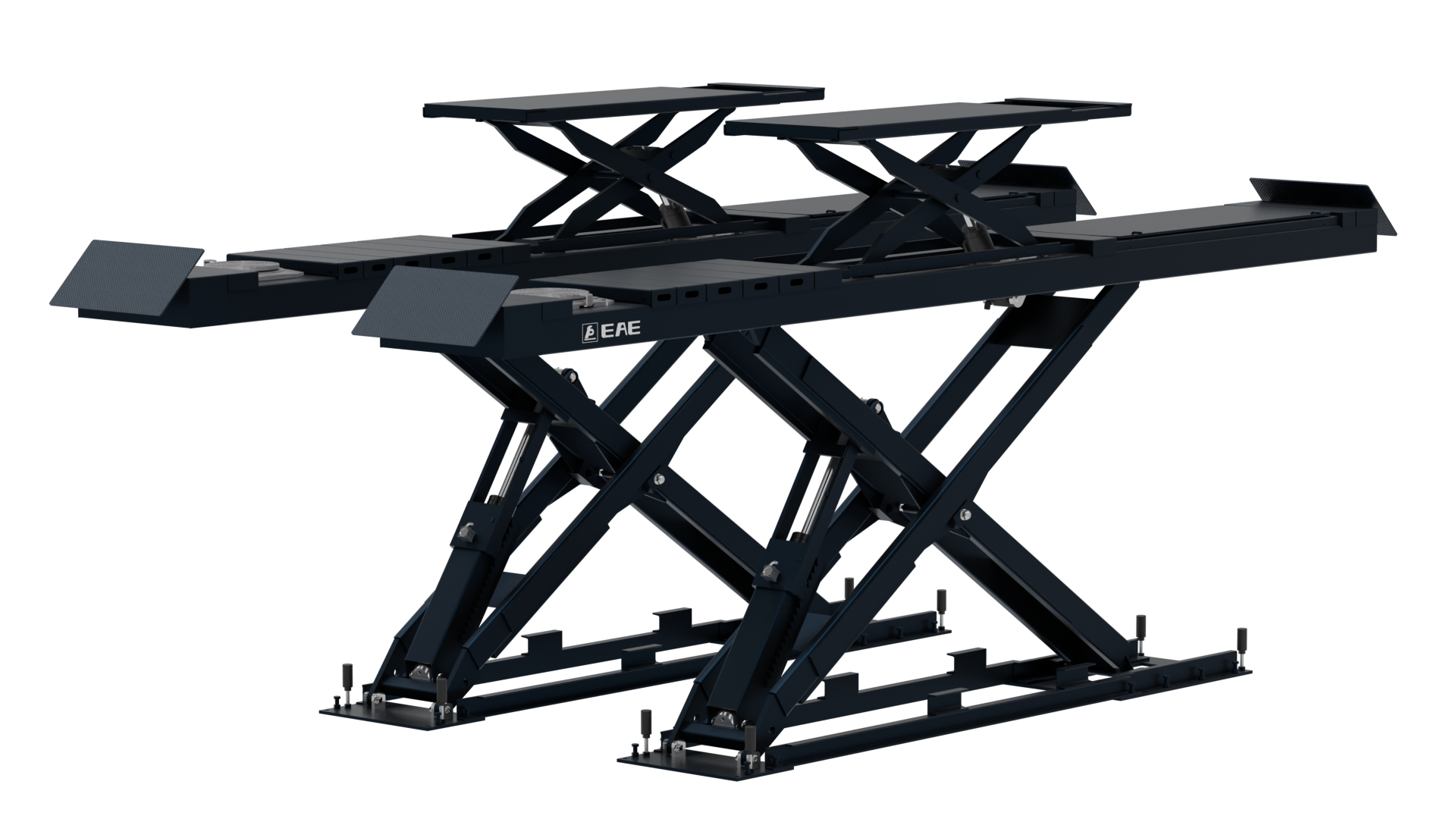

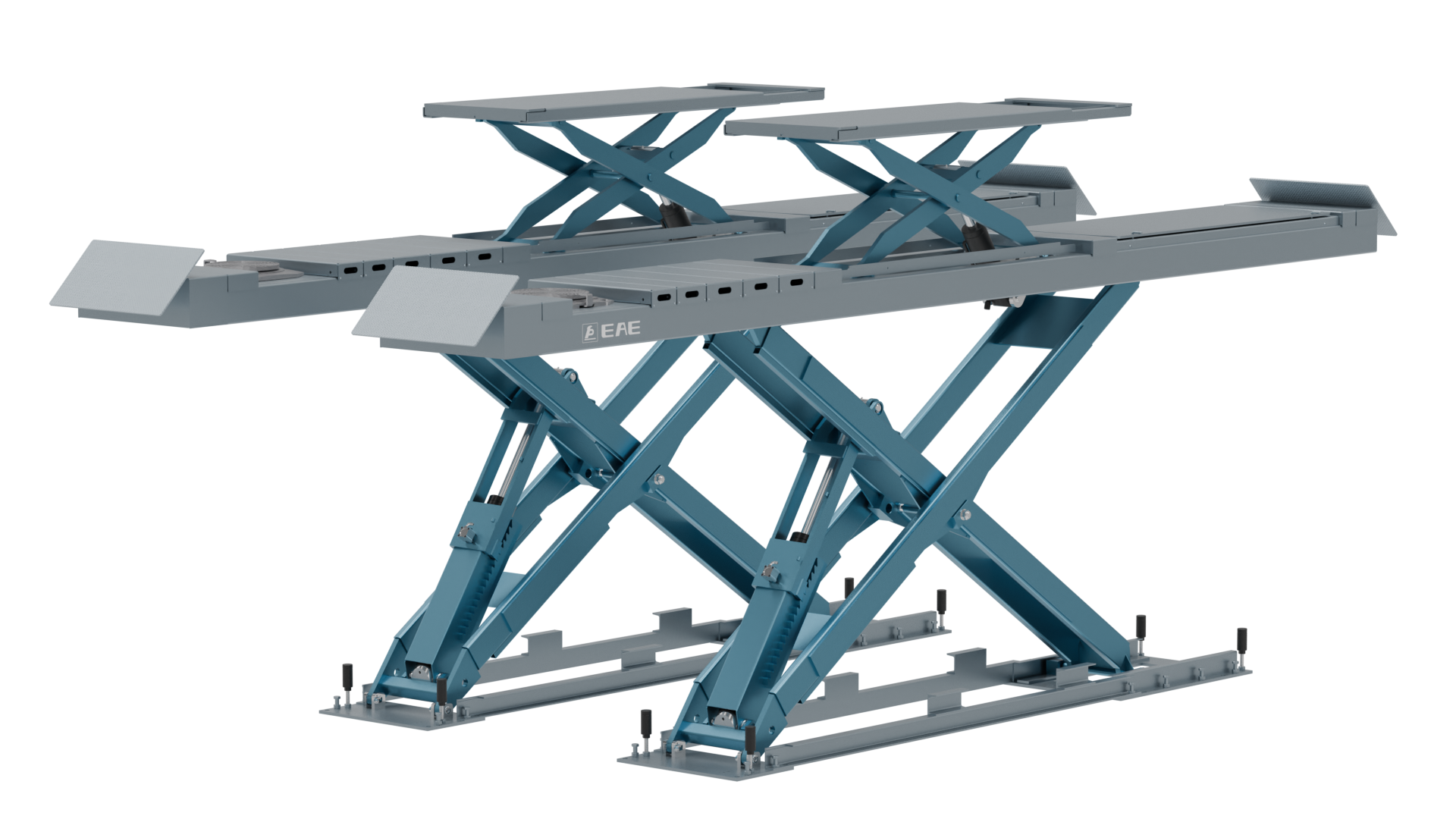

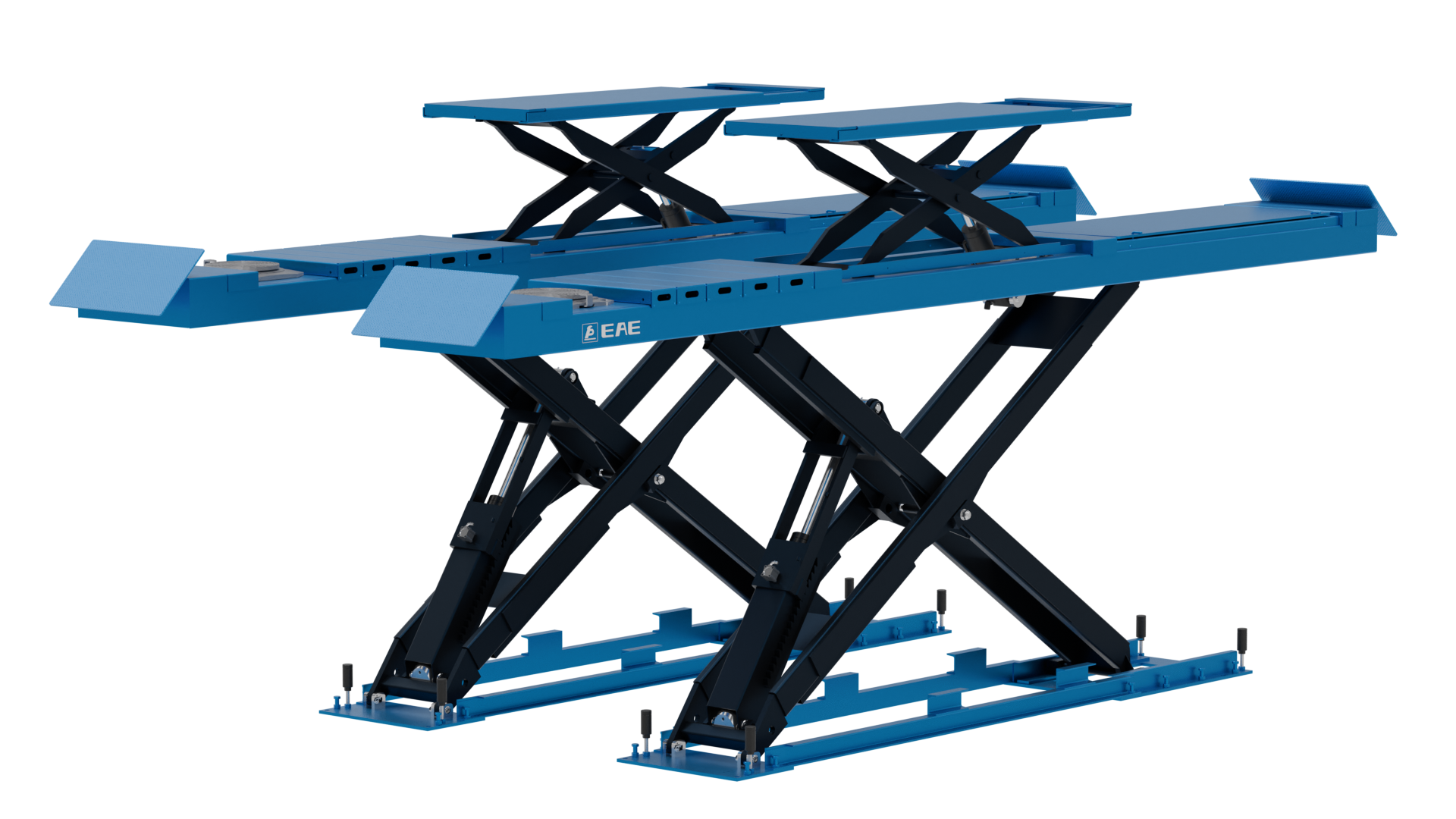

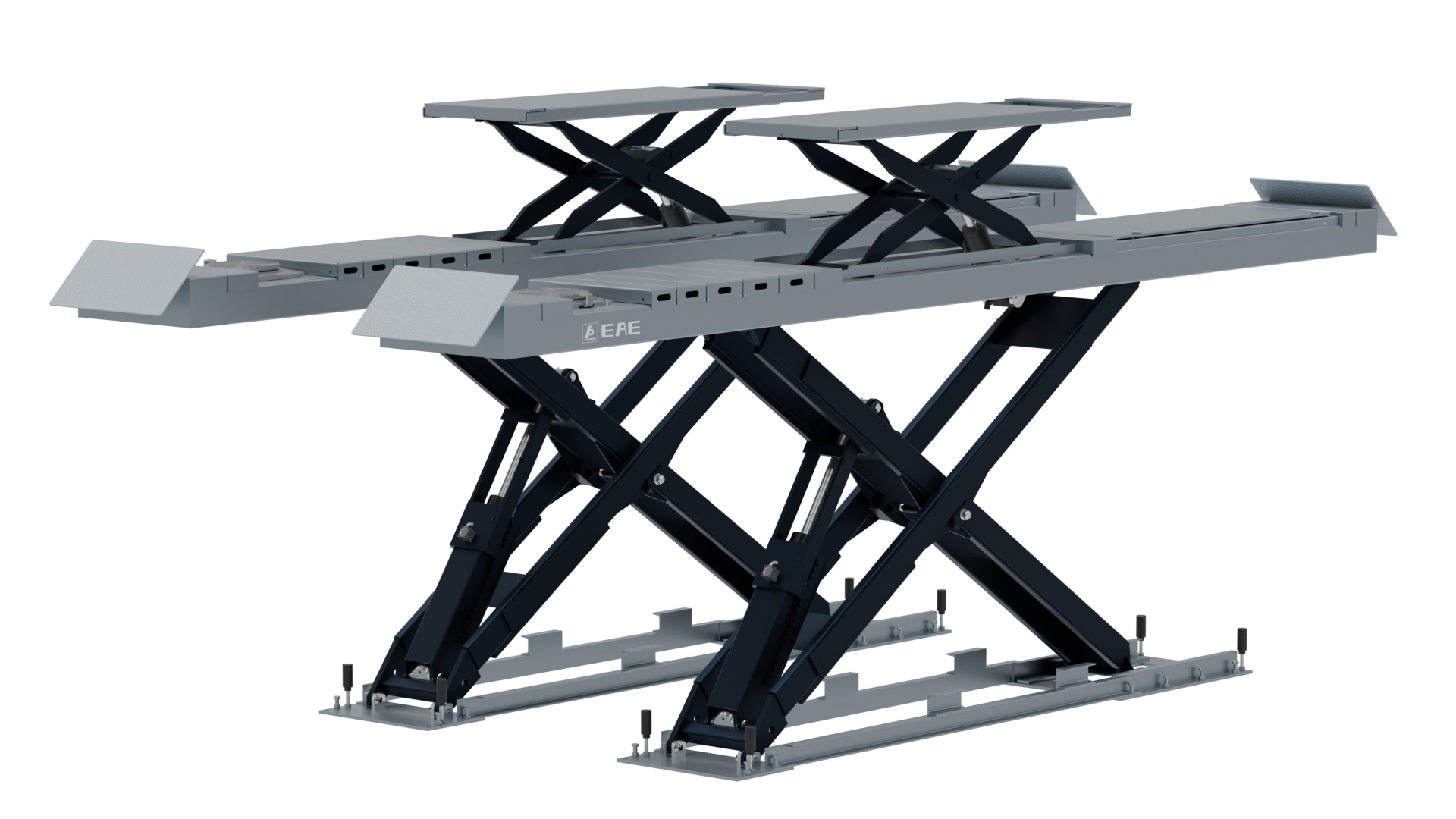

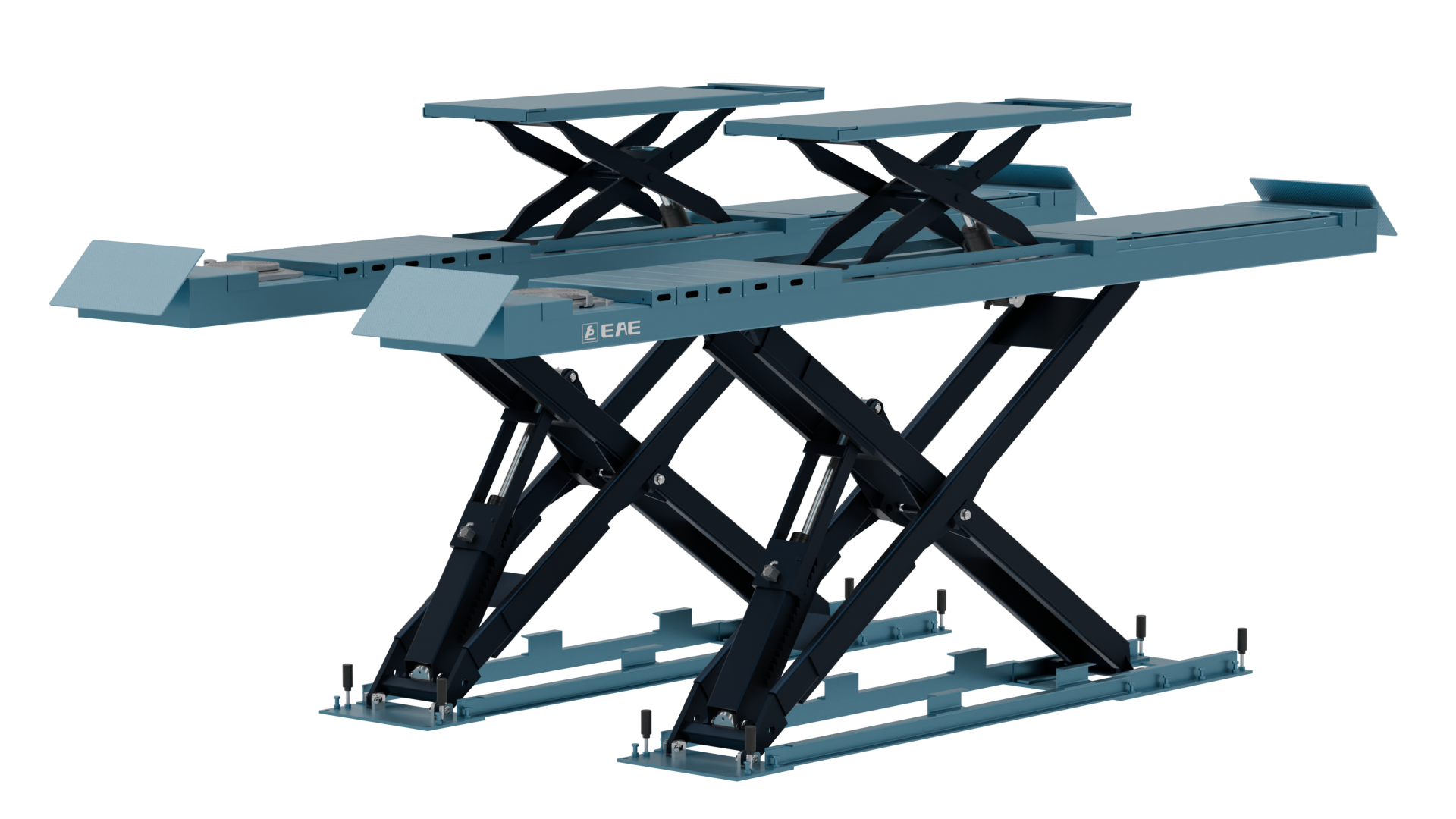

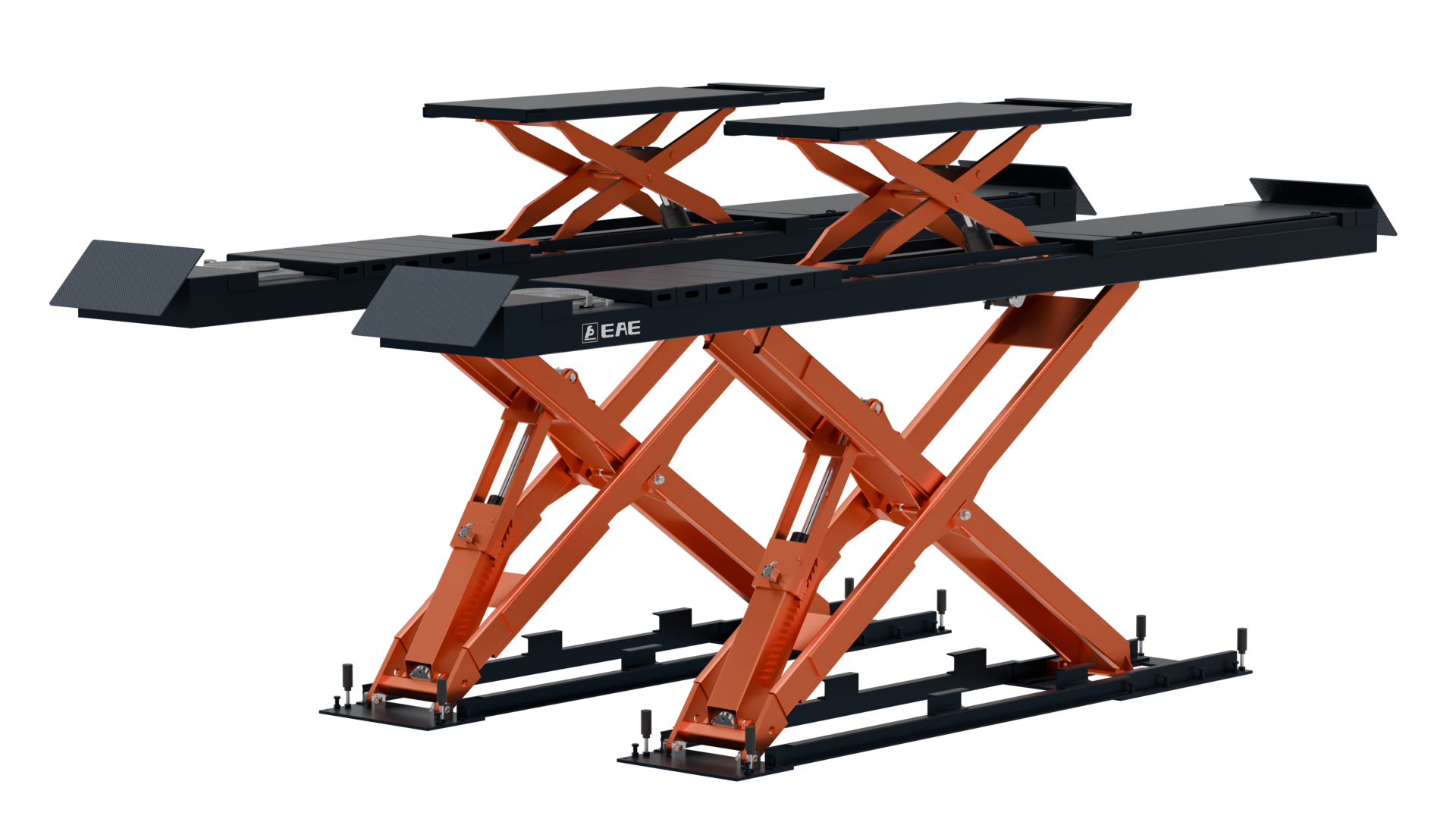

* Machine shown with optional equipment. Actual product appearance may differ.

·4.2T/5.0T lifting capacity
·Manual leveling(Automatic Leveling System or electrical leveling available)
·Infrared synchronization protection system
·In-ground installation or above-ground installation with optional drive-on ramps
·Long slip plate and adjustable turntable positions accommodate different sizes of wheelbases
·Pneumatic safety locking system
·The great planeness of runways is perfect for high accurate wheel aligning
·Driving-on ramps with polymer rollers
·Reserved tracks on platforms fit for optional rolling jacks (C Type)
·24V safe control system
·Self-lubricated bushing and bearing
·Safety descent alarming buzzer
·Aluminum motor, no risks of overheating
·Optional rolling jack
